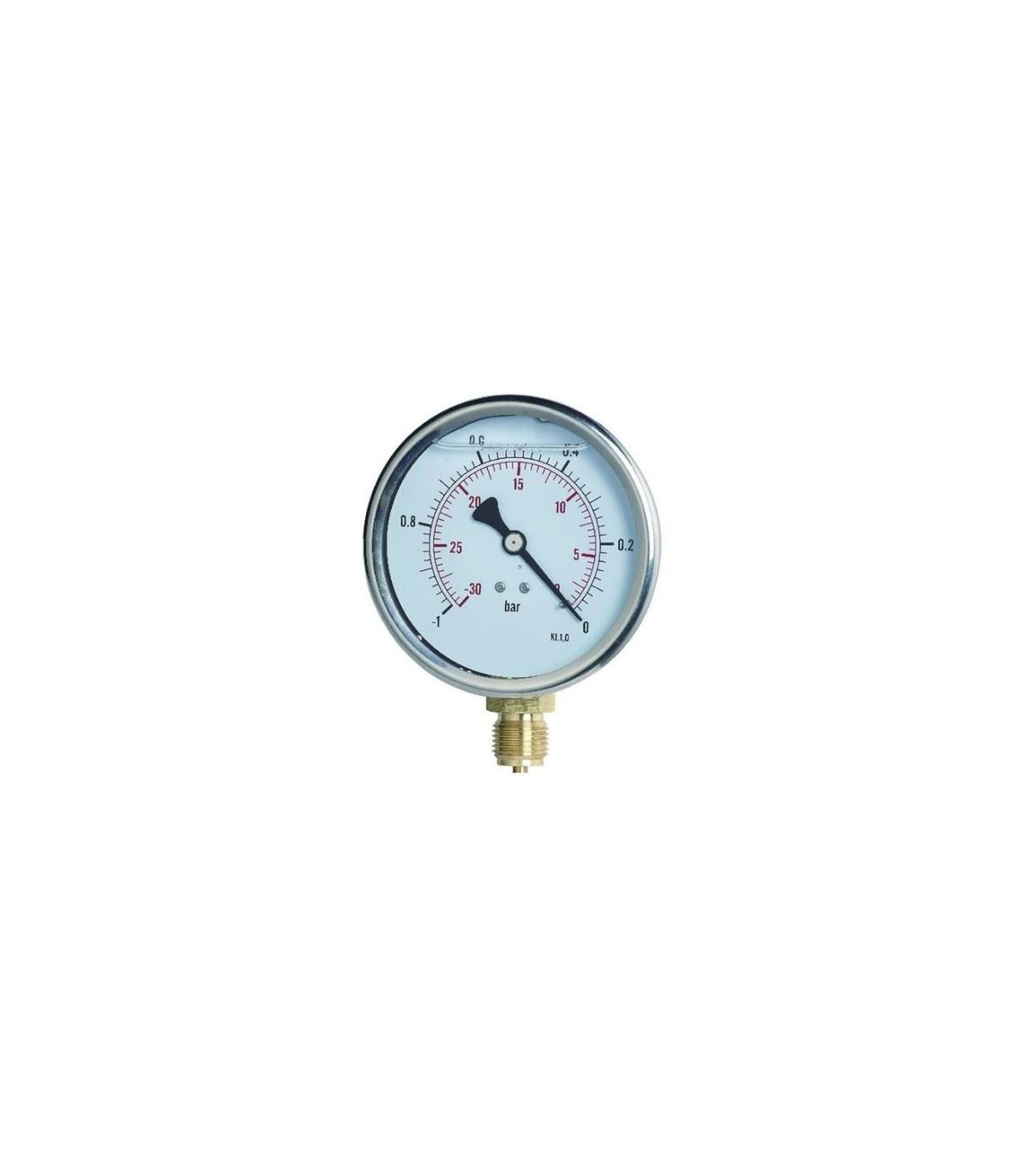

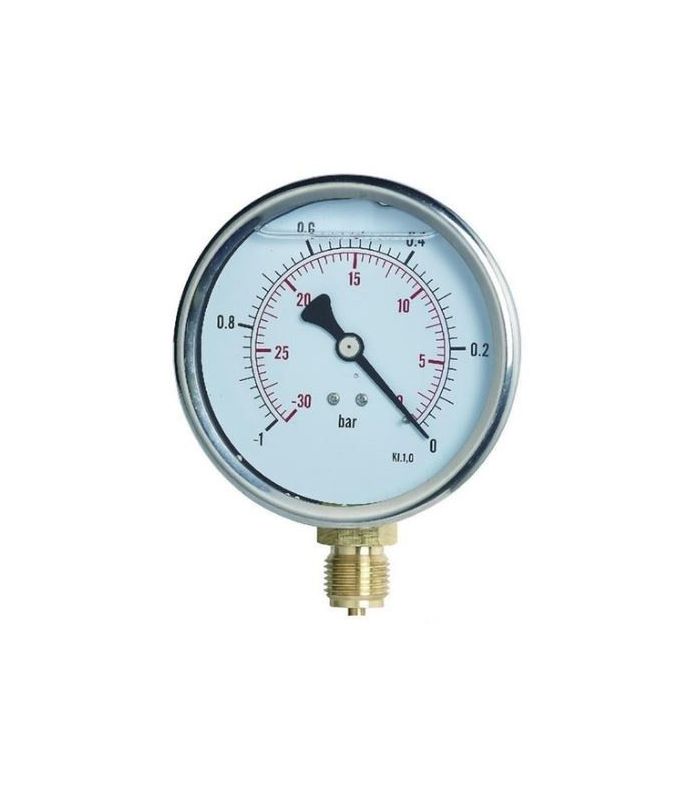

VACUUM GAUGE Ø63 SIDE THREAD 1/4" WITH GLYCERINE

VACUUM GAUGE Ø63 SIDE THREAD 1/4" WITH GLYCERINE

A 63 mm diameter, 1/4" side-threaded vacuum gauge filled with glycerin is an instrument used to measure pressure below atmospheric pressure, i.e., a vacuum. The glycerin dampens vibrations, preventing damage to the instrument and ensuring accurate readings in vibratory environments.

Applications: pneumatic industry, chemical industry, food industry and laboratories.

Main features:

  • Brass fitting.
  • Stainless steel case.
  • Black needle.
  • White lacquered aluminum sphere.
  • Glass screen.
  • Glycerin bath.
  • Tolerance +/- 1.7%
  • Temperature 70ºC
  • IP-65 protection rating
€18.03 (tax included)
€14.90 (tax excl.)
Reference:
4120
Description

Vacuum gauge Ø63 1/4" side thread with glycerin

A Ø63 side thread 1/4" vacuum gauge with glycerin is a measuring instrument designed to control negative pressure in vacuum circuits and equipment.

Its 63 mm diameter dial provides a clear scale reading, while the side connection allows for easy installation at the measuring point.

The glycerin filling helps to dampen vibrations and pressure pulsations, stabilizing the needle and facilitating reading in facilities with dynamic working conditions.

Applications

  • Vacuum systems.
  • Vacuum pumps.
  • Suction equipment.
  • Pneumatic installations.
  • Industrial machinery.
  • Automation.
  • Process equipment.

Technical specifications of a Ø63 vacuum gauge with 1/4" side thread and glycerin:

VACUOMETRO 63 R.LATERAL 14 CON GLICERINA

Product Details
4120
