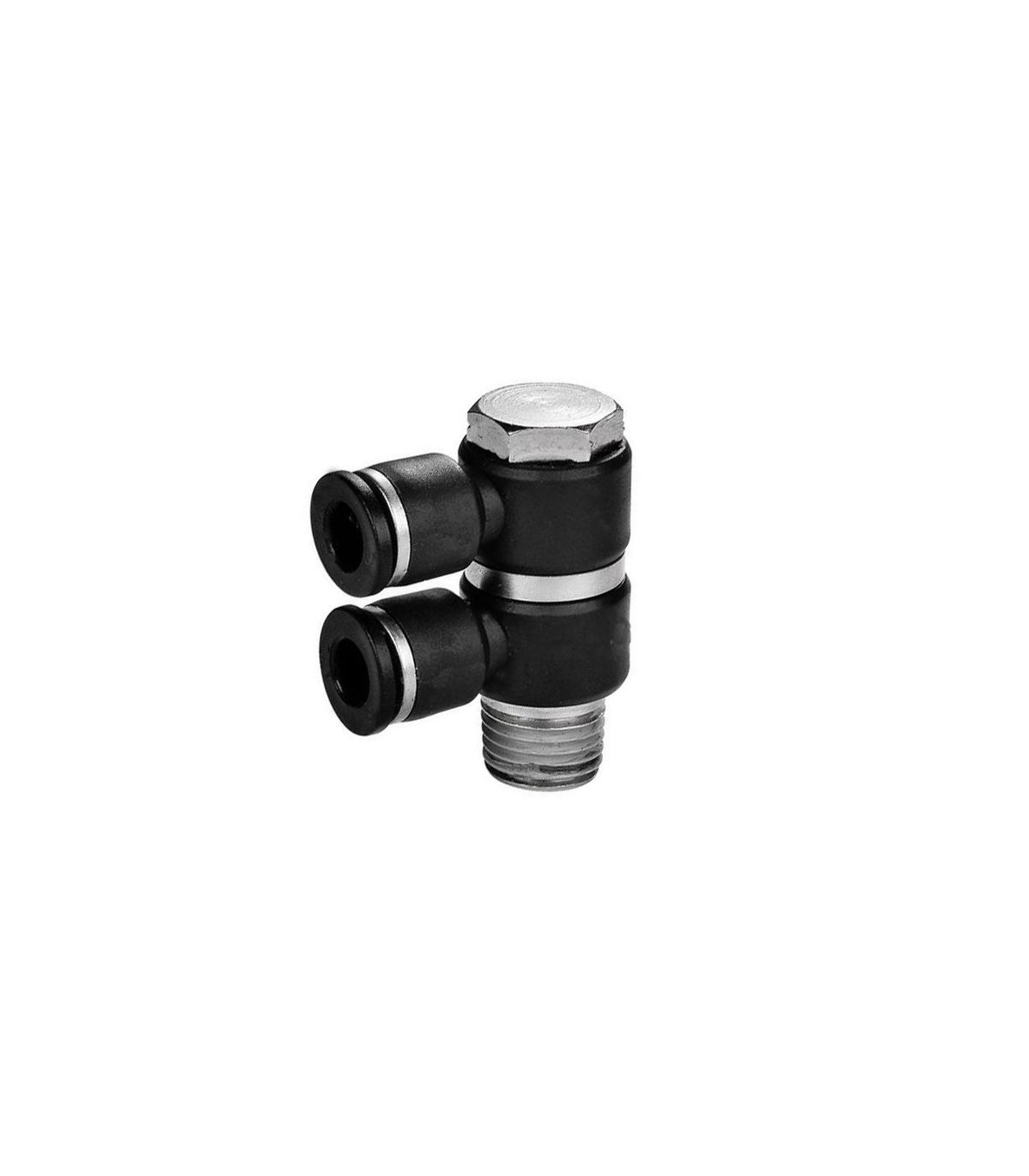

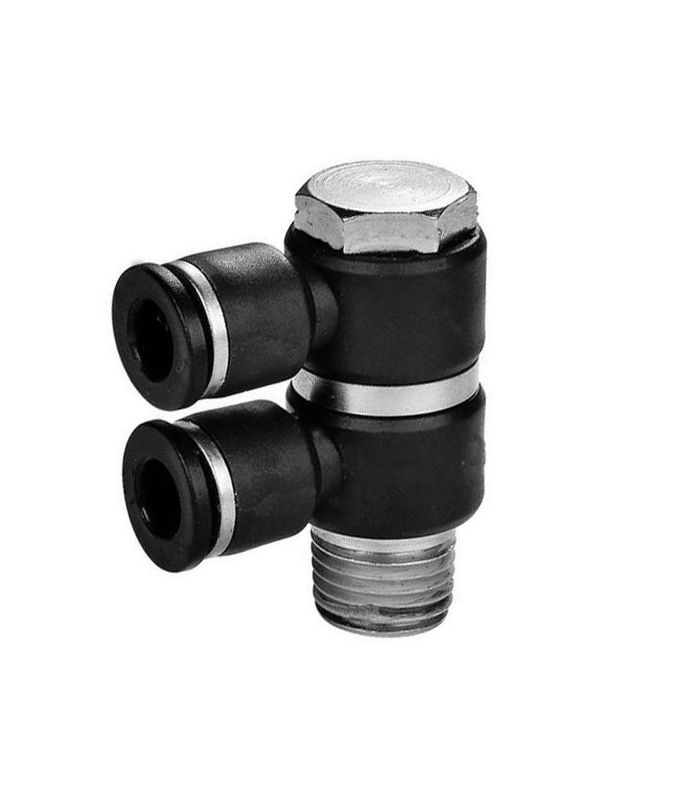

INSTANT FITTING MALE ELBOW OUTLET DOUBLE ADJUSTABLE PIPE
INSTANT FITTING MALE ELBOW OUTLET DOUBLE ADJUSTABLE PIPE
INSTANT FITTING MALE ELBOW OUTLET DOUBLE ADJUSTABLE PIPE
INSTANT FITTING MALE ELBOW OUTLET DOUBLE ADJUSTABLE PIPE

INSTANT FITTING MALE ELBOW OUTLET DOUBLE ADJUSTABLE PIPE

Instant fitting male elbow for double adjustable pipe outlet

An instant male elbow fitting with adjustable double tube outlet is a pneumatic connector designed to join two tubes to a male threaded socket, allowing for quick connection, adjustable orientation, and a 90° angle change of direction.

Applications: Industrial automation, pneumatic circuits, air control machinery and equipment.

Main features:

  • Working pressure -0.99 / 10 bar.
  • Temperature 0 /- 60ºC.
  • Wide range of Ø 4-16
  • Ease of connection
  • Cylindrical or tapered thread
  • Nickel-plated brass and PBT body
  • Stainless steel gripping clamp (301)
  • POM resin push ring
€8.18 (tax included)
€6.76 (tax excl.)
Tube diameter - Thread
  • Ø 4-1/8
  • Ø 4-1/4
  • Ø 6-1/8
  • Ø 6-1/4
  • Ø 6-3/8
  • Ø 8-1/8
  • Ø 8-1/4
  • Ø 8-3/8
  • Ø 8-1/2
  • Ø 10-1/4
  • Ø 10-3/8
  • Ø 10-1/2
  • Ø 12-1/4
  • Ø 12-3/8
  • Ø 12-1/2
Reference:
30170003
Description

Instant fitting male elbow for double adjustable pipe outlet

A quick-connect male elbow fitting with a double swivel outlet allows you to connect and disconnect tubing (generally plastic such as PU, PA, or PE) without tools, using a quick-insertion system. It has two tubing connections , allowing you to split or distribute the flow to two pneumatic lines at a 90-degree angle. Furthermore, the fitting body can rotate once installed , facilitating easy alignment of the tubing without forcing it.

Applications

  • Industrial automation
  • Pneumatic circuits
  • Air control machinery and equipment
  • Systems where space is limited and flexibility in orientation is required

Technical specifications of an instant male elbow fitting for adjustable double pipe outlet:

CODO MACHO SALIDA TUBO DOBLE ORIENTABLE

Product Details
30170003
