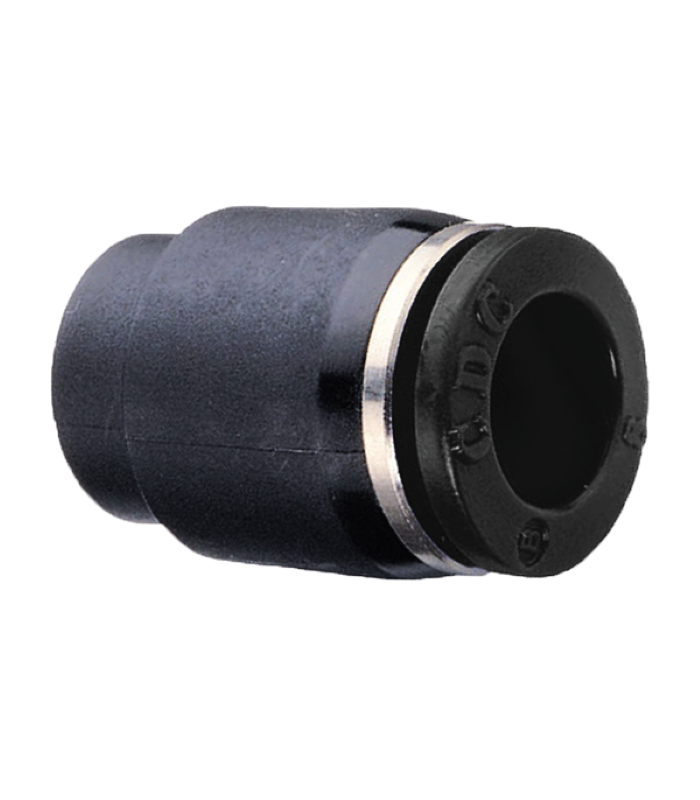

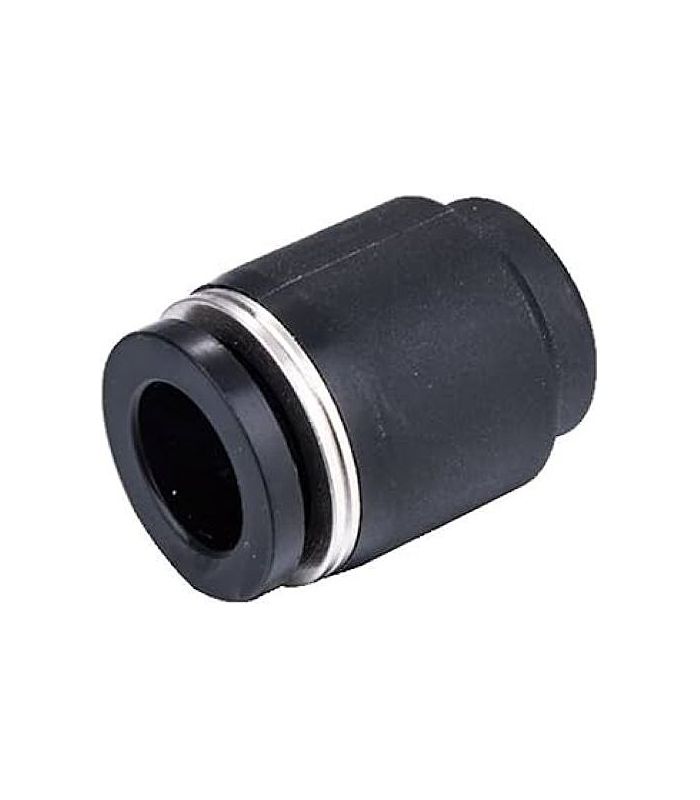

INSTANT FITTING FEMALE TUBE PLUG
INSTANT FITTING FEMALE TUBE PLUG
INSTANT FITTING FEMALE TUBE PLUG
INSTANT FITTING FEMALE TUBE PLUG
INSTANT FITTING FEMALE TUBE PLUG
INSTANT FITTING FEMALE TUBE PLUG

INSTANT FITTING FEMALE TUBE PLUG

An instant female tube plug fitting is a connector used in pneumatic or low-pressure fluid systems that allows the end of a tube to be quickly and easily closed or locked using an instant connection system.

Applications: Pneumatic systems, Low pressure fluid systems, Control panels, Prototypes and temporary assemblies.

Technical specifications:

  • Working pressure -0.99 / 10 bar.
  • Temperature 0 /- 60ºC.
  • Wide range of Ø 4-16
  • Ease of connection
  • Cylindrical or tapered thread
  • Body in nickel-plated brass and PBT.
  • Stainless steel gripping clamp (301)
  • POM resin push ring
€0.99 (tax included)
€0.82 (tax excl.)
DIAMETERS
  • Ø 4
  • Ø 6
  • Ø8
  • Ø 10
  • Ø 12
Reference:
30290001
Description

Instant fitting female tube plug

An instant female tube plug fitting is a pneumatic connector designed to securely close and seal a compressed air line that uses an instant connection, also incorporating a female thread for installation on components with male threads.

Its main function is to block the passage of air at one end of the circuit or at an unused outlet , ensuring the system's airtightness and preventing leaks.

Common applications

  • Closing off pneumatic fitting or manifold outlets
  • Isolation of lines during maintenance or repair
  • Unused circuit blocking
  • Configuration and modification of pneumatic installations

Technical specifications for an instant female tube plug fitting:

TAPON TUBO HEMBRA

Product Details
30290001
