INSTANT FITTING STRAIGHT UNION PIPE HEXAGON THREAD INT.
INSTANT FITTING STRAIGHT UNION PIPE HEXAGON THREAD INT.
INSTANT FITTING STRAIGHT UNION PIPE HEXAGON THREAD INT.
INSTANT FITTING STRAIGHT UNION PIPE HEXAGON THREAD INT.

INSTANT FITTING STRAIGHT UNION PIPE HEXAGON THREAD INT.

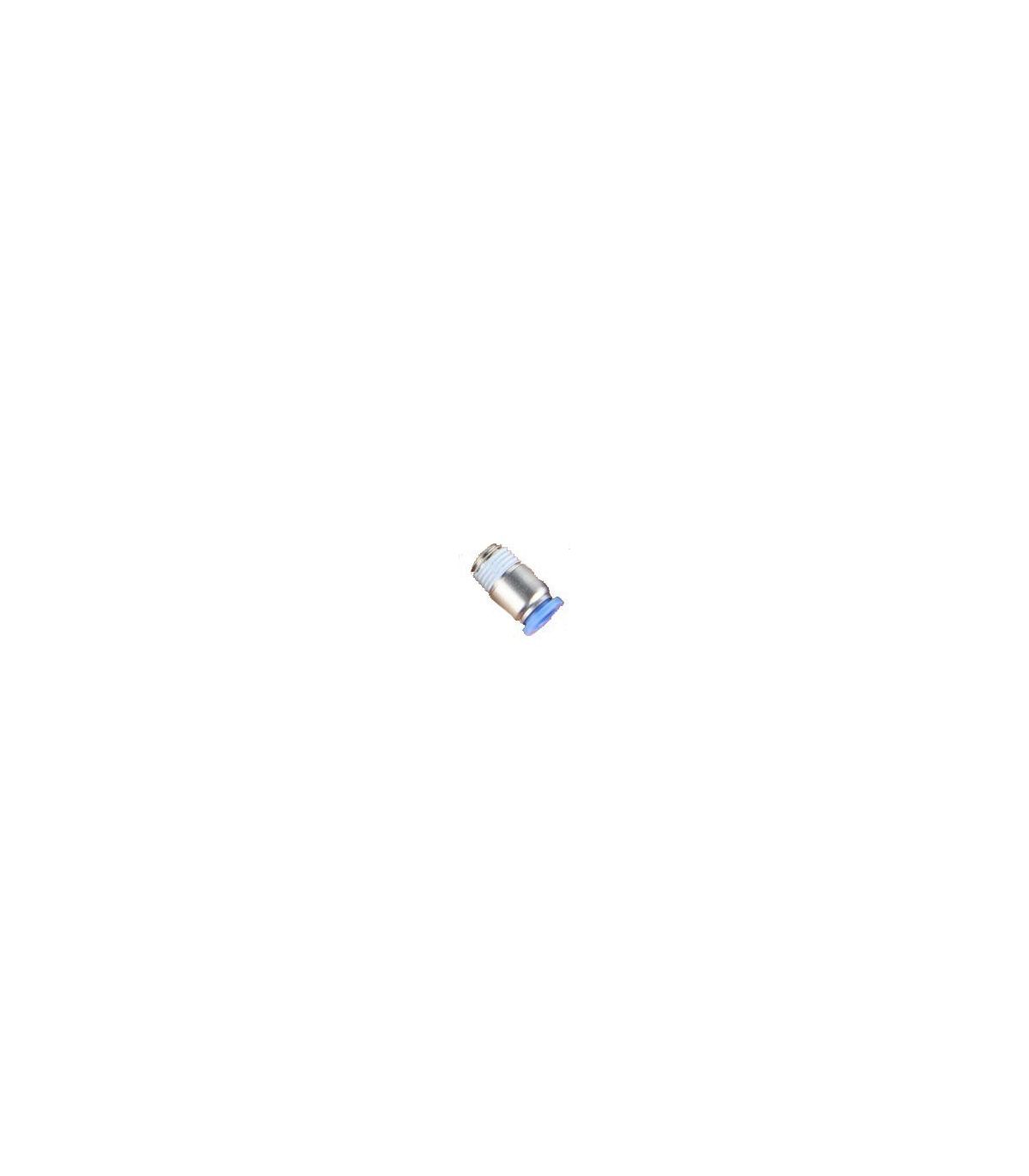

Instant straight union fitting for internal hexagon threaded pipe

The instant straight union fitting with internal hexagon thread is a quick-connect fitting used to join a pneumatic tube to a threaded component, maintaining a straight connection and allowing for easy installation.

It is primarily intended for pneumatic and industrial automation systems.

Main features:

  • Working pressure -0.99 / 10 bar.
  • Temperature 0 /- 60ºC.
  • Wide range of Ø 4-16
  • Ease of connection
  • Cylindrical or tapered thread
  • Body in nickel-plated brass and PBT
  • Stainless steel gripping clamp (301)
  • POM resin push ring
€1.54 (tax included)
€1.27 (tax excl.)
Tube diameter - Thread
  • Ø 4-1/8
  • Ø 4-1/4
  • Ø 6-1/8
  • Ø 6-1/4
  • Ø 6-3/8
  • Ø 8-1/8
  • Ø 8-1/4
  • Ø 8-3/8
  • Ø 8-1/2
  • Ø 10-1/8
  • Ø 10-1/4
  • Ø 10-3/8
  • Ø 10-1/2
  • Ø 12-1/4
  • Ø 12-3/8
  • Ø 12-1/2
Reference:
30140003
Description

Instant straight union fitting for internal hexagon threaded pipe

An instant straight union fitting with internal hexagon thread is a quick-connect fitting used to join a pneumatic tube to a threaded component, maintaining a straight connection and allowing for easy installation.

It is a fitting designed with an instant connection system for the tube and a threaded end that incorporates an internal hexagon to facilitate tightening in confined spaces. It is primarily intended for pneumatic and industrial automation systems.

Main features

  • Instant connection for tubing (quick insertion without tools)
  • Straight joint that maintains flow alignment
  • Thread with internal hexagon for compact mounting
  • Sealed by means of an integrated O-ring
  • Made of nickel-plated brass or technical polymers

Common applications

  • Pneumatic systems
  • Industrial automation and control
  • Compressed air equipment
  • Machinery with limited assembly space

Technical data sheet for the instant straight union fitting with internal hexagon thread:

UNION RECTA TUBO ROSCA HEXAGONO INT.

Product Details
30140003
