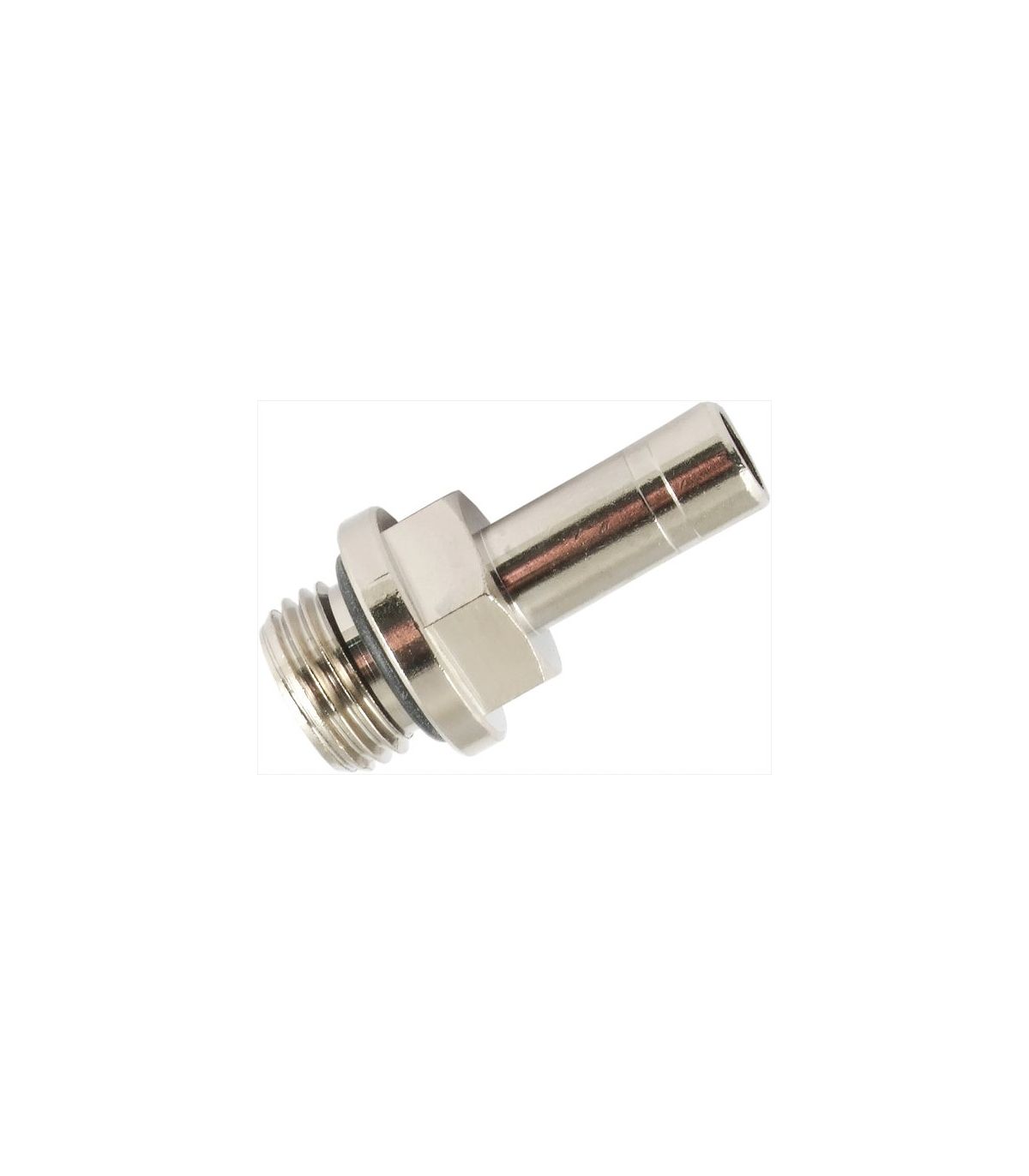

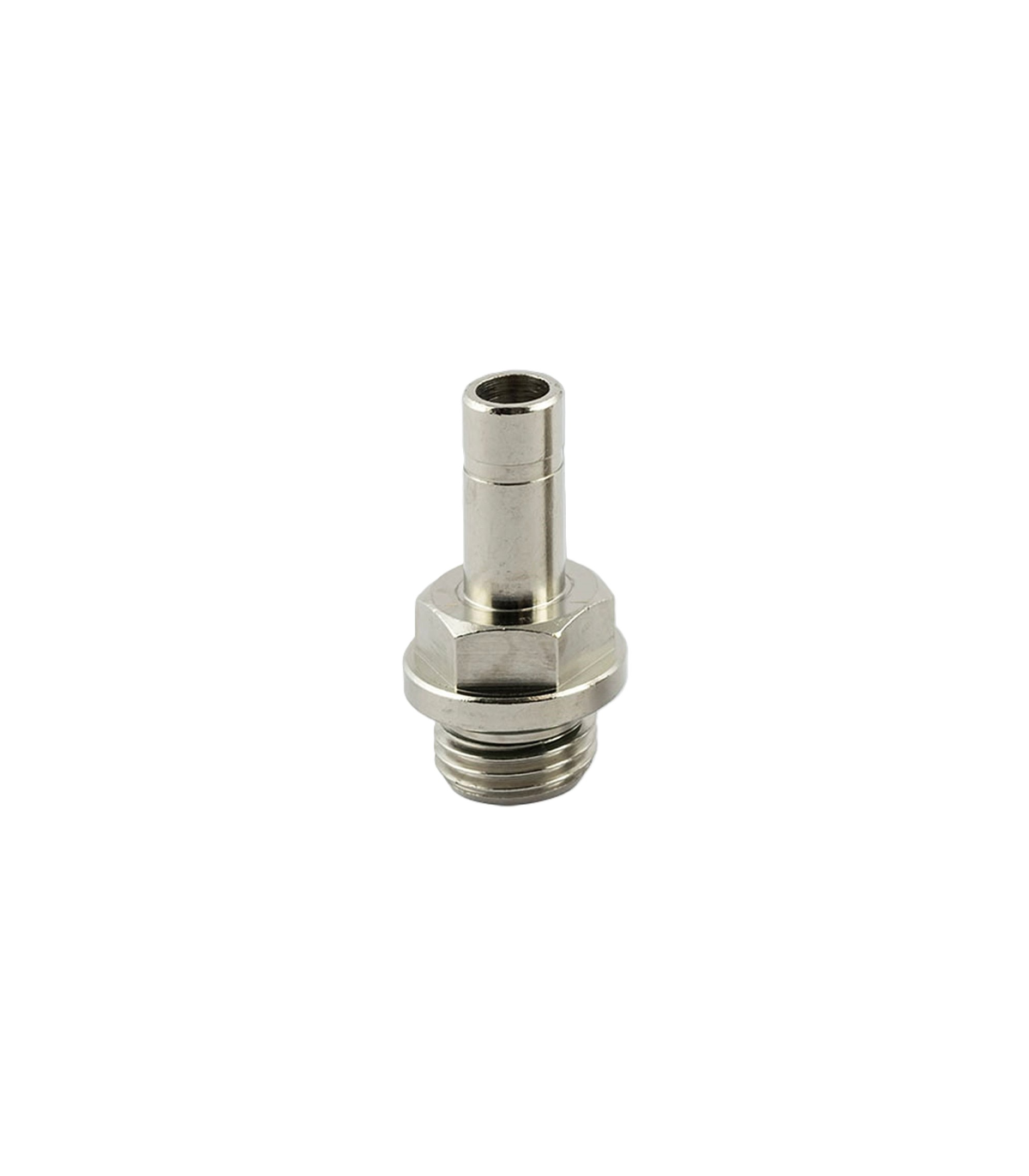

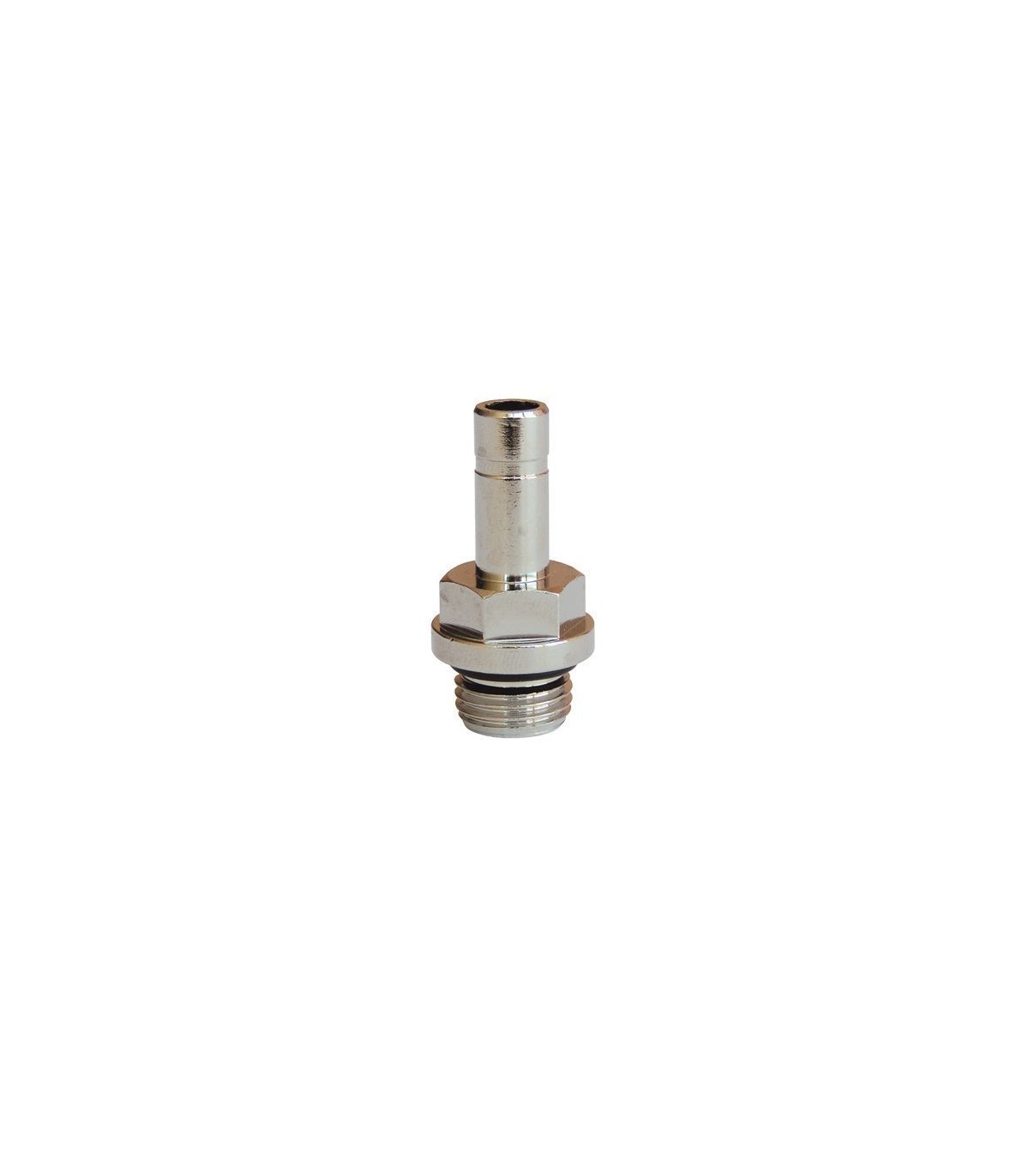

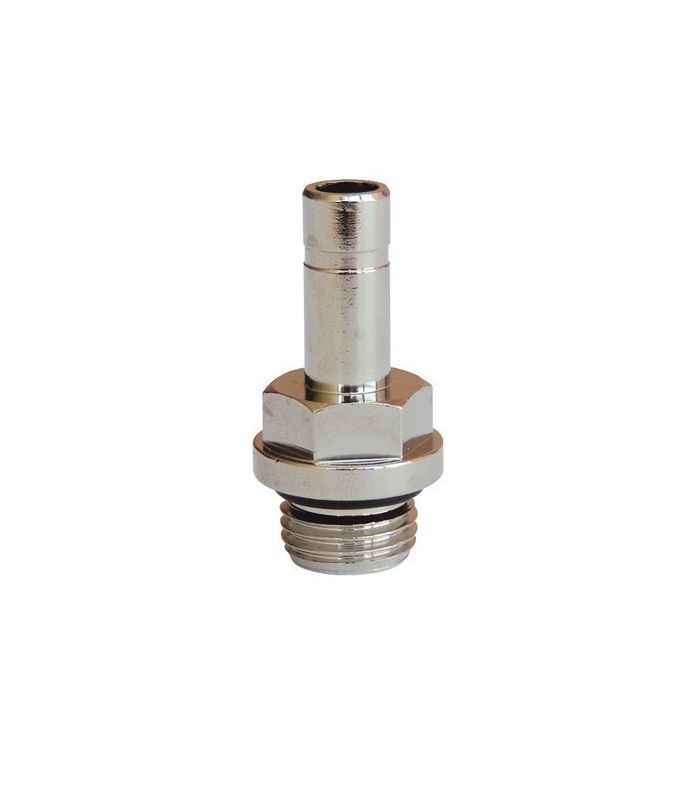

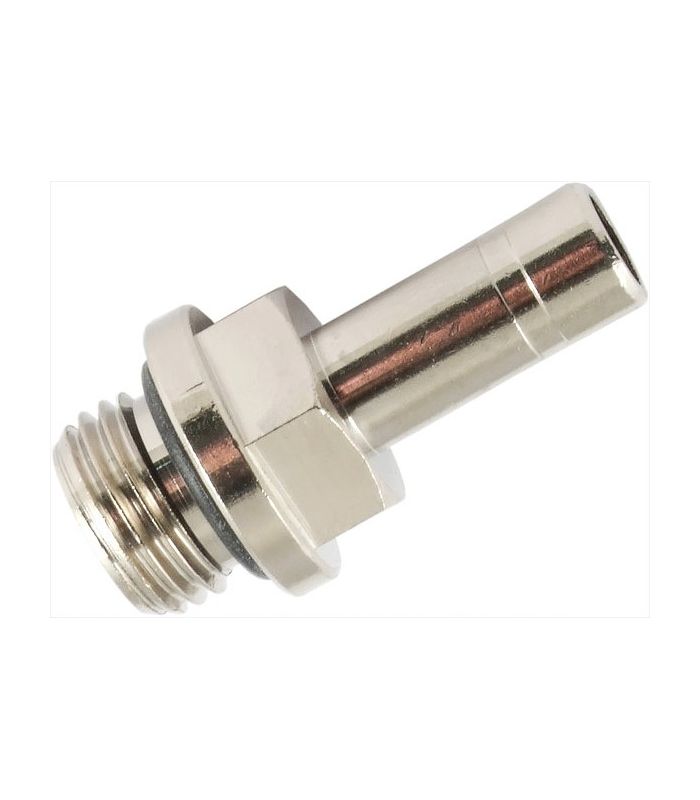

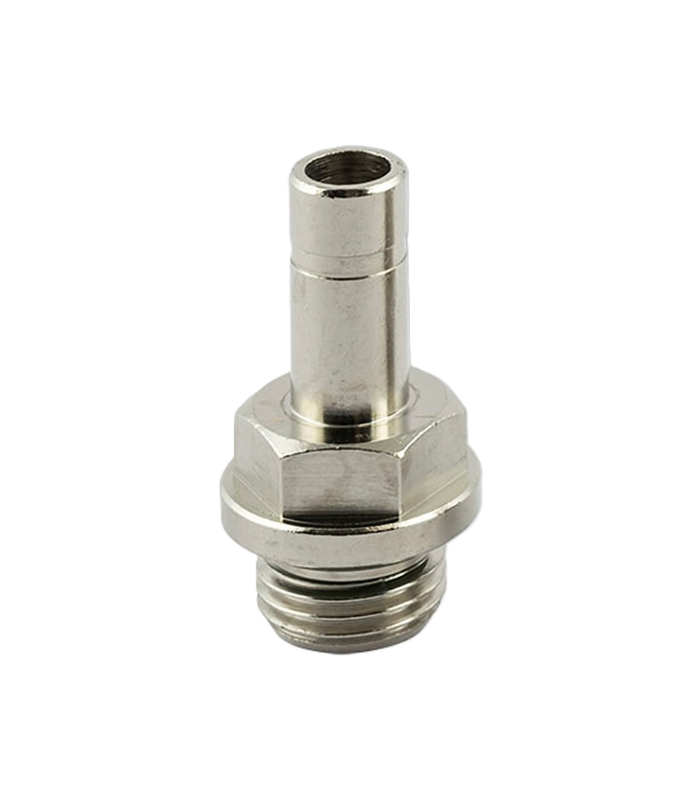

INSTANT FITTING INSERTABLE THREADED JOINT
INSTANT FITTING INSERTABLE THREADED JOINT
INSTANT FITTING INSERTABLE THREADED JOINT
INSTANT FITTING INSERTABLE THREADED JOINT
INSTANT FITTING INSERTABLE THREADED JOINT
INSTANT FITTING INSERTABLE THREADED JOINT

INSTANT FITTING INSERTABLE THREADED JOINT

A threaded insert fitting is primarily used in pneumatic systems. It is designed to connect flexible or semi-rigid tubing to a threaded port on a component.

Applications: Industrial automation, Robotics, Packaging machinery, Laboratory and medical equipment, Compressed air systems, Dosing systems.

Technical specifications:

  • Working pressure -0.99/10 bar.
  • Temperature 0 /- 60ºC.
  • Wide range of DE Ø 4-16
  • Ease of connection
  • Cylindrical or tapered thread
  • Body in nickel-plated brass and PBT
  • Stainless steel gripping clamp (301)
  • POM resin push ring
€0.70 (tax included)
€0.58 (tax excl.)
Tube diameter - Thread
  • Ø 4-M5
  • Ø 4-1/8
  • Ø 4-1/4
  • Ø 6-M5
  • Ø 6-1/8
  • Ø 6-1/4
  • Ø 6-3/8
  • Ø 8-1/8
  • Ø 8-1/4
  • Ø 8-3/8
  • Ø 10-1/4
  • Ø 10-3/8
  • Ø 10-1/2
  • Ø 12-1/4
  • Ø 12-3/8
  • Ø 12-1/2
  • Ø 14-3/8
  • Ø 14-1/2
Reference:
30340001
Description

Instant threaded insert fitting

An instant push-in threaded coupling is a pneumatic connector designed to join a tube by means of a push-in connection with a threaded connection, allowing the integration of pneumatic lines with threaded components within a compressed air circuit.

This type of fitting combines the speed and ease of assembly of the instant system with the security of a threaded joint, facilitating efficient and highly watertight installations.

Applications

  • Industrial pneumatic systems
  • Automation and machinery
  • Compressed air circuits
  • Pneumatic control equipment
  • Installations that combine pneumatic tubing and threaded connections

Technical specifications of an instant threaded insert fitting:

EMPALME INSERTABLE A ROSCA

Product Details
30340001
