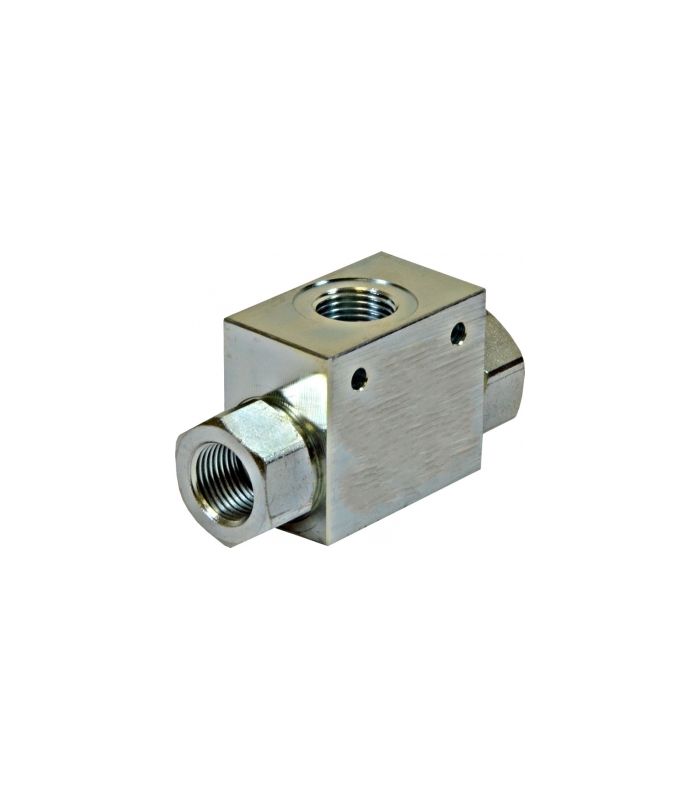

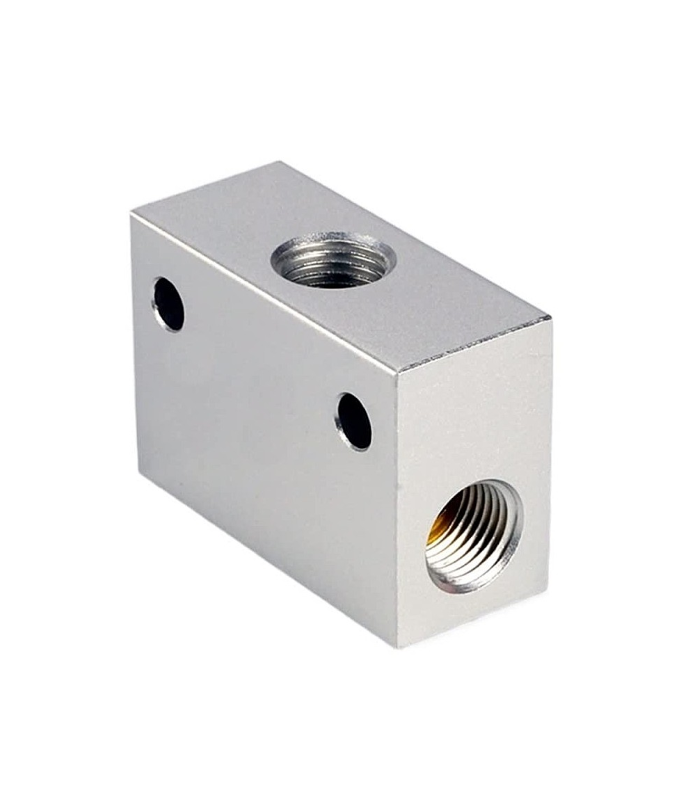

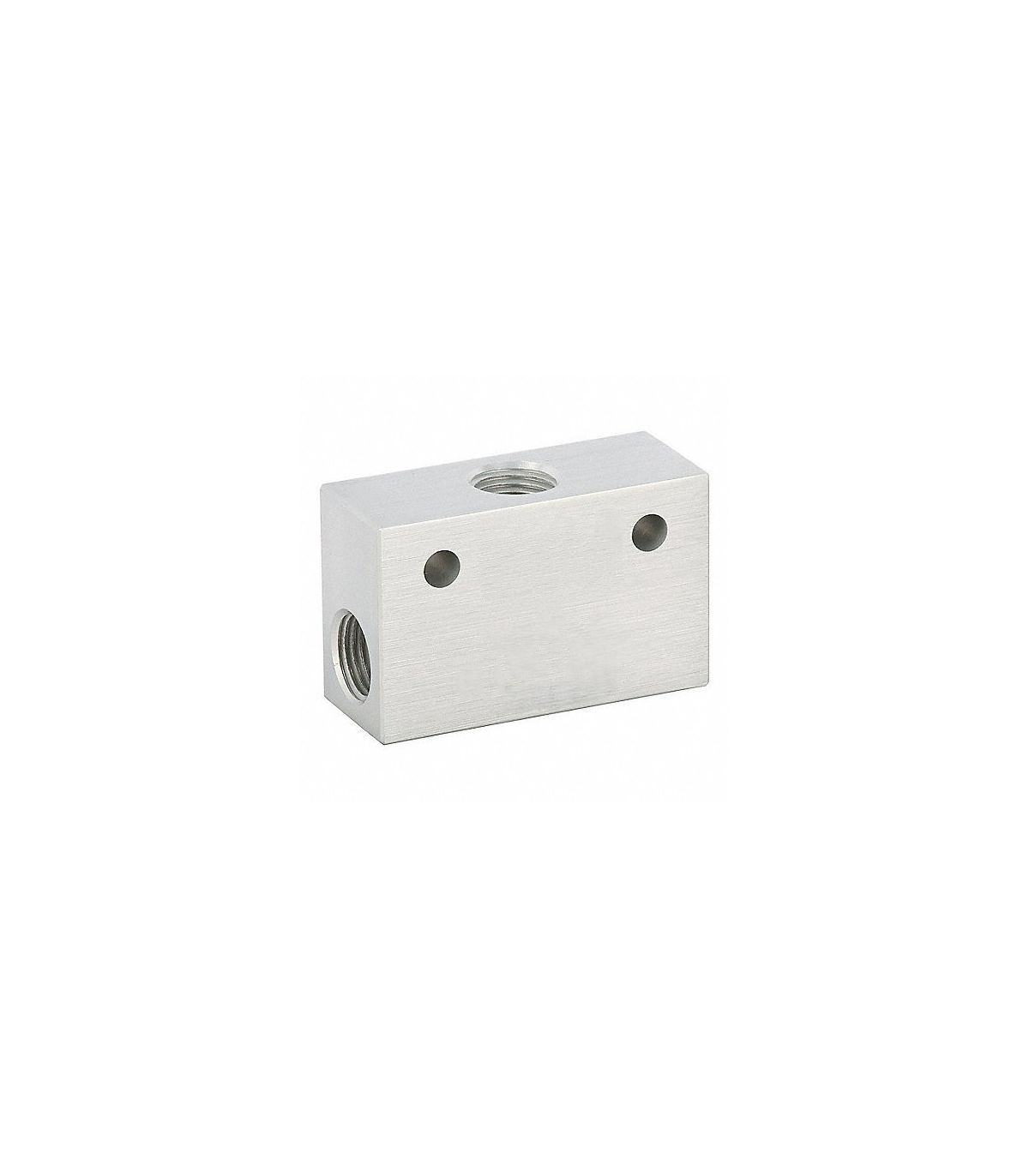

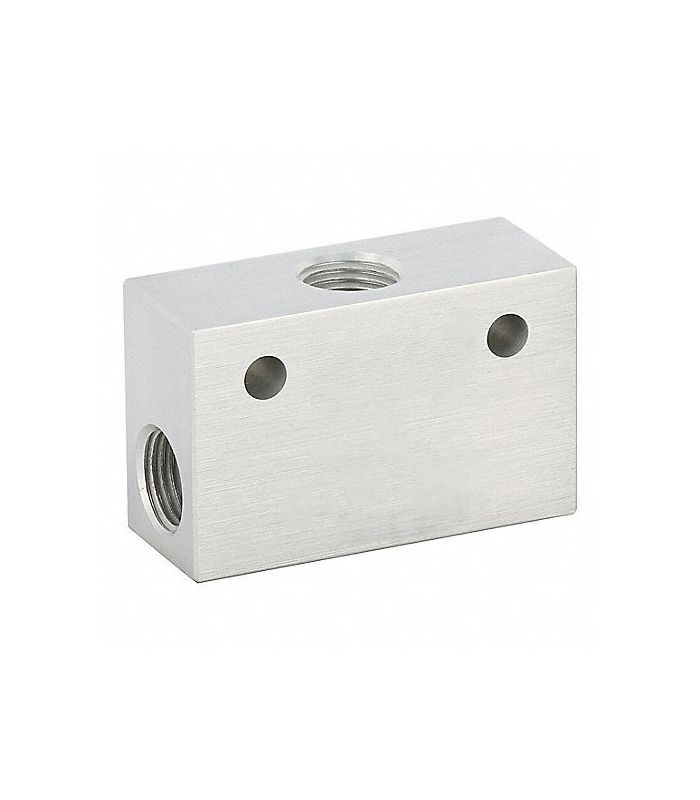

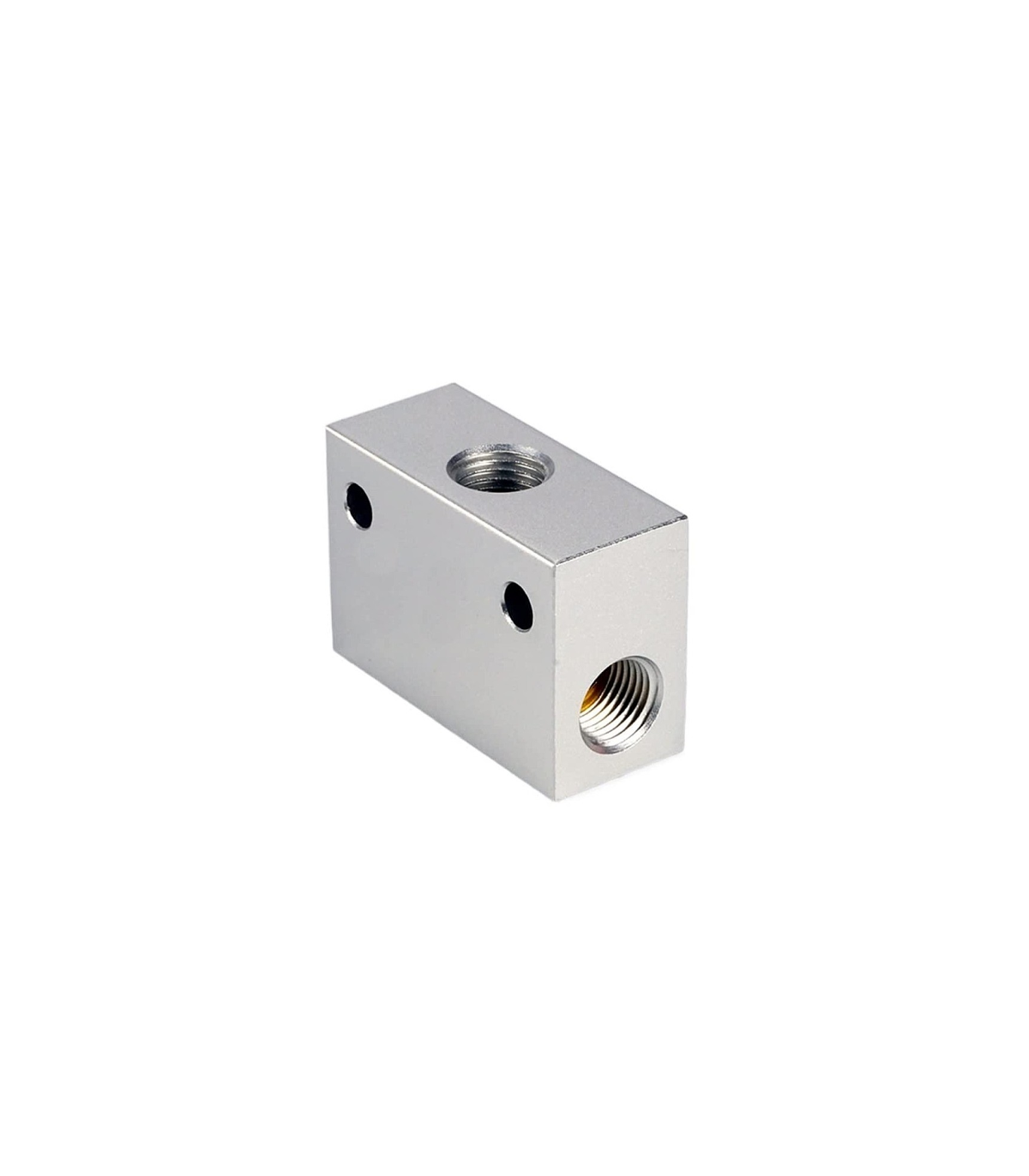

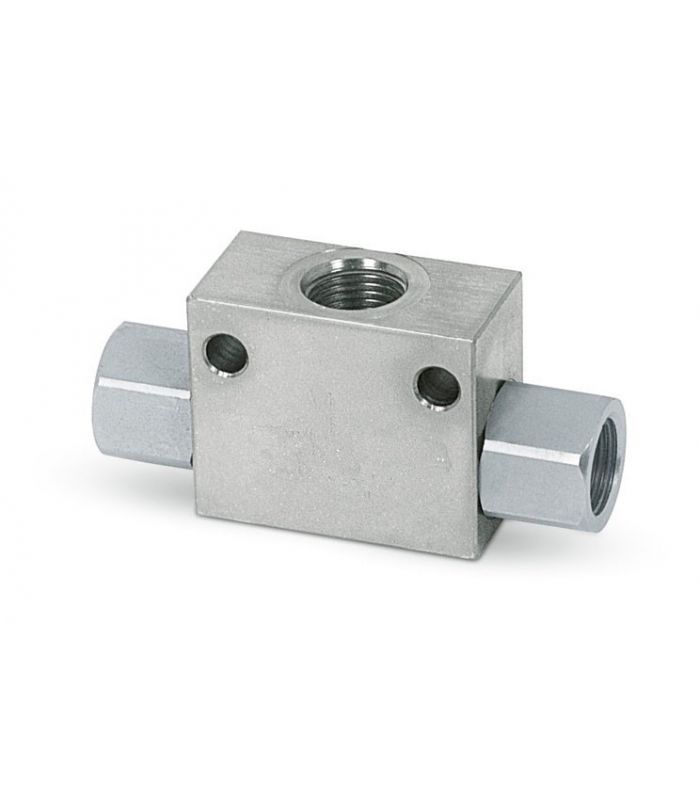

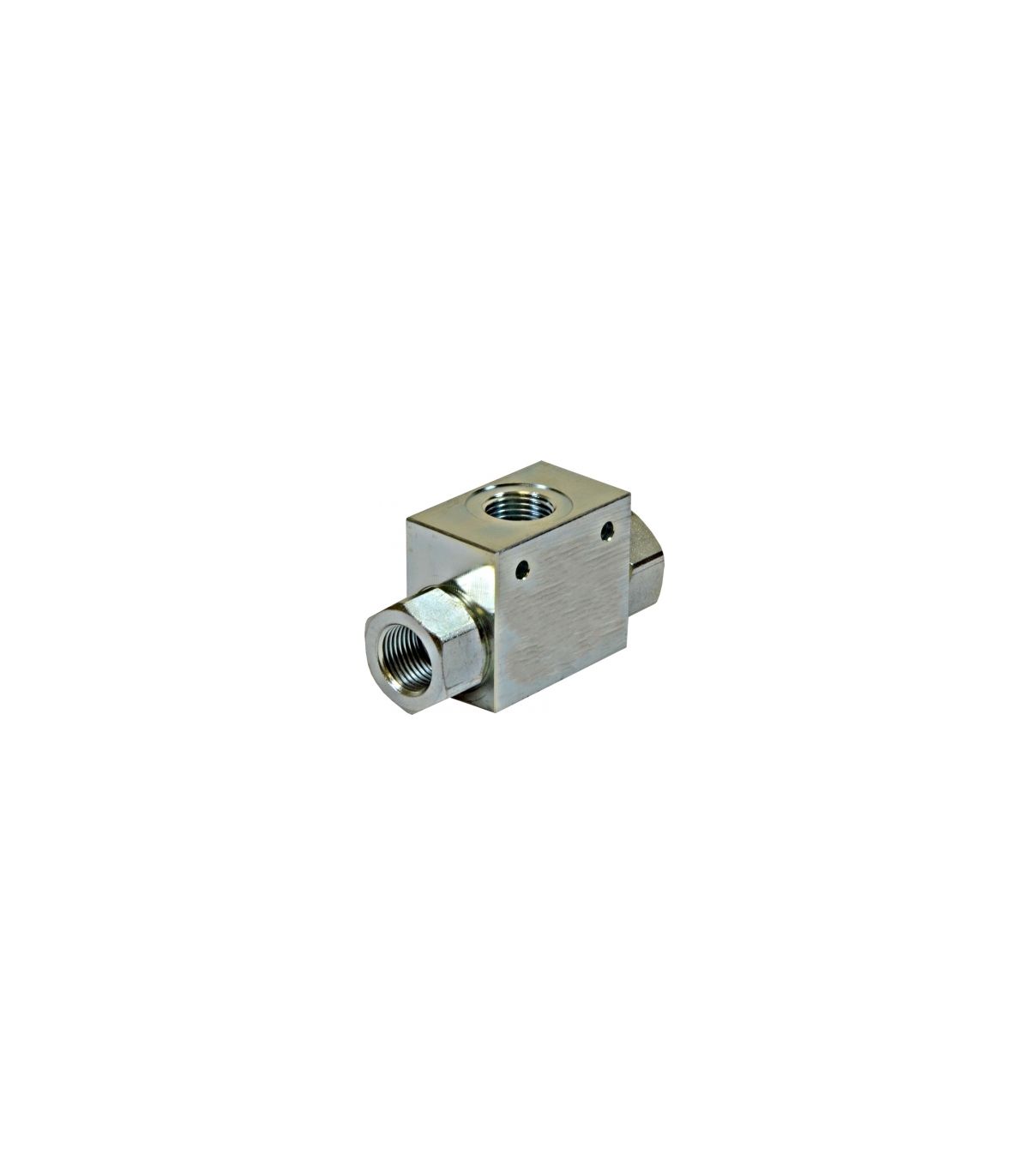

SELECTOR VALVE
SELECTOR VALVE
SELECTOR VALVE
SELECTOR VALVE
SELECTOR VALVE
SELECTOR VALVE
SELECTOR VALVE
SELECTOR VALVE

SELECTOR VALVE

The selector valve is designed to automatically select the line with the highest pressure between two hydraulic inlets, blocking the other to prevent fluid backflow.

Applications: industrial machinery, mobile equipment and hydraulic systems.

Main features:

  • Type "O" circuit. Selects the higher pressure between two lines and closes the other.
  • Pressure 350 bar.
  • Flow rate between 20 and 60 l/min
  • The body is made of aluminum.
€17.75 (tax included)
€14.67 (tax excl.)
SELECT THE THREAD
  • 1/4"
  • 3/8"
  • 1/2"
Reference:
49280009
Description

Selector valve

The selector valve is a component designed to automatically select the line with the higher pressure between two hydraulic inlets, blocking the other to prevent fluid backflow. This operating principle, known as the OR logic function, allows a single circuit to be fed from two independent pressure sources, ensuring safe and efficient operation.

Made of high-strength aluminum , it offers a compact, lightweight, and robust design, suitable for medium- and high-pressure hydraulic applications . It is a widely used solution in industrial machinery, mobile equipment, and hydraulic systems where it is necessary to combine two supply lines without interference.

Applications

  • Hydroelectric power plants.
  • Industrial machinery.
  • Agricultural equipment.
  • Public works machinery.
  • Lifting platforms.
  • Mobile hydraulic systems.

Technical specifications of a selector valve:

Product Details
49280009
