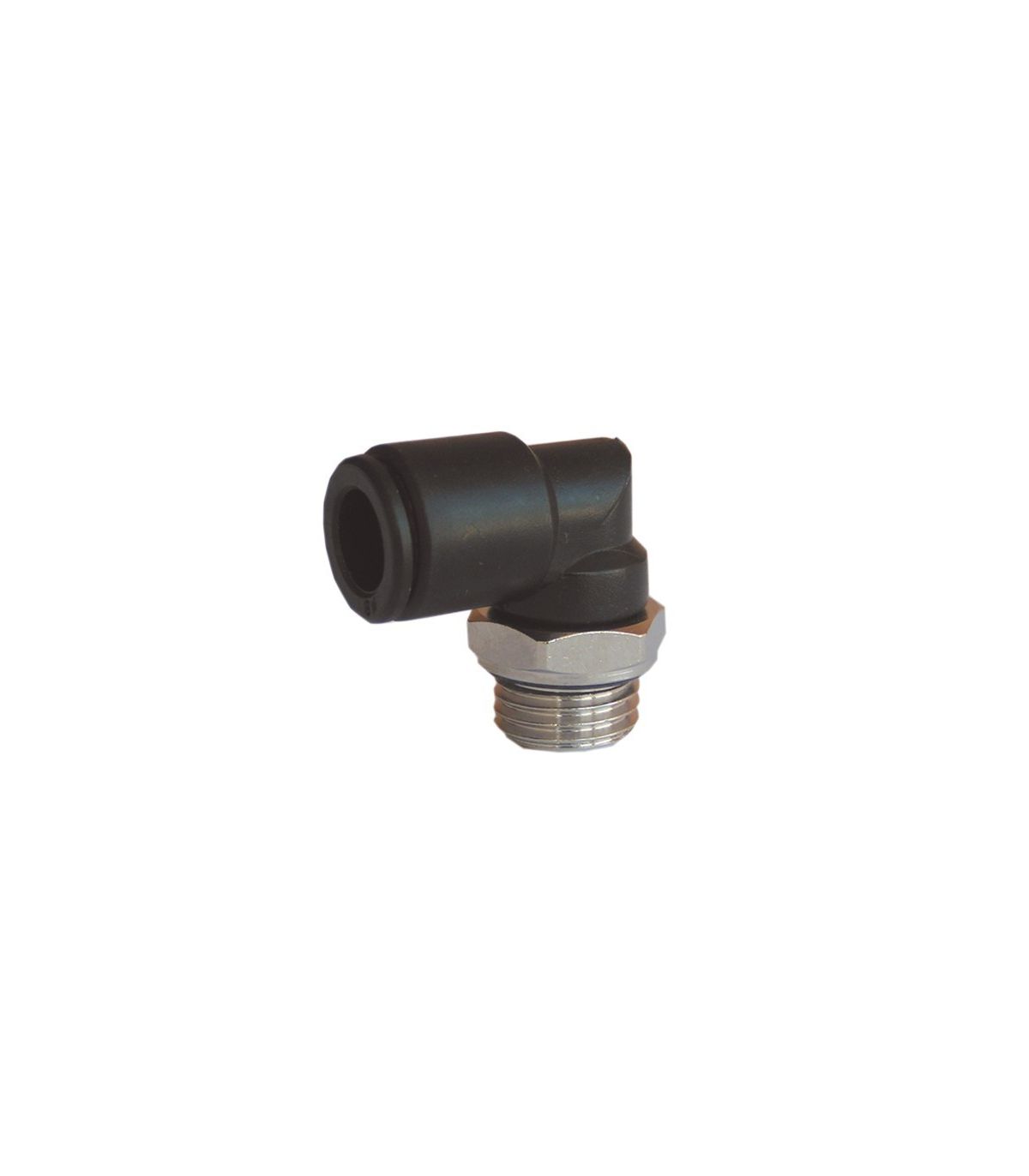

INSTANT FITTING ELBOW TO PIPE UNION CYLINDRICAL THREAD

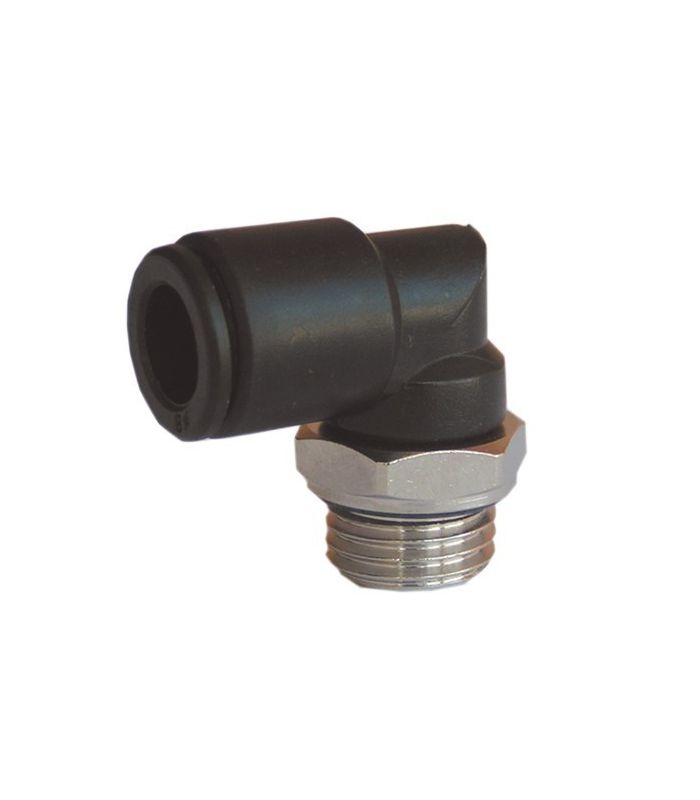

INSTANT FITTING ELBOW TO PIPE UNION CYLINDRICAL THREAD

A quick-connect fitting with a cylindrical threaded elbow joint is a connection component used primarily in pneumatic and low-pressure fluid systems. It allows for the quick and easy connection of a flexible or semi-rigid tube to a threaded component, valve, or port in a system.

Applications: manufacturing, automotive, food and beverage, pharmaceutical, robotics

Technical specifications:

  • Working pressure -1/10 bar.
  • Temperature 0 /- 60ºC.
  • Wide range of Ø4-Ø16
  • Ease of connection
  • Cylindrical thread
  • Body in nickel-plated brass and PBT
  • Gripper made of I-301 steel
  • POM resin push ring
€1.83 (tax included)
€1.51 (tax excl.)
Tube diameter - Thread
  • Ø 4-M5
  • Ø 4-M6
  • Ø 4-1/8
  • Ø 5 M-5
  • Ø 4-1/4
  • Ø 6-M5
  • Ø 6-M6
  • Ø 6-1/8
  • Ø 6-1/4
  • Ø 6-3/8
  • Ø 6-1/2
  • Ø 8-1/8
  • Ø 8-1/4
  • Ø 8-3/8
  • Ø 8-1/2
  • Ø 10-1/8
  • Ø 10-1/4
  • Ø 10-3/8
  • Ø 10-1/2
  • Ø 12-1/4
  • Ø 12-3/8
  • Ø 12-1/2
  • Ø 14-3/8
  • Ø 14-1/2
  • Ø 16-3/8
  • Ø 16-1/2
Reference:
30020001
Description

Instant fitting for elbow joint between pipe and cylindrical thread

An instant fitting with elbow joint and cylindrical thread is a pneumatic connector designed to join a tube with a threaded connection at a 90° angle, facilitating the change of direction of airflow in compact or space-limited installations.

The tube end uses an instant system that allows direct tube insertion without tools, while the cylindrical thread attaches to a standard female port, ensuring a firm and watertight connection.

Common applications

It is used in industrial pneumatic systems, automation and machinery where it is necessary to efficiently redirect the airflow, maintaining an orderly, safe and compact installation.

Technical specifications for an instant fitting for elbow-to-pipe connection with cylindrical thread:

UNION CODO TUBO ROSCA CILINDRICA

Product Details
30020001
Comments
