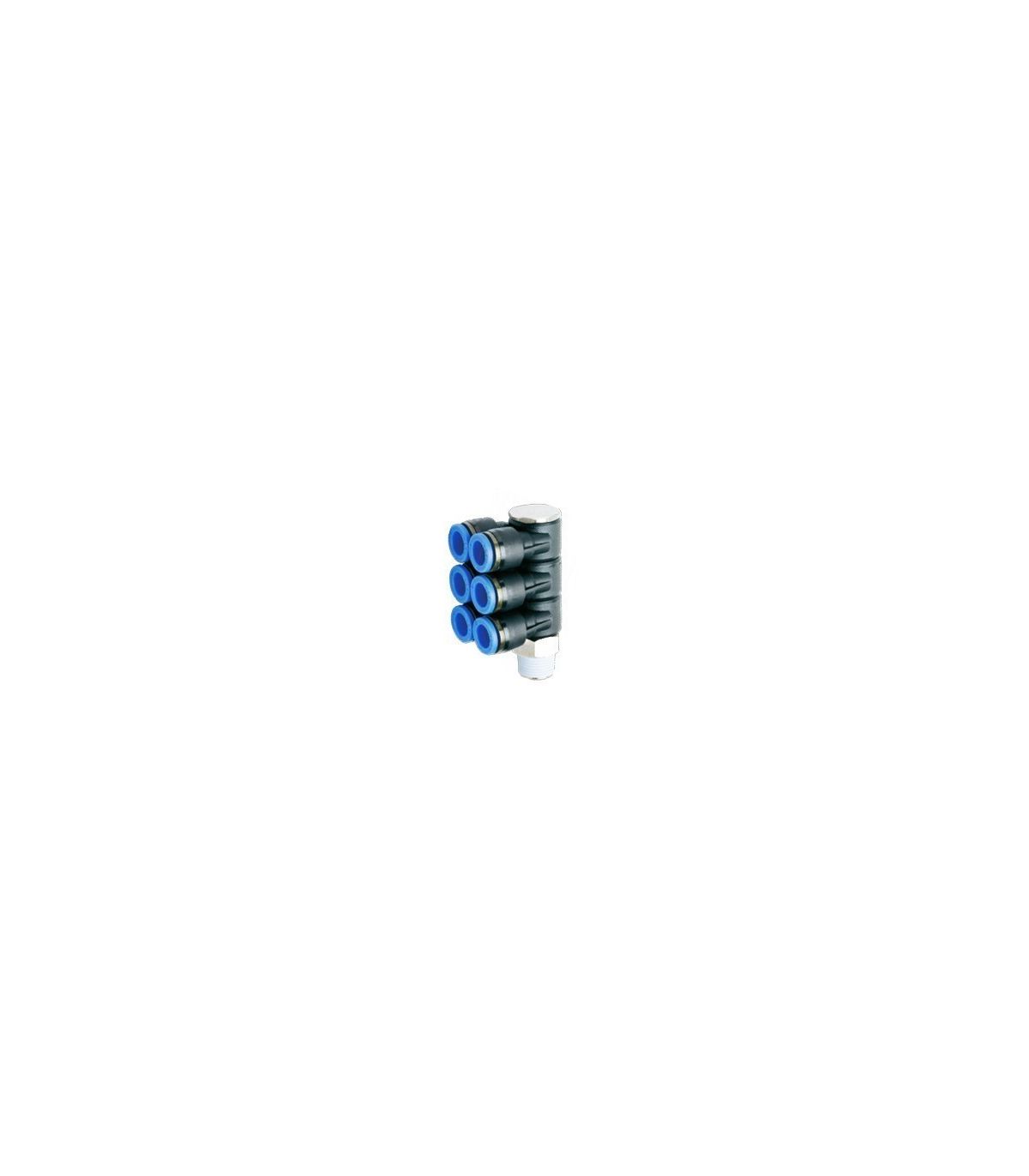

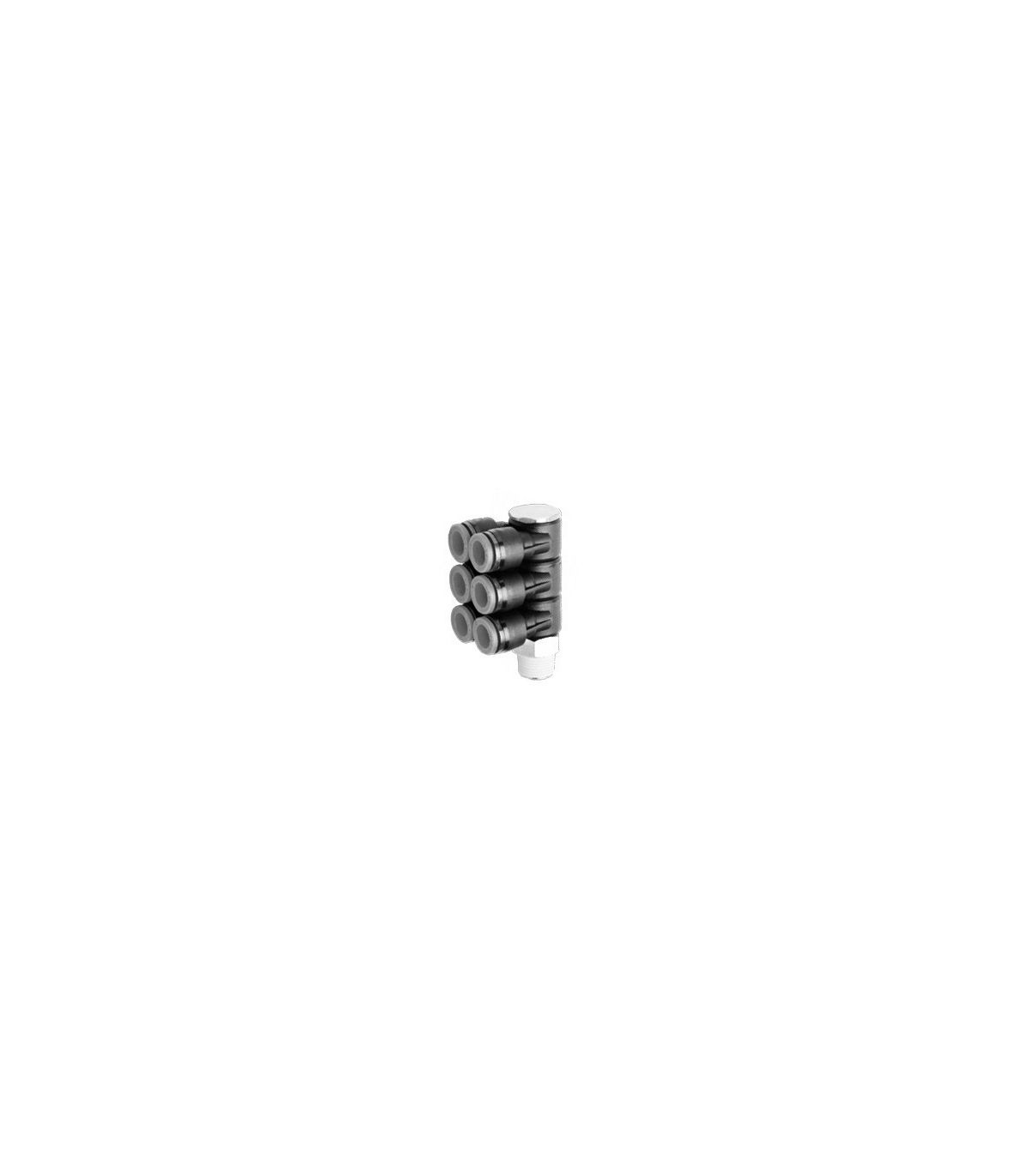

INSTANT FITTING MALE ELBOW OUTLET 6 TUBE
INSTANT FITTING MALE ELBOW OUTLET 6 TUBE
INSTANT FITTING MALE ELBOW OUTLET 6 TUBE
INSTANT FITTING MALE ELBOW OUTLET 6 TUBE

INSTANT FITTING MALE ELBOW OUTLET 6 TUBE

A 6-pipe male elbow instant fitting is designed to distribute or combine compressed air flow from a single threaded inlet to six flexible or semi-rigid tube lines.

Applications: Pneumatic control panels, Robotics and automation, Assembly and packaging machinery, Test systems.

Technical sheet:

  • Working pressure -0.99 / 10 bar.
  • Temperature 0 /- 60ºC.
  • Wide range of Ø 4-16
  • Ease of connection
  • Cylindrical or conical thread
  • Body in nickel-plated brass and PBT
  • Gripper made of 301 stainless steel
  • Push-button ring in POM resin
€12.74 (tax included)
€10.53 (tax excl.)
Tube diameter - Thread
  • Ø 4-1/8
  • Ø 4-1/4
  • Ø 6-1/8
  • Ø 6-1/4
  • Ø 6-3/8
  • Ø 8-1/8
  • Ø 8-1/4
  • Ø 8-3/8
  • Ø 8-1/2
  • Ø 10-1/4
  • Ø 10-3/8
  • Ø 10-1/2
  • Ø 12-1/4
  • Ø 12-3/8
  • Ø 12-1/2
Reference:
30200003
Description

instant male elbow fitting, 6-tube outlet

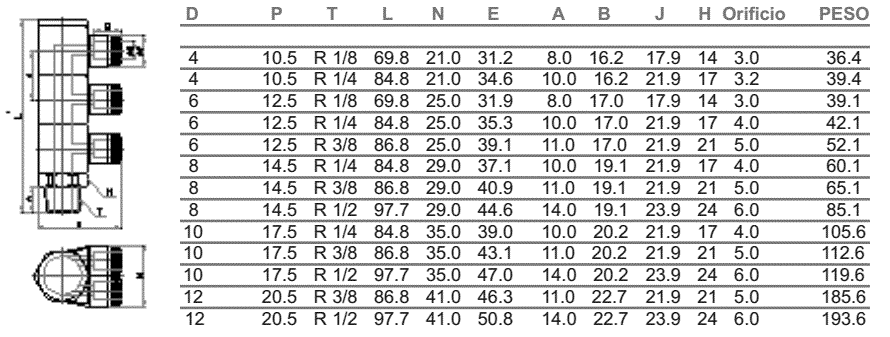

CODO MACHO SALIDA 6 TUBOS

Product Details
30200003
