FIXED MALE ELBOW LOOSE NUT JIC
FIXED MALE ELBOW LOOSE NUT JIC
FIXED MALE ELBOW LOOSE NUT JIC
FIXED MALE ELBOW LOOSE NUT JIC

FIXED MALE ELBOW LOOSE NUT JIC

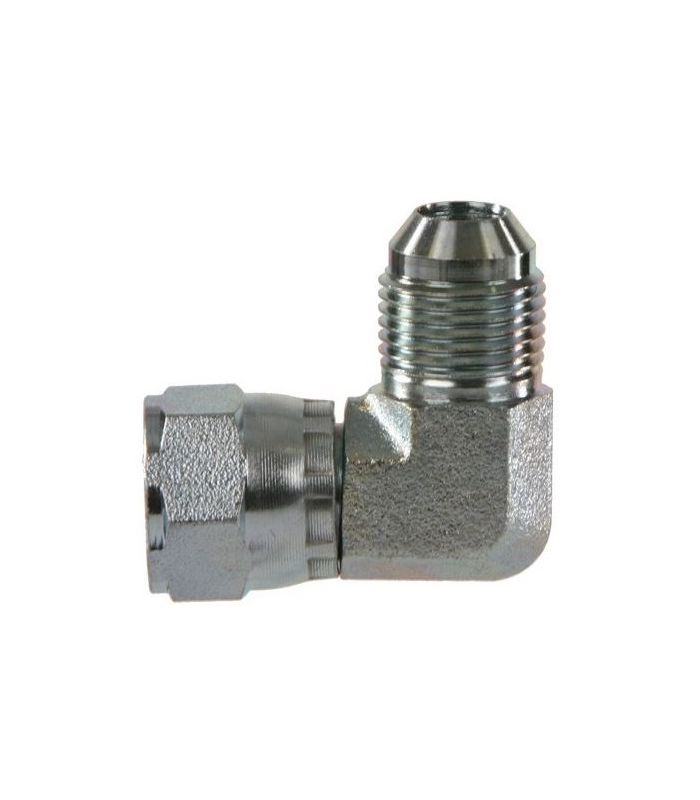

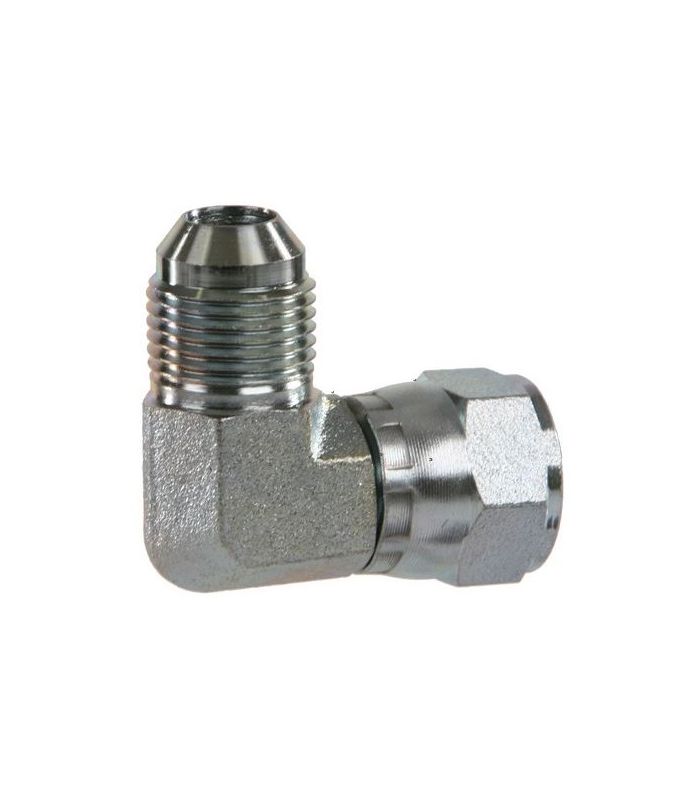

JIC Fixed Male Elbow Swivel Nut

A JIC fixed male elbow with a swivel nut is a hydraulic fitting designed to make a 90° change of direction in a hydraulic line, ensuring a secure, high-pressure connection under the JIC standard.

Main features:

  • SAE J-514 standard fitting (ISO 8434-2)
  • Seamless coupling.
  • Made of carbon steel.
  • Fittings for 37° flared pipe
  • High mechanical assembly security.
  • Max. pressure:
    • 6-8-10 450 bar.
    • 12-16-18-20-22 350 bar.
    • 25-30-38 250 bar.
€4.91 (tax included)
€4.06 (tax excl.)
THREAD TYPE
Reference:
45160001
Description

JIC Fixed Male Elbow Swivel Nut

This fitting incorporates a JIC male end with a 37° sealing cone and a swiveling swivel nut , allowing tightening without the elbow body rotating. Its fixed design maintains a constant angle, facilitating precise and secure installation in hydraulic systems.

Main features

  • Elbow configuration (90°)
  • JIC connection with 37° cone
  • Swivel freewheel nut for easy assembly
  • Made of carbon steel

Common applications

  • Medium and high pressure hydraulic systems
  • Industrial and mobile machinery
  • Agricultural and public works equipment
  • Demanding hydraulic circuits

Product Details
45160001
