JIC FERRULE TUBE INCHES
JIC FERRULE TUBE INCHES
JIC FERRULE TUBE INCHES
JIC FERRULE TUBE INCHES

JIC FERRULE TUBE INCHES

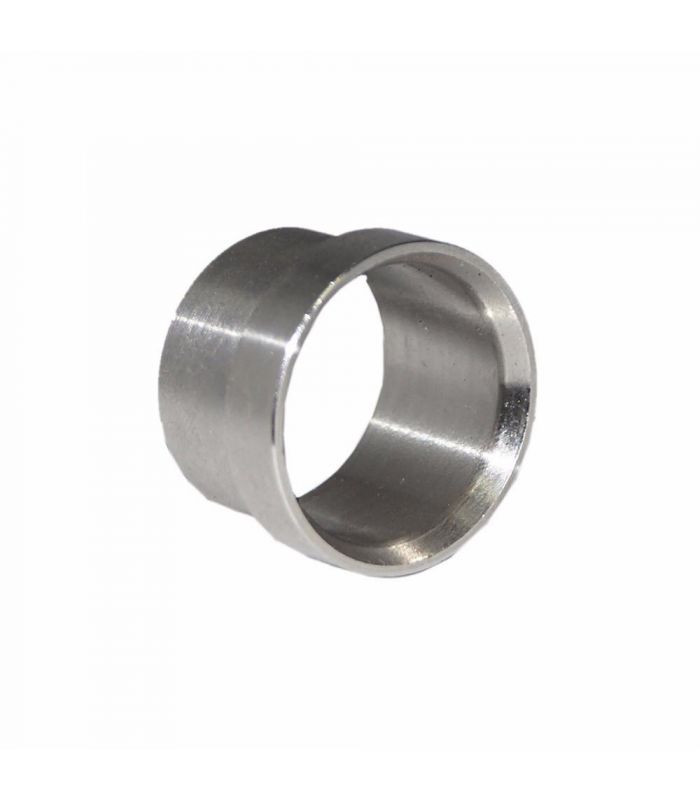

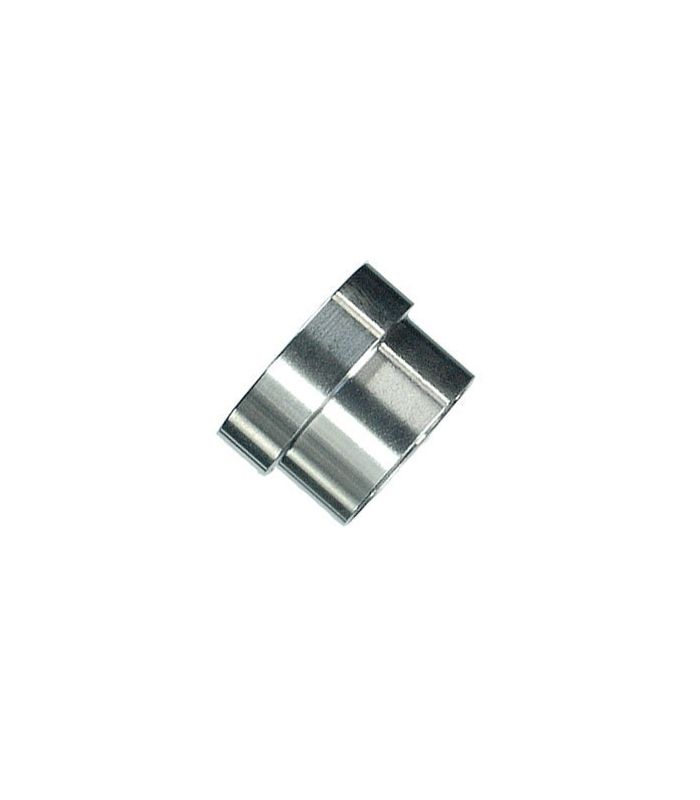

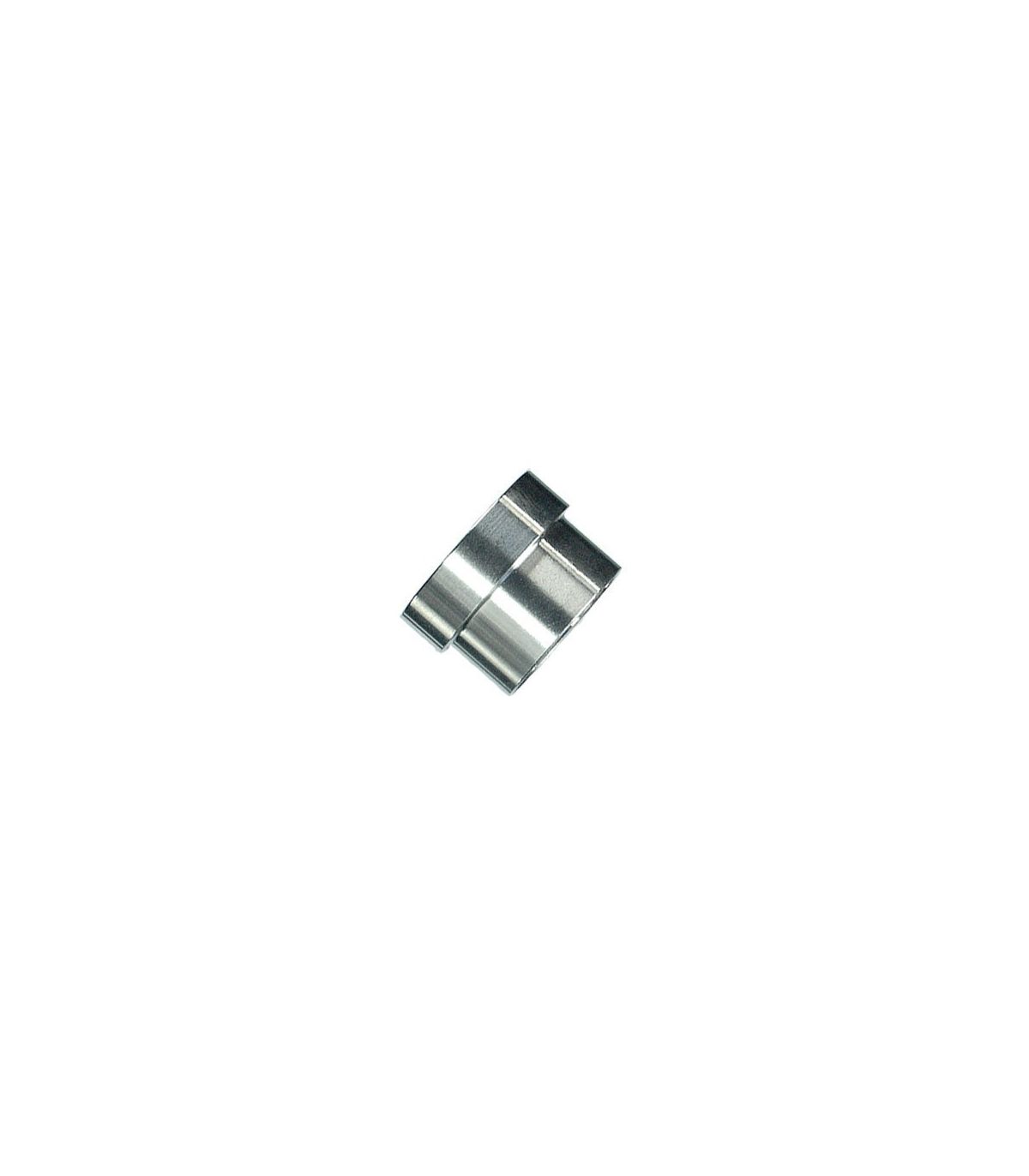

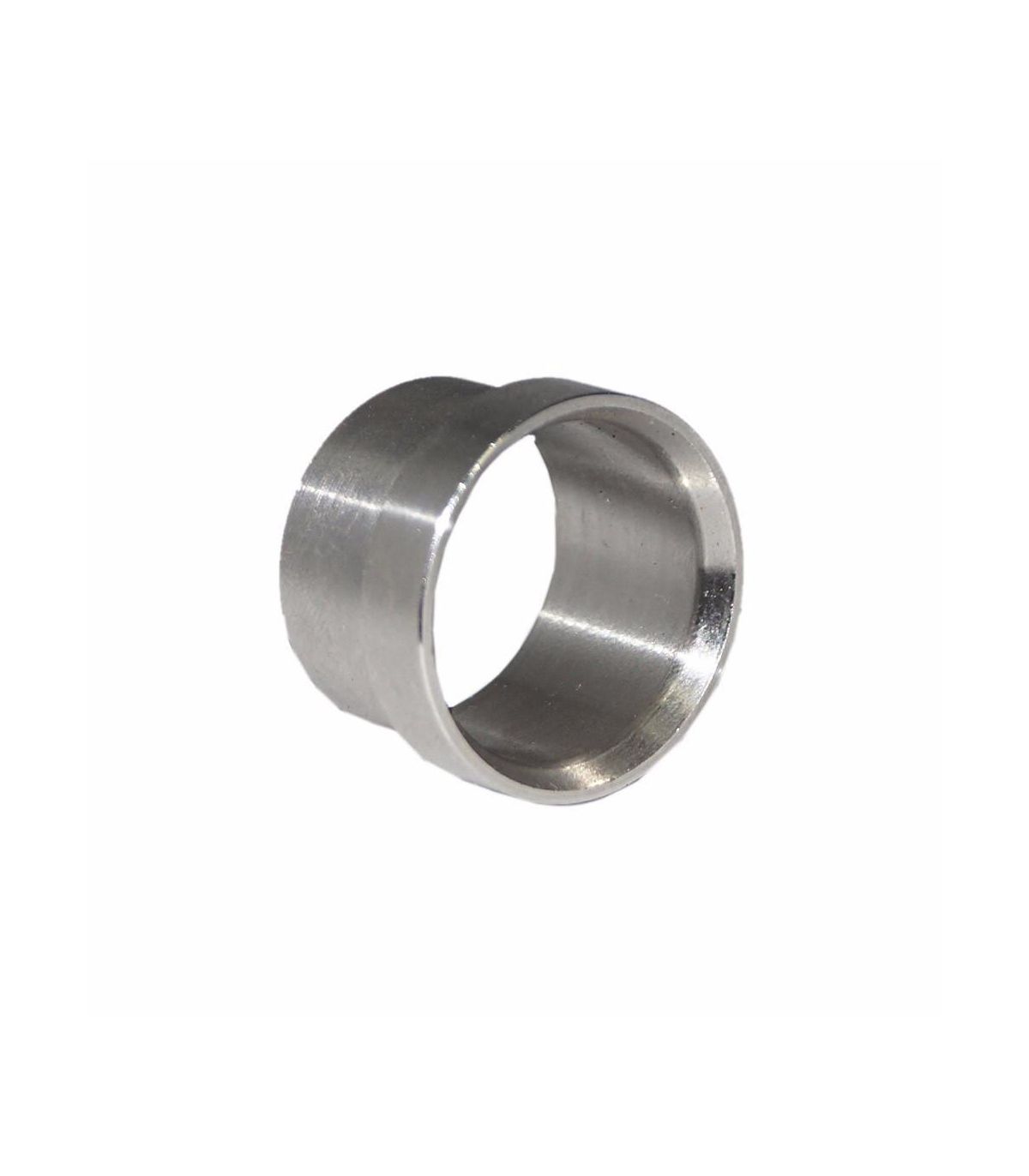

A JIC inch tube ferrule is used in the assembly of 37-degree JIC flare fittings in hydraulic systems. It is designed for rigid tubing measured in inches. It is positioned between the flare tube and the JIC nut.

Applications: Construction machinery, Agricultural machinery, Lifting and handling systems, Industrial and commercial vehicles, Laboratory equipment, Oil industry.

Technical sheet:

  • SAE J-514 (ISO 8434-2) standard fitting
  • Jointless coupling.
  • Made of carbon steel.
  • 37º flared tube fittings
  • High security of mechanical assembly.
  • Max pressure:
    • 6-8-10 450 bar.
    • 12-16-18-20-22 350 bar.
    • 25-30-38 250 bar.
€0.44 (tax included)
€0.36 (tax excl.)
THREAD TYPE
Reference:
45020001
Description

JIC ferrule tube inches

FERULA JIC TUBO PULGADAS

Product Details
45020001
