JIC STRAIGHT WALL PASSAGE

JIC STRAIGHT WALL PASSAGE

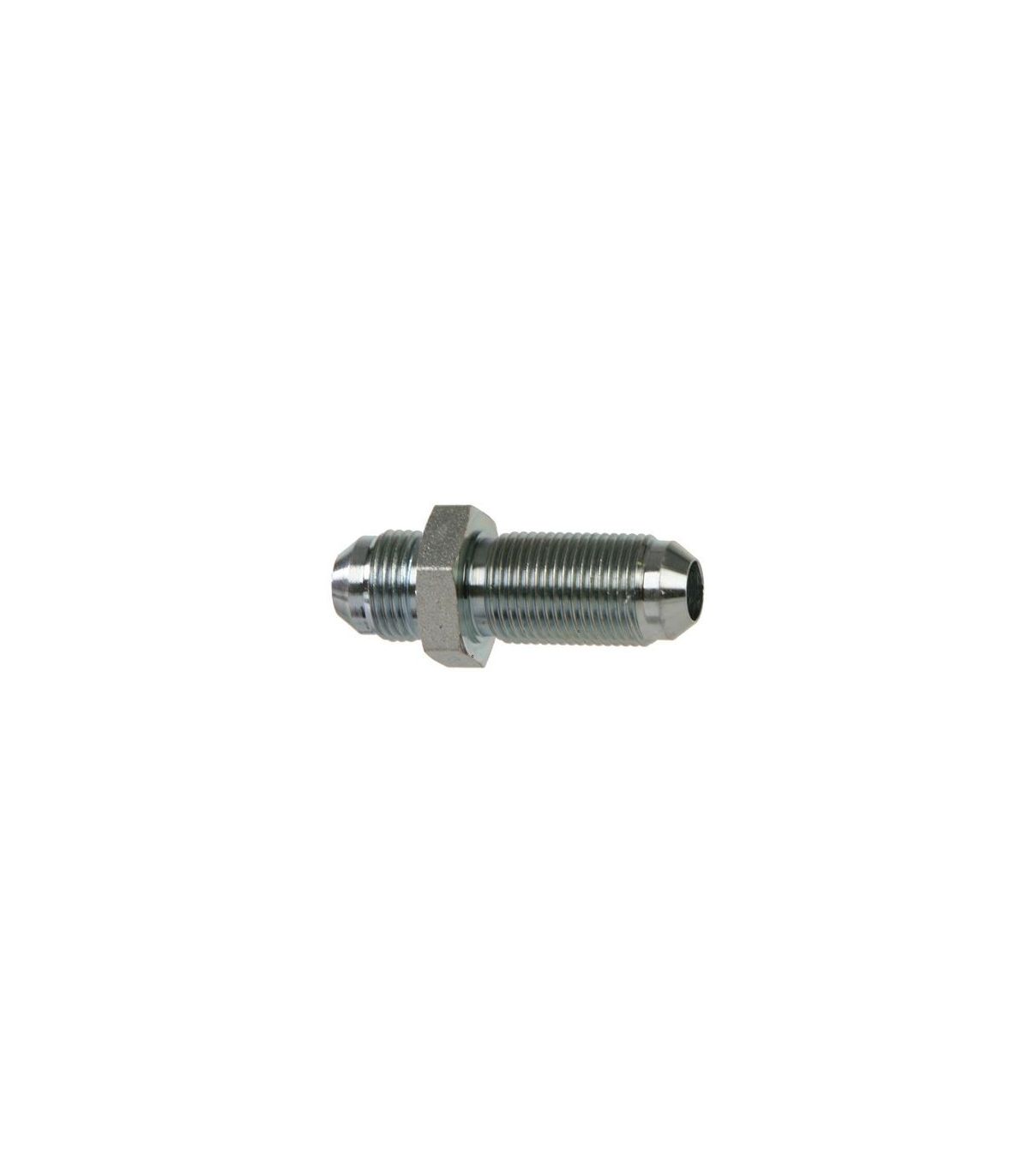

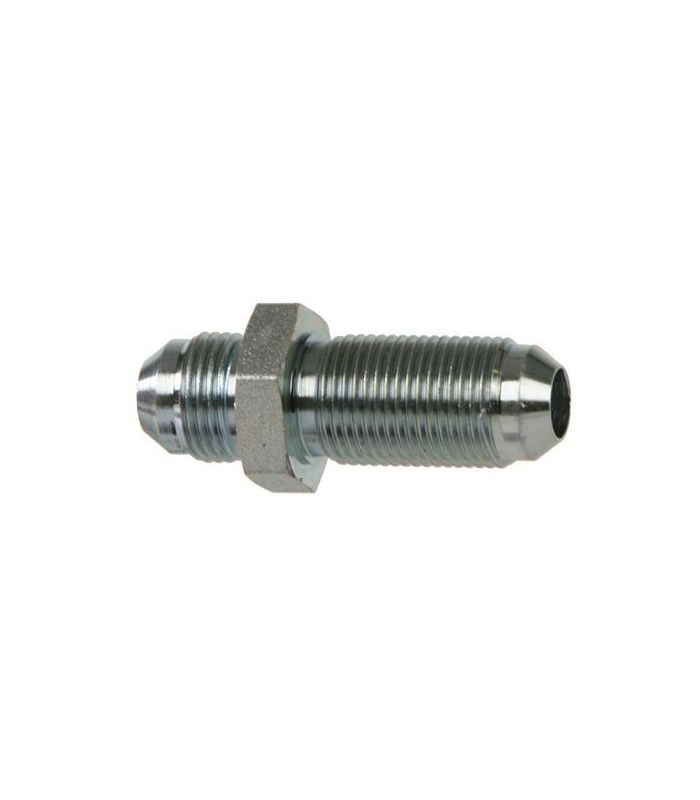

JIC straight bulkhead fitting

The JIC straight bulkhead fitting is a hydraulic through-fitting designed to pass through walls, panels, or tanks, allowing the connection of hydraulic lines via a JIC thread. Its straight design facilitates the aligned flow of fluid, ensuring a leak-proof, secure, and high-pressure-resistant connection.

Applications: Industrial hydraulic installations, Machinery, Tanks, manifolds and hydraulic panels, Hydraulic oil circuits and pressurized fluids.

Main features :

  • SAE J-514 standard fitting (ISO 8434-2)
  • Seamless coupling.
  • Made of carbon steel.
  • Fittings for 37° flared pipe
  • High mechanical assembly security.
  • Max. pressure:
    • 6-8-10 450 bar.
    • 12-16-18-20-22 350 bar.
    • 25-30-38 250 bar.

Supplied without nut

€4.60 (tax included)
€3.80 (tax excl.)
THREAD TYPE
Reference:
45060001
Description

JIC straight bulkhead fitting

The JIC straight bulkhead fitting is a hydraulic fitting that allows JIC lines to be connected through walls or panels , maintaining straight pipe alignment and ensuring a watertight seal and mechanical strength . It is an essential component in high-pressure hydraulic systems where a safe passage between two spaces is required.

Technical specifications

  • JIC 37° thread.
  • Function: Passage of pipes or ducts through surfaces.
  • Metal sealing by JIC cone, no need for additional gaskets.
  • Fixing by means of a locking nut on the panel.
  • Application in high-pressure hydraulic systems.

Applications

  • Industrial hydraulic circuits.
  • Mobile and heavy machinery.
  • Tanks, collectors and hydraulic panels.
  • Installations where separation of zones is required while maintaining watertightness.

Technical specifications of a JIC straight bulkhead fitting:

Code TO B C H1 H2 ØR1
45060001 52.6 14 31.3 17 17 7/16
45060002 52.6 14 31.3 19 19 1/2
45060003 55.4 14.1 33.3 22 22 9/16
45060004 62 16.7 37.4 24 24 3/4
45060005 69.6 19.3 40.9 30 30 7/8
45060006 78.5 21.9 45.2 36 36 1-1/16
45060007 79.8 23.1 45.2 41 41 1-5/16
45060008 84.1 24.3 46.5 50 50 1-5/8

Product Details
45060001
