JIC WELDABLE MALE JOINT
JIC WELDABLE MALE JOINT
JIC WELDABLE MALE JOINT
JIC WELDABLE MALE JOINT
JIC WELDABLE MALE JOINT
JIC WELDABLE MALE JOINT
JIC WELDABLE MALE JOINT
JIC WELDABLE MALE JOINT
JIC WELDABLE MALE JOINT
JIC WELDABLE MALE JOINT

JIC WELDABLE MALE JOINT

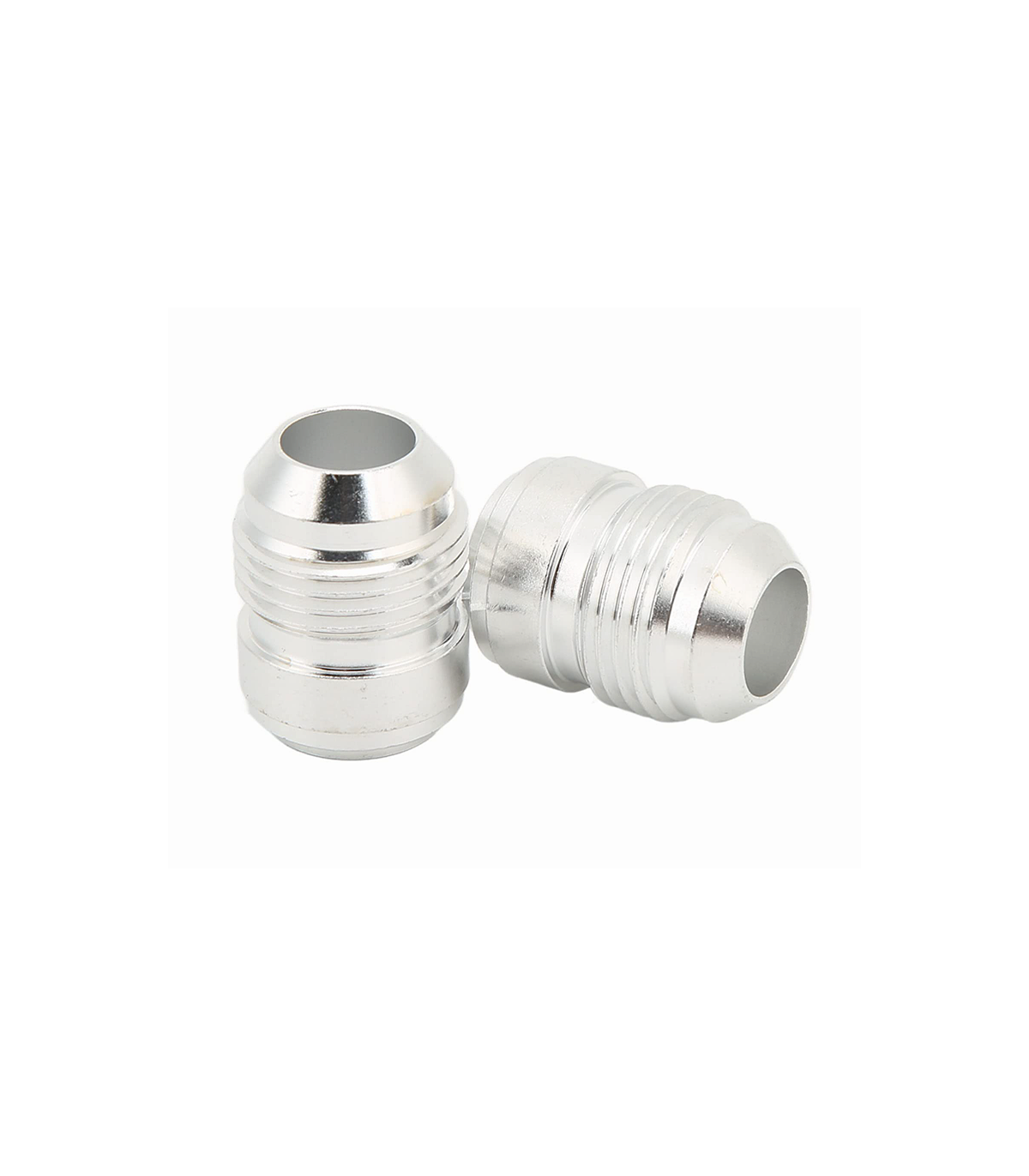

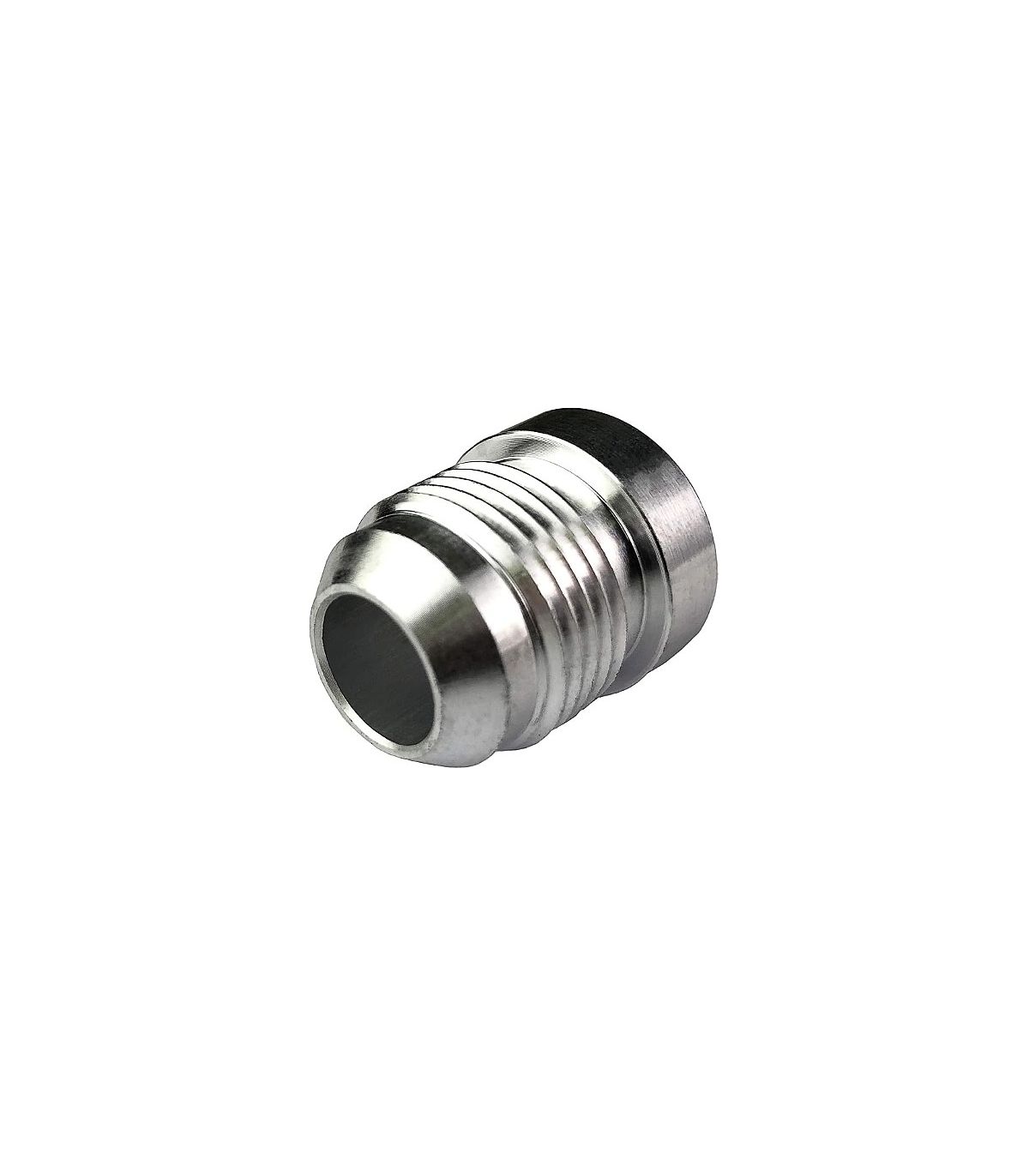

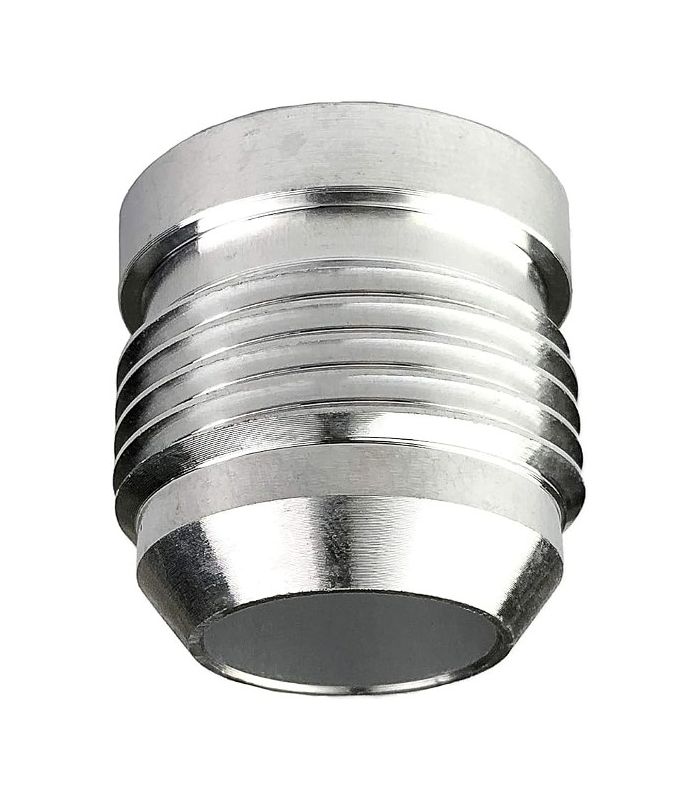

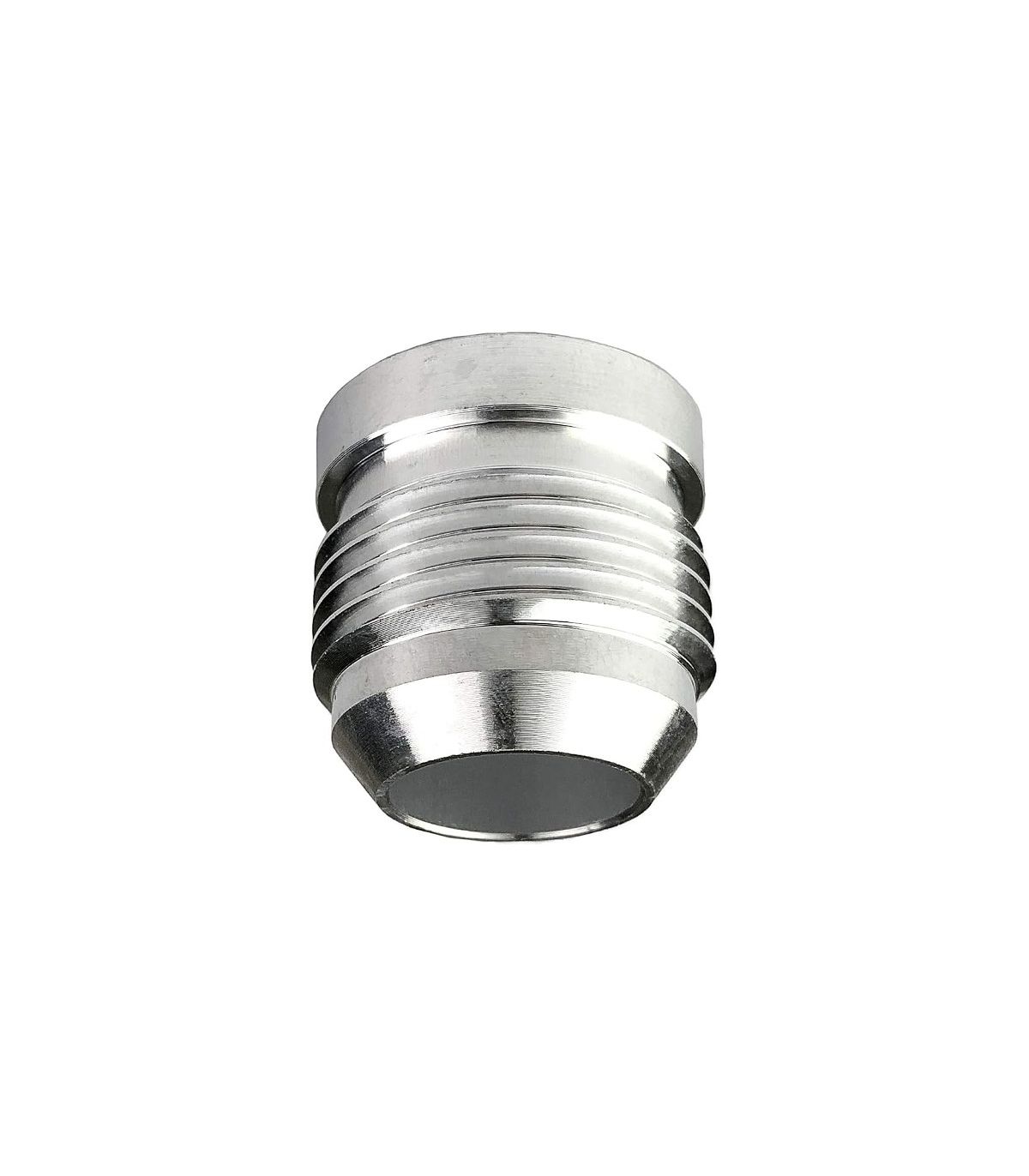

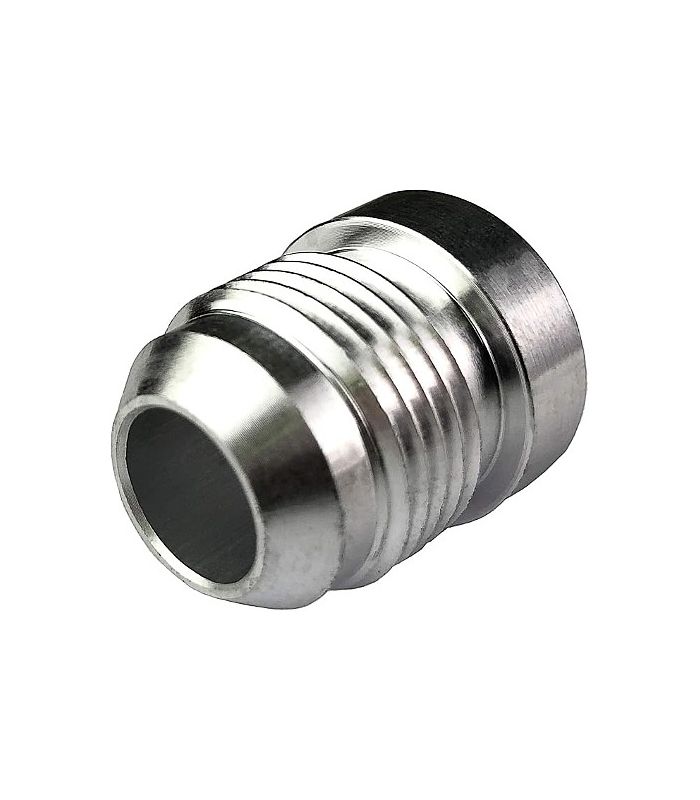

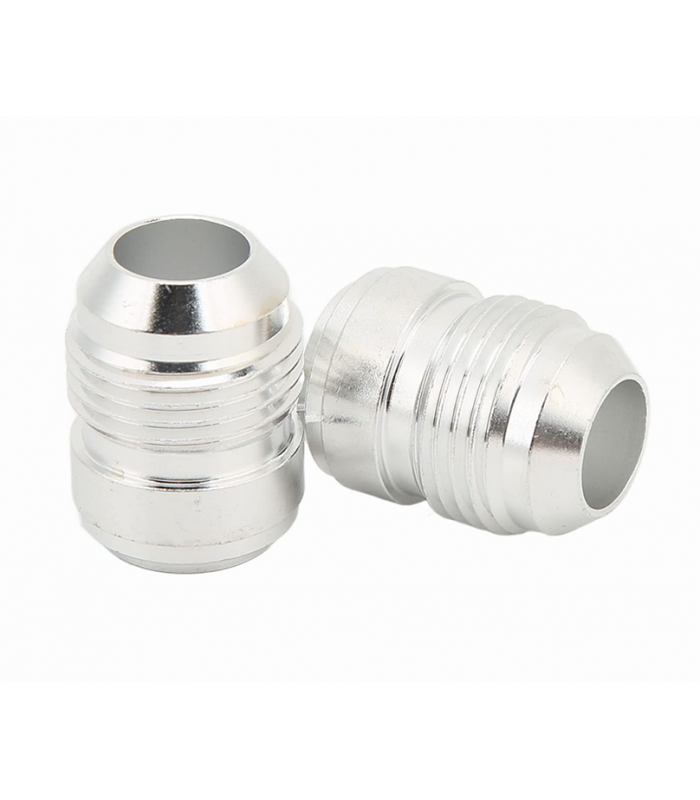

A JIC male weld fitting is a type of hydraulic fitting used to create a robust, sealed connection in high-pressure systems. It features one end with a JIC male thread and the other end designed to be permanently welded to a rigid pipe, tank, or other system component.

Applications: Heavy machinery, Industrial hydraulic systems, Marine, Manifold manufacturing, Special vehicles

Main features:

  • SAE J-514 standard fitting (ISO 8434-2)
  • Seamless coupling.
  • Made of carbon steel.
  • Fittings for 37° flared pipe
  • High mechanical assembly security.
  • Max. pressure:
    • 6-8-10 450 bar.
    • 12-16-18-20-22 350 bar.
    • 25-30-38 250 bar.

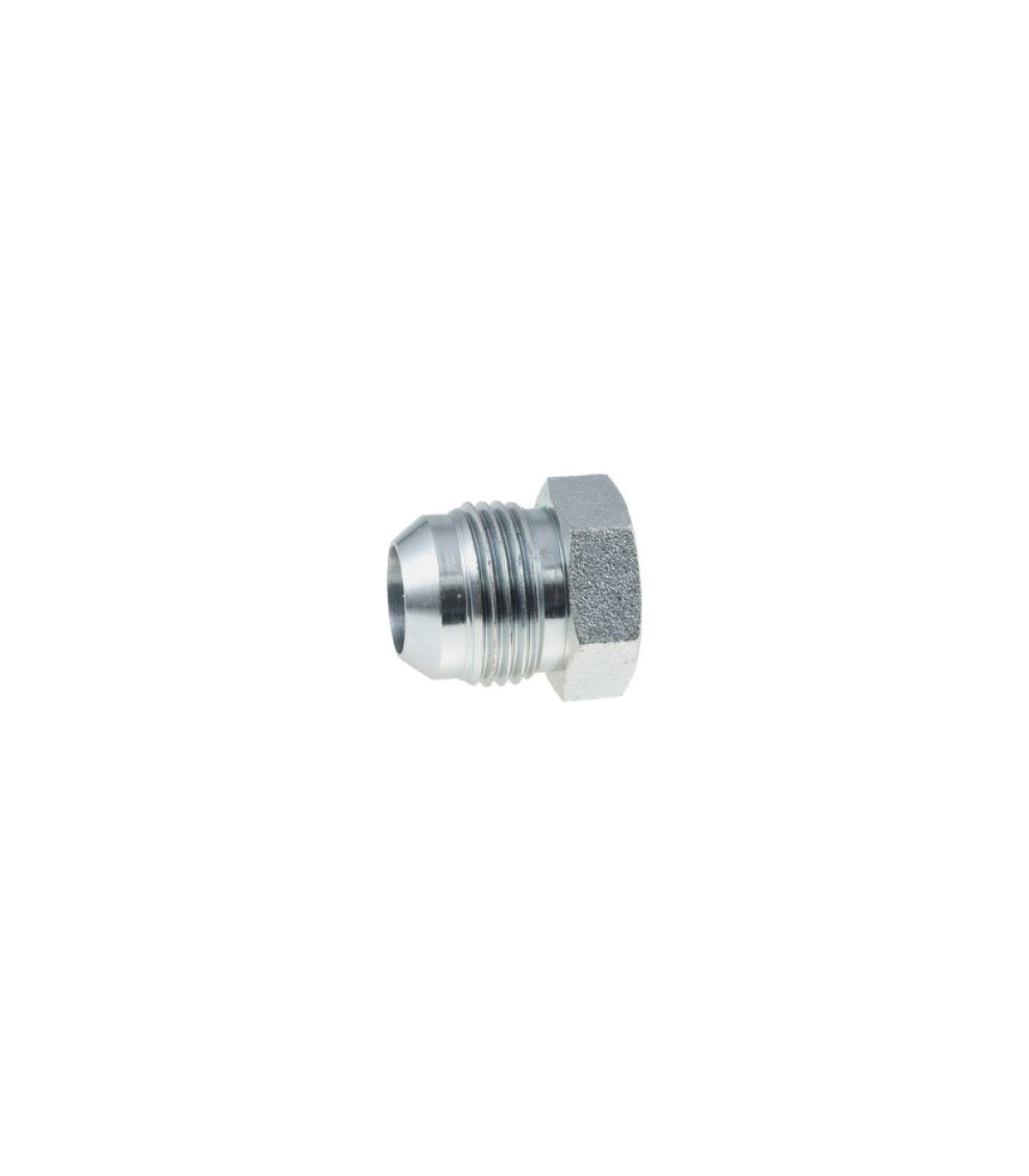

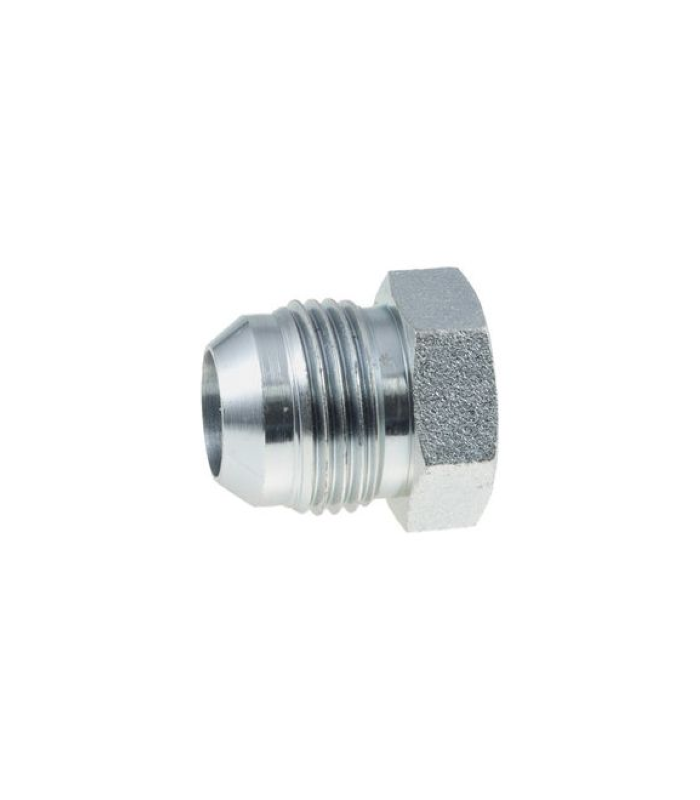

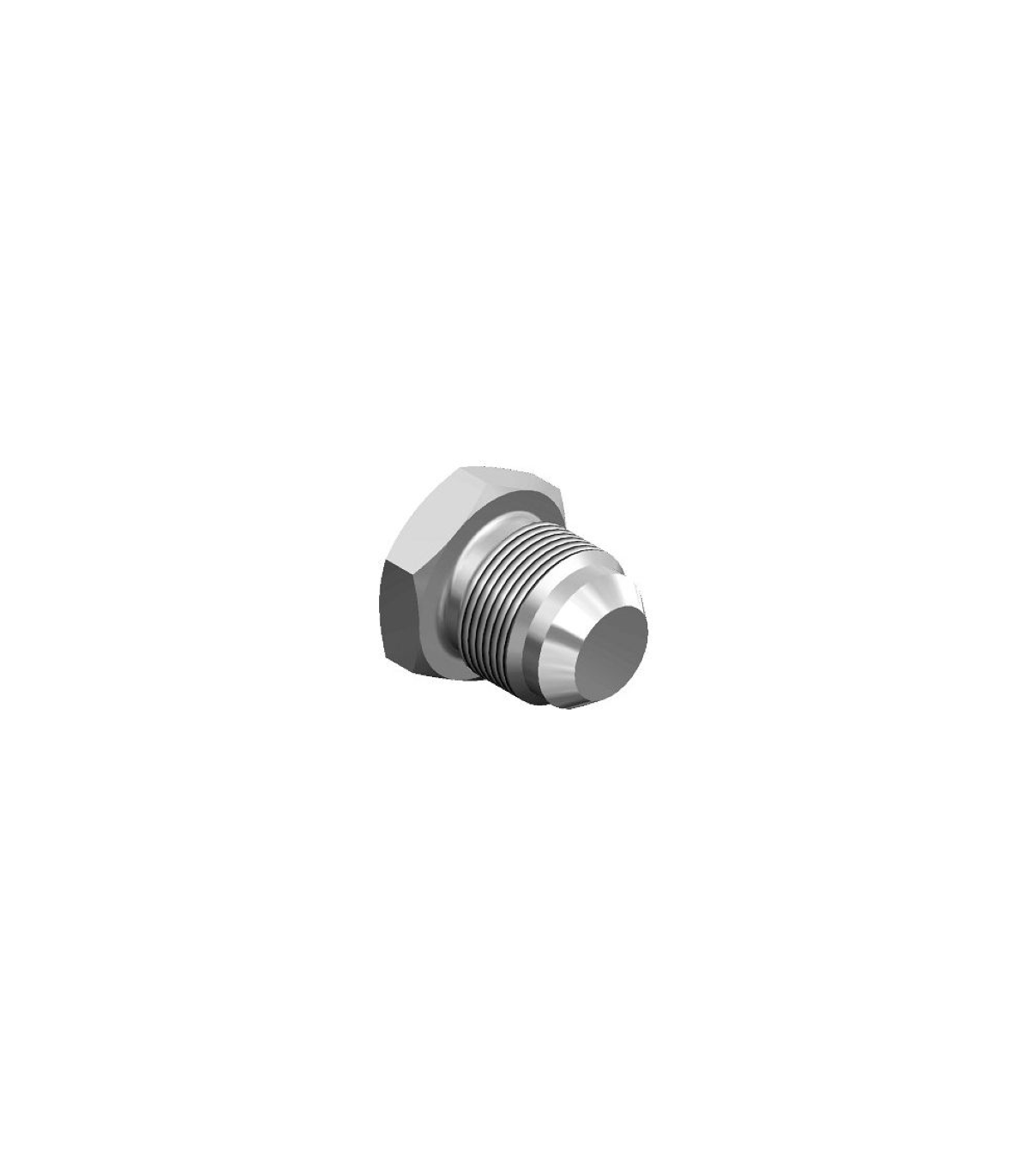

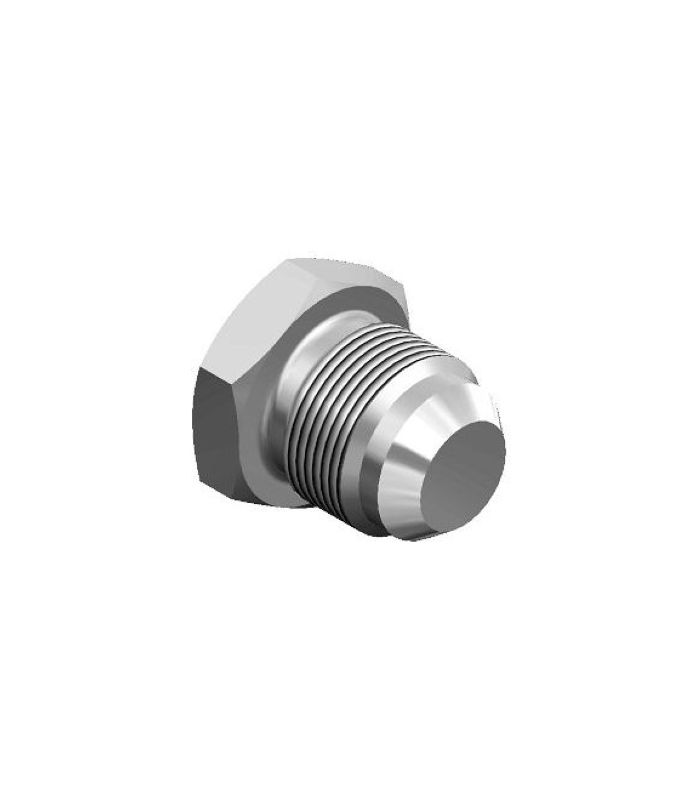

Available in round or hexagonal shapes.

€1.85 (tax included)
€1.53 (tax excl.)
THREAD TYPE
Reference:
45030001
Description

JIC solderable male splice

A JIC weldable male coupling is a rigid hydraulic fitting that allows the transition between a metal pipe line or vessel (fixed by welding) and a hose or connector with a JIC thread.

Applications

  • Heavy machinery
  • mining
  • hydraulic block manifolds
  • naval fluid power lines
  • high-pressure industrial installations.

Technical data sheet for a JIC solderable male splice:

EMPALME MACHO SOLDABLE JIC

Product Details
45030001
