JIC MALE-MALE FITTING
JIC MALE-MALE FITTING
JIC MALE-MALE FITTING
JIC MALE-MALE FITTING
JIC MALE-MALE FITTING
JIC MALE-MALE FITTING

JIC MALE-MALE FITTING

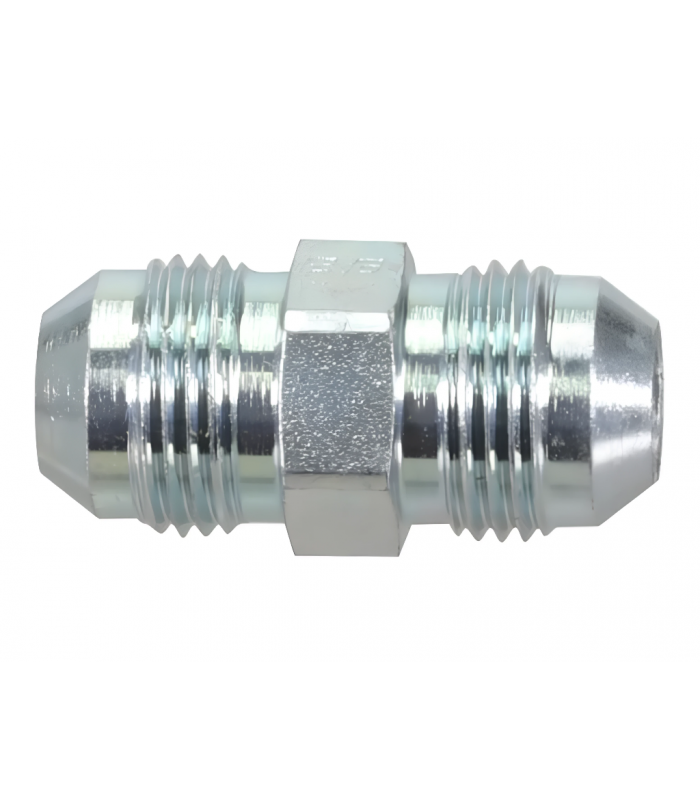

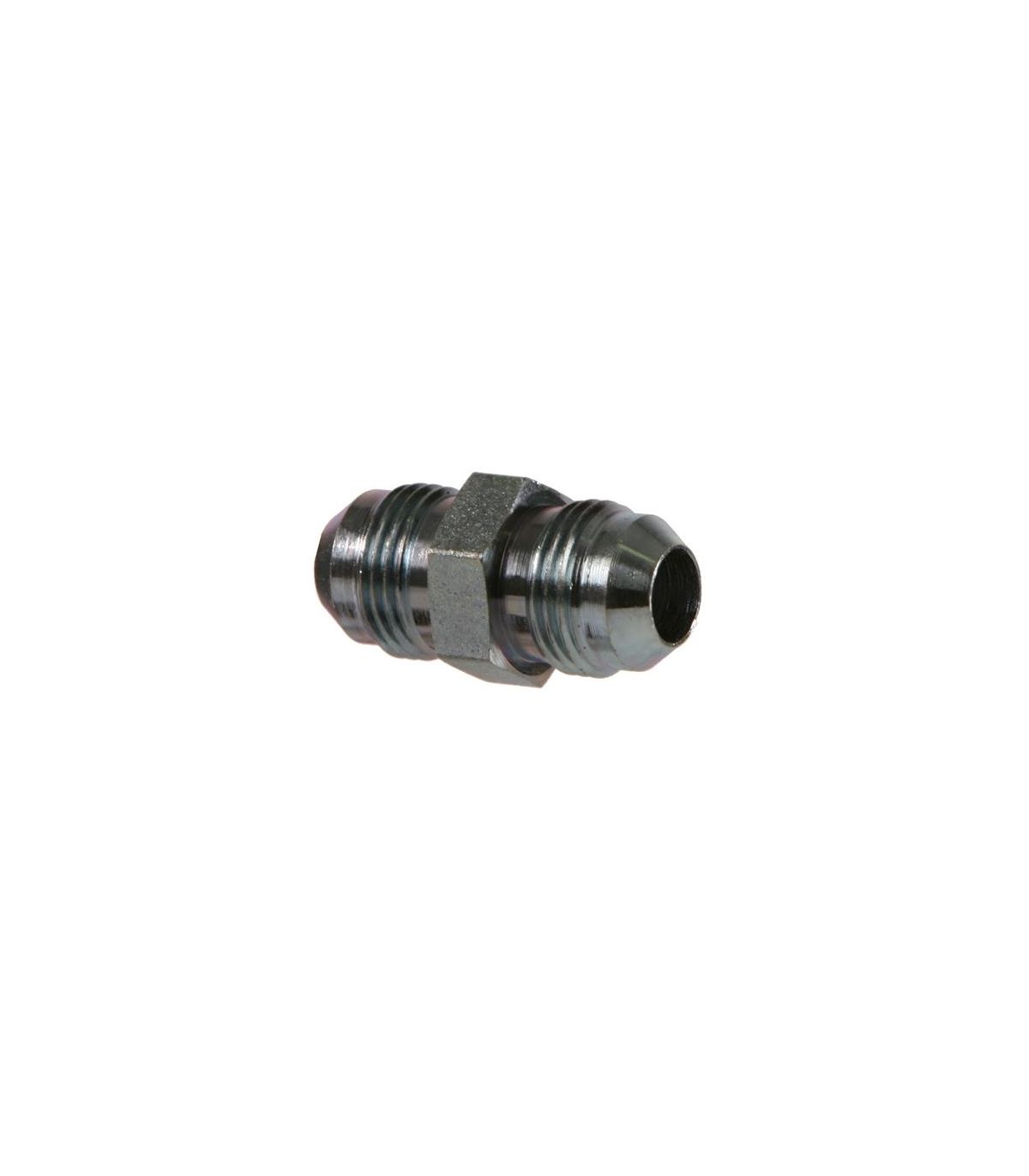

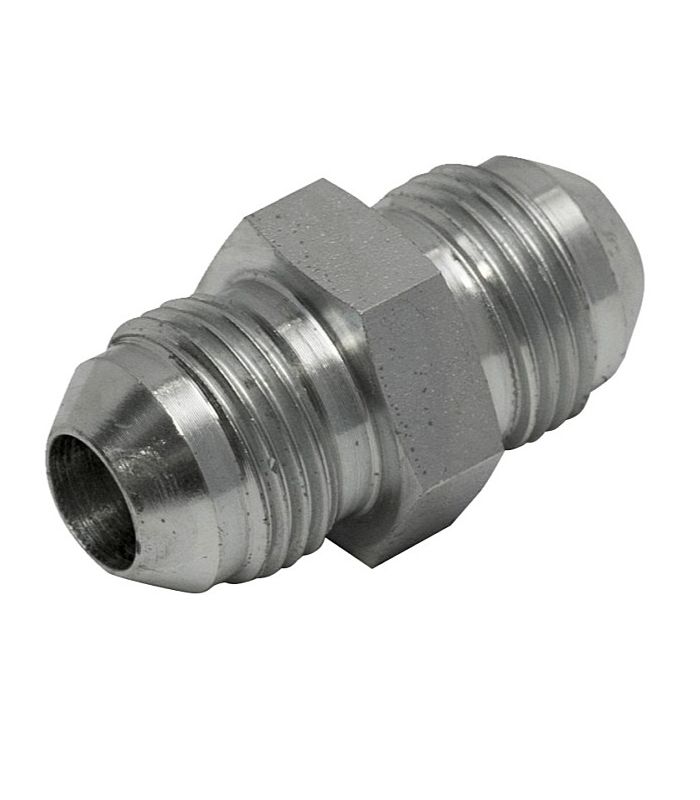

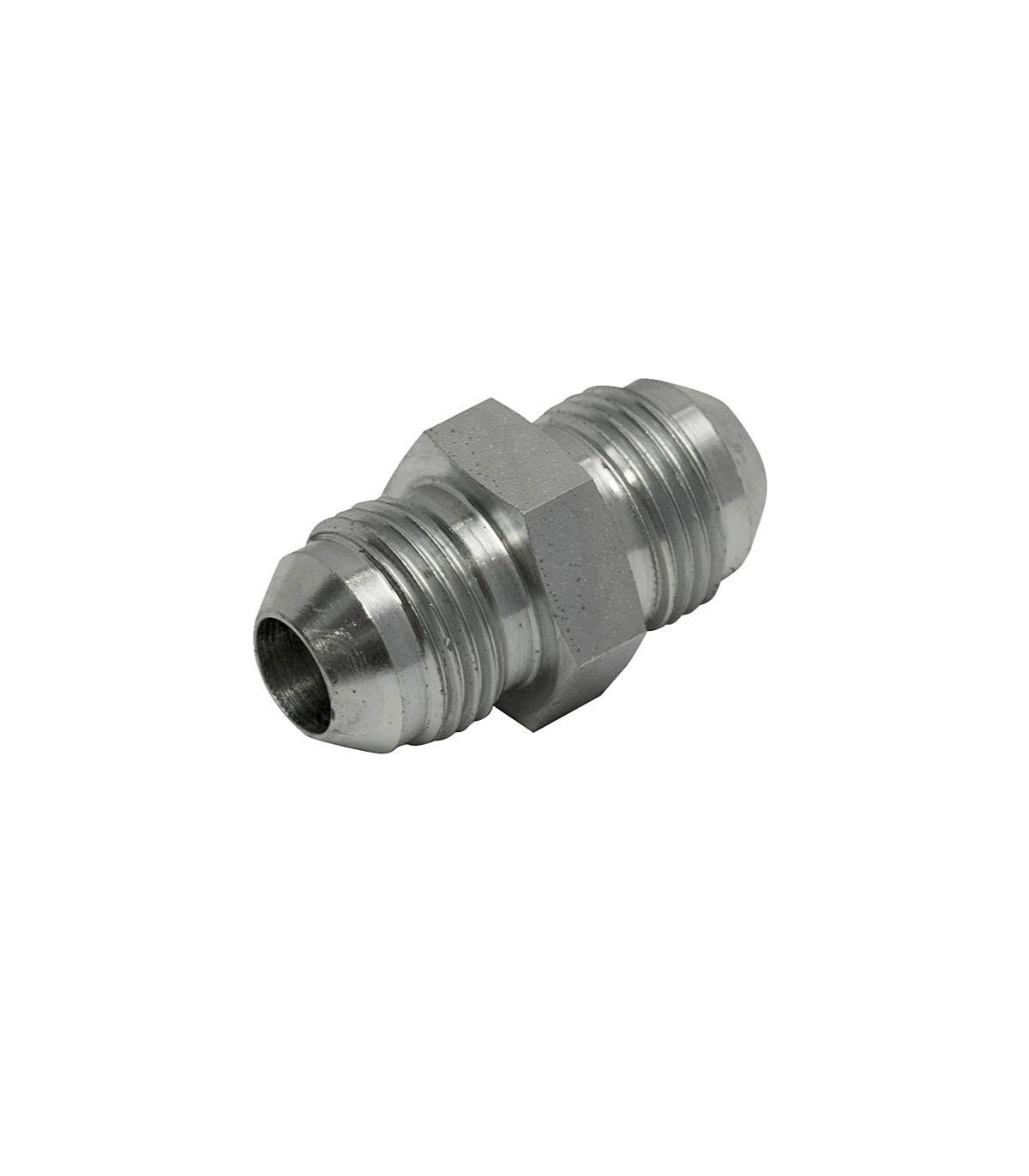

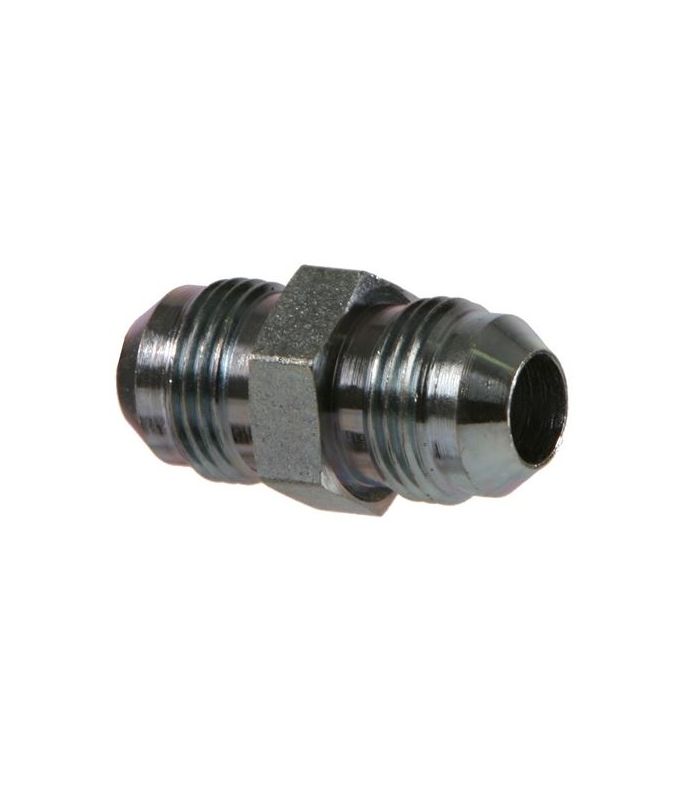

A JIC male-to-male fitting is a hydraulic fitting used to join two components or hoses that have a JIC female connection.

Applications: Hydraulic Systems, Industrial Machinery, Mobile Equipment, Hose Connection.

Technical sheet:

  • SAE J-514 (ISO 8434-2) standard fitting
  • Jointless coupling.
  • Made of carbon steel.
  • 37º flared tube fittings
  • High security of mechanical assembly.
  • Max pressure:
    • 6-8-10 450 bar.
    • 12-16-18-20-22 350 bar.
    • 25-30-38 250 bar.
€1.66 (tax included)
€1.37 (tax excl.)
THREAD TYPE
Reference:
45080001
Description

JIC male-to-male fitting

Product Details
45080001
