STRAIGHT UNION MALE JIC MALE BSP | Buy Online at the Best Price.

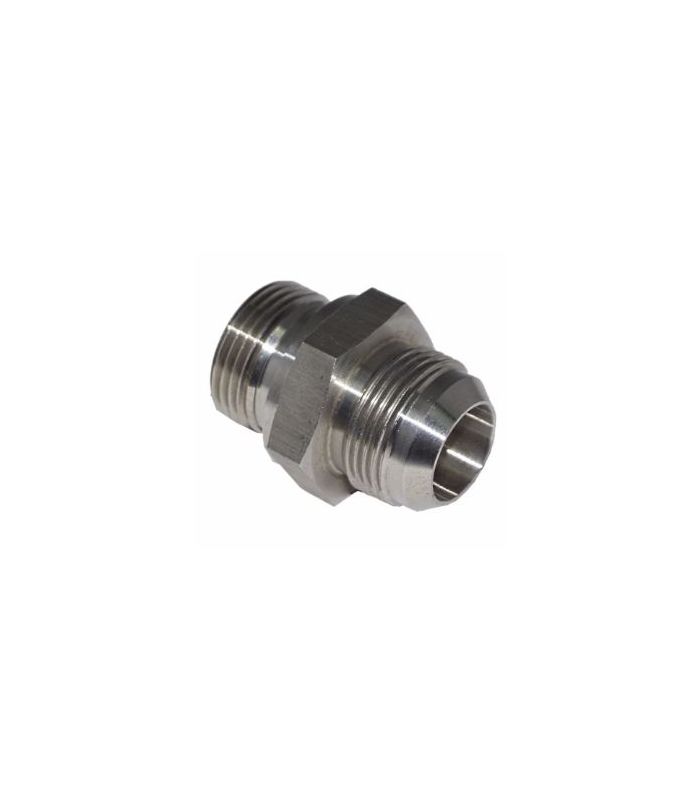

STRAIGHT UNION MALE JIC MALE BSP

A male JIC male BSP straight union is used to connect pipes or hoses that have different thread types in a straight line.

Common applications: Hydraulic systems where JIC and BSP threads are combined, Adaptation of hydraulic equipment with different connection types or Industrial piping systems that require transitions between standards.

Technical data sheet:

  • SAE J-514 (ISO 8434-2) standard fitting
  • Jointless coupling.
  • Made of carbon steel.
  • Fittings for 37° flared pipe
  • High security mechanical mounting.
  • Max pressure:
    • 6-8-10 450 bar.
    • 12-16-18-20-22 350 bar.
    • 25-30-38 250 bar.
Read moreShow less
€3.65 (tax incl.)
€3.02 (tax excl.)
SELECT THE THREAD
  • 1/8"
  • 1/4"
  • 3/8"
  • 1/2"
  • 3/4"
  • 1"
  • 1-1/4"
  • 1-1/2"
THREAD TYPE
Reference:
45090037
Description

straight union male JIC male BSP

Read moreShow less
Product Details
45090037
