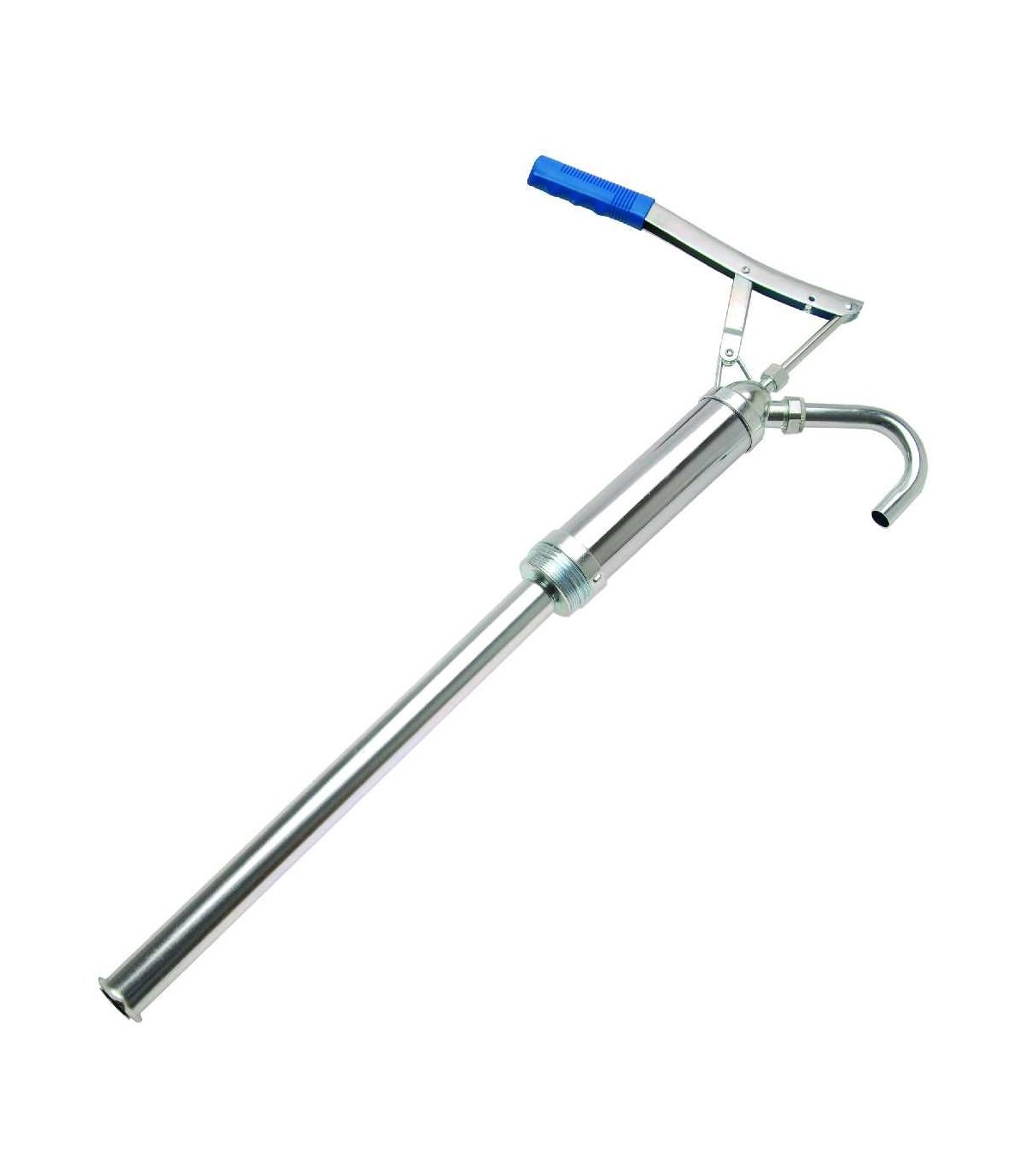

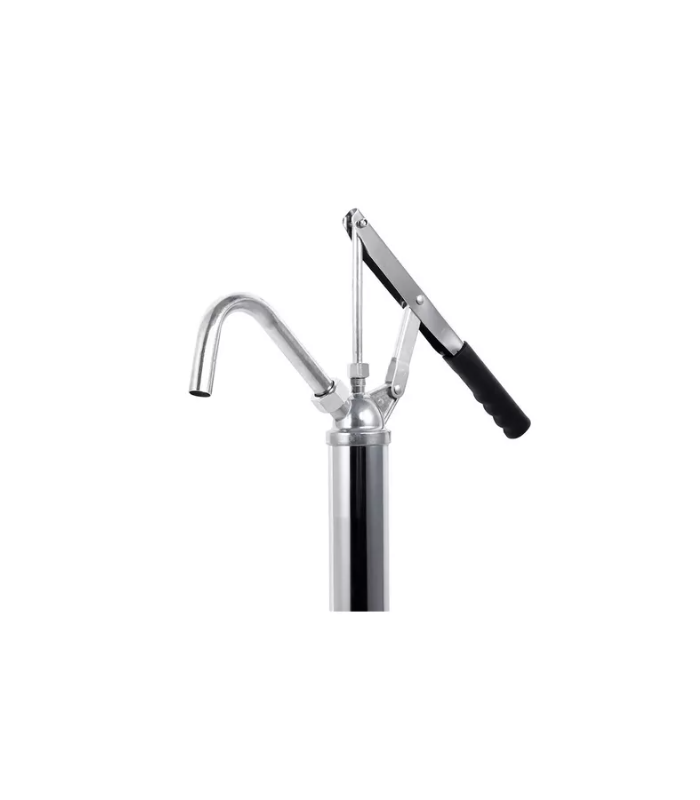

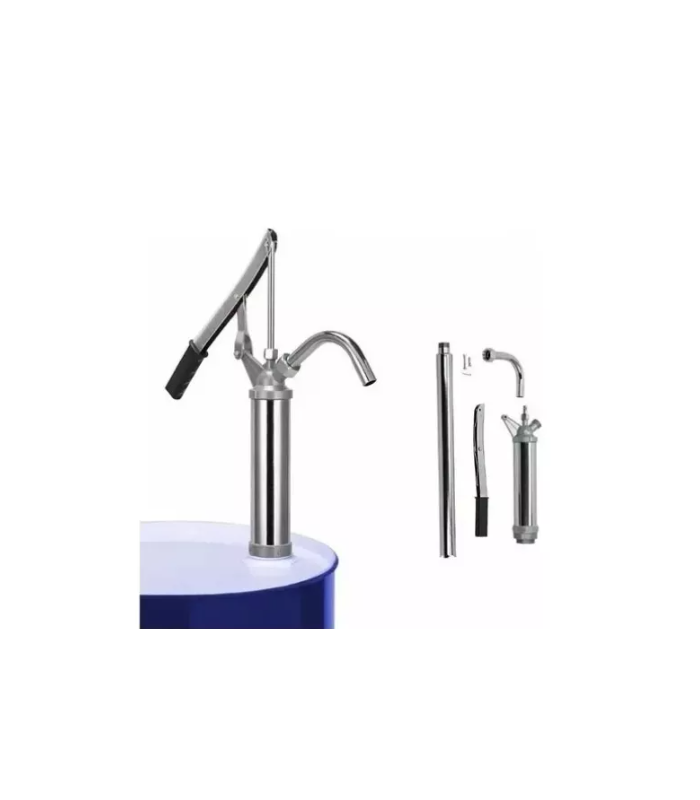

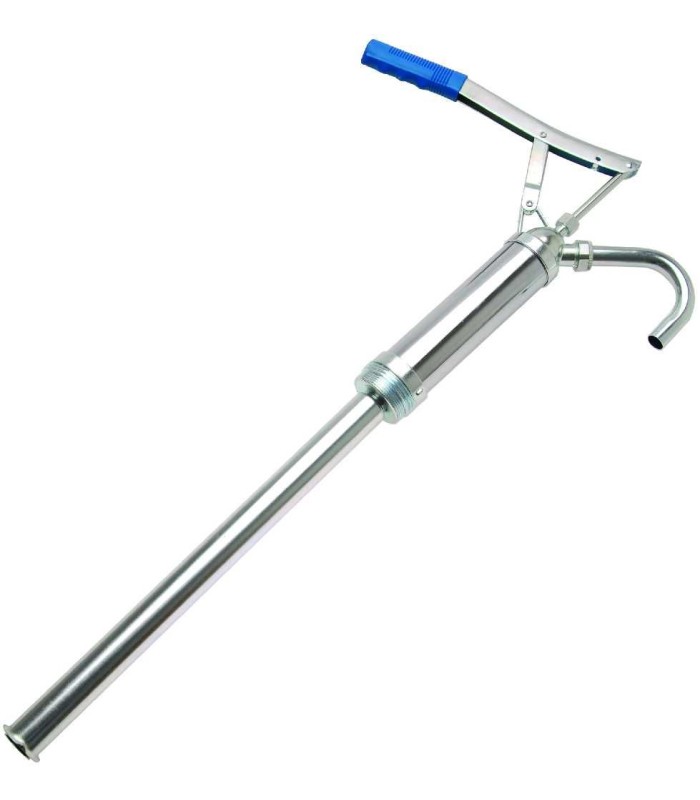

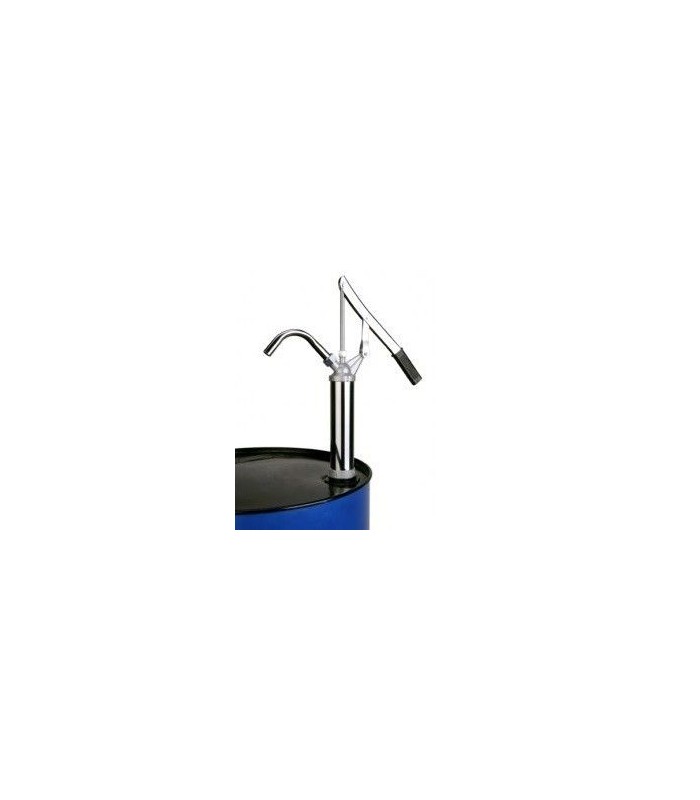

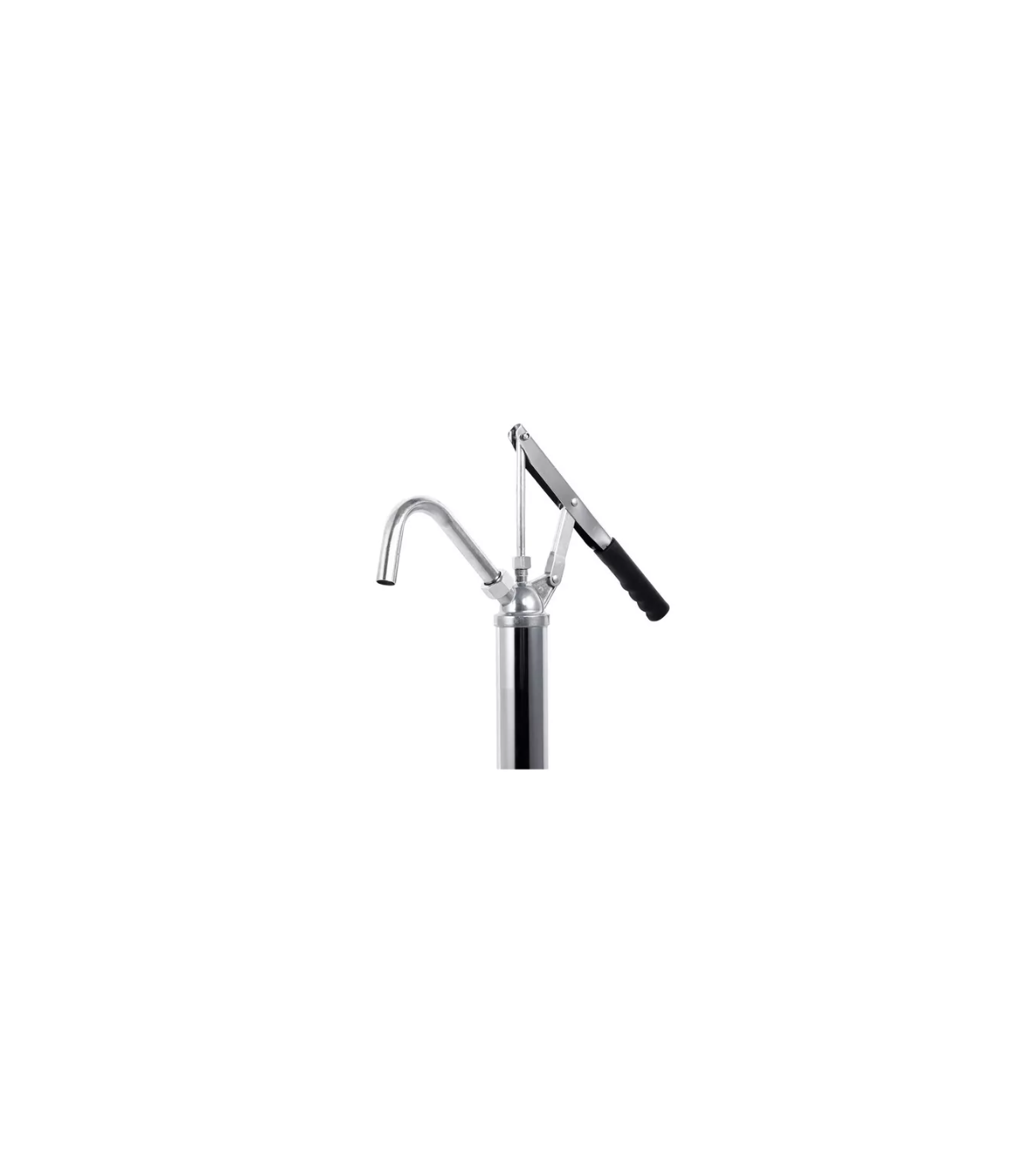

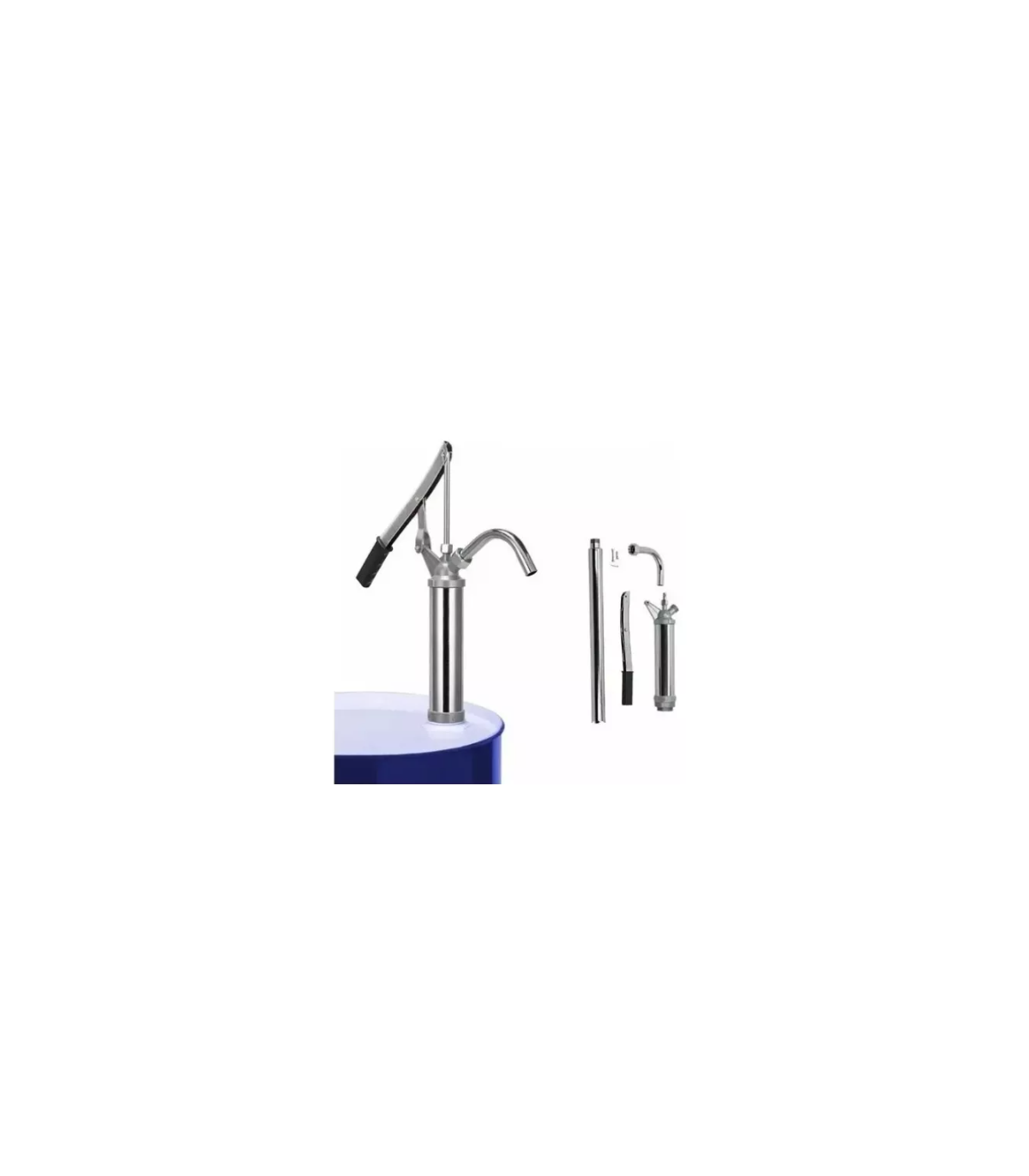

LEVER-OPERATED OIL TRANSFER PUMP 10 L/min 13015

Lever-operated oil transfer pump 10L/min 13015

Its function is to transfer liquids, especially oils, between containers quickly and efficiently. It works by using a lever that activates an internal mechanism that draws in and expels the liquid.

Applications: mechanical workshops, industry, domestic use.

Technical specifications:

• Mediums: Oils up to SAE 140
• Gasket material: Perbunan, a material resistant to many types of oils and chemicals.
• Flow rate (L/travel): 0.1 (approx. 10 L/min). Ideal for medium volume transfer tasks.
• Usage: 60 / 200 / 220 Liter Drums
• Outlet: Plastic nozzle secured with a cap nut
• Surface treatment: All steel parts are galvanized
• Pump head: Die-cast zinc, shockproof
• Transfer pump body: Steel
• Suction tube length: 840 mm
• Drum mounting adapter: G 2'' and M 64 x 4
• Packaging dimensions (mm): 1100 x 85 x 85
• Weight, including packaging: 1.8 kg

Specification:

• For oils up to SAE 140, self-lubricating and non-aggressive fluids
• Height-adjustable drum mounting adapter
