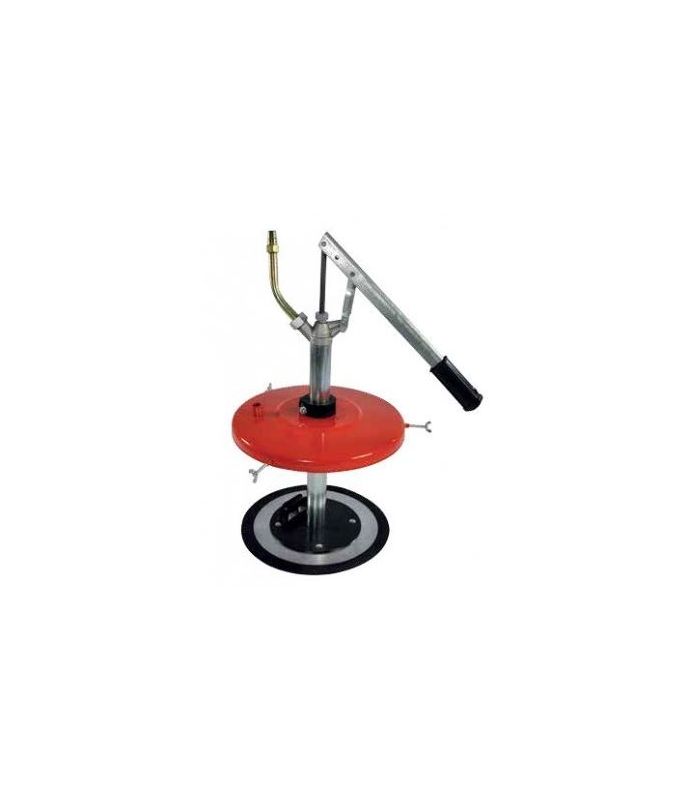

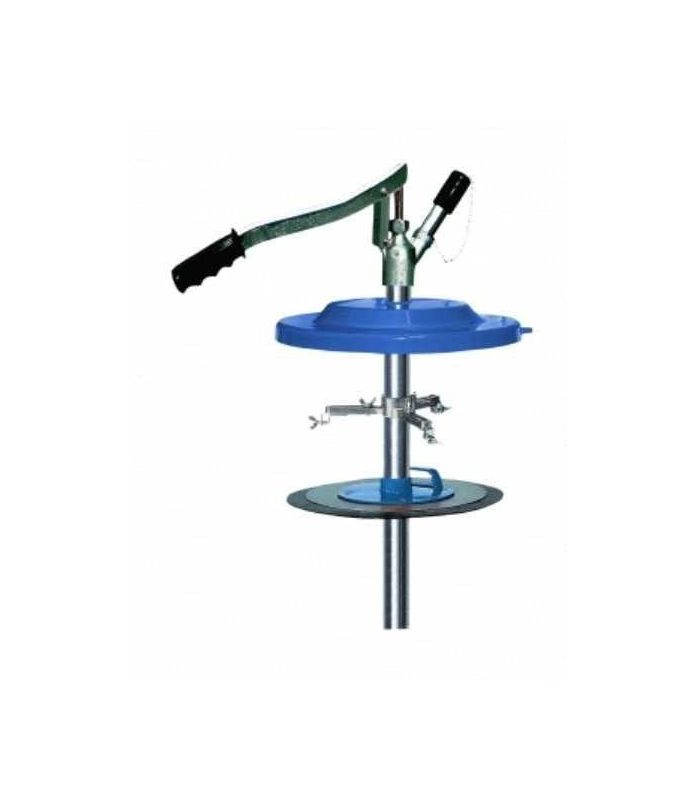

MANUAL GREASE PUMP ON TANK
MANUAL GREASE PUMP ON TANK
MANUAL GREASE PUMP ON TANK
MANUAL GREASE PUMP ON TANK

MANUAL GREASE PUMP ON TANK

Technical data of our Manual Grease Pump on tank:

  • Media: Lubricating greases, up to NLGI 2
  • Suction tube length: 510 mm
  • Suction connection: For manual Lubricationpumps with filling valve
  • Supply: lever
  • Volume / stroke: 30 cm³
  • Grease supply: 8 bar
  • Use: to fill manual lever Lubricationguns and pumps, as well as pneumatic Lubricationguns
  • Surface treatment: All steel parts are galvanized
  • Pump head: Injected zinc die-cast, shockproof
  • Transfer pump body: Steel
  • Dust cover varnishing: Pantone 294c, satin blue
€205.70 (tax included)
€170.00 (tax excl.)
CHOOSE MODEL
  • For 10 Kg Drums
  • For 20 Kg Drums
  • For 25 Kg Drums
  • For 50 Kg Drums
Reference:
63810089
Description

Specifications of the manual tank pump:

  • Pump mechanism
  • suction tube
  • Filling valve, M 10 x 1, loose fitting; allows you to fill manual Lubricationpumps from other manufacturers
  • Dust cover holding support on drum and follower plate for grease
  • Dirt protection cap at the filling connection, secured with a chain
Product Details
63810089
