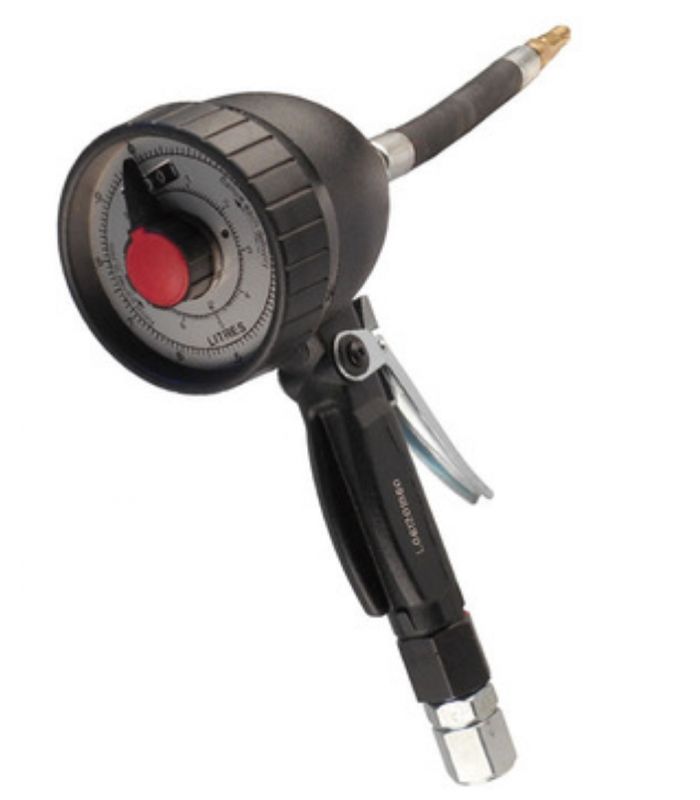

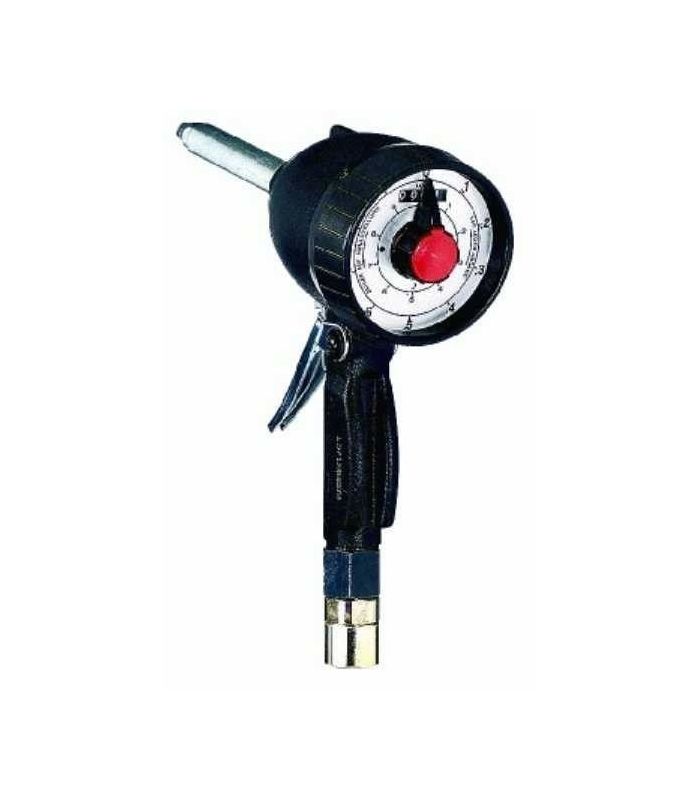

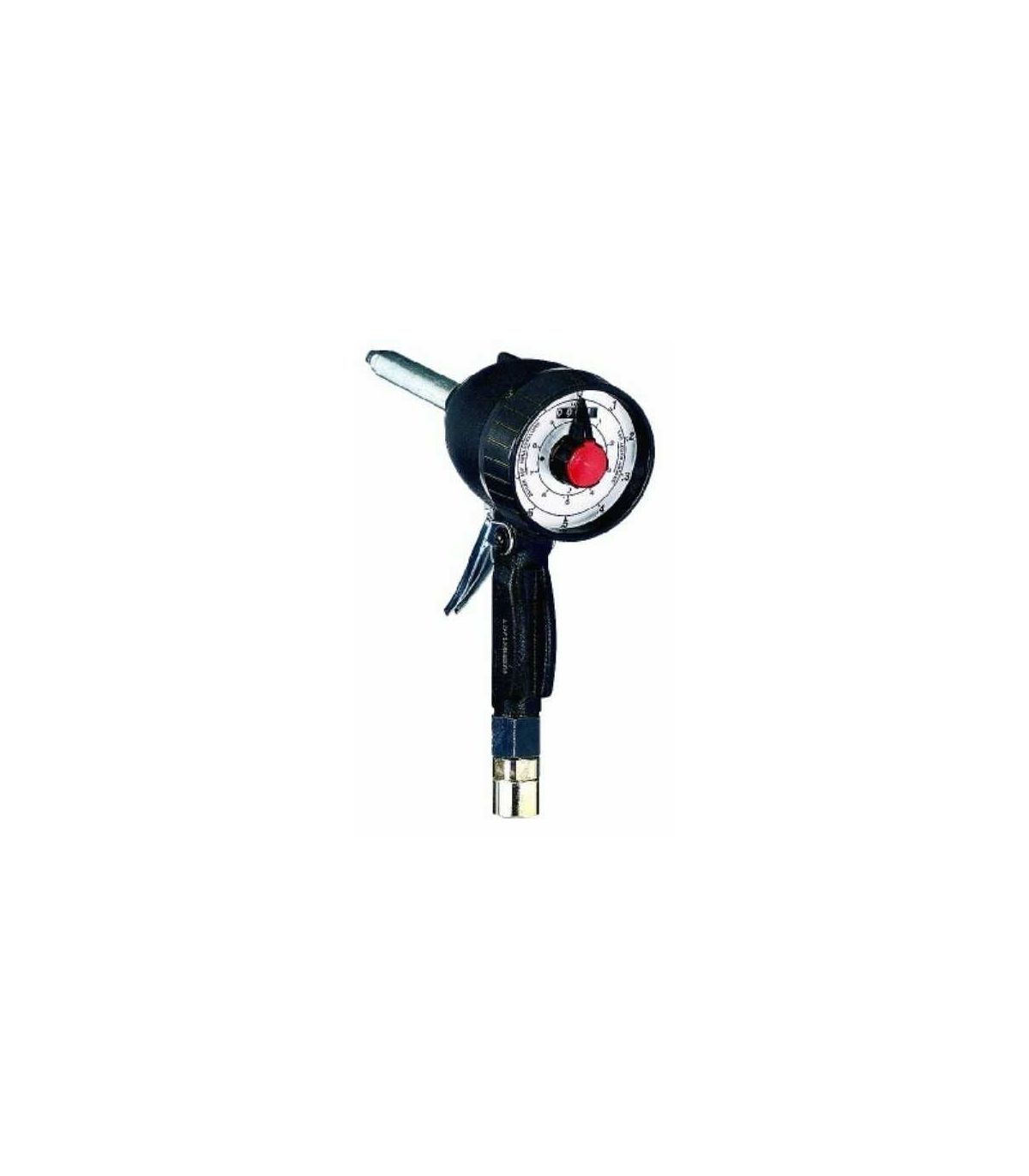

ANTI-DRIP COUNTING GUN 19723

A 19723 anti-drip counting gun is a type of dispensing gun designed to accurately control and measure the amount of liquid dispensed, while preventing unwanted drips.

It is used to apply fluids: Oils (engine, hydraulic, transmission, etc.), Antifreeze and coolant, Windshield washer fluid, Grease.

Technical specifications:

• Connection: G 1/2"
• Fluid measurement: viscous mineral oils and fluid greases, SAE 5-50 engine oil, SAE 80-240 gear oil.
• Viscosity (mPa s): 50 ÷ 50000
• Flow rate (l/min): 1.5 ÷ 15
• Pressure loss during max. passage (bar): 2
• Suitable temperatures (°C): -10 / +50
• max. pressure (bar): 70
• Housing material: die-cast aluminum
• Accuracy (%): ± 0.65
• Display 1: 1/10 I, can be zeroed
• Display 2:1 I, can be zeroed
• Not calibratable.
• Anti-drip nozzle with automatic shut-off.
• Straight outlet pipe.
• Includes 1/2" swivel joint
