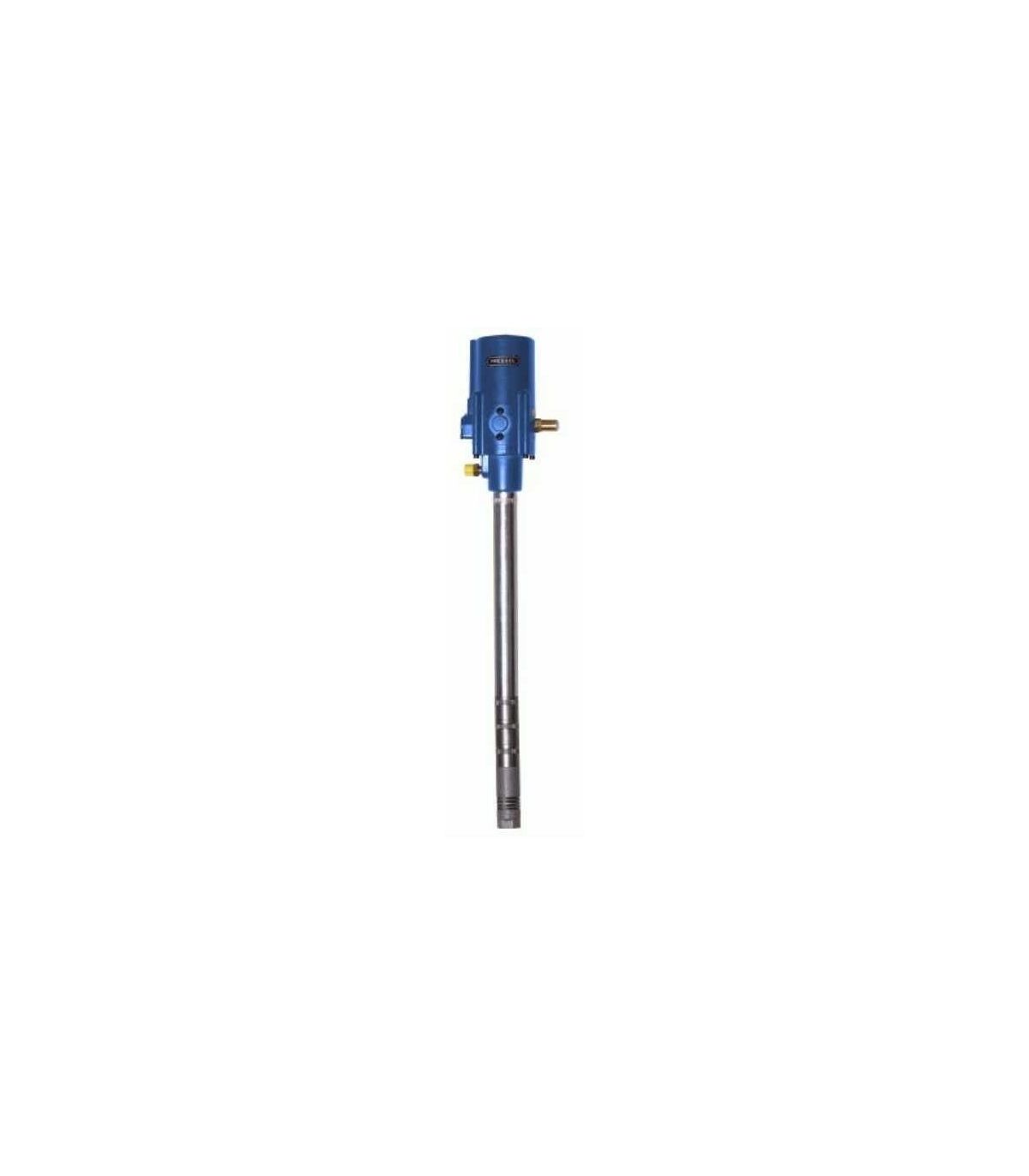

PNEUMATIC GREASE PUMP RATIO 50:1

PNEUMATIC GREASE PUMP RATIO 50:1

Features of the 50:1 ratio pneumatic grease pump:

  • Suction tube length: 468
  • Transmission ratio: 50:1
  • Max diameter (mm):130
  • Maximum pressure (bar): 10
  • Minimum pressure (bar): 2
  • Recommended air pressure (bar): 8
  • Engine displacement cm³: 220
  • Pump displacement cm³: 8
  • Number of strokes applying 8 bar (free outlet): 220/min
  • Pump performance applying 8 bar (free outlet): 1100 (g/min):
  • Pump pressure applying 8 bar of compressed air: 400
  • Air consumption applying 8 bar of compressed air: 400 l/min
  • Length of the conduit from pump to gun: will be determined depending on the installations
  • Maximum suction height: Work at the suction point
  • Air connection: G 1/4"
  • Connection for grease on the suction application side: 35 ø mm
  • Connection for grease on the pressure application side: G 1/4'' a
  • Noise intensity in operation but without work; conforms to ISO 9614-2: 78 db (A) (2 m distance)
  • Noise intensity with load/work; conforms to ISO 9614-2: 77 db (A) (2 m distance)
  • Lubricating viscosity: Greases with a consistency grade of 2 or less according to NLGI (º viscosity from 000 to 6)
  • Classic pumping medium: Lubricating greases
  • Duration of emptying a barrel: 50 kg grease in 50 minutes
  • Color: Blue, Pantone 294 c
  • Motor length (mm): 225 mm
  • Engine weight (kg): 3,400


Specifications:

  • for containers from 10 to 200 kg
  • suction tube
  • Additional suction mechanism to increase pump performance
  • Pressure regulator (regulated at 8 bar)
  • For transporting greases from NLGI 0 to NLGI 2

Buy online PNEUMATIC GREASE PUMP RATIO 50:1 at the best price

€527.08 (tax incl.)
€435.60 (tax excl.)
CHOOSE MODEL
  • For 10 Kg Drums
  • For 25-60 kg Drums
  • For 200 Kg Drums
Reference:
63560089
Consult price for large quantities
Product Details
63560089
Reference ABILITY Price Add to cart
63560090 For 25-60 kg Drums
€354.00
63560091 For 200 Kg Drums
€477.60
63560089 For 10 Kg Drums
€435.60
