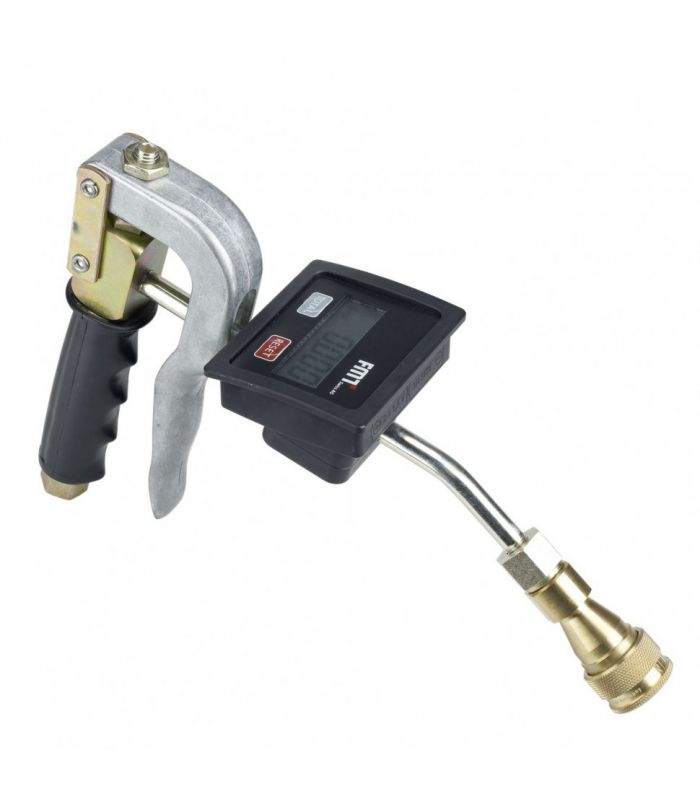

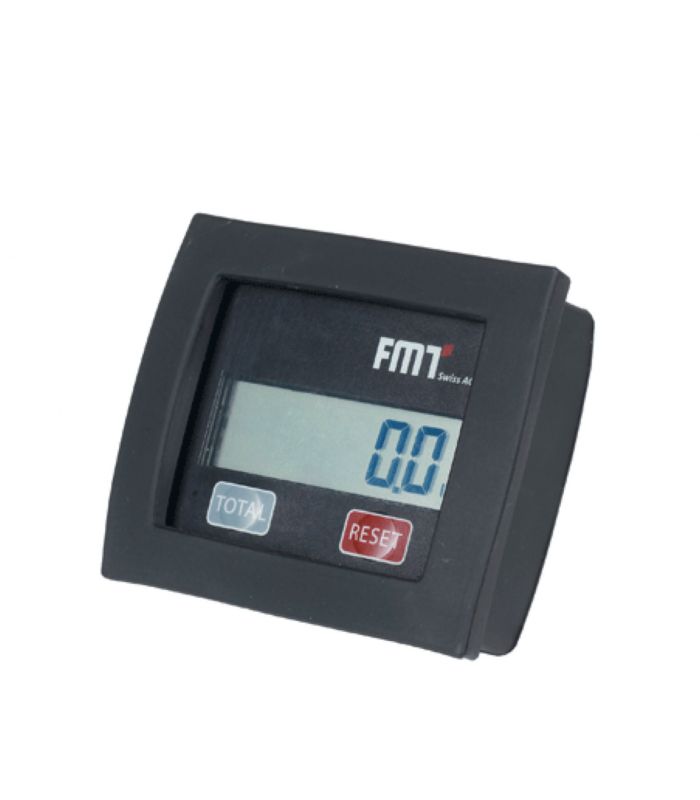

DIGITAL COUNTER FOR GREASE PUMPS

Digital counter for grease pumps.

A digital grease pump counter is a precise electronic device designed to measure and record the exact amount of grease being delivered through a grease pump.

It provides real-time information on the volume of fat dispensed.

Applications: automotive, metallurgy, food, textile.

Technical specifications:

• They apply to NLGI 2 fats
• Measurement units: Liters or cm³
• Flow rate 0-1000 (l-cm³)
• Working pressure 700 bar
• Bursting pressure 1000 bar
• Service temperature -20ºC / 60ºC
• 1/8" inlet and outlet thread
• AISI-12 casing material (water resistant)
• Black anodized casing treatment.
• Repeatability accuracy 0-300 bar 1%
• Display total quantity / partial quantity
• Voltage 2.36 / 3.3 Volts
• Power consumption 800 microamps
• Power supply: 2 x 1.5 Volt batteries (Lady LR1)
• Dimensions 85x75x57 mm.
• Weight 0.47 Kg
• Easily calibratable
• The viscosity measurement accuracy can be adjusted using the calibrator
• Easy-to-read 5-digit display
• Reversal indicator
• Shock-protected electronics
• The system automatically shuts down after 10 minutes of operation in standby mode.
