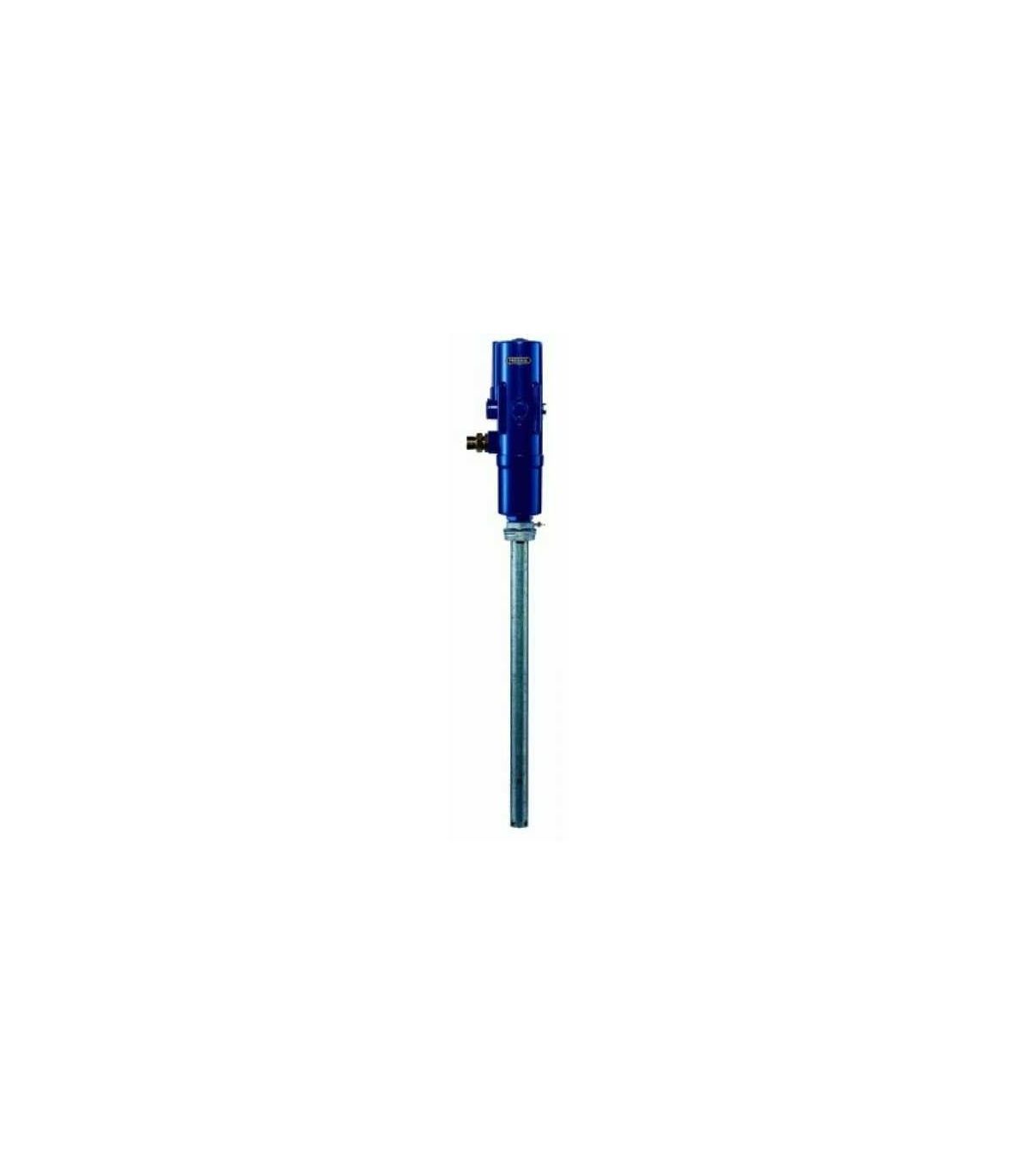

PNEUMATIC OIL PUMP ON TANK 200220

The 200220 pneumatic oil pump on a reservoir is designed for transferring and supplying lubricating oil from an integrated reservoir. Its operation using compressed air ensures a constant flow rate.

Applications: mechanical workshops, industries and service centers.

Main features:

• Suction tube length: 860 mm
• Transmission ratio: 1:1
• Maximum diameter (mm): 130
• Maximum pressure (bar): 10
• Minimum pressure (bar): 2
• Recommended air pressure (bar): 8
• Engine Displacement: 220 cm³
• Pump displacement: 220 cm³
• Number of trips applying 8 bar (free exit): 240 Min.
• Pump performance applying 8 bar (free outlet): 66 l/min
• Pump pressure applying 8 bar of compressed air: 8 bar
• Air consumption applying 8 bar of compressed air: 450 l/min
• Length of the pump-to-gun conduit: will be determined depending on the facilities
• Maximum suction height: 6 m, G 1" Suction tube
• Maximum recoil length (m): 10
• Air connection: G 1/4" i
• Oil connection on the suction side: 1" GM
• Oil connection on the supply side: adapter, MA 3/4''G, 60° tank cone, HE 1/2''G (87 965)
• Connection to drum: G 2" a, drum anchor
• Noise intensity in operation but not working; according to ISO 9614-2: 78 dB (A) (2 m distance)
• Noise intensity under load/work; according to ISO 9614-2: 77 dB(A) (2 m distance)
• Lubricant viscosity: ISO VG 15 SAE 5 oil
• Classic pump medium: diesel and oil
• Emptying time: 200 l Diesel in 3 minutes
• Color: Blue, Pantone 294 c
• Motor Length (mm): 375
• Engine weight (kg): 4,300
