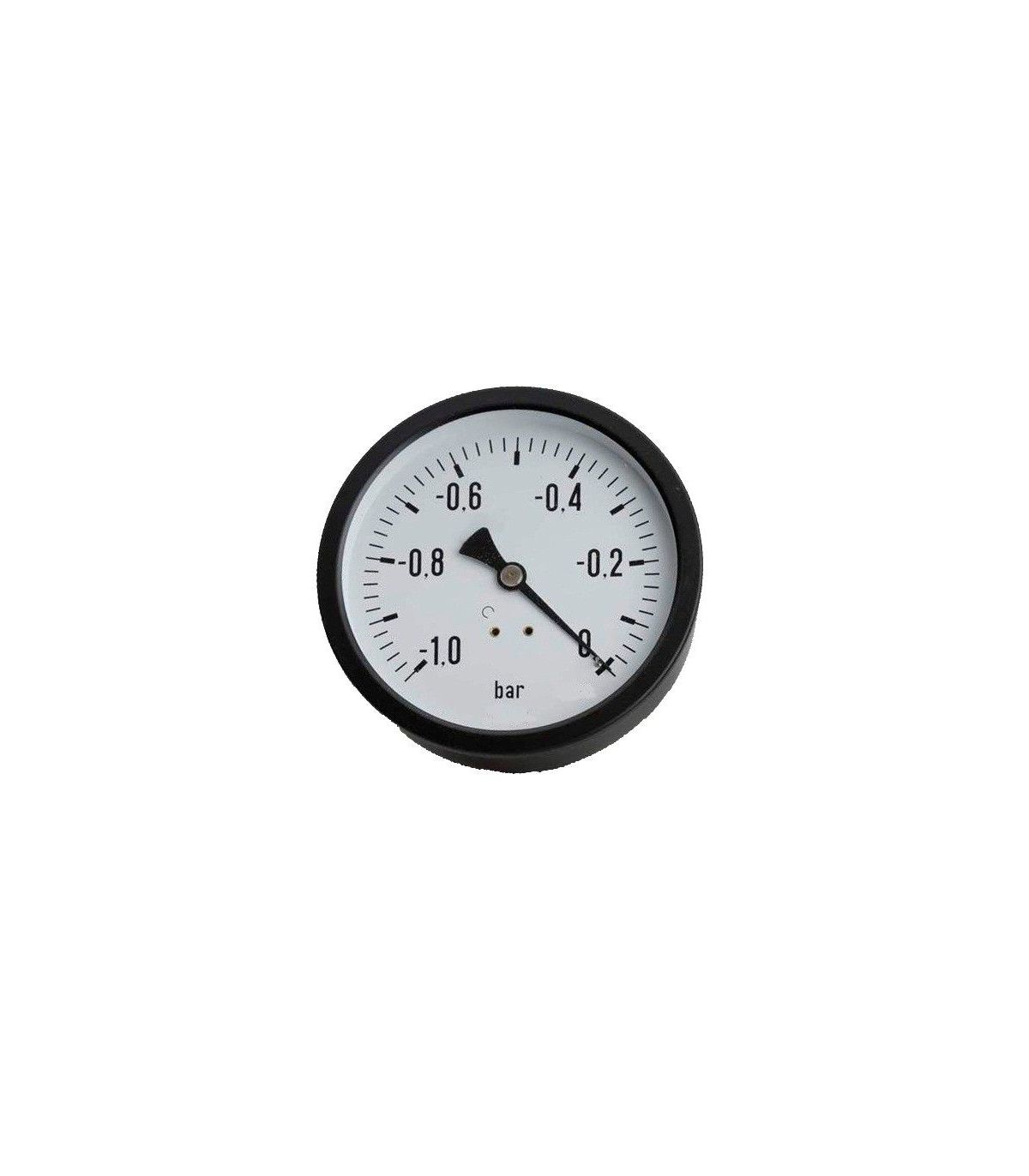

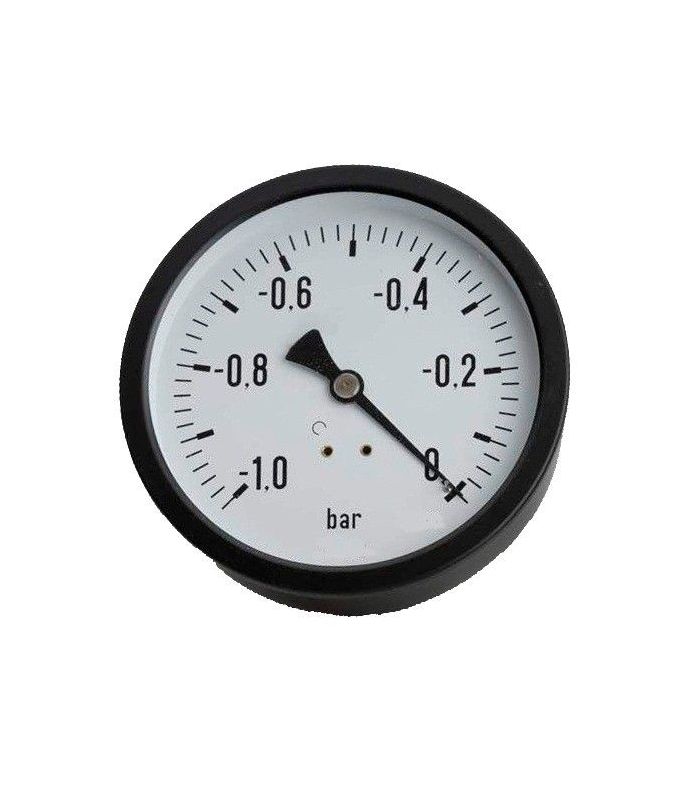

VACUUM GAUGE Ø40 CENTRAL THREAD 1/8"

VACUUM GAUGE Ø40 CENTRAL THREAD 1/8"

A Ø40 center thread 1/8" vacuum gauge is a pressure measuring instrument specifically designed to indicate negative pressure (vacuum) in a system.

Applications: Pneumatic vacuum systems, Packaging machinery, Laboratories, Vacuum clamping systems, Air conditioning.

Technical specifications:

  • Case and rim: Carbon steel, painted
  • Fitting : Brass 1/8”
  • Transmission: Copper alloy
  • Needle: Black
  • Sphere: White lacquered aluminum
  • Screen: Transparent Polycarbonate
  • Tolerance: +/- 1.7%
  • Temperature: 70ºC
  • IP43 protection rating
€4.26 (tax included)
€3.52 (tax excl.)
Reference:
4116
Description

Vacuum gauge 40, 1/8" center thread

The Ø40 vacuum gauge with 1/8" center thread is a compact instrument for measuring negative pressures relative to atmospheric pressure.

Its 40 mm diameter design facilitates integration into equipment and circuits where space is limited. The 1/8" central threaded connection allows for direct installation at the measuring point using the appropriate connection.

It is a common solution for visual vacuum control in pneumatic systems, suction equipment, vacuum pumps, industrial machinery and filtration circuits .

Applications

  • Pumps and vacuum systems.
  • Pneumatic installations.
  • Suction systems.
  • Industrial machinery.
  • Filtration equipment.
  • Industrial automation.
  • Vacuum control in circuits and equipment.

Technical specifications of a vacuum gauge Ø40 with 1/8 central thread:

VACUOMETRO 40 ROSCA CENTRAL 18

Product Details
4116
