PRESSURE GAUGE Ø40 CENTRAL THREAD 1/8" WITH RING

PRESSURE GAUGE Ø40 CENTRAL THREAD 1/8" WITH RING

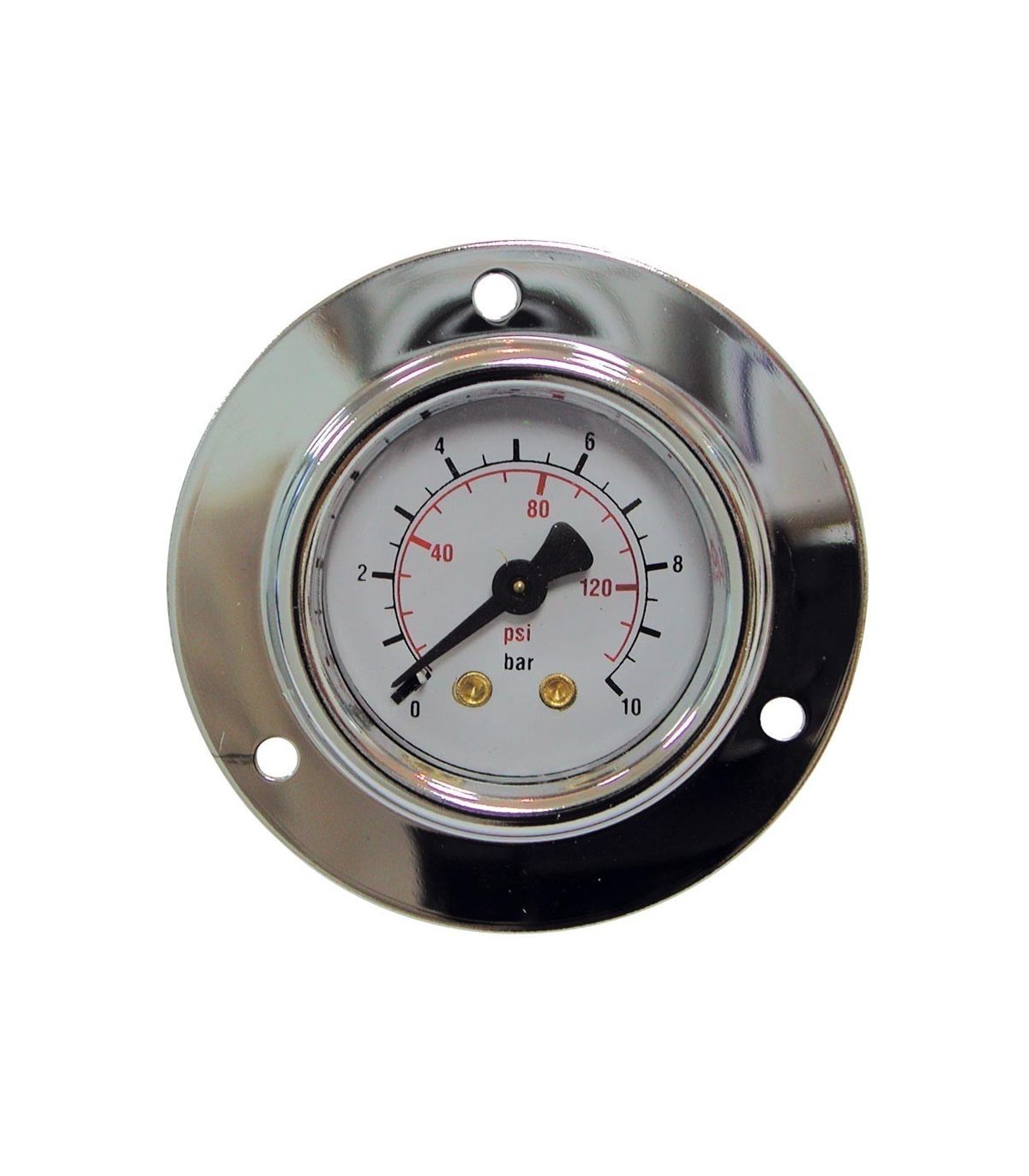

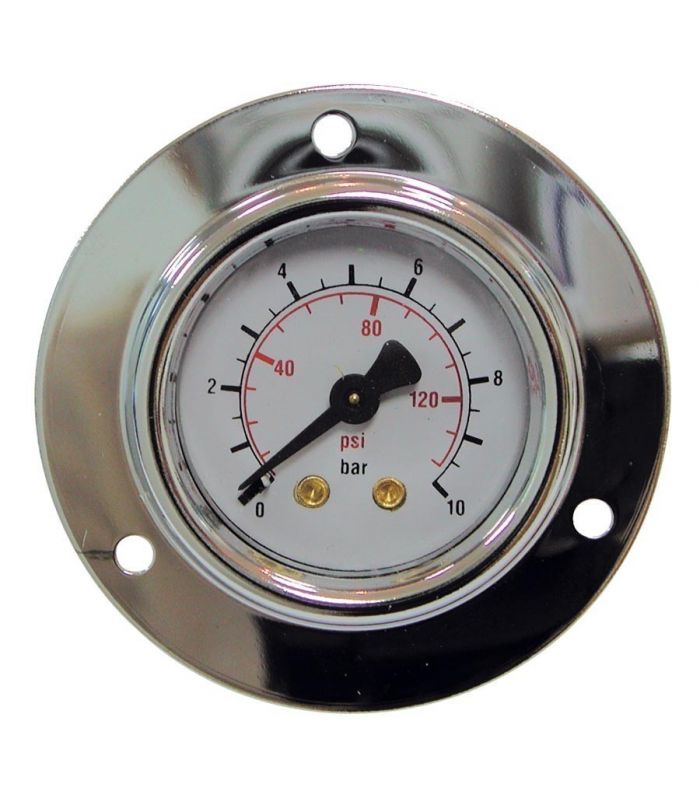

Pressure gauge Ø40 center thread 1/8" with ring

The Ø40 pressure gauge with 1/8" center thread and ring is designed for measuring pressure in pneumatic and hydraulic systems. It features a Ø40 mm dial, a 1/8" center threaded connection for direct mounting, and a protective front ring.

Applications: Pressure regulators, Compressed air networks, Industrial machinery, Pneumatic installations.

Main features :

  • Case and rim: Carbon steel, painted
  • Fitting: Brass 1/8”
  • Transmission: Copper alloy
  • Needle: Black
  • Sphere: White lacquered aluminum
  • Screen: Transparent Polycarbonate
  • Tolerance: +/- 1.7%
  • Temperature: 70ºC
  • IP43 protection rating
€11.89 (tax included)
€9.83 (tax excl.)
PRESSURE
  • 1.6 Bar
  • 2.5 Bar
  • 4 Bar
  • 6 Bar
  • 10 Bar
  • 12 Bar
Reference:
41020003
Description

Pressure gauge Ø40 center thread 1/8" with ring

A 40 mm diameter pressure gauge with a 1/8" center thread and ring is a compact pressure measuring instrument designed to indicate the pressure of air, gases, or liquids in pneumatic or hydraulic systems. It features a 40 mm diameter dial, a 1/8" center threaded connection for direct mounting, and a front ring that protects the dial and improves the overall stability.

Main features

  • Sphere diameter: Ø40 mm
  • Connection: 1/8" center thread
  • Reading type: Analog
  • With protective ring for added protection
  • Compatible with air, water and non-corrosive fluids
  • Robust construction for industrial use

Applications

  • Pneumatic installations
  • Air regulators and filters
  • Compressors
  • Industrial machinery

Technical specifications of a Ø40 pressure gauge with 1/8" center thread and ring:

MANOMETRO 40 ROSCA CENTRAL 18 CON ARO

Product Details
41020003
