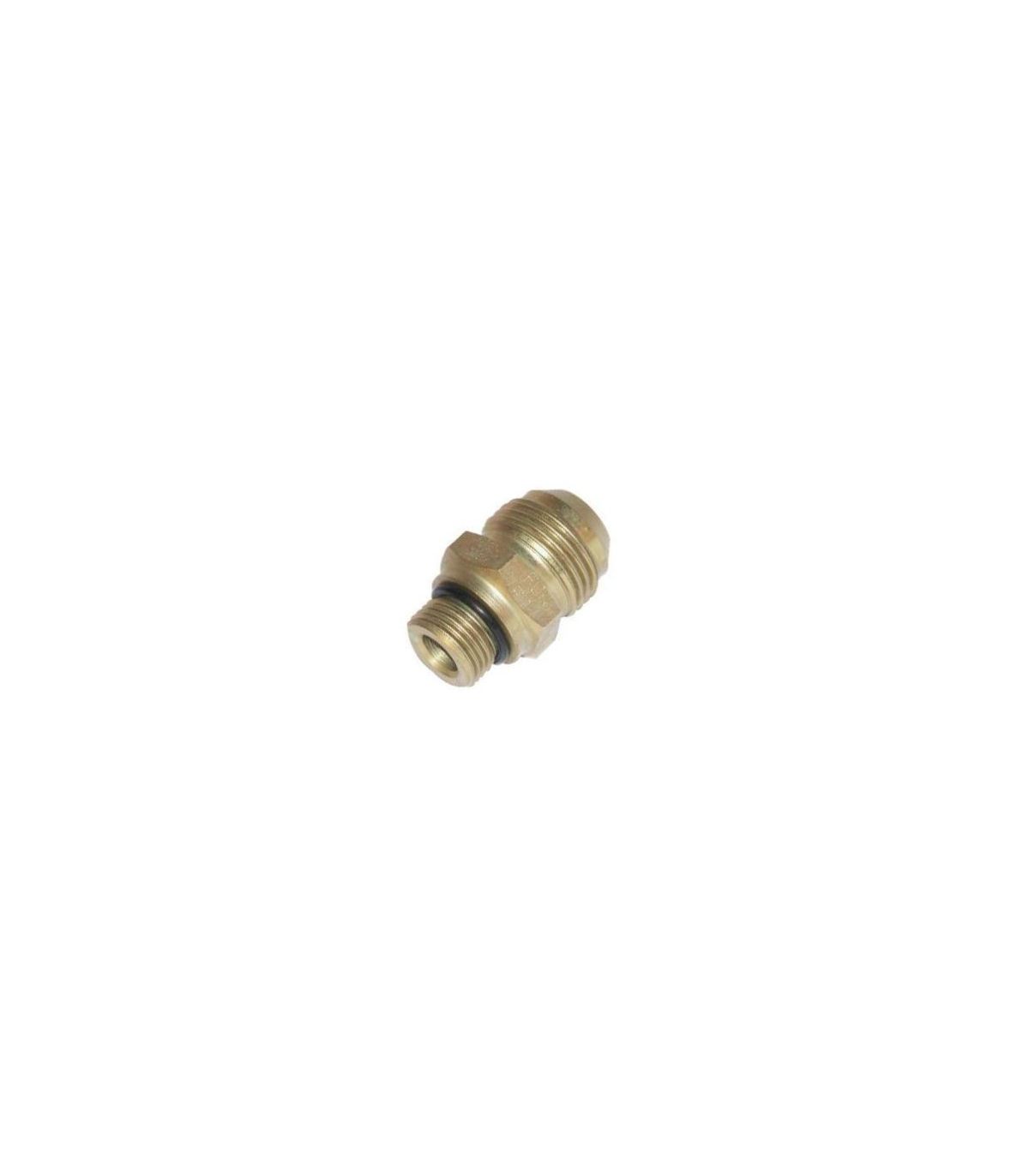

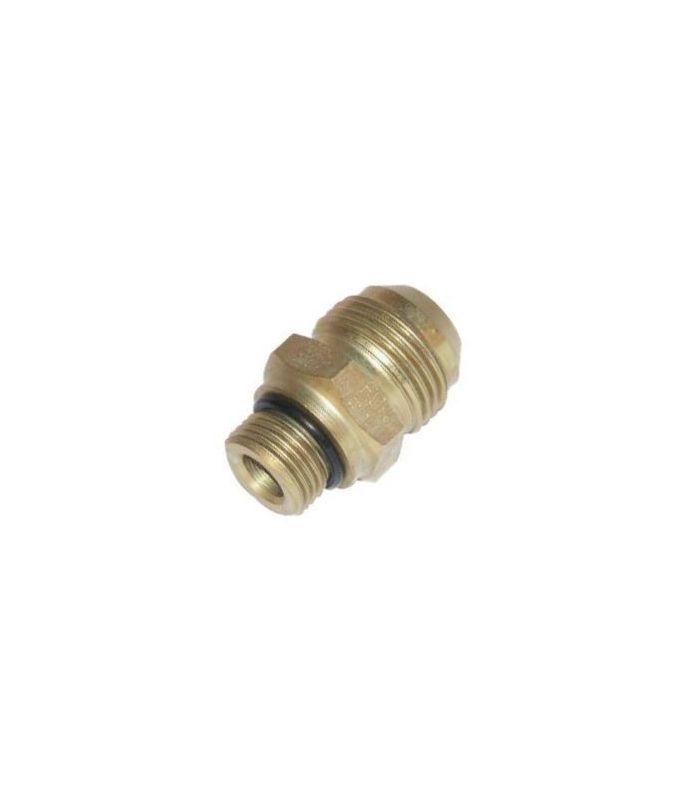

STRAIGHT UNION MALE JIC - MALE SAE

STRAIGHT UNION MALE JIC - MALE SAE

A male JIC - male SAE straight union is a hydraulic fitting used to join two sections of pipe or hose that have a male end with a 37º flare angle.

Assembly is carried out by screwing both male ends into the respective previously flared tubes or hoses. Sealing is achieved by contact between the conical surfaces of the ends, which are tightly pressed together when the union is screwed on.

JIC male - SAE male straight unions are found in various hydraulic systems such as industrial machinery, mobile vehicles and mobile hydraulic systems.

Technical data sheet:

  • SAE J-514 (ISO 8434-2) standard fitting
  • Jointless coupling.
  • Made of carbon steel.
  • Fittings for 37° flared pipe
  • High security mechanical mounting.
  • Max pressure:

    • 6-8-10 450 bar.
    • 12-16-18-20-22 350 bar.
    • 25-30-38 250 bar.
€2.47 (tax included)
€2.04 (tax excl.)
SELECT THE THREAD
  • 1/2"
  • 3/4"
  • 7/16"
  • 9/16"
  • 7/8"
  • 1-5/16"
  • 1-1/16"
  • 1-5/8"
  • 1-7/8"
THREAD TYPE
Reference:
45250000
Description

straight male JIC - male SAE union

Product Details
45250000
