POLYURETHANE HOSE WITH COPPER-PLATED STEEL SPIRAL
POLYURETHANE HOSE WITH COPPER-PLATED STEEL SPIRAL
POLYURETHANE HOSE WITH COPPER-PLATED STEEL SPIRAL
POLYURETHANE HOSE WITH COPPER-PLATED STEEL SPIRAL
POLYURETHANE HOSE WITH COPPER-PLATED STEEL SPIRAL
POLYURETHANE HOSE WITH COPPER-PLATED STEEL SPIRAL
POLYURETHANE HOSE WITH COPPER-PLATED STEEL SPIRAL
POLYURETHANE HOSE WITH COPPER-PLATED STEEL SPIRAL

POLYURETHANE HOSE WITH COPPER-PLATED STEEL SPIRAL

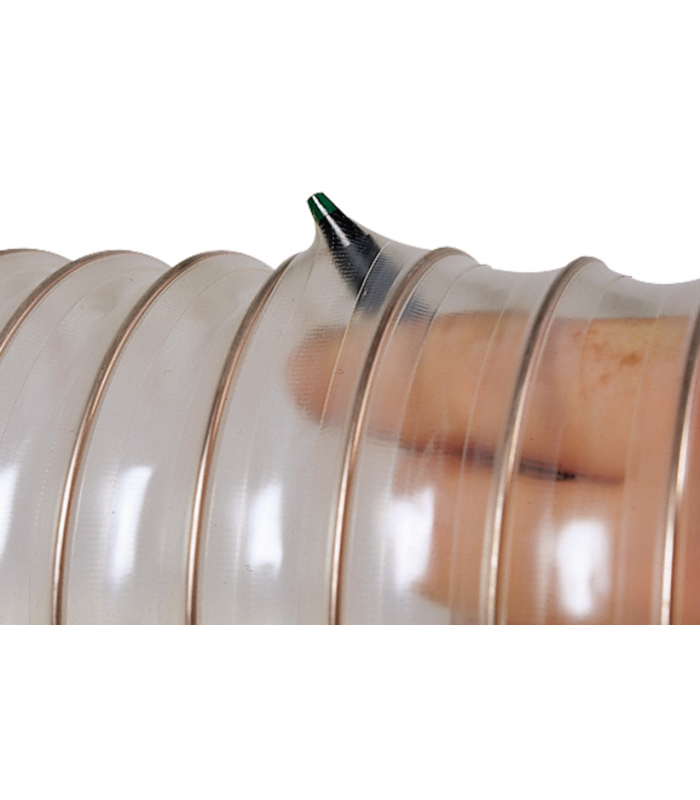

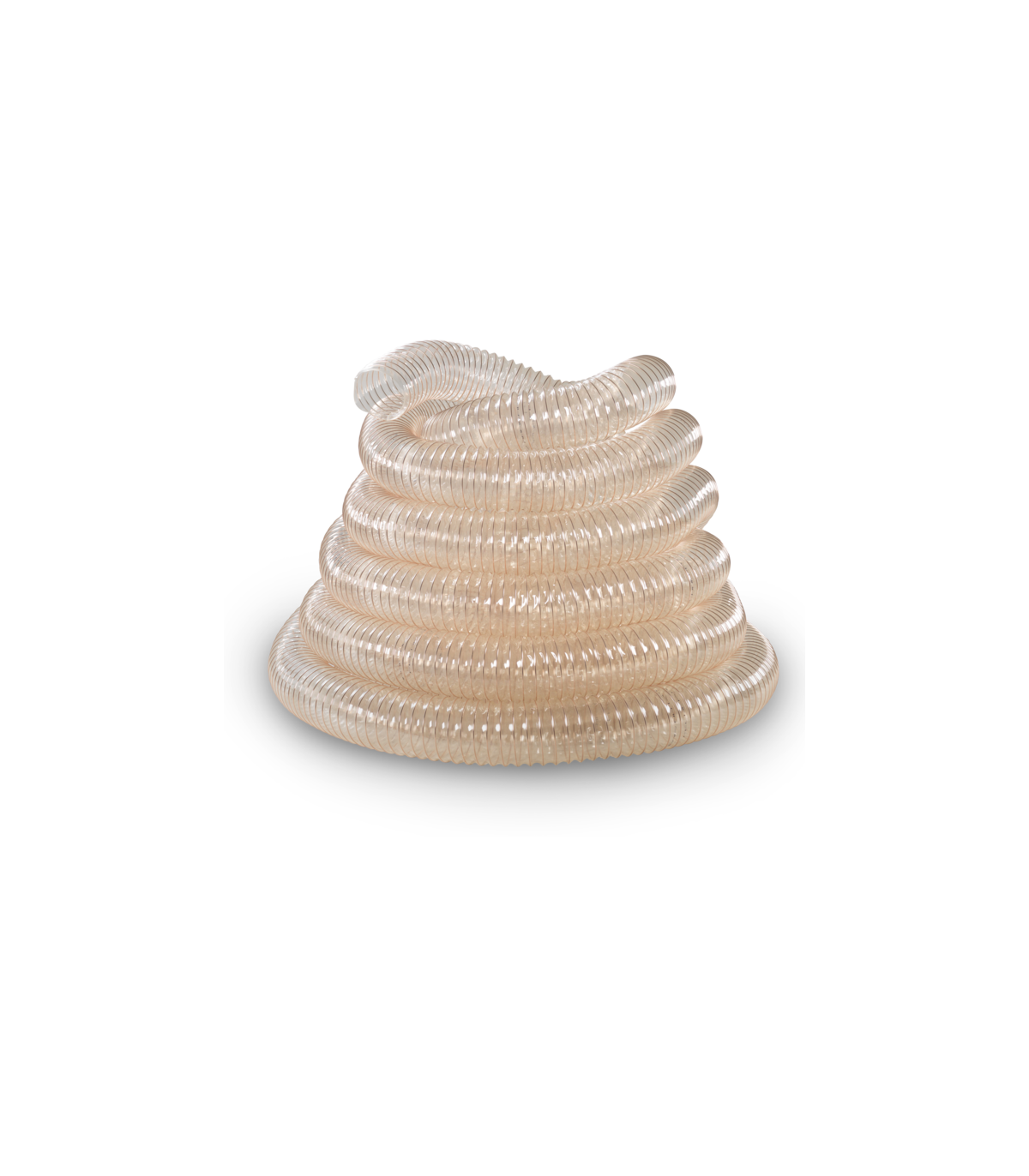

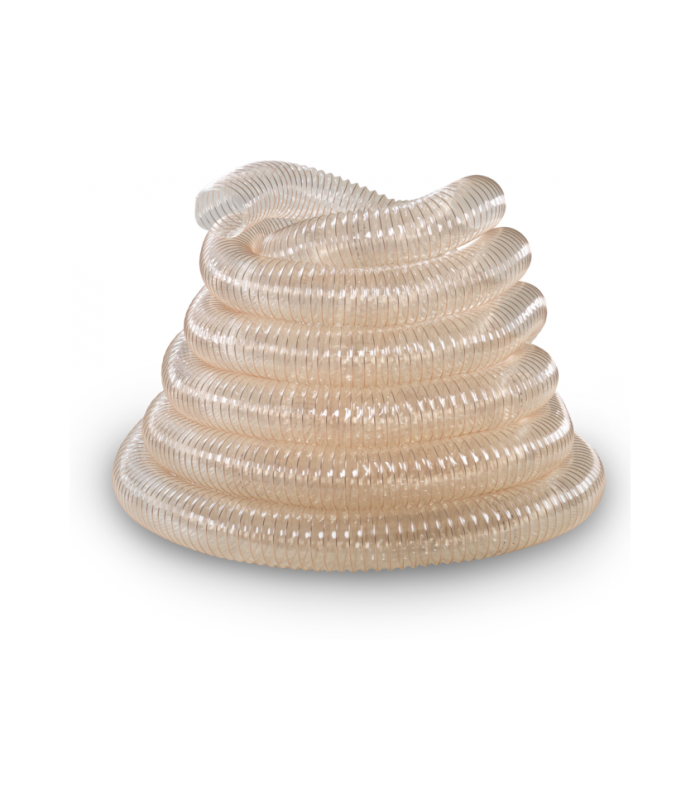

The polyurethane hose with copper-plated steel spiral, also known as AIRMETAL-PU, ALISIOS-PUC, PURTRANS-L, RYLFLEX CICLON-L, FLEXADUX-L, VULCANO-PU, or PURFLEX-ECO, is designed to transport a wide variety of fluids and materials. It is made of high-strength polyurethane (PU) reinforced with a copper-plated steel helical spiral embedded within its structure. This combination provides excellent flexibility, mechanical strength, and durability against abrasion, impact, and deformation, even under demanding working conditions.

Thanks to its properties, it is suitable for applications such as Industry, Construction, Agriculture and Food.

Main features:

  • Transparent color.
  • Temperature -40 / 100ºC
  • Manufactured according to CE standard 1935/04 2002/72/CE
  • Applications: Suction and transport of air, sawdust, dust, threads, etc.

The selection is by inner diameter.

Choose full rolls or linear meters, according to your needs.

€2.80 (tax included)
€2.31 (tax excl.)
DIAMETERS
  • Ø 25
  • Ø 30
  • Ø 40
  • Ø 45
  • Ø 50
  • Ø51
  • Ø 60
  • Ø 63
  • Ø 70
  • Ø 75
  • Ø 76
  • Ø 80
  • Ø 90
  • Ø 100
  • Ø 110
  • Ø 120
  • Ø 125
  • Ø 130
  • Ø 140
  • Ø 150
  • Ø 160
  • Ø 170
  • Ø 180
  • Ø 200
  • Ø 203
  • Ø 220
  • Ø 228
  • Ø 250
  • Ø 300
  • Ø350
  • Ø400
  • Ø 450
  • Ø 500
  • Ø550
  • Ø600
DIAMETERS:
metros
metros
Reference:
20620027
Description

Polyurethane hose with copper-plated steel spiral

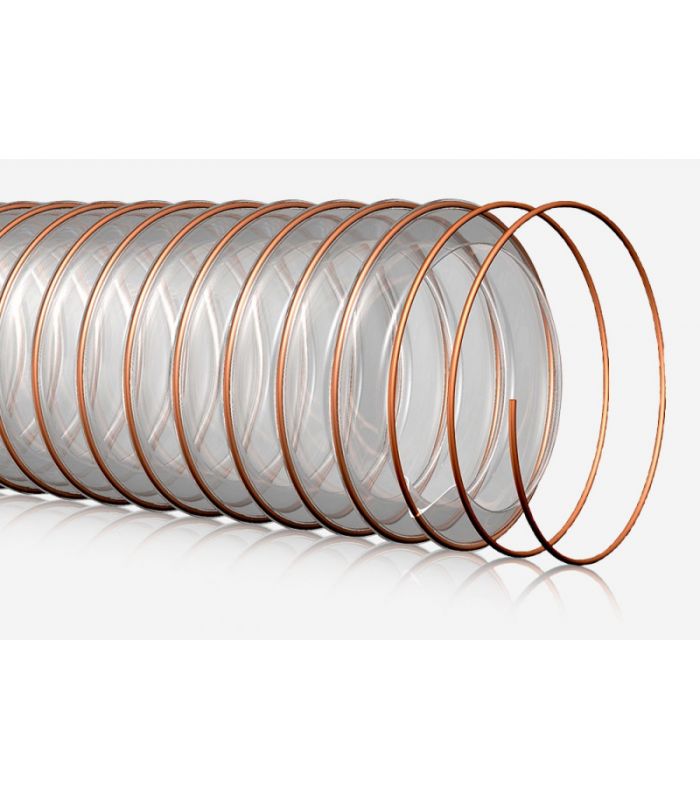

The polyurethane hose with copper-plated steel spiral is a flexible conduit made of thermoplastic polyurethane (PU), internally reinforced with a helical spiral of copper-plated steel . This structure combines the high abrasion resistance and flexibility of polyurethane with the robustness and mechanical stability provided by the metal reinforcement.

Thanks to this composition, the hose withstands negative pressures (suction), impacts and repetitive movements , maintaining its shape without collapsing.

Operational advantages:

  • Longer lifespan compared to conventional PVC or rubber hoses.
  • Excellent dynamic performance in mobile applications.
  • Electrostatic discharge by grounding the metal coil.

Recommended applications:

Designed for the transport of air, dust, shavings, granules, gases or abrasive particles in industrial environments, such as:

  • Air intake and exhaust systems.
  • Woodworking and metalworking machinery.
  • Pneumatic conveying equipment for solids.
  • Plastic, chemical and food industries (depending on the grade of the material).

Technical specifications for the polyurethane hose with steel spiral

Reference Inner diameter (mm) Weight kg/m Thickness (mm) Roll length (m)
20620027 25 0.130 0.40 10
20620030 30 0.170 0.40 10
20620036 40 0.230 0.40 10
20620039 45 0.260 0.40 10
20620041 50 0.300 0.40 10
20620042 51 0.300 0.40 10
20620044 60 0.340 0.40 10
20620045 63 0.360 0.40 10
20620047 70 0.400 0.40 10
20620048 75 0.430 0.40 10
206200481 76 0.430 0.40 10
20620049 80 0.460 0.40 10
20620050 90 0.480 0.40 10
20620052 100 0.510 0.40 10
20620053 110 0.540 0.40 10
20620054 120 0.600 0.40 10
20620055 125 0.650 0.40 10
20620056 130 0.670 0.40 10
20620057 140 0.710 0.40 10
20620058 150 0.780 0.40 10
20620059 160 0.850 0.40 10
206200591 170 0.900 0.40 10
20620060 180 0.950 0.40 10
20620061 200 1,050 0.40 10
20620064 220 1,150 0.40 10
20620062 250 1,250 0.40 10
20620063 300 1,550 0.40 10
20620067 350 1,800 0.40 10
20620068 400 2,100 0.40 10
20620066 450 2,350 0.40 10
20620069 500 2,620 0.40 10
20620071 600 4,600 0.40 10
