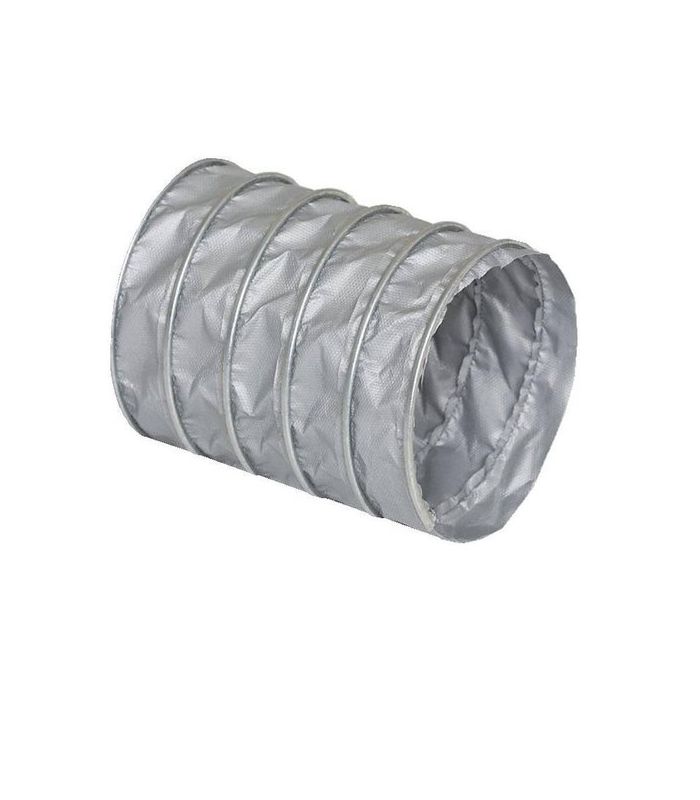

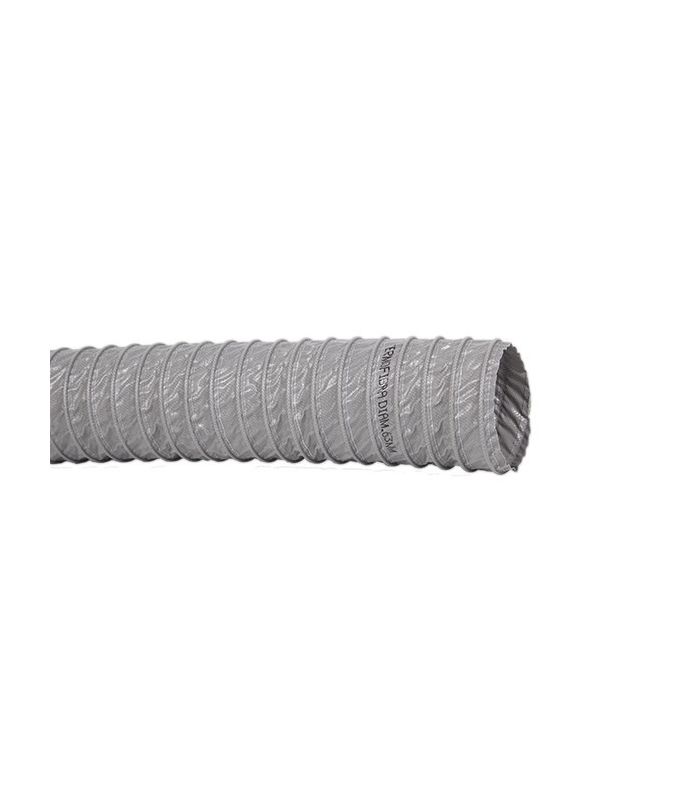

The fiberglass and PVC thermal hose stands out for being flexible, self-extinguishing and with a reinforcing spiral in plastic-coated steel welded to the fabric.
Applications: Extraction systems, Industrial dryers, Industrial ovens and Ventilation systems
Main features:
The selection is by inner diameter.
Choose full rolls or linear meters, according to your needs.
The fiberglass and PVC thermal hose is a flexible conduit designed for the conduction of hot air or gases at medium-high temperature, manufactured with an internal structure of fiberglass that provides thermal resistance, and an outer coating of PVC or technical plastic material that provides mechanical protection, sealing and flexibility.
This type of hose is used in installations where it is necessary to transport hot air without deformation of the duct, while maintaining good handling and wear resistance.
Technical specifications for the fiberglass and PVC thermal hose:
| Reference | Inner diameter (mm) | Outer diameter (mm) | Thickness (mm) | Working pressure (bar) | Curve radius (mm) | Weight Kg/m | Roll length (m) |
| 207022 | 25 | 25.80 | 0.40 | 0.95 | 18 | 0.100 | 10 |
| 207000 | 30 | 30.80 | 0.40 | 0.90 | 21 | 0.100 | 10 |
| 207001 | 40 | 40.80 | 0.40 | 0.90 | 28 | 0.110 | 10 |
| 207002 | 50 | 50.80 | 0.40 | 0.80 | 35 | 0.130 | 10 |
| 207003 | 63 | 63.80 | 0.40 | 0.80 | 42 | 0.160 | 10 |
| 207004 | 70 | 70,80 | 0.40 | 0.70 | 49 | 0.200 | 10 |
| 207005 | 75 | 75.80 | 0.40 | 0.60 | 53 | 0.220 | 10 |
| 207006 | 80 | 80.80 | 0.40 | 0.60 | 56 | 0.240 | 10 |
| 207007 | 90 | 90.80 | 0.40 | 0.50 | 62 | 0.260 | 10 |
| 207008 | 100 | 100.80 | 0.40 | 0.50 | 70 | 0.300 | 10 |
| 207023 | 114 | 114.80 | 0.40 | 0.50 | 76 | 0.330 | 10 |
