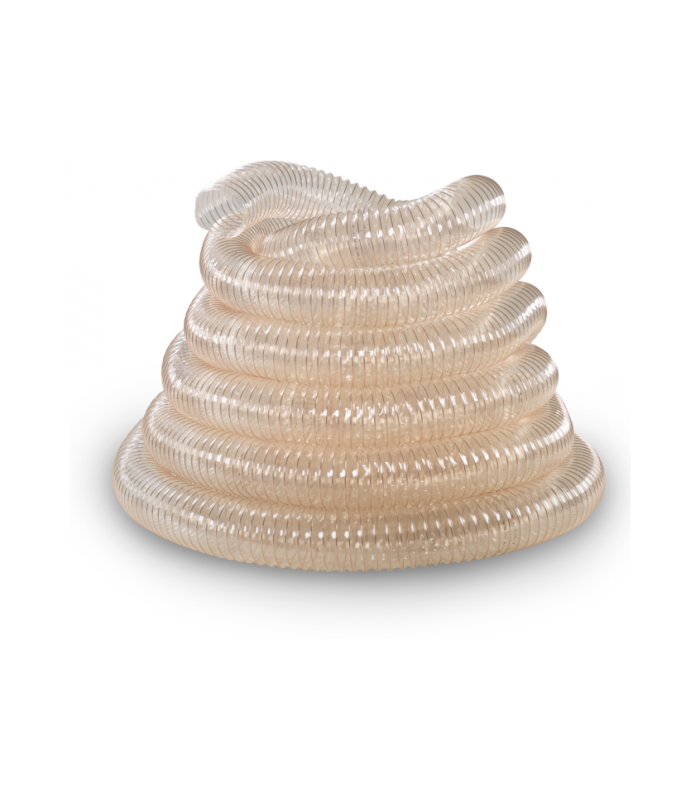

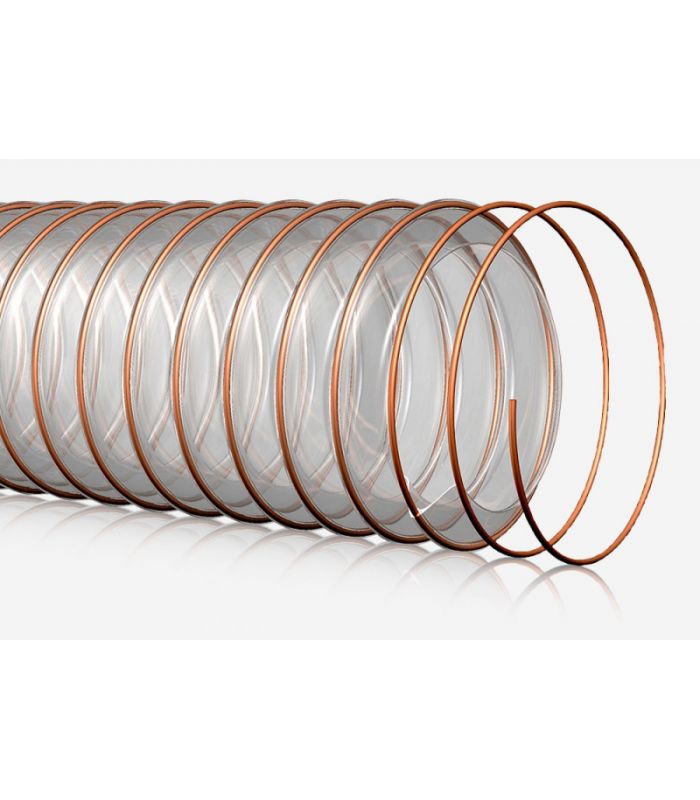

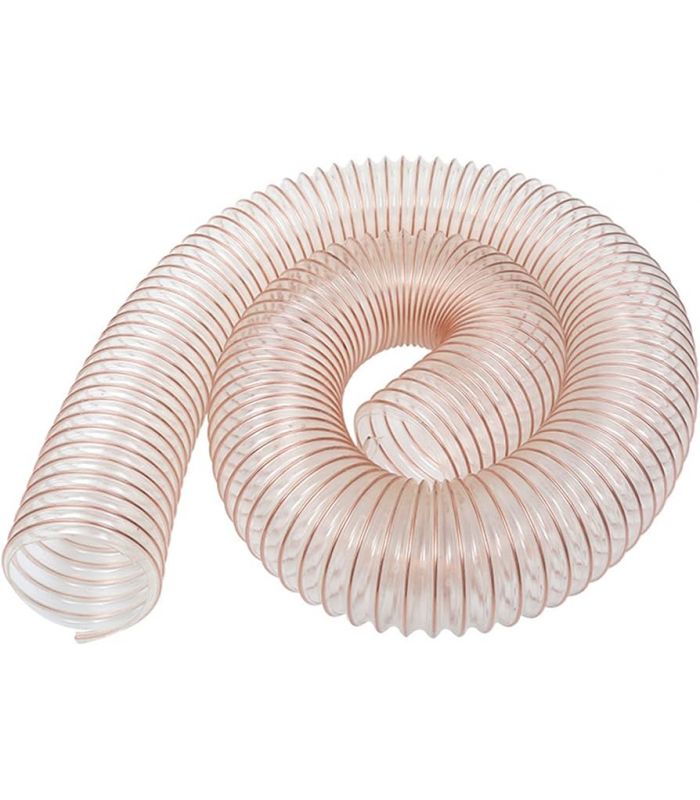

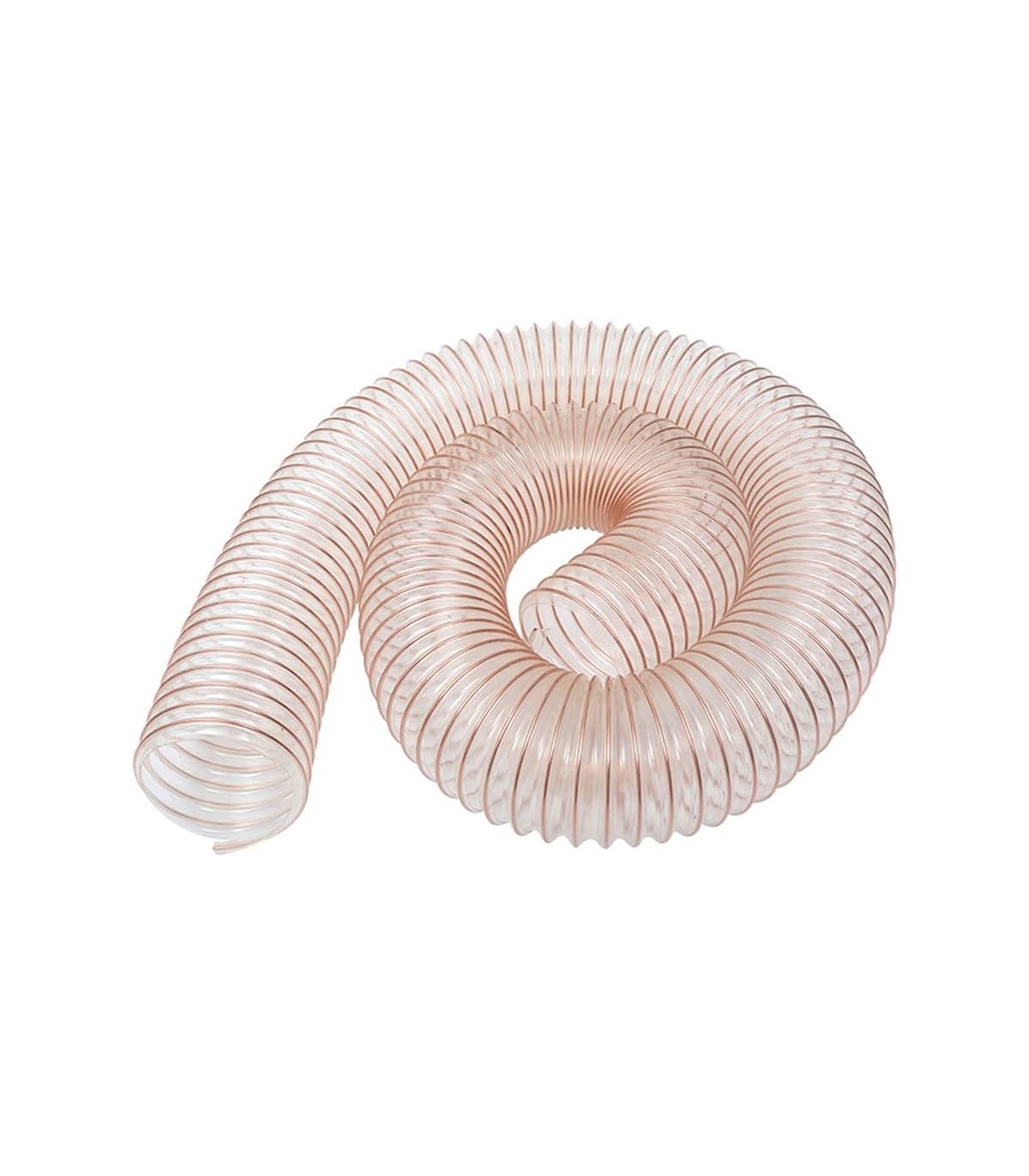

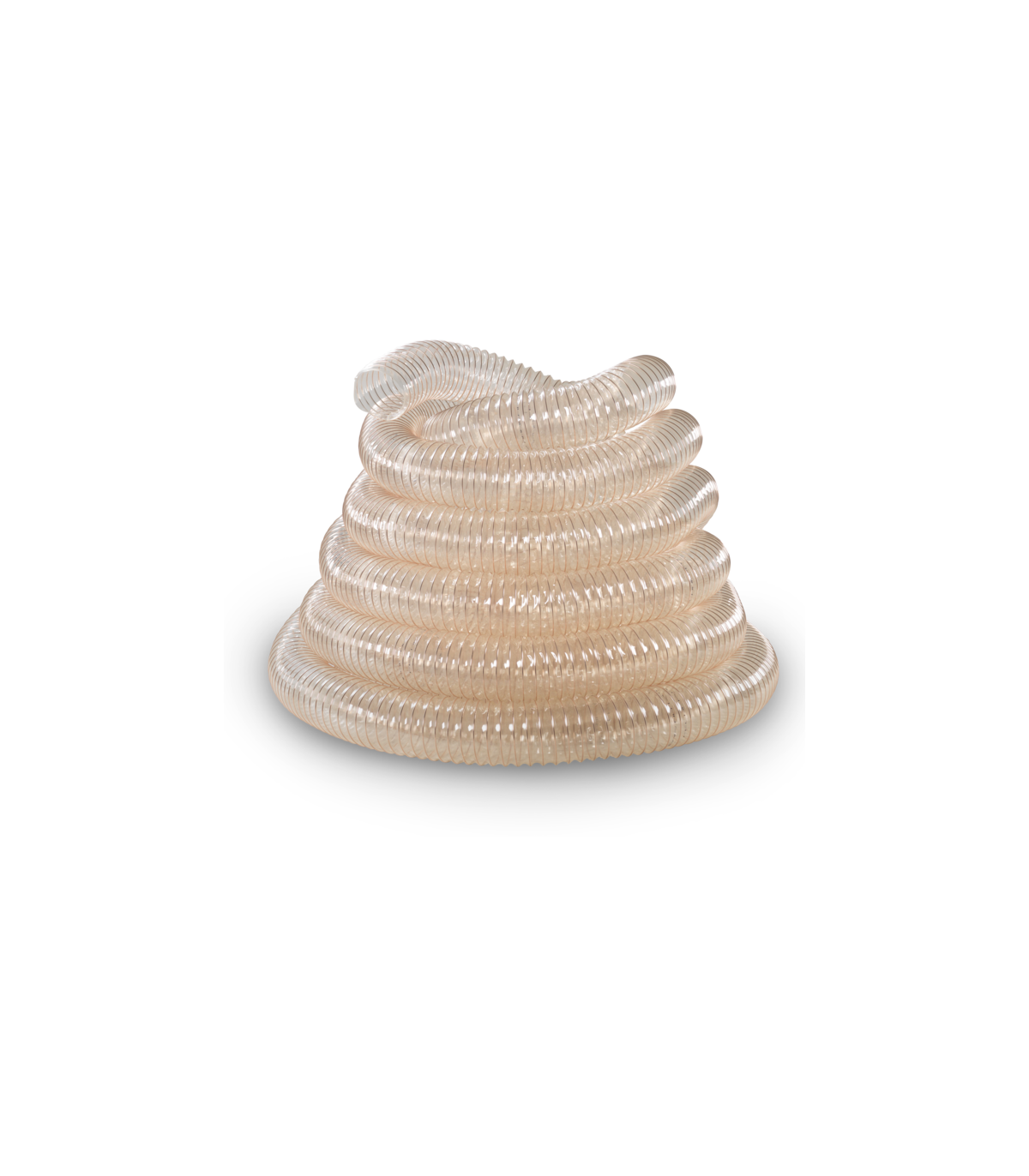

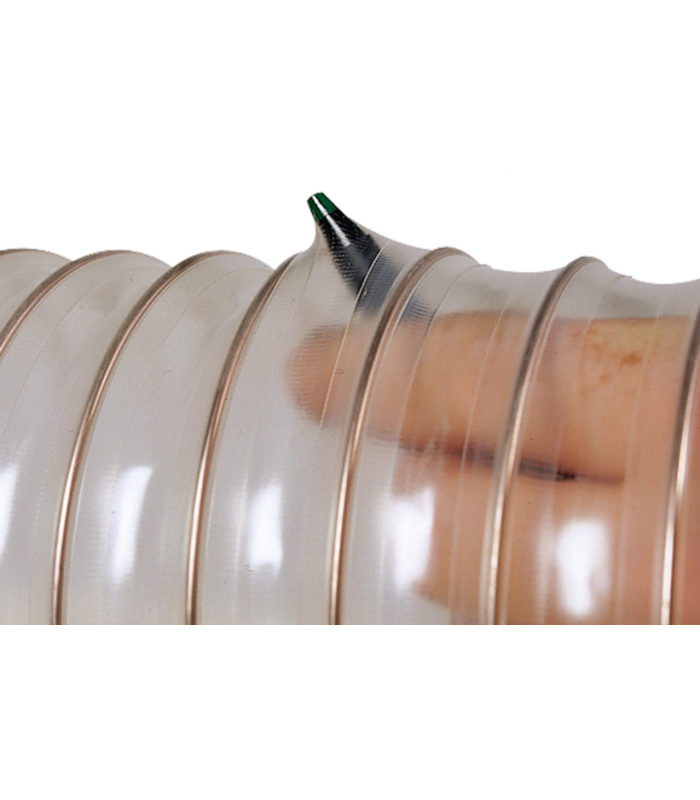

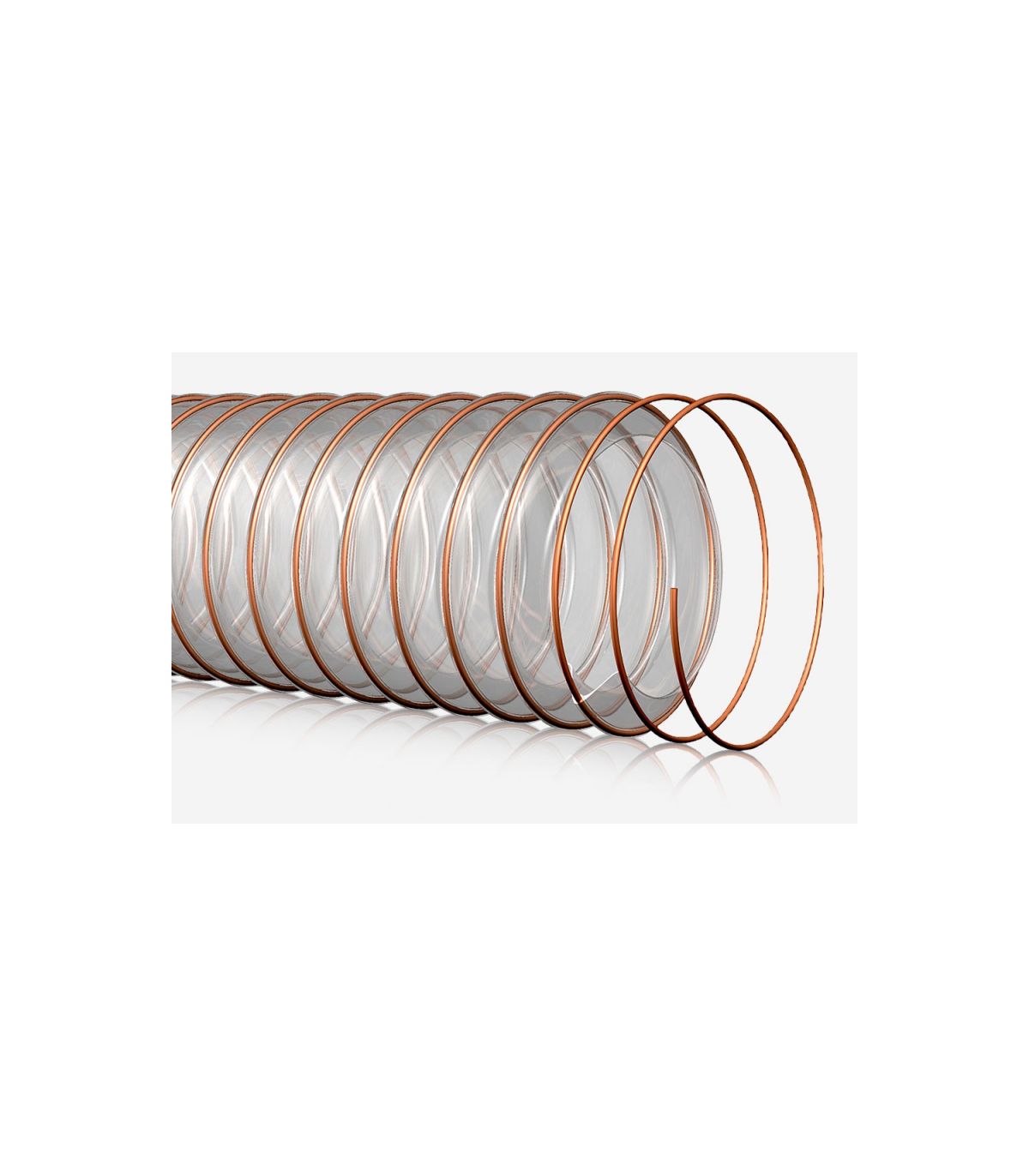

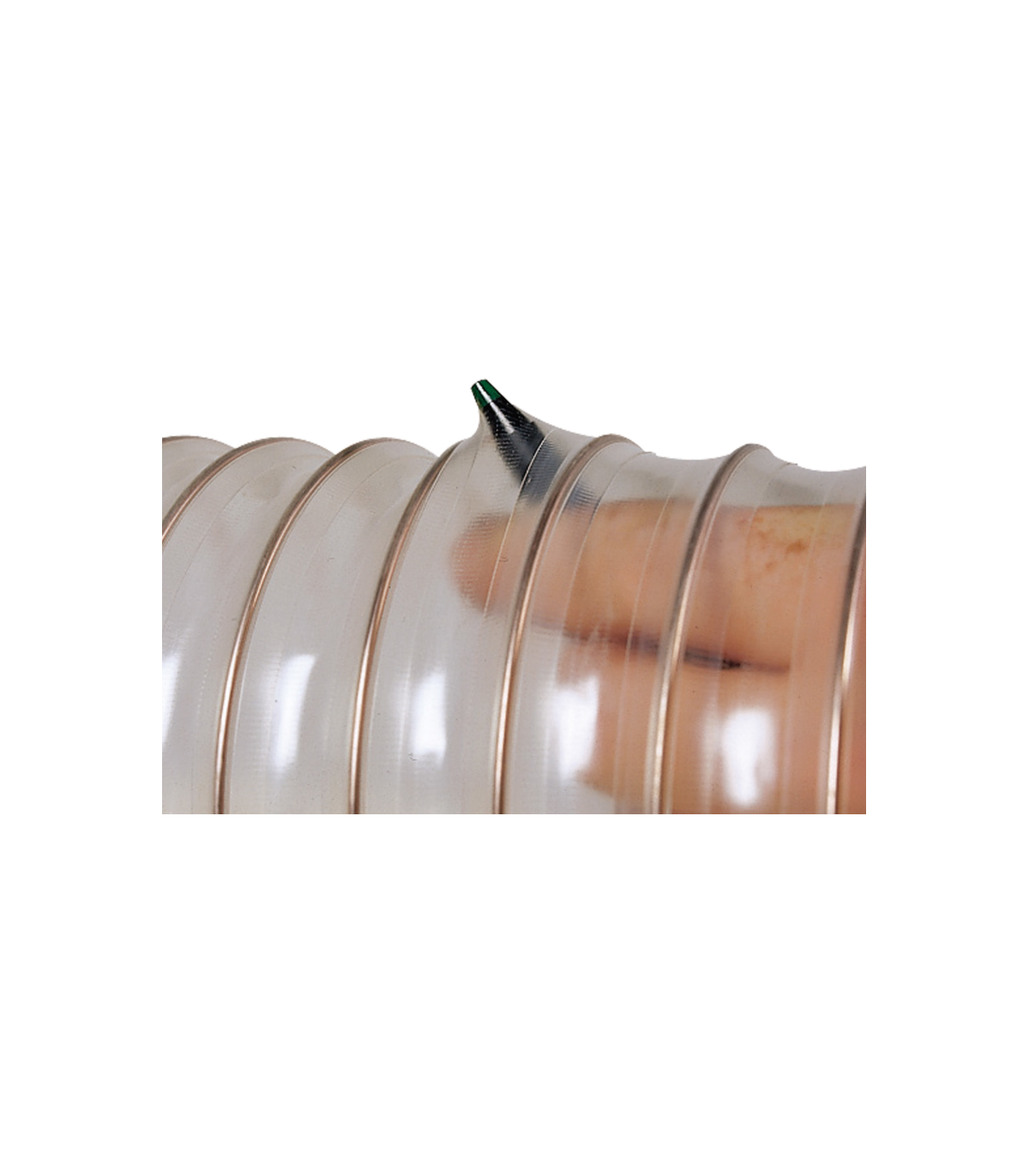

Heavy-thickness polyurethane hose with copper-plated steel spiral

The heavy-thickness copper-plated steel spiral polyurethane hose is designed to transport a wide variety of fluids and materials.

It consists of an inner and outer layer of polyurethane . The copper-plated steel spiral forms an internal reinforcement that provides rigidity, pressure resistance, and prevents collapse. Furthermore, the increased wall thickness allows for a longer service life, even under demanding working conditions and with high-friction materials.

Thanks to its properties, it is suitable for applications such as Industry, Construction, Agriculture and Food.

Technical specifications:

  • Tube for suction and discharge of abrasive materials.
  • Resistant to hydrolysis, virtually smooth interior, resistant to hydrocarbons and halogen-free.
  • Heavy-duty metal reinforcement.
  • Transparent color, allowing visualization of the material flow inside.
  • Excellent flexibility and resistant to abrasion, oil, fumes and gases.
  • Temperature -40 / +100ºC
  • Suitable for connection to suction and pneumatic conveying systems.

The selection is by inner diameter.

Choose full rolls or linear meters, according to your needs.

€9.80 (tax included)
€8.10 (tax excl.)
DIAMETERS
  • Ø 25
  • Ø 30
  • Ø 38
  • Ø 40
  • Ø 45
  • Ø 50
  • Ø51
  • Ø 60
  • Ø 63
  • Ø 70
  • Ø 76
  • Ø 80
  • Ø 90
  • Ø 100
  • Ø 110
  • Ø 120
  • Ø 125
  • Ø 130
  • Ø 140
  • Ø 150
  • Ø 160
  • Ø 180
  • Ø 200
  • Ø 250
  • Ø 300
DIAMETERS:
metros
metros
Reference:
20620130
Description

Heavy-thickness polyurethane hose with copper-plated steel spiral

The heavy-duty polyurethane hose with copper-plated steel spiral is designed for demanding industrial applications. Made of highly abrasion-resistant polyurethane (PU) , it incorporates a copper-plated steel spiral embedded in the wall for superior stability , mechanical strength , and durability .

Its thick-walled construction ensures superior performance in continuous work involving the transport or suction of abrasive materials.

Advantages

  • High resistance to wear from friction and solid particles.
  • Metal reinforcement that prevents collapse under vacuum.
  • Tube transparency for visual flow control.
  • Long service life in continuous working environments.
  • Excellent performance against torsion, impact and vibration.
  • Suitable for suction, blowing and pneumatic conveying systems.

Applications

  • Pneumatic transport and suction of abrasive materials: plastic granules, powders, shavings, pellets, seeds or sawdust.
  • Industrial vacuum equipment and dust extraction systems.
  • Machines for processing wood, plastic and textiles.
  • Ventilation and extraction systems for smoke or suspended particles .
  • Use in agricultural machinery and industrial installations that require strong and flexible conduits for solid or semi-solid materials.

Technical data sheet for polyurethane hose with copper-plated steel spiral - heavy thickness

Reference Inner diameter (mm) Thickness (mm) Weight kg/m Working pressure (bar) Radius of curvature (mm) Roll length (m)
20620130 25 1.40 0.320 3.0 42 20
20620131 30 1.40 0.380 3.0 48 20
20620132 38 1.40 0.520 2.4 57 20
20620133 40 1.40 0.560 23 60 20
20620134 45 1.40 0.600 1.9 68 20
206201350 50 1.40 0.670 1.9 75 20
20620136 51 1.40 0.670 1.9 75 20
20620137 60 1.40 0.790 1.8 90 20
20620138 63 1.40 0.850 1.2 95 20
20620139 70 1.40 0.900 1.2 105 20
20620140 76 1.40 0.980 1.2 115 20
20620141 80 1.40 1,090 1.2 120 20
20620142 90 1.40 1,230 1.1 135 20
20620143 100 1.4 1,360 1.1 150 20
20620144 110 1.4 1,380 1.0 165 20
20620145 120 1.4 1,420 0.9 180 20
20620146 125 1.4 1,540 0.8 188 20
20620147 130 1.4 1,620 0.7 195 20
20620148 140 1.4 1,750 0.7 210 20
20620149 150 1.4 1,820 0.7 225 20
20620150 160 1.4 2,150 0.6 240 20
20620151 180 1.4 2,550 0.5 270 10
20620152 200 1.4 2,920 0.5 300 10
20620153 250 1.4 3,570 0.3 375 10
20620154 300 1.4 4,310 0.3 450 10
