POLYURETHANE HOSE WITH PVC SPIRAL
POLYURETHANE HOSE WITH PVC SPIRAL
POLYURETHANE HOSE WITH PVC SPIRAL
POLYURETHANE HOSE WITH PVC SPIRAL
POLYURETHANE HOSE WITH PVC SPIRAL
POLYURETHANE HOSE WITH PVC SPIRAL

POLYURETHANE HOSE WITH PVC SPIRAL

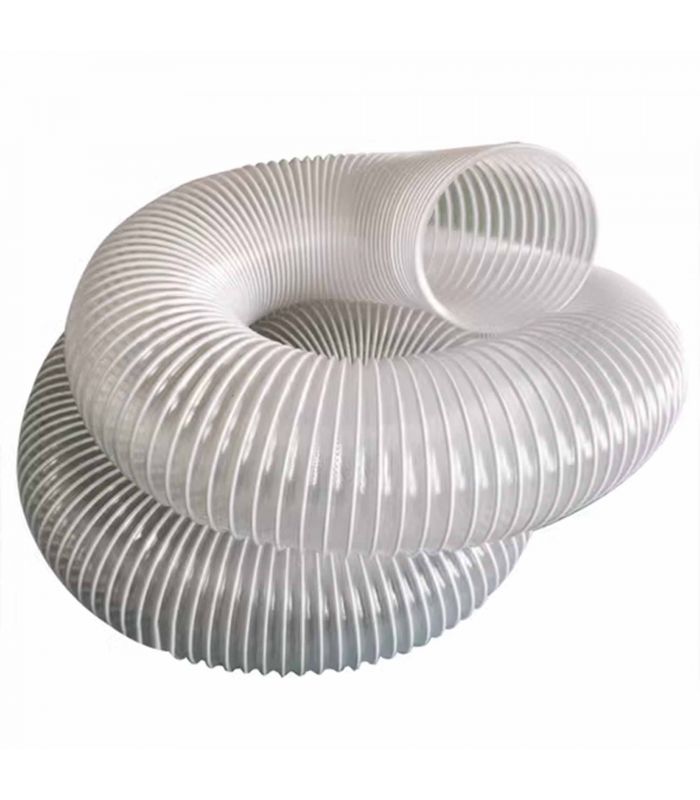

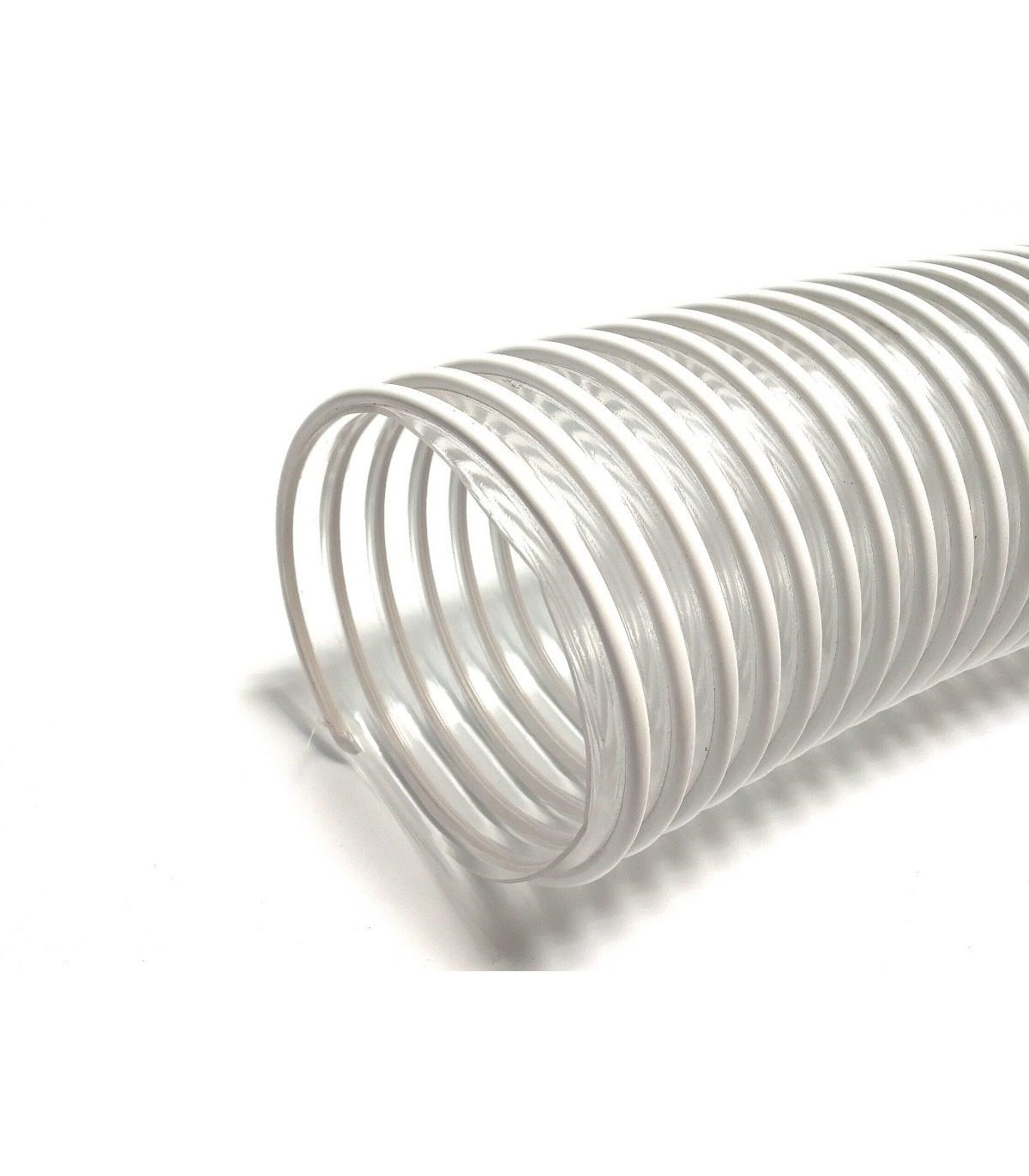

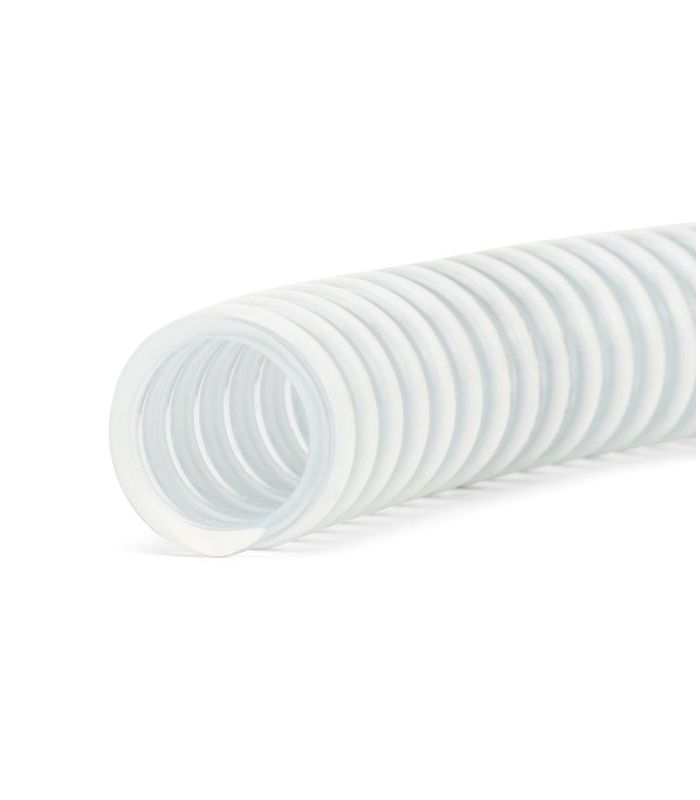

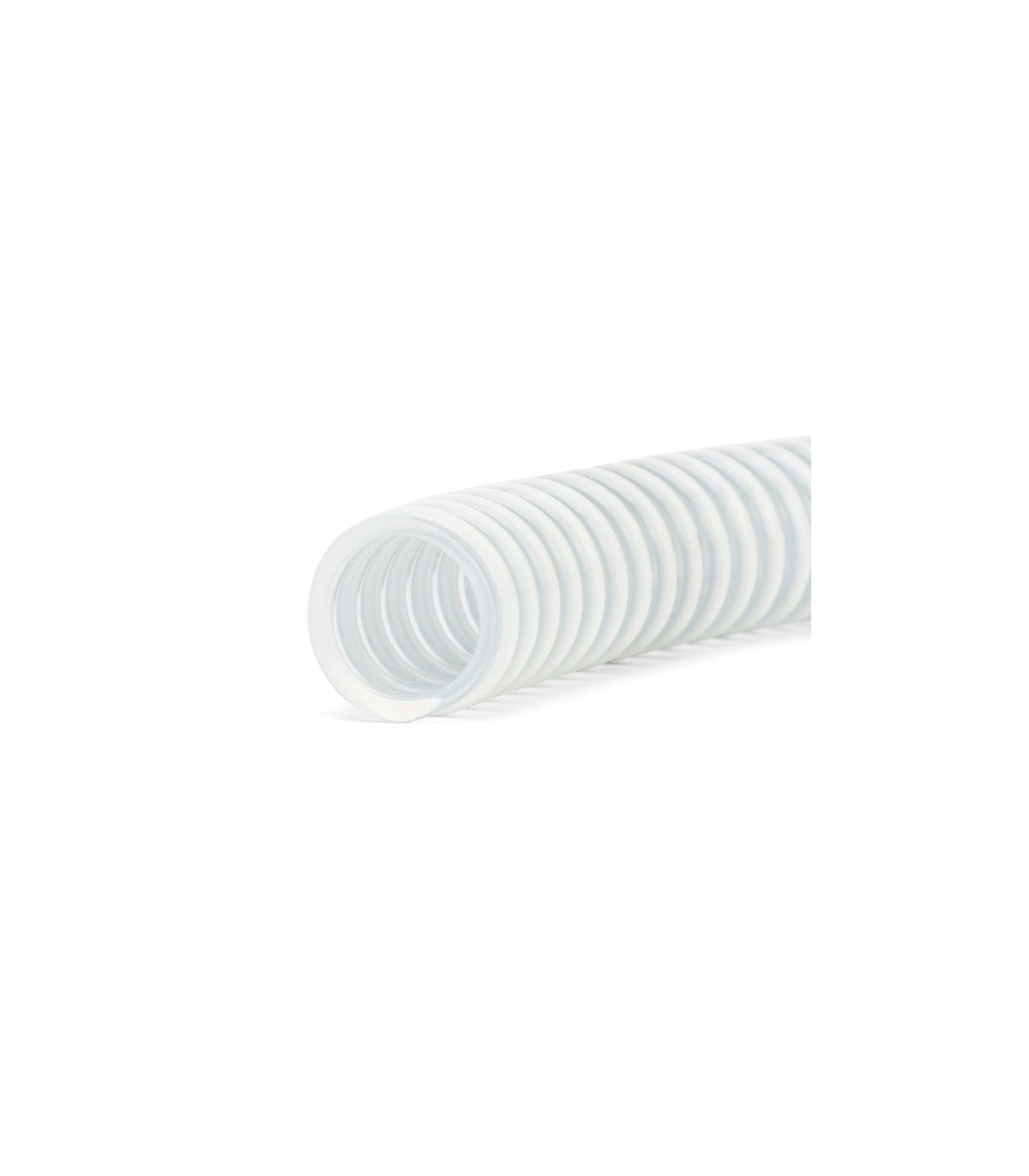

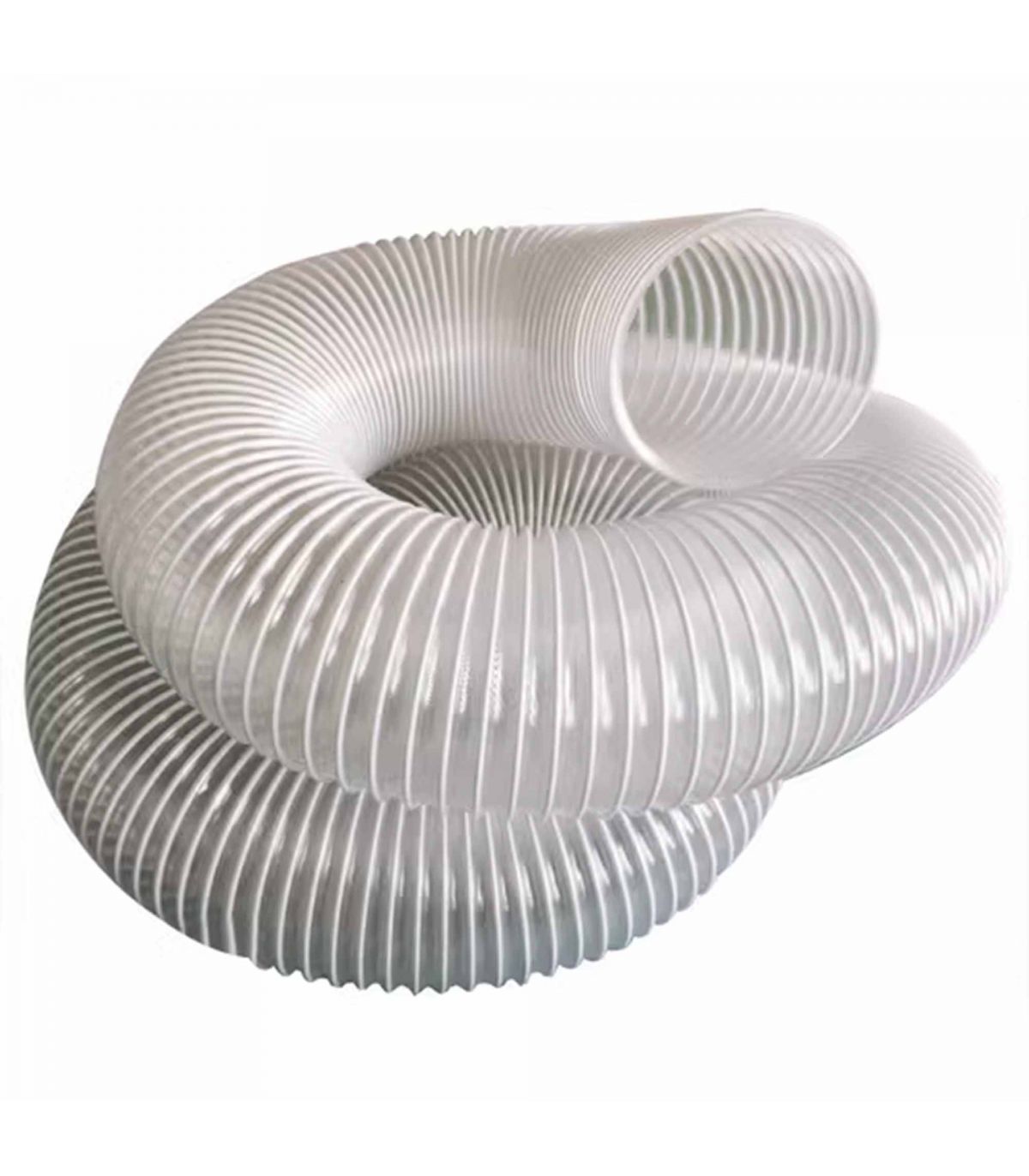

The polyurethane hose with PVC spiral is a flexible conduit made of high-strength polyurethane (PU) , reinforced with an internal rigid PVC spiral that provides excellent self-supporting structure. This design combines the elasticity and wear resistance of polyurethane with the rigidity and dimensional stability of PVC, making it a lightweight, flexible, and durable hose.

It is mainly used for the suction, conduction and transport of air, dust, solid particles and granular materials in industrial environments.

Main features:

  • Non-deformable.
  • Smooth interior wall.
  • Transparent color, gray spiral.
  • Temperature -30 / 80ºC
  • High abrasion resistance.
  • Resistant to atmospheric agents.
  • Non-toxic. Food grade.
  • Manufactured according to UNE-EN-23994/93 standard?

Choose full rolls or linear meters, according to your needs.

€2.60 (tax included)
€2.15 (tax excl.)
DIAMETERS
  • Ø 20
  • Ø 25
  • Ø 30
  • Ø 32
  • Ø 35
  • Ø 38
  • Ø 40
  • Ø 45
  • Ø 50
  • Ø 60
  • Ø 63
  • Ø 70
  • Ø 75
  • Ø 80
  • Ø 90
  • Ø 100
  • Ø 110
  • Ø 120
  • Ø 127
  • Ø 140
  • Ø 150
  • Ø 160
  • Ø 180
  • Ø 200
  • Ø 250
DIAMETERS:
metros
metros
Reference:
20600023
Description

Polyurethane hose with PVC spiral

The polyurethane hose with PVC spiral is designed to offer high abrasion resistance , excellent flexibility and great durability .

Its structure combines a high-quality polyurethane (PU) tube , which provides elasticity and wear resistance, with an inner spiral of rigid PVC, which guarantees dimensional stability and resistance to crushing during suction or pressure work.

Applications

  • Suction and ventilation systems in industrial environments.
  • Pneumatic transport of granules, pellets and powder in the plastics, food or chemical industries.
  • Chip and sawdust extraction lines in carpentry shops or machining workshops.
  • Suction systems in agricultural or industrial cleaning machinery .
  • Air and fume ducts in paint booths, workshops or laboratories.

Technical data sheet for polyurethane hose with PVC spiral

Reference Inner diameter (mm) Outer diameter (mm) Weight (g/m) Thickness (mm) Vacuum (mH2O) Roll length (m)
20600023 20 27 130 0.30 4 20
20600027 25 32 148 0.30 4 20
20600030 30 37 188 0.30 3 20
20600031 32 39 198 0.30 3 20
20600033 35 42 212 0.30 3 20
20600035 38 45 228 0.30 3 20
20600036 40 47 248 0.30 3 20
20600039 45 52 278 0.30 3 20
20600041 50 87 306 0.30 3 20
20600044 60 68 386 0.30 3 20
20600046 63 71 424 0.35 3 20
20600047 70 79 496 0.35 3 20
20600048 75 84 540 0.35 3 20
20600049 80 89 604 0.35 3 20
20600050 90 100 702 0.40 3 20
20600052 100 110 805 0.40 3 20
20600053 110 120 882 0.45 3 20
20600054 120 130 940 0.45 3 20
20600055 127 137 990 0.50 2 20
20600057 140 151 1216 0.50 2 20
20600058 150 161 1340 0.50 2 20
20600059 160 171 1386 0.50 2 20
20600060 180 191 1634 0.50 2 20
20600061 200 212 1965 0.50 2 20
20600062 250 265 2950 0.60 2 10

Product Details
20600023

Specific References

upc
1
