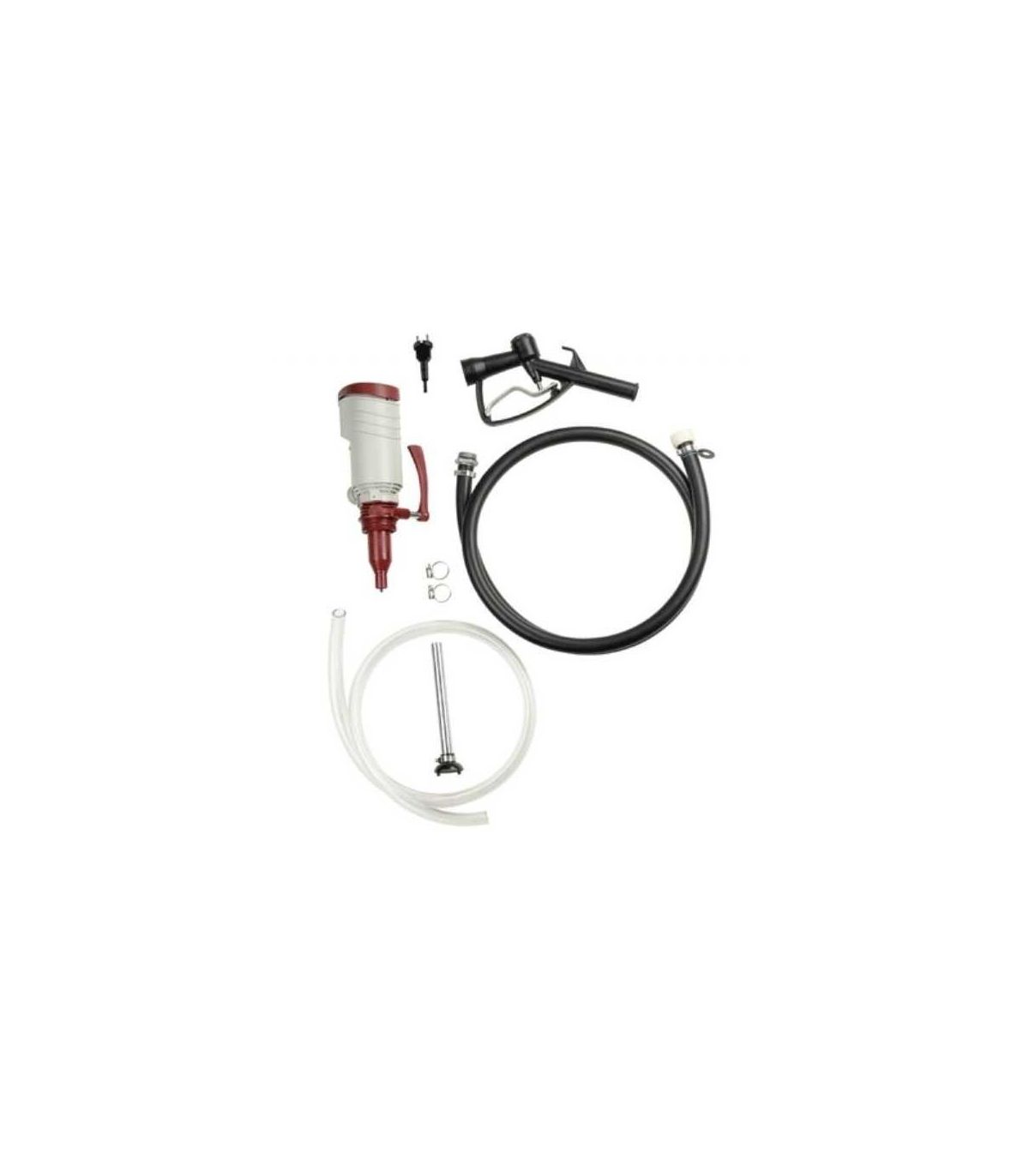

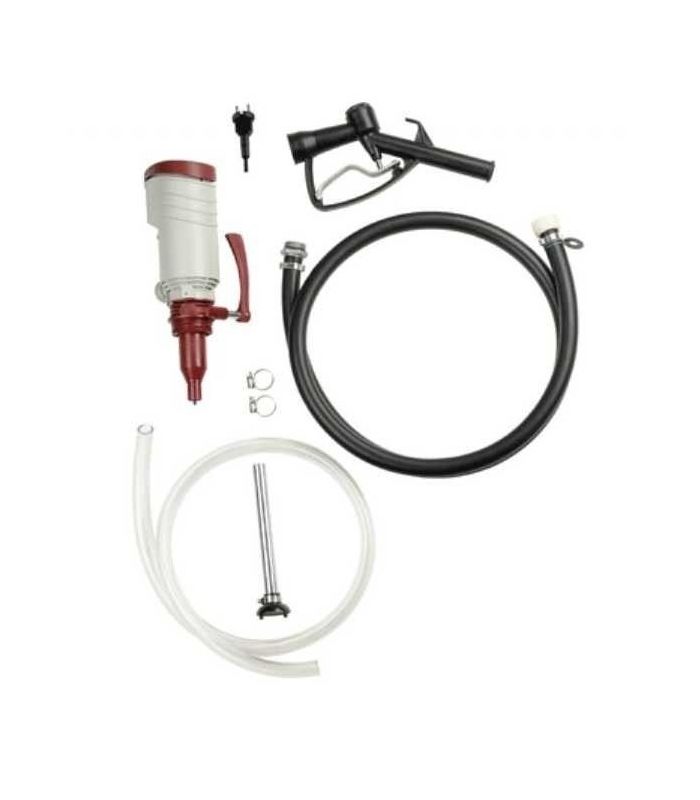

DIESEL ELECTRIC PUMP WITH ACCESSORIES 38 LMin

DIESEL ELECTRIC PUMP WITH ACCESSORIES 38 LMin

Electric diesel pump with accessories

Technical data:

  • Connection cable with clips. length (m): 3
  • Connection to drum: G 2'' a, drum anchor
  • Supply connection: G 1'' a
  • Pump manufacturing range: axial wheel
  • Flow rate with free discharge (l/min): 38 - 43 - 52
  • Lifting height: 15
  • Suction height (m): 2.5
  • For: Heating oil and diesel

€326.70 (tax included)
€270.00 (tax excl.)
VOLTAGE/VOLUME
  • 12V DC
  • 24V DC
  • 220VAC
Reference:
63750001
Description

Engine data:

  • Voltage (V): 12 V DC / 24 V DC / 220 V AC
  • Consumption in amperes (A): 14
  • Power (kW): 0.18
  • Thermal protection: automatic restart
  • Connection duration (min): Continuous operation
  • No. of revolutions at 0.5 bar back pressure (U/min): 6950 rpm
  • Manufacturing model: IMB5
  • Protection type: IP 44
  • Pump casing and pump mechanism material: PA (polyamide)
  • Pump size (mm): 90 x 120 x 300
  • Motor weight + pump mechanism (kg): 2.5


Specification:

  • For deposits from 200 to 1000 I
  • Axial wheel pump with manual drive (23 730)
  • Illuminated on/off switch
  • Motor with thermal protector, self-regulating temperature
  • Ram protector, regulated according to WHG (Water Protection Act), continuous operation
  • Supply hose, 4 m, DN 19, G1" a, G1" i (23 144)
  • Polypropylene supply gun, ZVPP (23 161)
  • Suction hose, 1.6 m, with Metallsieb (87 842)
  • Drum anchor, PA, G 2'' a and M 64 x 4 a (87 912)
  • Quality commercial packaging


Special features:

  • The pump is very light and silent
  • Insensitive to dirt in the means of transport
  • The liquid jet can be generated by manual pumping
  • In case of power loss, it can be activated manually.
Product Details
63750001
