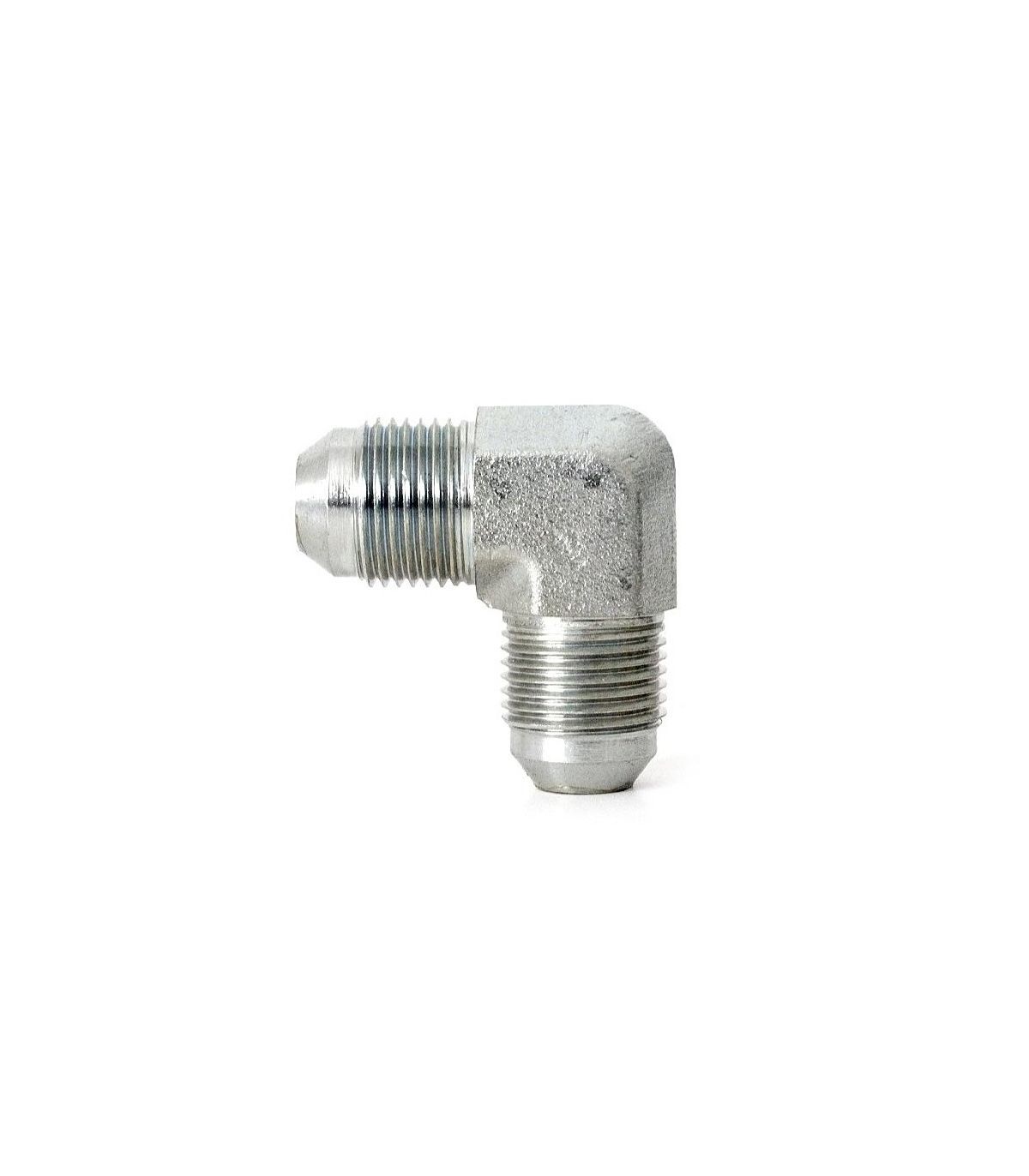

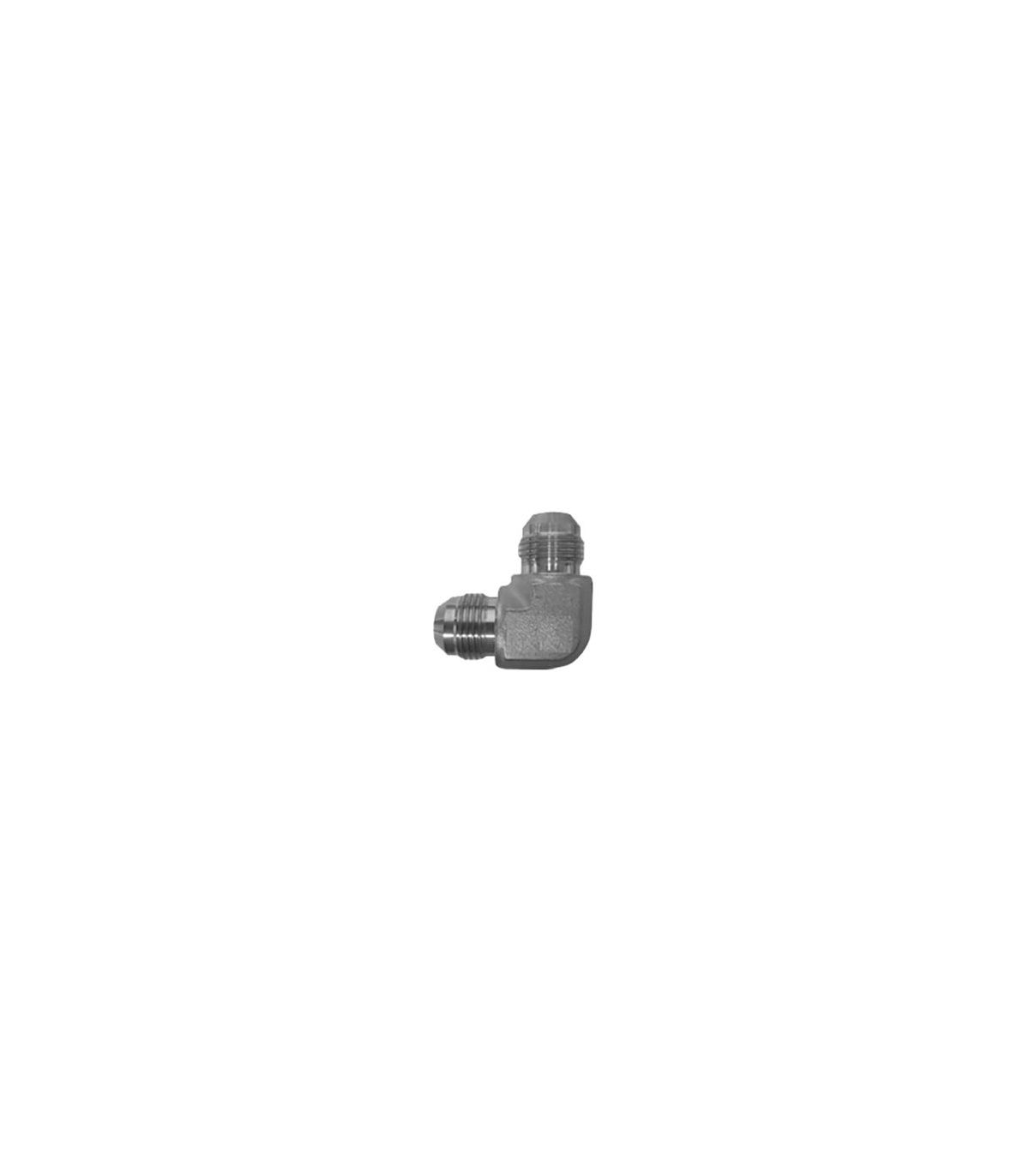

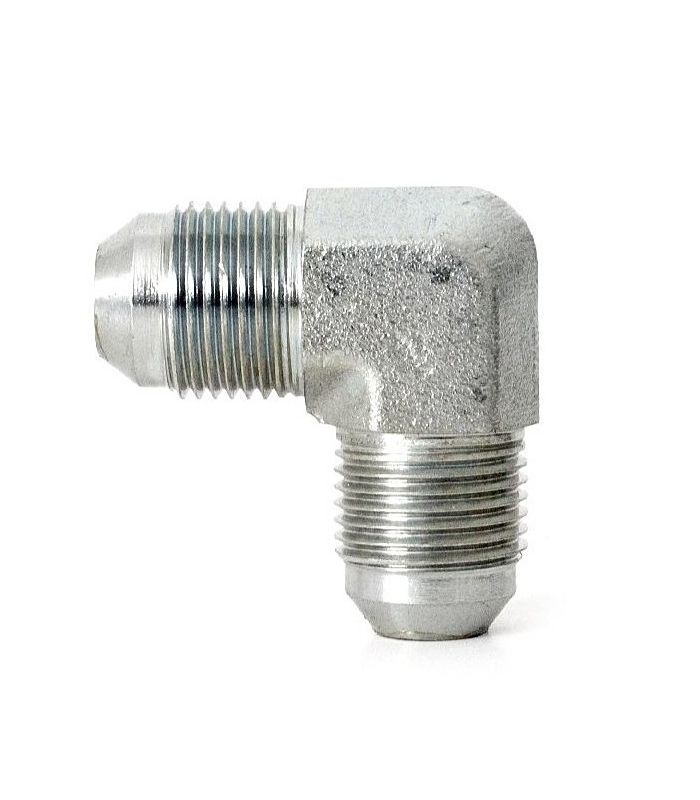

JIC MALE-MALE ELBOW
JIC MALE-MALE ELBOW
JIC MALE-MALE ELBOW
JIC MALE-MALE ELBOW

JIC MALE-MALE ELBOW

A JIC male-to-male elbow is used in hydraulic systems to join two components or pipes that have JIC female connections, while simultaneously making a 90º change in direction.

Applications: Connect two components or pipes with JIC female ports at a 90° angle, Make a 90-degree change of direction in a hydraulic line, or Facilitate hydraulic pipe routing.

Technical sheet:

  • SAE J-514 (ISO 8434-2) standard fitting
  • Jointless coupling.
  • Made of carbon steel.
  • 37º flared tube fittings
  • High security of mechanical assembly.
  • Max pressure:
    • 6-8-10 450 bar.
    • 12-16-18-20-22 350 bar.
    • 25-30-38 250 bar.
€4.53 (tax included)
€3.74 (tax excl.)
THREAD TYPE
Reference:
45140001
Description

JIC male-male elbow

Product Details
45140001
Comments
