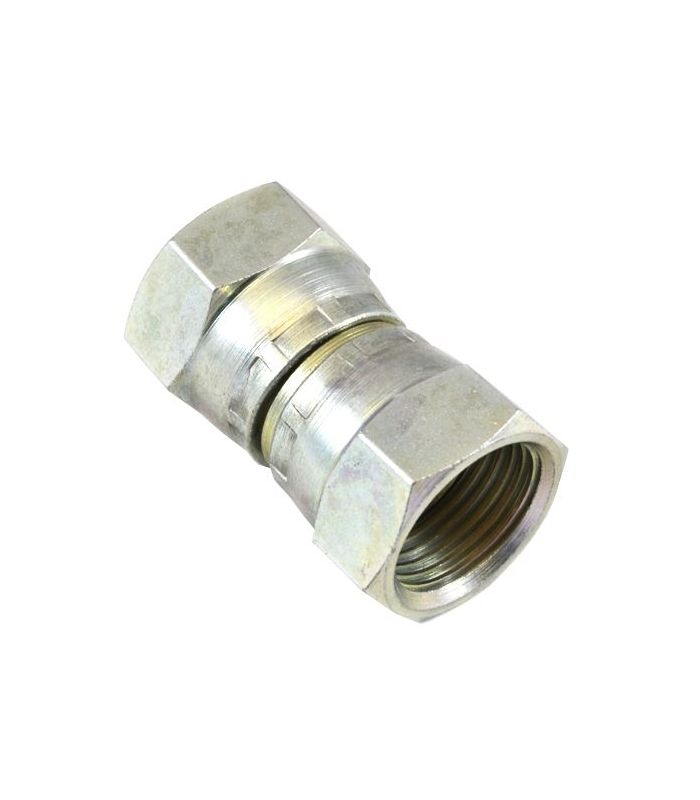

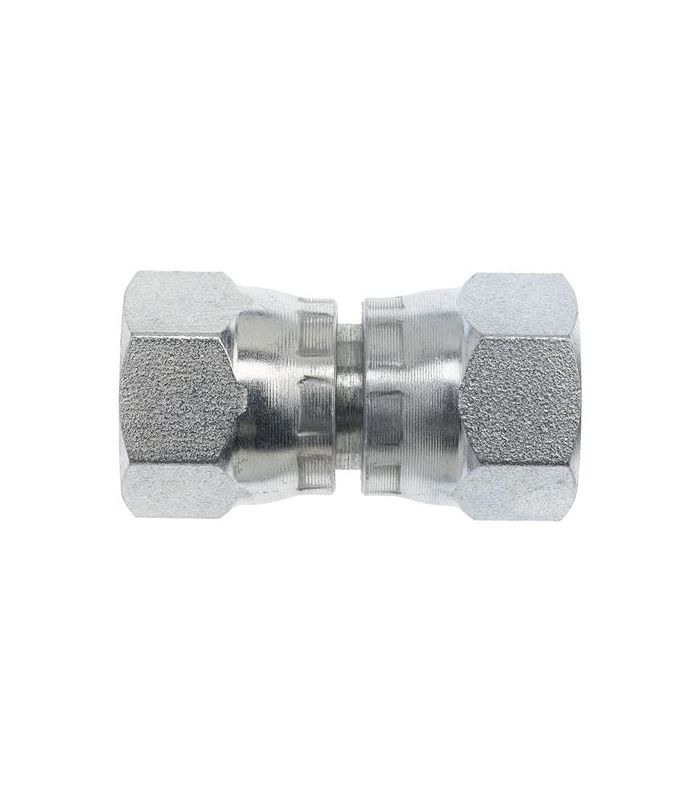

JIC adapter lock nut-lock nut

The JIC swivel nut-to-swivel nut adapter is a hydraulic fitting designed to connect two JIC threaded ends in a detachable, aligned, and leak-proof manner, without the need to rotate the pipes or hoses. It is ideal for installations with limited space or those requiring frequent maintenance.

Applications: industrial hydraulics, mobile and agricultural machinery, hydraulic systems.

Main features :

  • SAE J-514 standard fitting (ISO 8434-2)
  • Seamless coupling.
  • Made of carbon steel.
  • Fittings for 37° flared pipe
  • High mechanical assembly security.
  • Max. pressure:
    • 6-8-10 450 bar.
    • 12-16-18-20-22 350 bar.
    • 25-30-38 250 bar.
€4.62 (tax included)
€3.82 (tax excl.)
THREAD TYPE
Reference:
45130001
Description

JIC adapter lock nut-lock nut

A JIC swivel nut-to-swivel nut adapter is a hydraulic fitting designed to connect two components with JIC threads without the need to rotate the pipes or hoses during assembly. Thanks to its two swivel nuts, it allows for precise alignment, easy assembly, and quick disassembly, while ensuring a leak-proof and secure connection.

Technical specifications

  • JIC – JIC connection.
  • Locking nut on both ends.
  • Sealed with 37° JIC conical seat, metal seal.
  • Material: Carbon steel.

Applications

  • Industrial hydraulic circuits.
  • Mobile and heavy machinery.
  • Connection of hoses and hydraulic pipes.
  • Installations where ease of assembly without twisting of the lines is required.

Technical specifications of a JIC lock nut-lock nut adapter:

Code TO B H1 H2 ØR1
45130001 41.4 23.6 14 16 7/16
45130002 43.6 24 16 16 1/2
45130003 45 25.6 17 19 9/16
45130004 52.5 30.4 22 22 3/4
45130005 59.7 34.3 27 27 7/8
45130006 63.6 34.3 32 32 1-1/16
45130007 71.7 40.9 38 38 1-5/16
