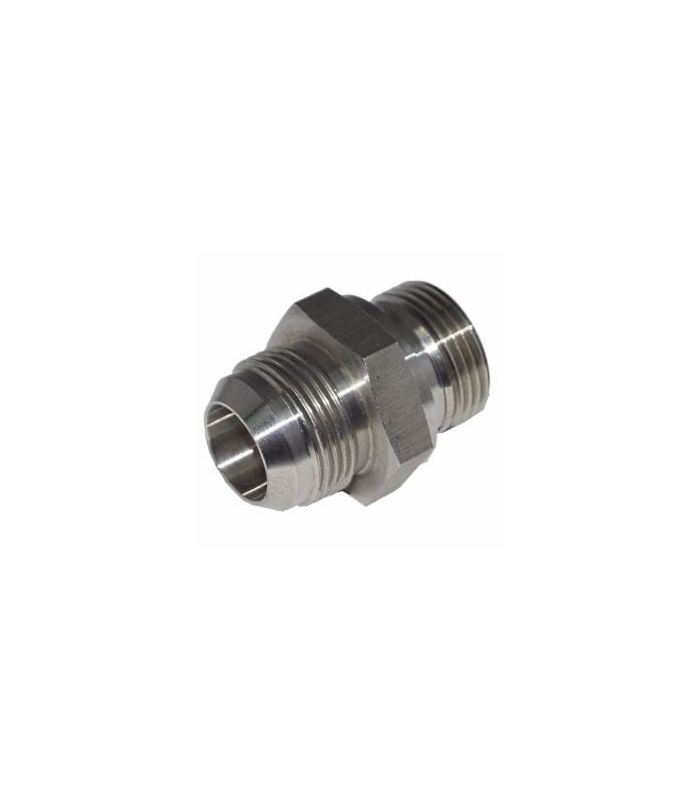

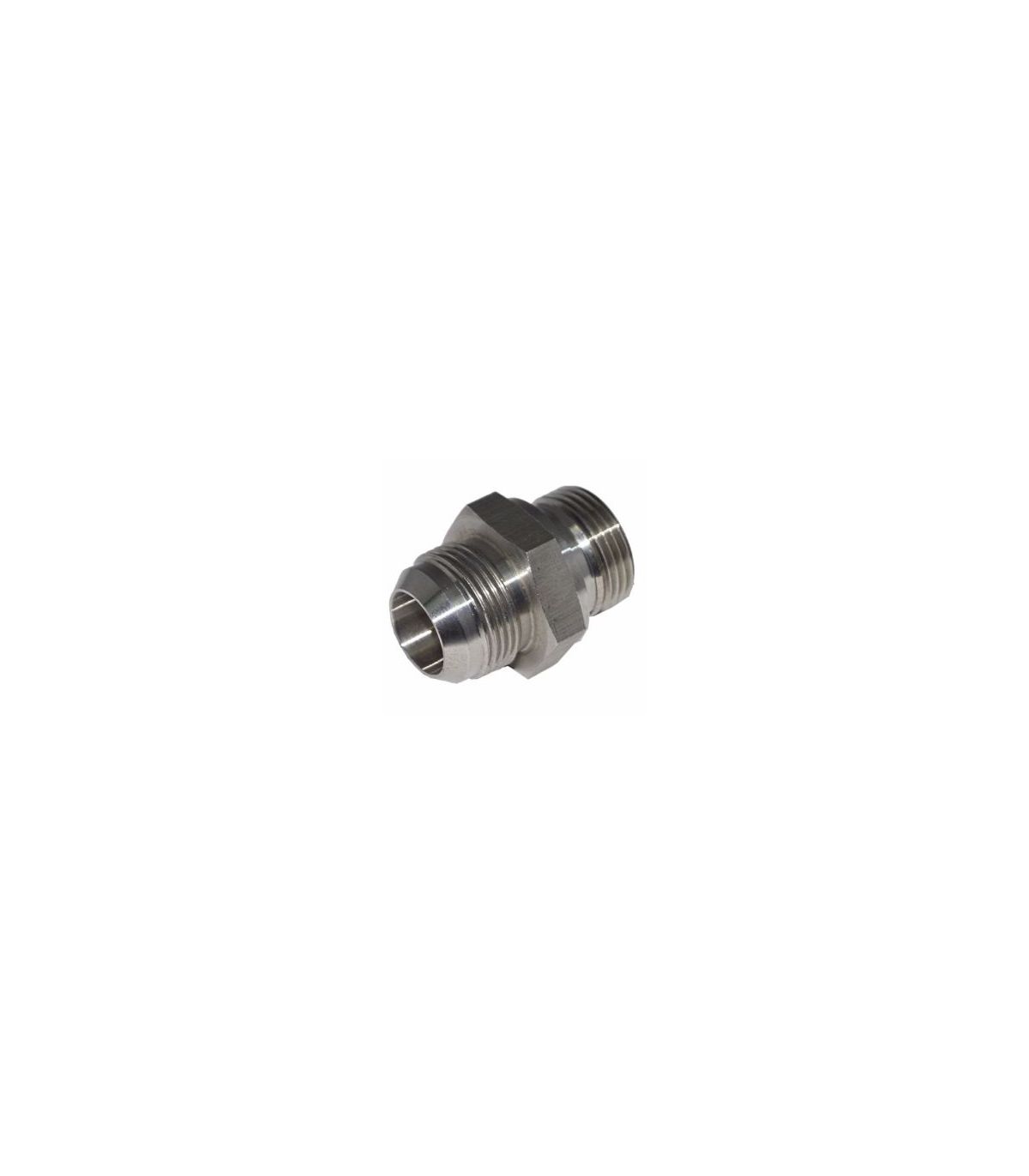

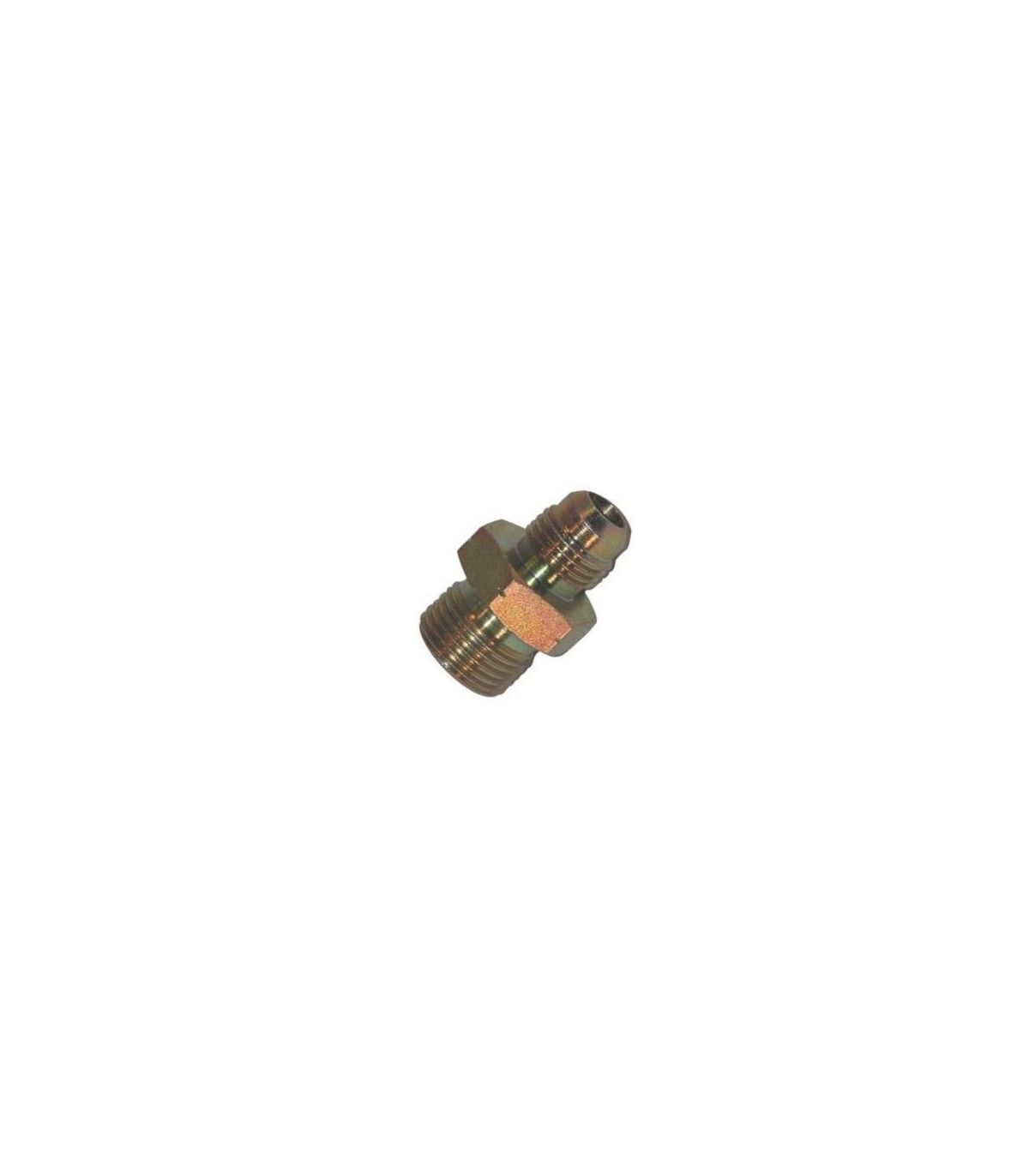

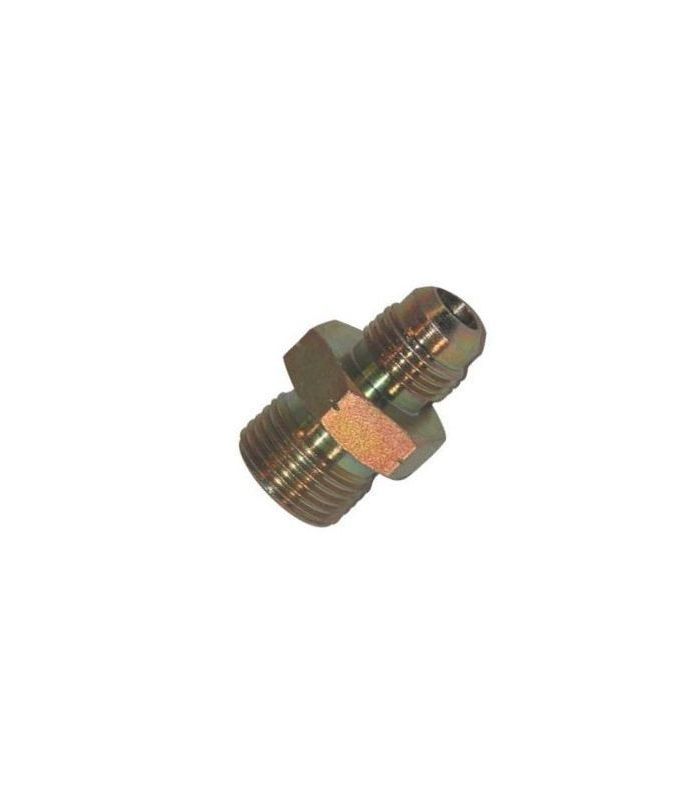

STRAIGHT UNION MALE JIC MALE METRIC
STRAIGHT UNION MALE JIC MALE METRIC
STRAIGHT UNION MALE JIC MALE METRIC
STRAIGHT UNION MALE JIC MALE METRIC

STRAIGHT UNION MALE JIC MALE METRIC

JIC male straight union to metric male union

The JIC male metric straight union is a connecting element used in hydraulic systems to join two pipes or components with different threads, maintaining watertightness and pressure resistance.

Applications: Industrial hydraulic systems, heavy machinery, automotive, oil pressure systems or hydraulic fluids.

Main features:

  • SAE J-514 standard fitting (ISO 8434-2)
  • Seamless coupling.
  • Made of carbon steel.
  • Fittings for 37° flared pipe
  • High mechanical assembly security.
  • Max. pressure:
    • 6-8-10 450 bar.
    • 12-16-18-20-22 350 bar.
    • 25-30-38 250 bar.
€1.23 (tax included)
€1.02 (tax excl.)
SELECT THE THREAD
  • M10 x 1
  • M12 x 150
  • M14 x 150
  • M16 x 150
  • M18 x 150
  • M22 x 150
  • M26 x 150
  • M26 x 151
THREAD TYPE
Reference:
45260000
Description

JIC male straight union to metric male union

The JIC male straight union hydraulic fitting – metric male – is a component designed to securely and leak-proofly connect two pipes or components with different thread types , ensuring hydraulic system continuity and resistance to high pressures. Its straight design and durable materials make it suitable for industrial applications, heavy machinery, and precision hydraulic systems.

Technical specifications

  • Straight union, allows the in-line connection of two pipes or conduits.
  • Connections: JIC Male (Standard JIC tapered thread used in international hydraulic systems, which guarantees metal-to-metal contact sealing) and Metric Male (Metric cylindrical thread, common in European hydraulic systems, allows compatibility with equipment that uses this standard).

Applications

  • Industrial hydraulic systems
  • Mobile and heavy machinery
  • Automotive and transport sector
  • Naval and aerospace industry
  • General applications of pressurized fluids

Technical specifications for a JIC male to metric straight coupling:

Product Details
45260000
