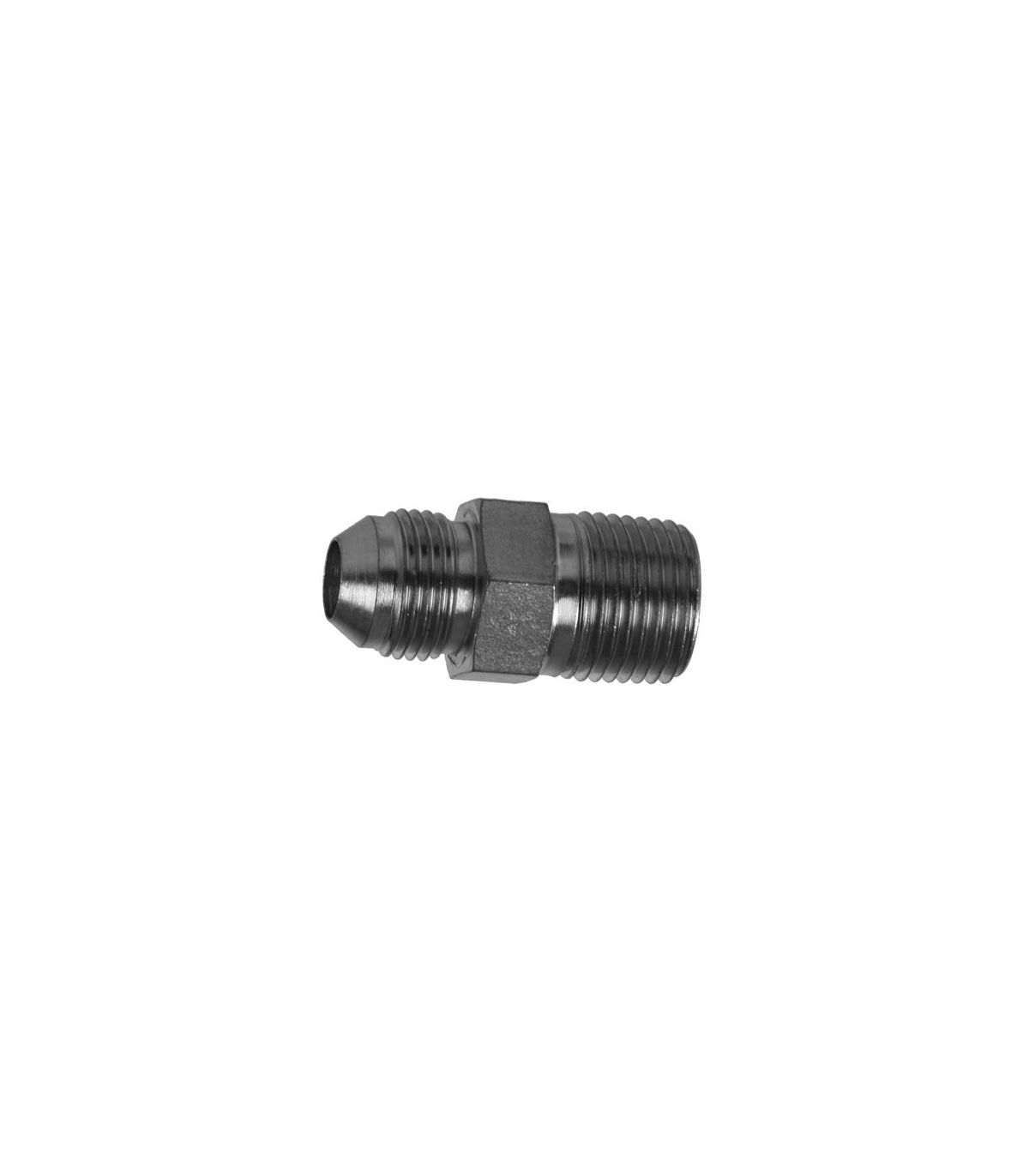

STRAIGHT UNION MALE JIC MALE NPT

STRAIGHT UNION MALE JIC MALE NPT

A male JIC male NPT straight union is a hydraulic fitting used to connect pipes or hoses that have different types of threads.

Common applications: Hydraulic systems where JIC and NPT threads are combined, Adaptation of hydraulic equipment with different connection types, Industrial piping systems that require transitions between standards.

Technical data sheet:

  • SAE J-514 (ISO 8434-2) standard fitting
  • Jointless coupling.
  • Made of carbon steel.
  • Fittings for 37° flared pipe
  • High security mechanical mounting.
  • Max pressure:
    • 6-8-10 450 bar.
    • 12-16-18-20-22 350 bar.
    • 25-30-38 250 bar.
€1.78 (tax included)
€1.47 (tax excl.)
SELECT THE THREAD
  • 1/8 NPT
  • 1/4 NPT
  • 3/8 NPT
  • 1/2 NPT
  • 3/4 NPT
  • 1 NPT
  • 1-1/4 NPT
  • 1-1/2 NPT
THREAD TYPE
Reference:
45230000
Description

straight union male JIC male NPT

Product Details
45230000
Comments
