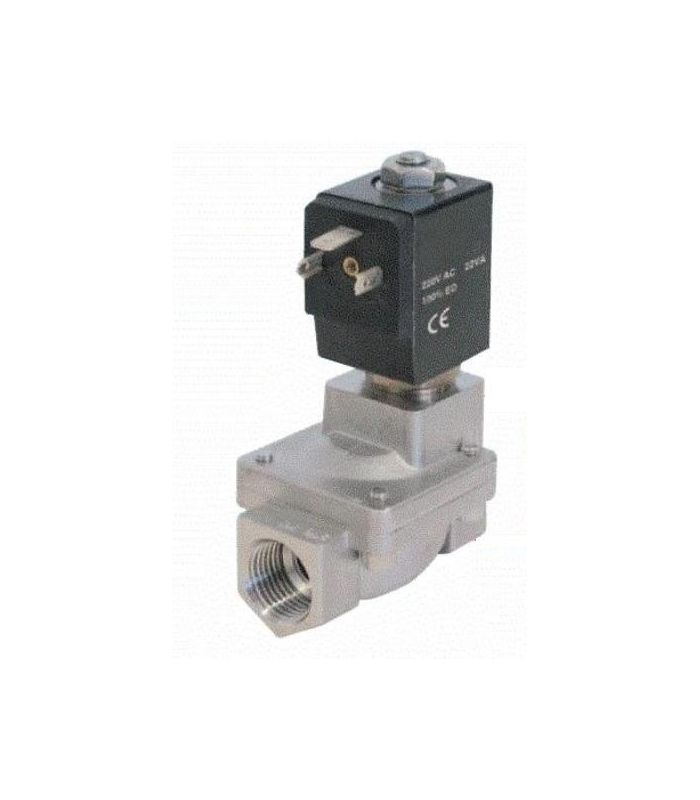

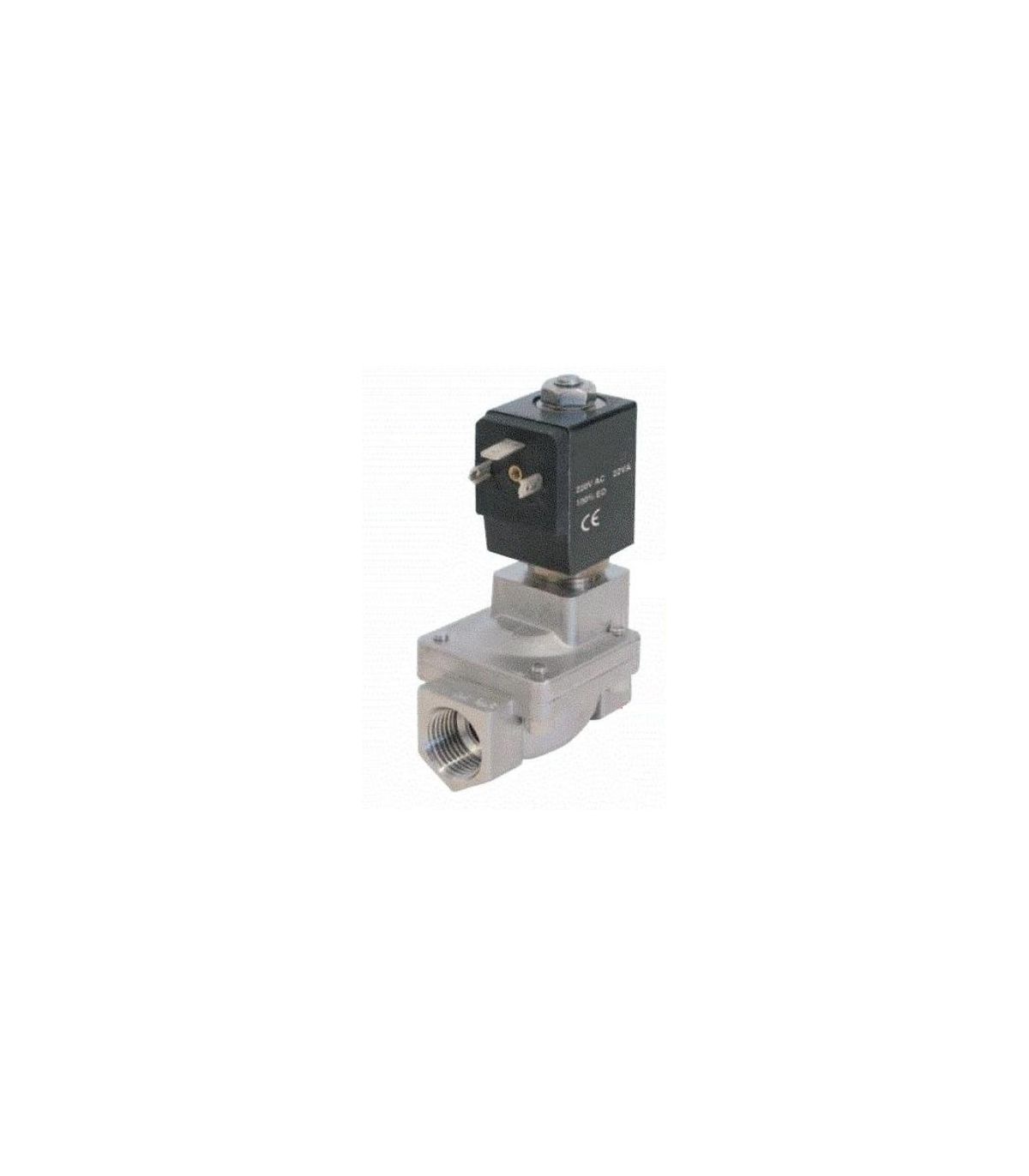

2/2 NC STAINLESS STEEL SOLENOID VALVE 3/8" TO 2" WITH ASSISTED CONTROL

2/2 NC STAINLESS STEEL SOLENOID VALVE 3/8" TO 2" WITH ASSISTED CONTROL

2/2 NC stainless steel solenoid valve 3/8" to 2" assisted control

A 2/2 NC stainless steel solenoid valve, 3/8" to 2", with assisted control , is a fluid or gas flow control device that allows the passage to be opened or closed by means of an electrical signal. In the absence of electrical power, the fluid passage is closed.

Applications: Chemical, pharmaceutical, food industries, water systems, compressed air and other industrial processes.

Main features:

  • Body, core and spring: 316 stainless steel
  • Pressure 0.5 - 13 bar (max 25 bar)
  • Temperature -10ºC / +130ºC
  • VITON (FKM) gasket. EPDM - NBR gasket option.
  • Available threads: 3/8 - 1/2 - 3/4 - 1 - 1-1/4 - 1-1/2 - 2
  • Model coil MA30

Supplied without coil.

€68.61 (tax included)
€56.70 (tax excl.)
SELECT THE THREAD
  • 3/8"
  • 1/2"
  • 3/4"
  • 1"
  • 1-1/4"
  • 1-1/2"
  • 2"
Reference:
60360013
Description

2/2 NC stainless steel solenoid valve 3/8" to 2" assisted control

The 3/8" to 2" stainless steel 2/2 NC solenoid valve with assisted actuation is a device that controls the flow of liquids or gases via an electrical signal. Its stainless steel construction ensures corrosion resistance and durability , while its normally closed valve design guarantees safety in the event of a power failure. Ideal for industrial and process applications requiring reliable and efficient flow control .

Technical specifications:

  • Valve: 2/2 (two ways and two positions: open or closed).
  • Normally closed (NC), which means that in the absence of electrical power the passage of the fluid is closed.
  • Stainless steel, corrosion resistant, suitable for aggressive liquids, water, air and chemicals.
  • Connection range: From 3/8" to 2" in diameter.
  • Assisted control: Opening/closing is performed by an electric actuator with spring or pressure assistance.

Applications

Water, steam, oil, compressed air, chemical, food, pharmaceutical or general industrial systems.

Technical specifications of a 2/2 NC stainless steel solenoid valve 3/8" to 2" with assisted control:

Product Details
60360013
