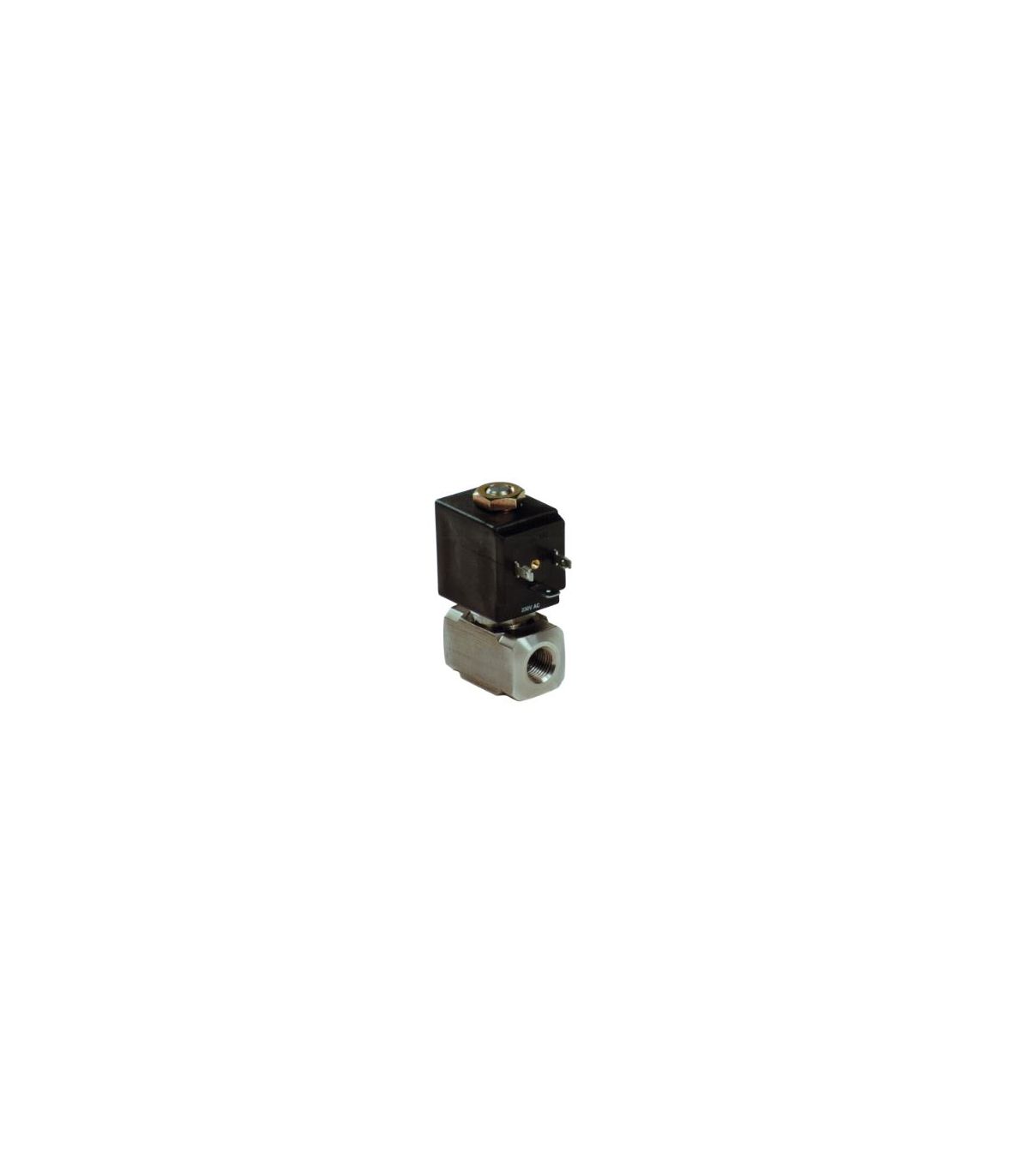

2/2 N. CLOSED SOLENOID VALVE 1/4" STAINLESS STEEL DIRECT CONTROL

A 2/2 N. closed 1/4" stainless steel direct control solenoid valve is an electromagnetic valve designed to control the flow of a fluid (typically compressed air) in low flow pneumatic or hydraulic systems.

Applications: Industrial pneumatic systems, Food and beverage industry, Pharmaceutical and biotechnology industry, Marine or humid environments, Dosing or filling systems

Technical sheet:

• Viton gasket.
• Hole Ø 2 mm.
• It does not require a minimum pressure for correct operation.
• Mounting position indifferent.
• Option to order multiple gaskets depending on the fluid used.
• Maximum viscosity allowed 5º Engler.
• KV factor (l/min water) 0.7
• Max pressure 13 bar.
• Temperature -10ºC / 130 ºC
• Coil type C3 (not included)
