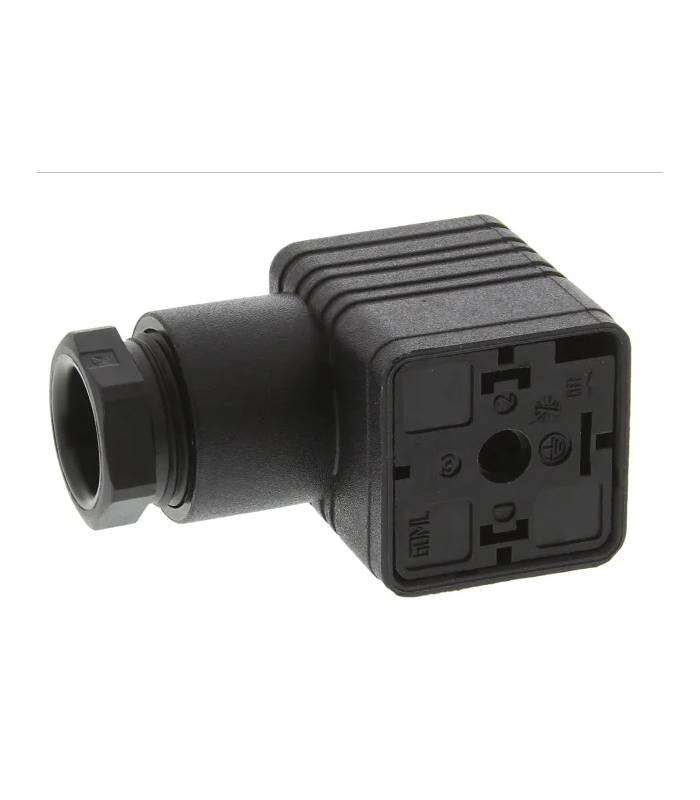

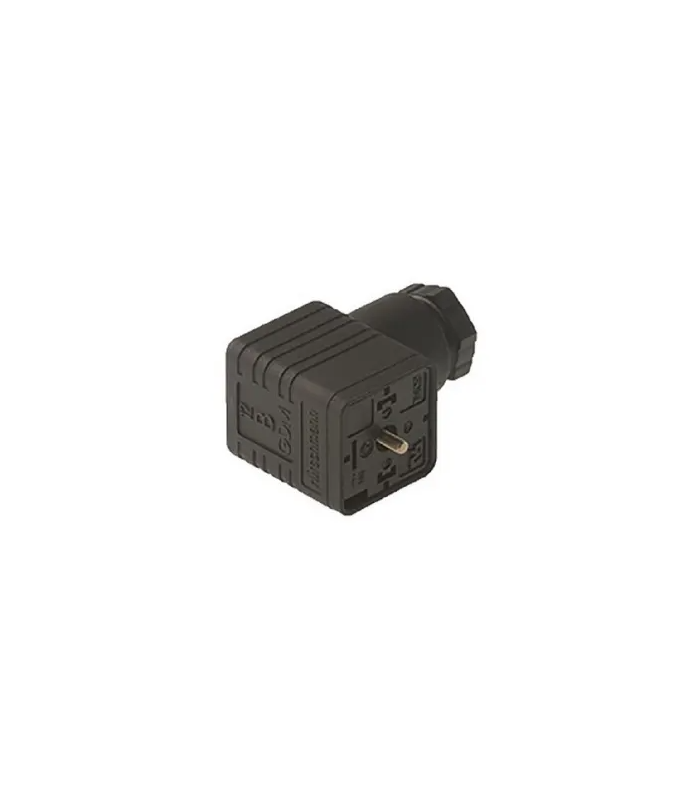

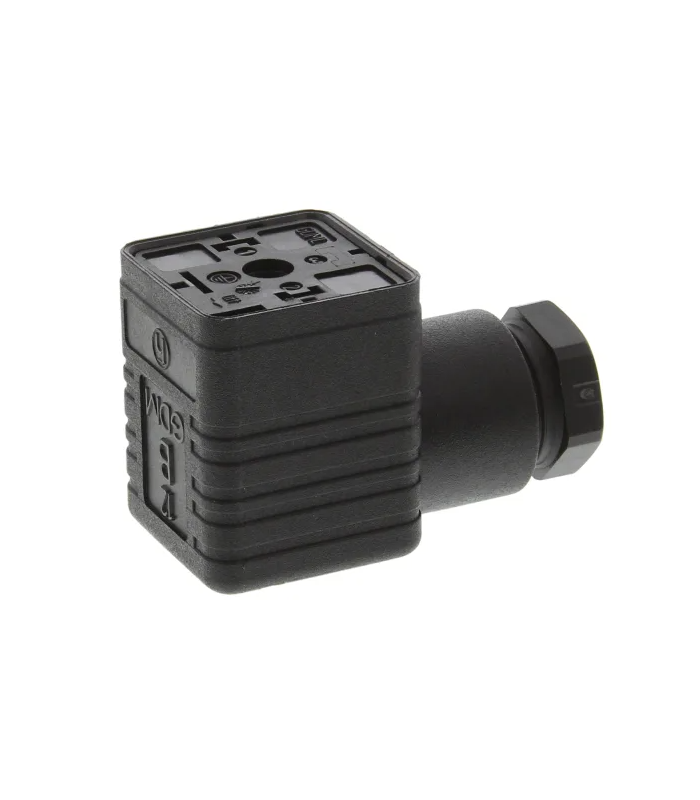

T-30 COIL CONNECTOR DIN-43650-A
T-30 COIL CONNECTOR DIN-43650-A
T-30 COIL CONNECTOR DIN-43650-A
T-30 COIL CONNECTOR DIN-43650-A
T-30 COIL CONNECTOR DIN-43650-A
T-30 COIL CONNECTOR DIN-43650-A

T-30 COIL CONNECTOR DIN-43650-A

A T-30 DIN-43650-A coil connector is an industrial electrical connector designed to establish a safe and reliable connection between a power or control source and the coil of an electromechanical device. The T-30 designation refers to a particular type of connection.

Applications: industrial automation, packaging systems, tools, assembly lines, laboratory equipment

Technical sheet:

  • Contacts: Nut with protection for the conductors.
  • Number of poles: 2 + Ground.
  • Contact distance: 18 mm.
  • Cable entry: PG7 – PG9.
  • Lining: NBR profile (Different, on request).
  • Fixing nut: M3 x 32.
  • Standard ground position: H 12 (Opposite the cable exit).
  • Degree of protection: IP 65 (Connected).
  • Maximum conductor cross-section: 1.5 mm²
  • Three-pole connector
  • ISO 4400 - IP65
  • Can be supplied in GREY
€1.21 (tax included)
€1.00 (tax excl.)
Reference:
6004
Description

Coil connector T-30 DIN-43650-A

CONECTOR BOBINA T-30 DIN-43650-A

Product Details
6004
