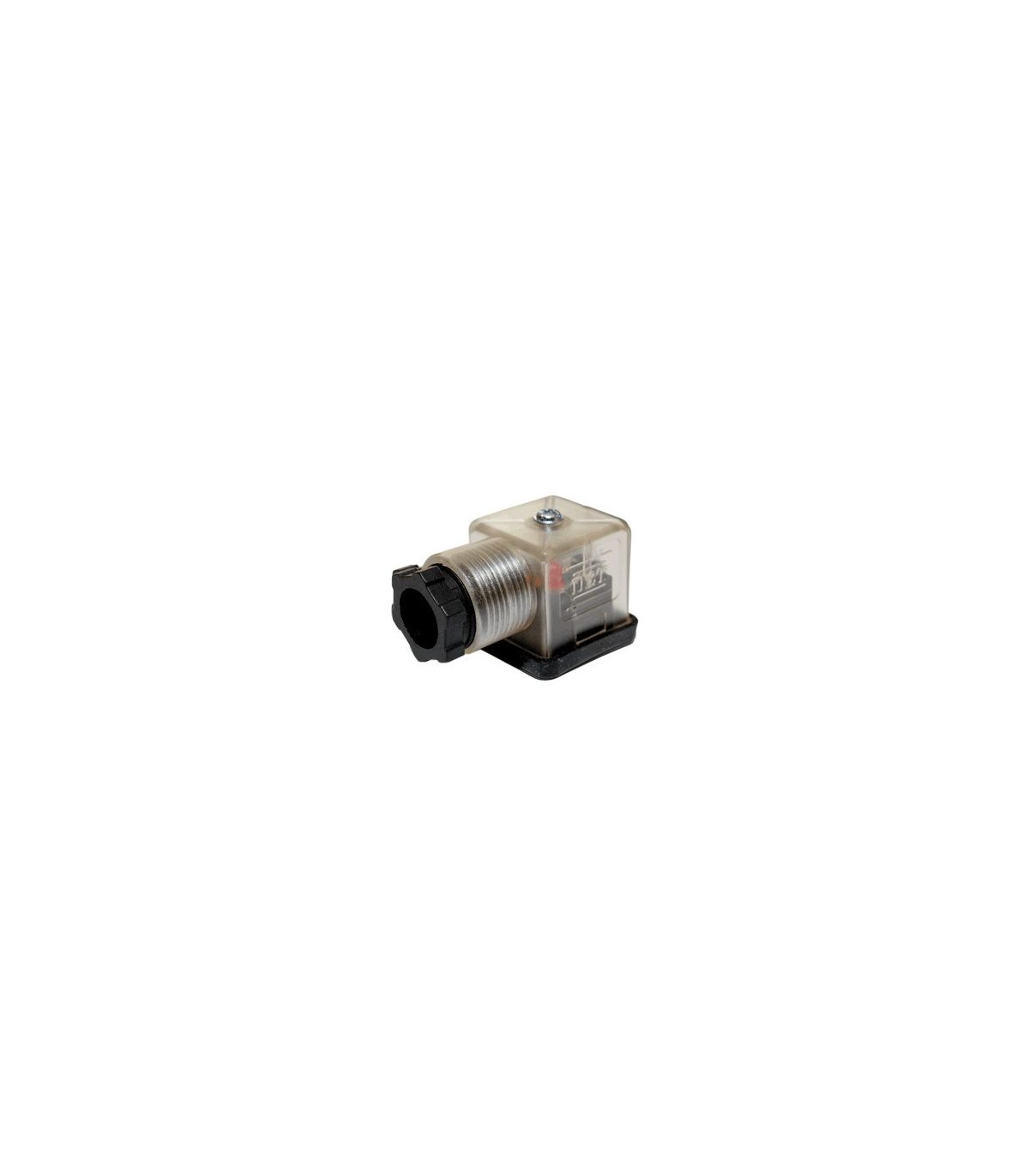

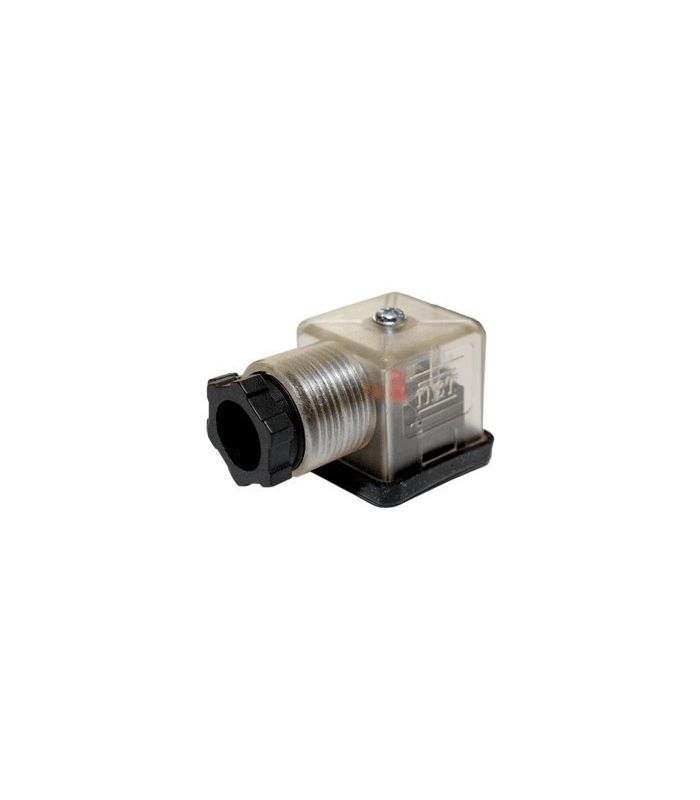

DIN-43650-A LED T-30 CONNECTOR

DIN-43650-A LED T-30 CONNECTOR

The DIN-43650-A LED T-30 Connector is an electrical component designed for the fast and safe connection of cables in industrial and commercial applications.

Applications: Machine control systems, outdoor lighting, professional audio and video equipment, solar panels, agricultural machinery, sensors and actuators.

Technical data sheet:

  • Contacts: Nut with protection for the conductors.
  • LED + Varistor circuit
  • Number of poles: 2 + Ground.
  • Contact distance: 11 mm.
  • Cable entry: PG7 – PG9.
  • Lining: NBR profile (Different, on request).
  • Fixing nut: M3 x 32.
  • Standard ground position: H 12 (Opposite to cable exit).
  • Protection class: IP 65 (Connected).
  • Max. conductor section: 1.5 mm2.
  • Standard circuit (Black-gray custody): 00.
  • Standard circuit (Transparent custody): L3 – V5 – T5.
  • LED Color (Transparent Guard): Yellow.

CHECK OTHER TYPES OF CONTACTS

€7.26 (tax included)
€6.00 (tax excl.)
POWER
  • 12V DC
  • 24VAC
  • 24V DC
  • 110V AC
  • 220VAC
Reference:
60060005
Description

DIN-43650-A LED T-30 connector

CONECTOR LUMINOSO T-30 24V ACDC

Product Details
60060005
