DIN-43650-A RECTIFIER CONNECTOR | Buy Online

DIN-43650-A RECTIFIER CONNECTOR

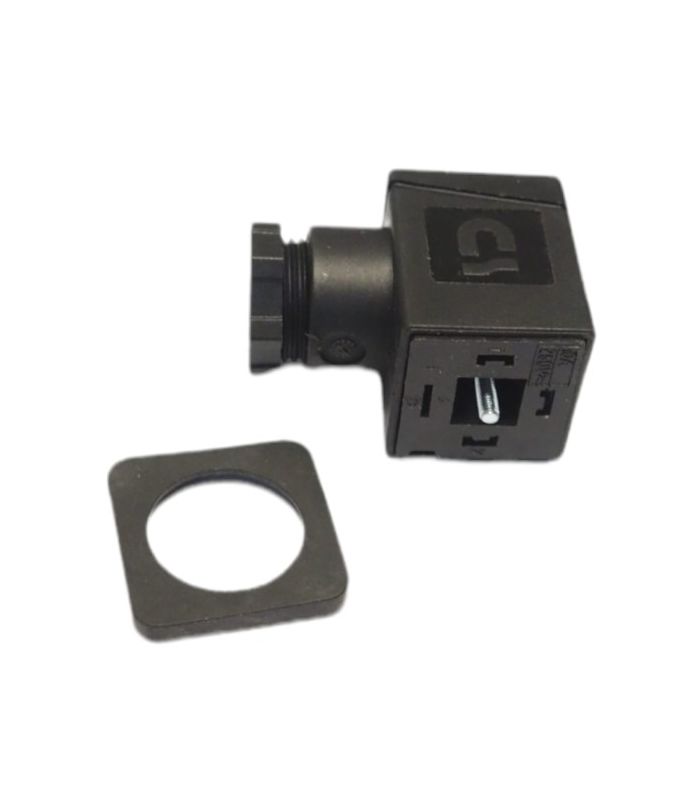

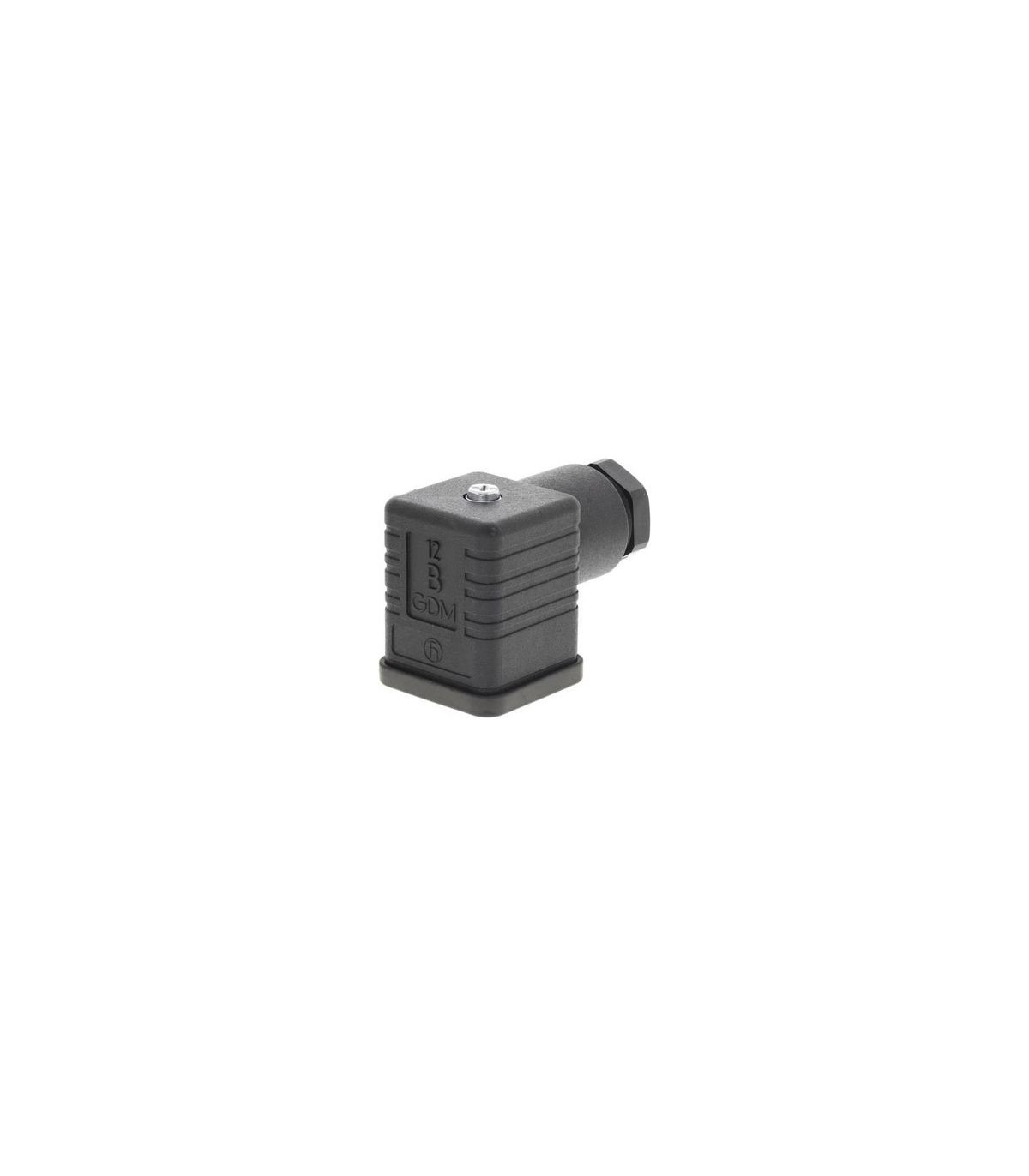

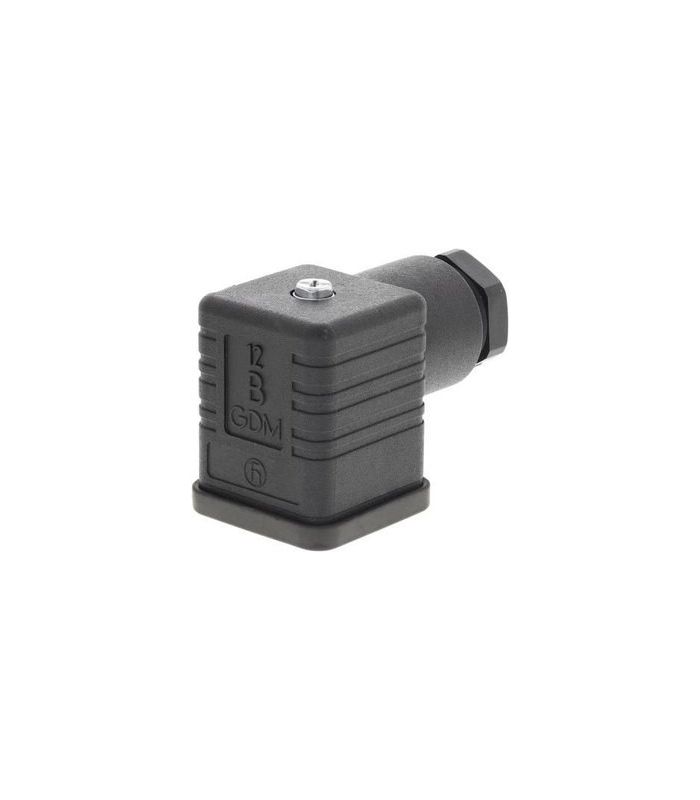

DIN-43650-A rectifier connector

A DIN-43650-A rectifier connector is an electrical device used for connecting solenoid valve coils and other industrial actuators, which integrates a rectifier to convert alternating current (AC) into direct current (DC).

Main features :

It transforms alternating current into direct current.
Contacts: Nut with protection for the conductors.
Number of poles: 2 + Earth
Option to supply with LED
Contact distance: 18 mm.
Cable entry: PG9 PG11.
Fixing screw: M3 x 32.
Standard ground position: H 12 (Opposite the cable outlet).
Protection rating: IP 65 (Connected).
Maximum conductor cross-section: 1.5 mm²

DIN-43650-A rectifier connector

The DIN-43650-A rectifier connector incorporates a rectifier circuit, allowing DC coils to be powered from an AC source, ensuring a safe and watertight connection.

Main features

Standard format DIN 43650-A
Integrated AC/DC rectification
Screw connection
Electrical and mechanical protection

Applications

Solenoid valves in pneumatic or hydraulic systems
Pressure or level sensors
Industrial automation
Electromechanical equipment in general

Technical specifications of the DIN-4350-A rectifier connector:
