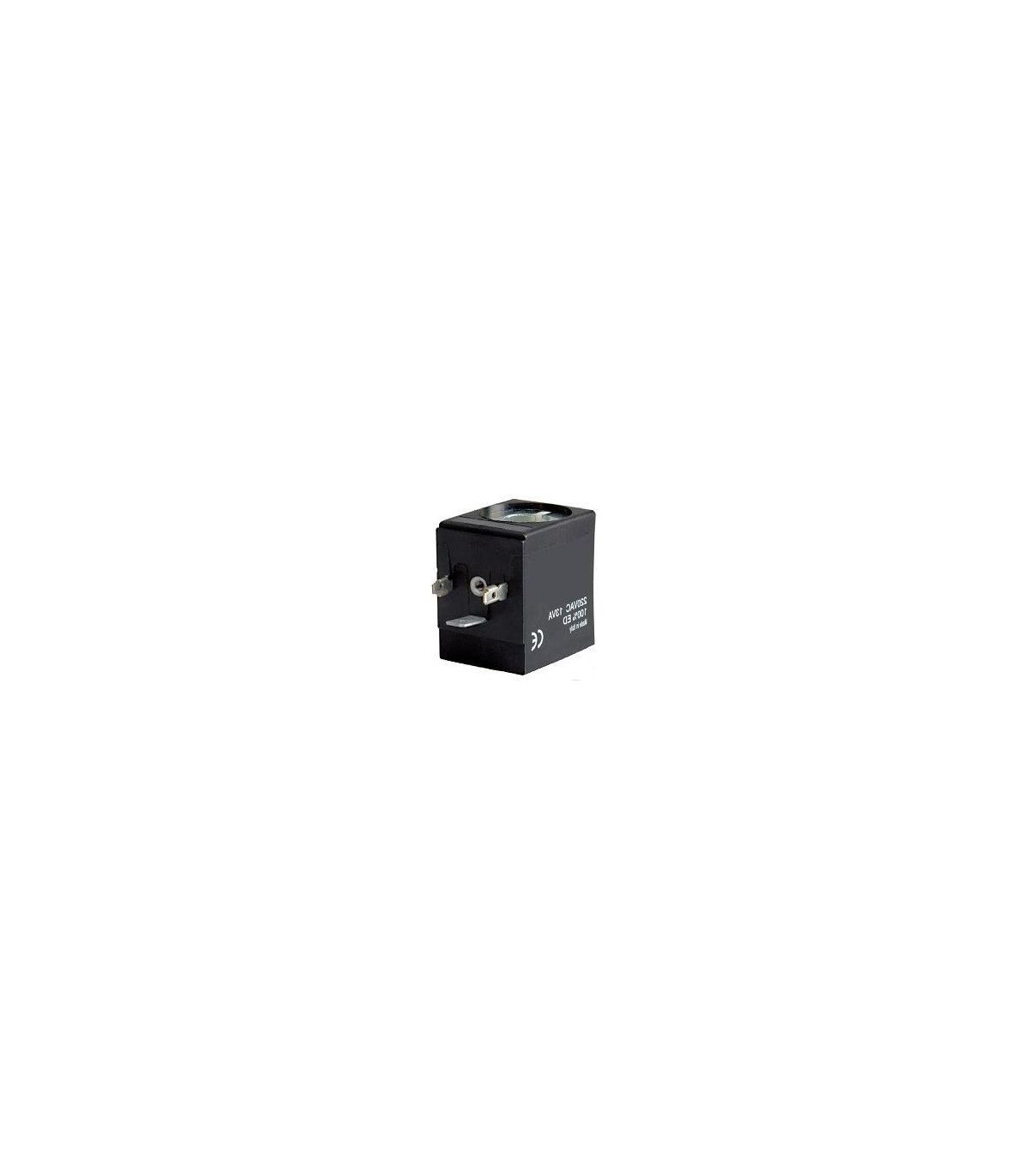

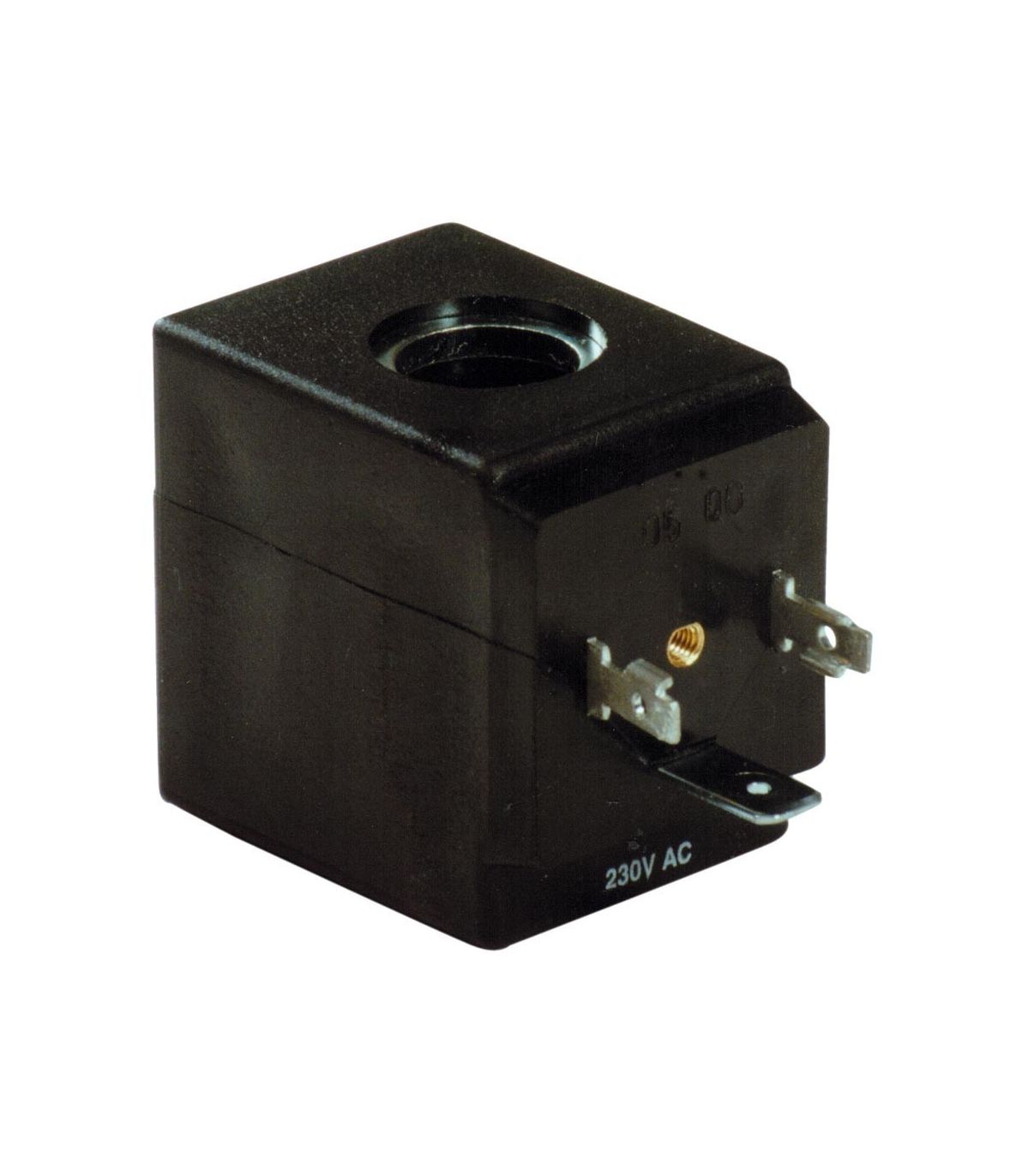

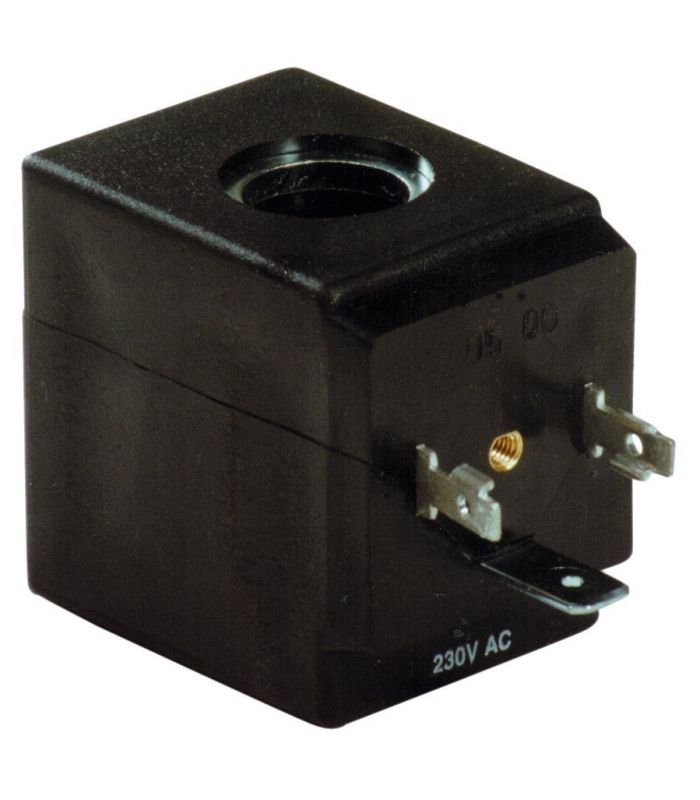

C3 8W SOLENOID VALVE COIL
C3 8W SOLENOID VALVE COIL
C3 8W SOLENOID VALVE COIL
C3 8W SOLENOID VALVE COIL

C3 8W SOLENOID VALVE COIL

A C3 8W solenoid coil is the essential electromagnetic component that activates a solenoid valve mechanism, allowing or stopping the flow of fluid (liquid or gas) in a system. 8W indicates the power consumption.

Applications: Industrial automation, Machinery, Hydraulic systems, Automated irrigation systems.

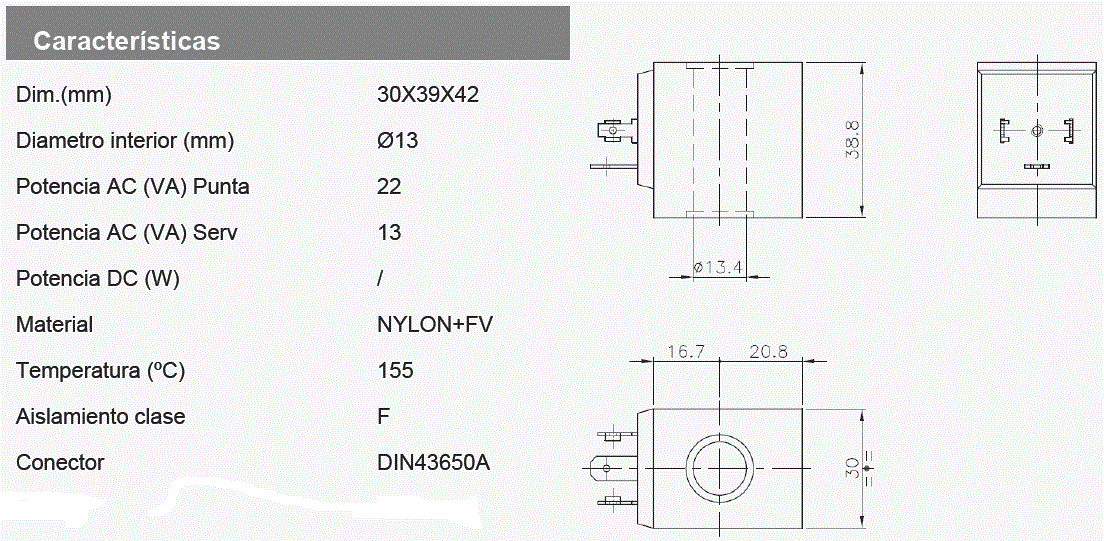

Technical sheet:

  • Standard insulation: class “F” according to VDE 0580-0110 and IEC standards.
  • Insulation on request: Class “H”.
  • Maximum temperature: 180ºC.
  • Construction: Fully encapsulated in resin/nylon 6/6 with fiberglass.
  • Design: Conceived for continuous service and permanent connection (100% ED).
  • Standard voltages:
  • (~) AC: (24-110-230) V (50/60) Hz
  • (=) DC (12-24) V
  • In the case of 60 Hz frequency, consult the technical department for details.
  • Voltage tolerance:
  • (~) AC (+10 %-15% ).
  • (=) DC (+-10%).
  • Electromagnetic group:
  • Complies with EEC standard 89/336.
  • Complies with EEC standard 93/68.
  • Protection: IP65 with DIN 43650 connector.
€10.65 (tax included)
€8.80 (tax excl.)
POWER
  • 12V DC
  • 24VAC
  • 24V DC
  • 48V AC
  • 110V AC
  • 220VAC
  • 380VAC
Reference:
60100001
Description

solenoid valve coil C3 8W

BOBINA ELECTROVALVULA C3 8W

Product Details
60100001
