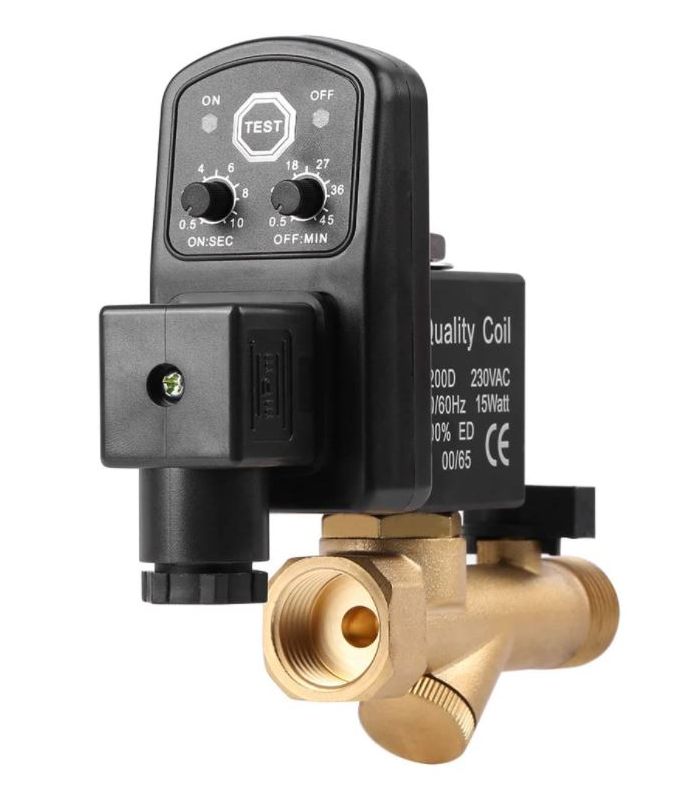

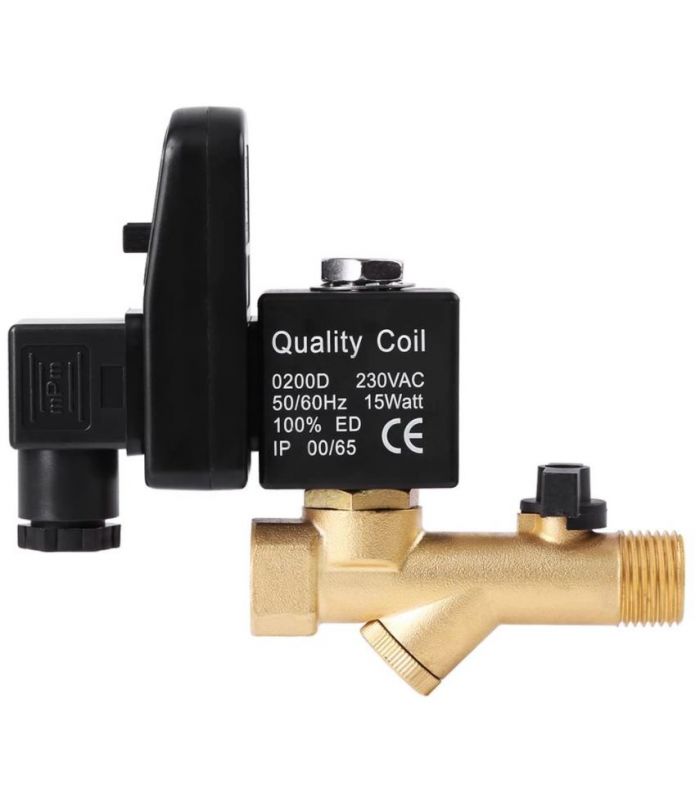

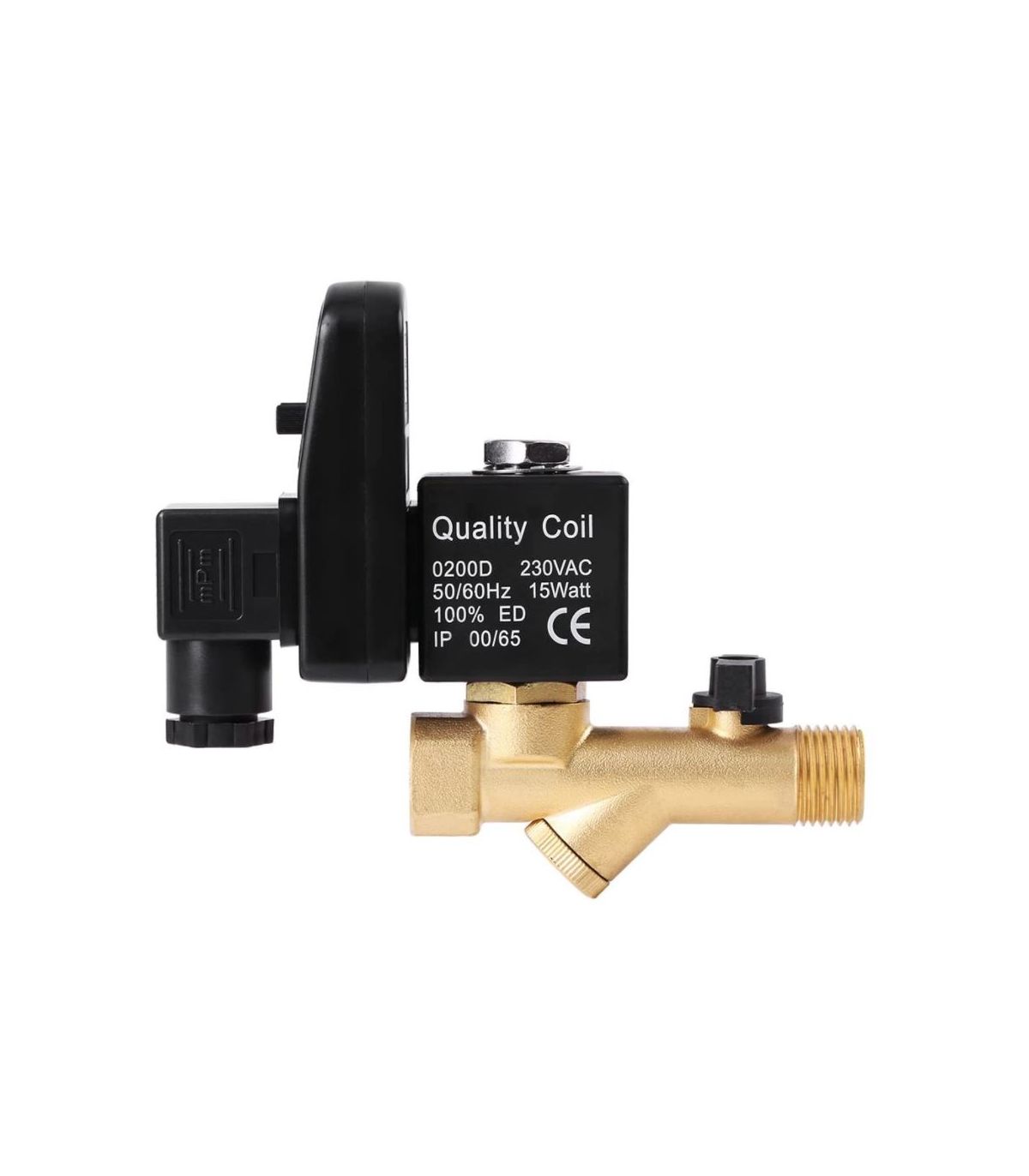

AUTOMATIC ELECTRONIC PURGE VALVE
AUTOMATIC ELECTRONIC PURGE VALVE
AUTOMATIC ELECTRONIC PURGE VALVE
AUTOMATIC ELECTRONIC PURGE VALVE

AUTOMATIC ELECTRONIC PURGE VALVE

The electronic automatic drain valve programs the frequency and duration of drains using an electronic timer for condensate discharge. It operates automatically and wastes less air when draining. It adapts to any type of compressor. Its function is to efficiently and controlledly remove condensate (water) that accumulates in compressed air systems.

Applications: industry, automation and pneumatics.

Technical sheet:

  • Automatic air purge.
  • DN-15 Step
  • 1/2" thread
  • 220 V coil. Supplied with connector.
  • Opening time 1-30 seconds.
  • Waiting time 1-45 minutes.
€47.19 (tax included)
€39.00 (tax excl.)
Reference:
150910
Description

electronic automatic purge valve

Product Details
150910
Comments
