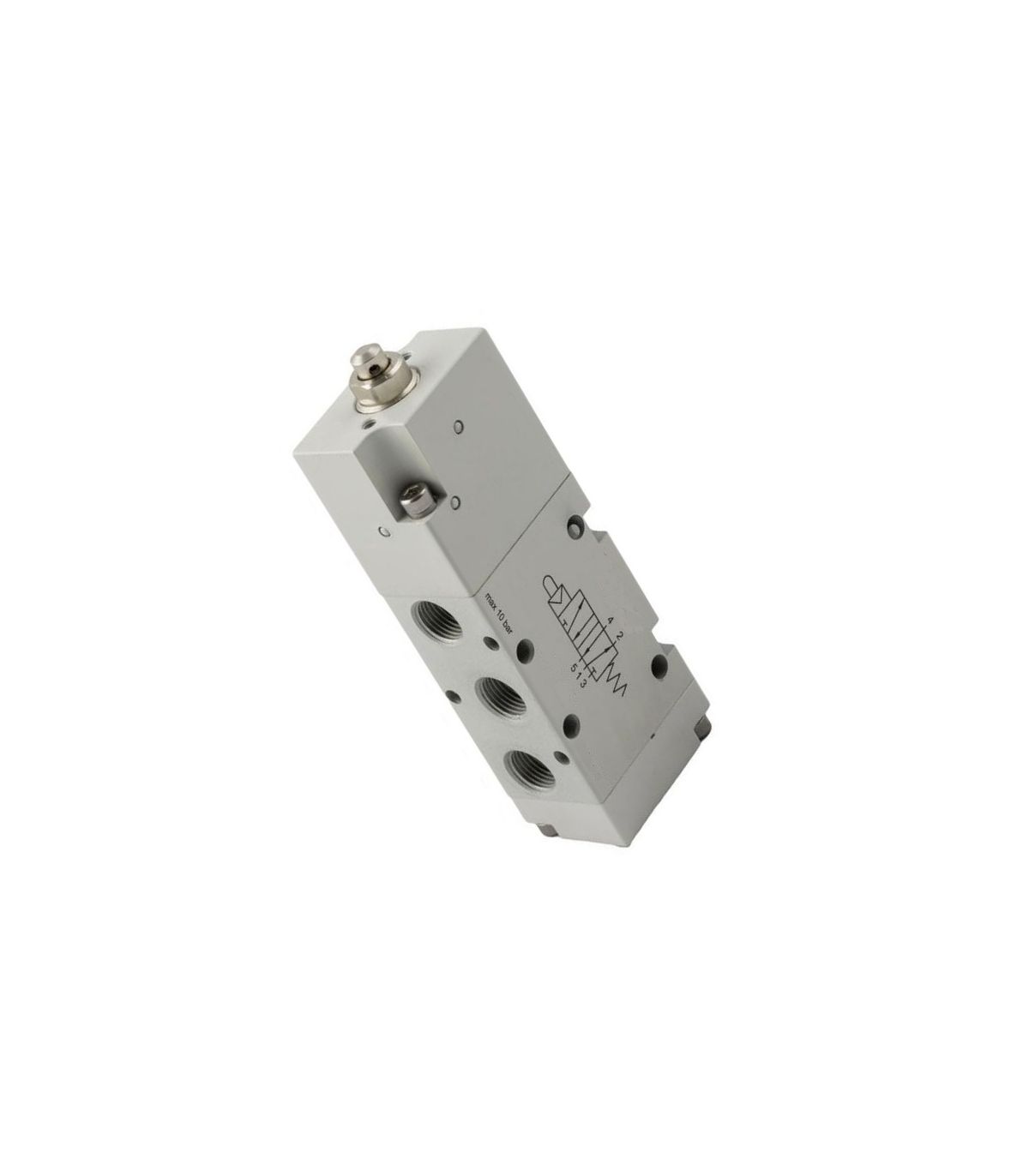

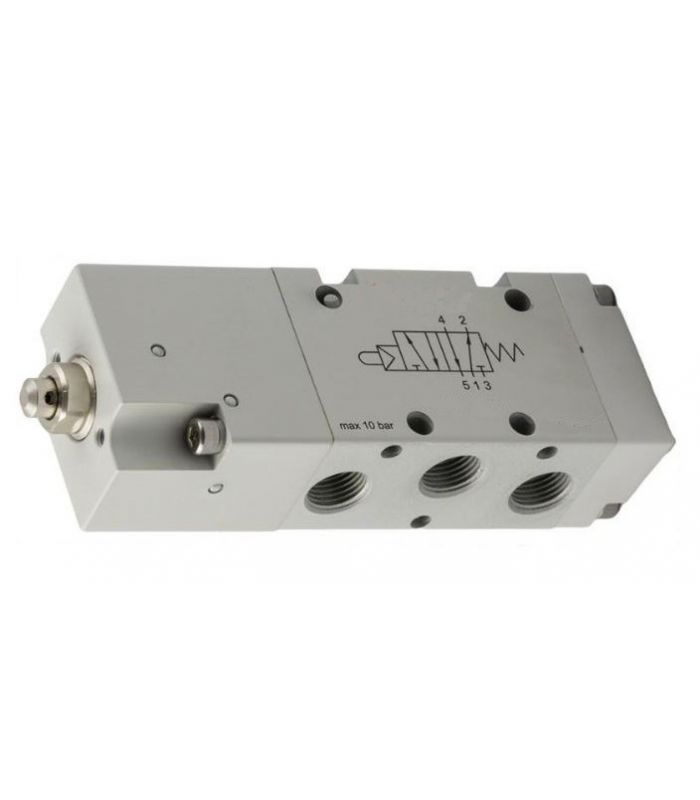

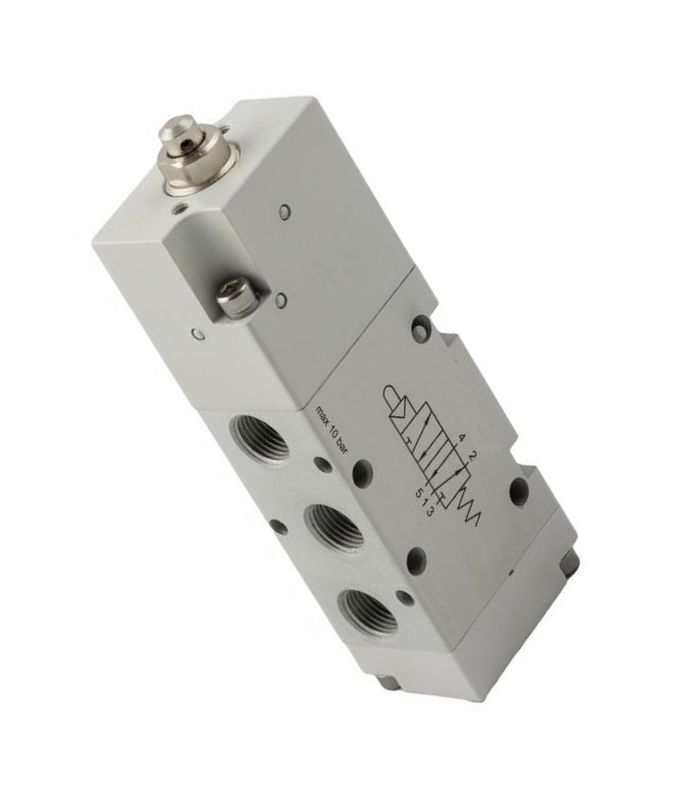

1/4" PIVOT VALVE
1/4" PIVOT VALVE
1/4" PIVOT VALVE
1/4" PIVOT VALVE

1/4" PIVOT VALVE

The 1/4" pivot valve is a flow control valve used to regulate the flow of a fluid in a hydraulic or pneumatic system. Inside the body, there is a strut that moves a quarter turn (1/4 pivot) to open or close the fluid passage.

Applications: Control systems in industrial machinery, Compressed air lines, Pneumatic clamping applications, Manual control panels.

Technical specifications:

  • 1/4" mechanical strut valve, in 5/2 monostable version.
  • Made entirely of technopolymer, with a small size (22 mm wide),
  • Provides a flow rate of 800 l/min. at 6 bar.
  • Max. pressure 10 bar.
  • Temperature -5 / 60ºC
€25.41 (tax included)
€21.00 (tax excl.)
Reference:
2126
Description

1/4" pivot valve

The 1/4" pivot valve is designed to control, open or close the flow of compressed air in pneumatic installations.

Its compact design allows for easy integration into air circuits, simplifying connection, adjustment, and maintenance. It is suitable for industrial applications, workshops, and pneumatic automation systems.

Technical specifications for a 1/4" pivot valve:

VALVULA 14 PIVOTE

Product Details
2126
