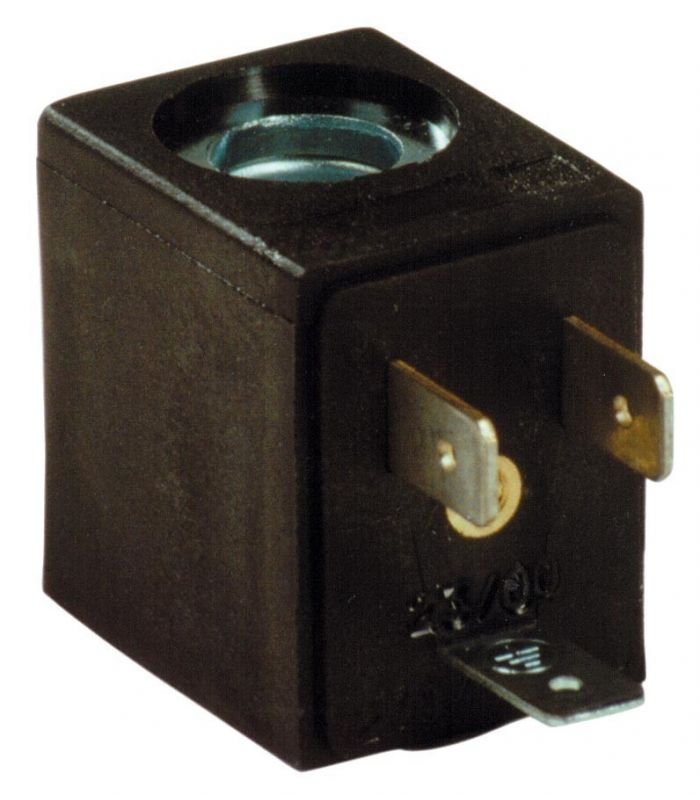

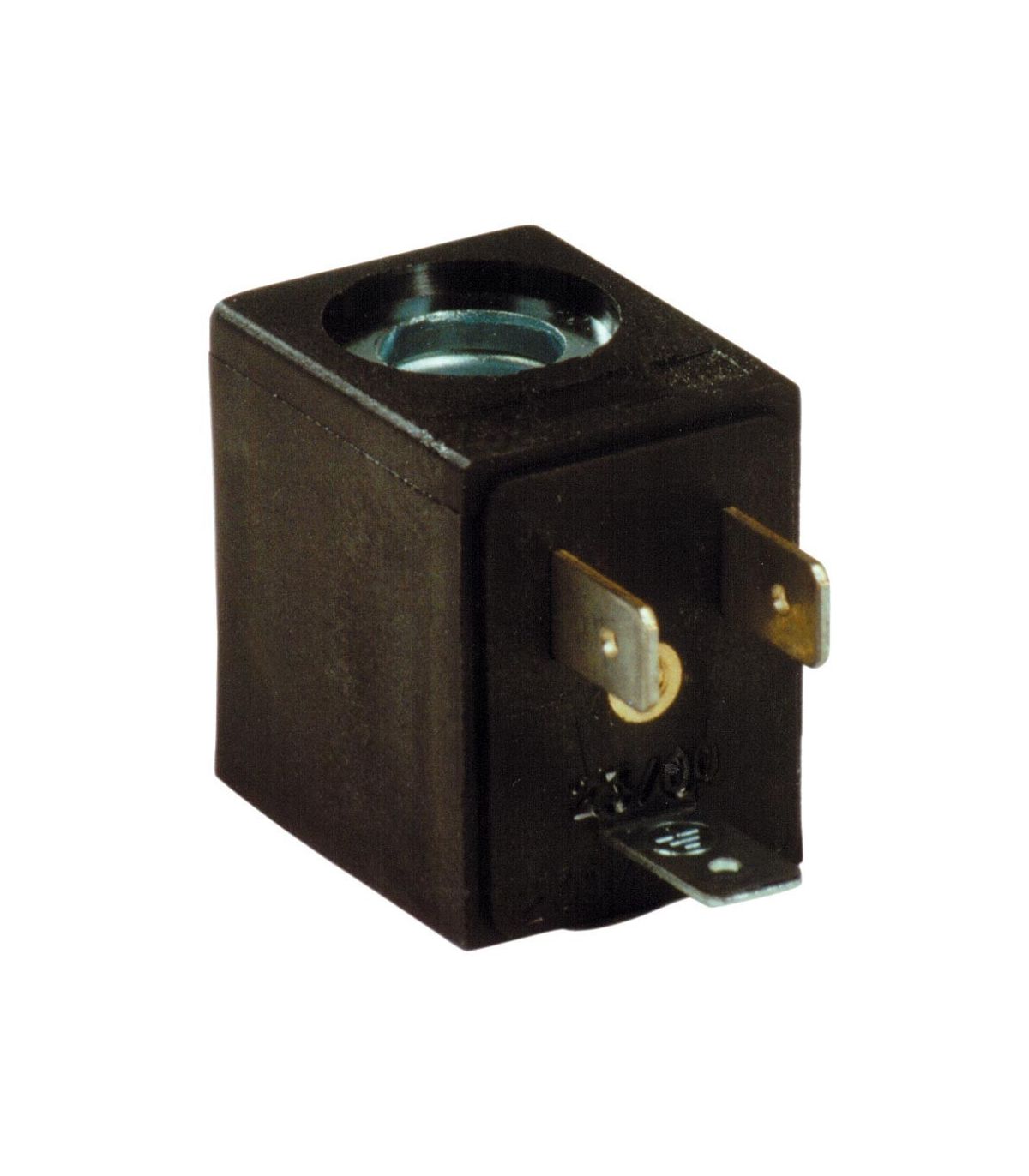

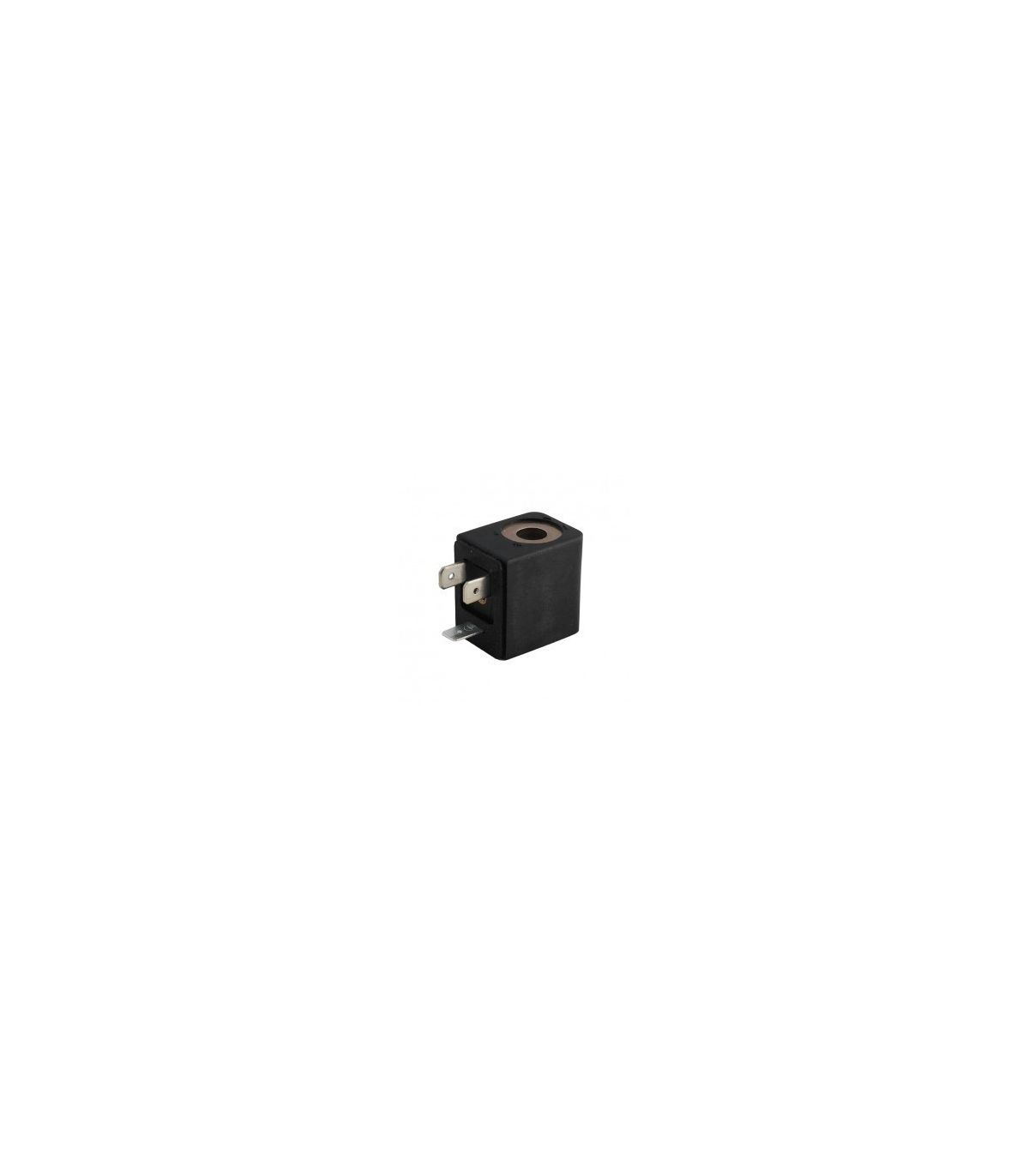

SOLENOID VALVE COIL C1

A solenoid valve coil C1 is a fundamental electromechanical component in pneumatic and hydraulic systems. It enables the flow of a fluid (air, oil, water, etc.) to be activated or deactivated through a valve, transforming an electrical signal into a mechanical movement.

The winding is covered with an insulating material to prevent short circuits.

Solenoid valves with C1 coils are used in a wide variety of industrial applications such as automation, pneumatics, hydraulics and building automation.

Technical data sheet:

• Standard insulation: class “F” according to VDE 0580-0110 and IEC standards.
• Insulation on request: Class “H”.
• Maximum temperature: 180ºC.
• Construction: Fully encapsulated in resin/nylon 6/6 with fiberglass.
• Design: Designed for continuous service and permanent connection (100% ED).
• Standard voltages:
• (~) AC: (24-110-230) V (50/60) Hz
• (=) DC (12-24) V
• In the case of 60 Hz frequency, consult the technical department for details.
• Tolerance in tension:
• (~) AC (+10 %-15% ).
• (=) DC (+-10%).
• Electromagnetic group complies with CEE standard 89/336 and CEE standard 93/68.
• Protection: IP65 with DIN 43650 connector.
