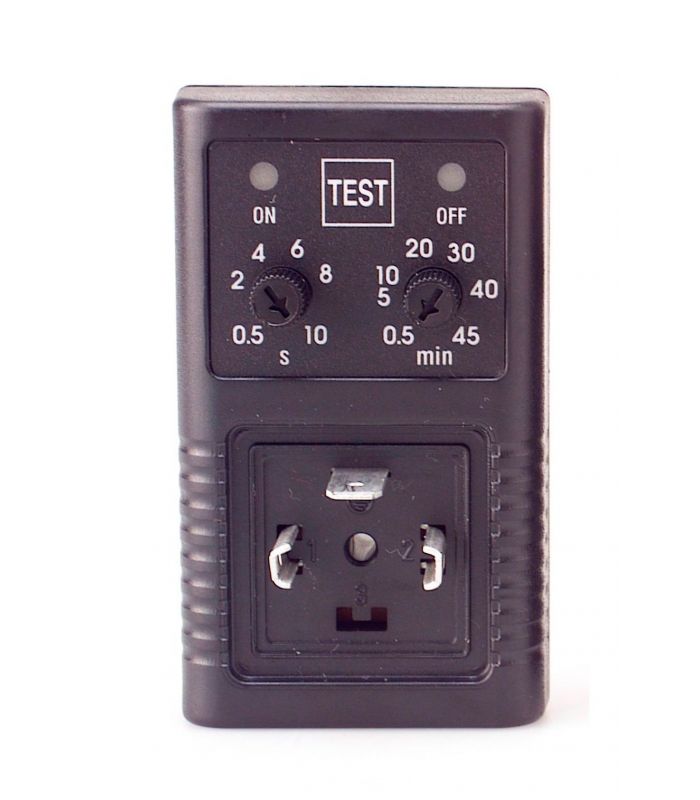

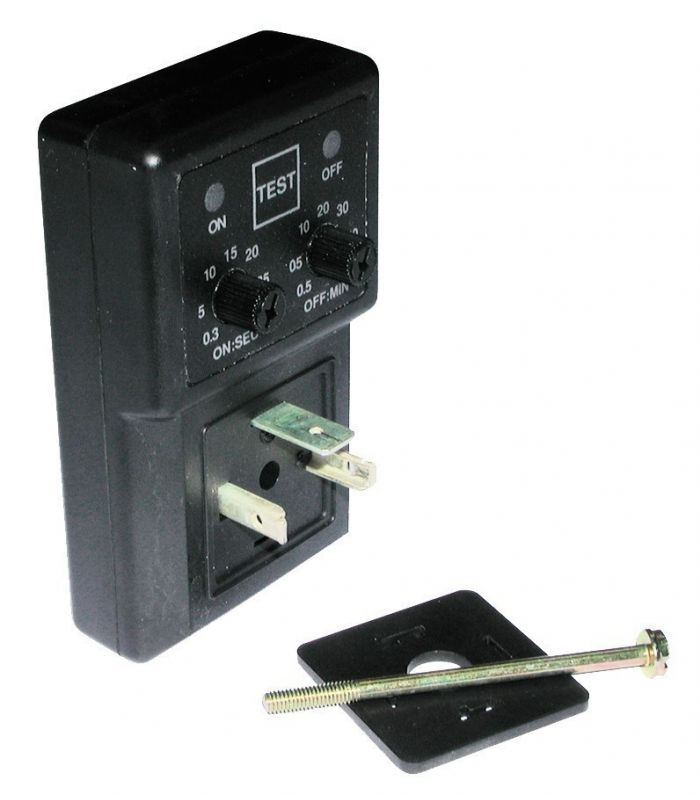

ANALOG TIMER T-22 DIN 43650-B

The T-22 DIN 43650-B analog timer is a programmable device for use with elements that have a DIN 43650 B type connection. It is applied with solenoid valves for draining compressor tanks such as air transport lines, pneumatic vibration conveying systems (e.g., agricultural silos, aggregate silos) or automatic lubrication systems.

Technical specifications:

• Valve connection: DIN 43650 ISO-4400/6952.
• The connector output is of type DIN-43650-A
• ON adjustment time: 1-30 secs.
• OFF setting time: 1.5-45 min.
• Power supply voltage: 24-240 Vac 50/60 Hz 24–240 Vdc.
• I switching: 1A.
• I consumption: 4 mA.
• Operating temperature: -10ºC to +50ºC.
• Protection rating: IP 65 NEMA IV.
• It has a manual or "test" button, as well as selectors to adjust the desired operating or stop time.
