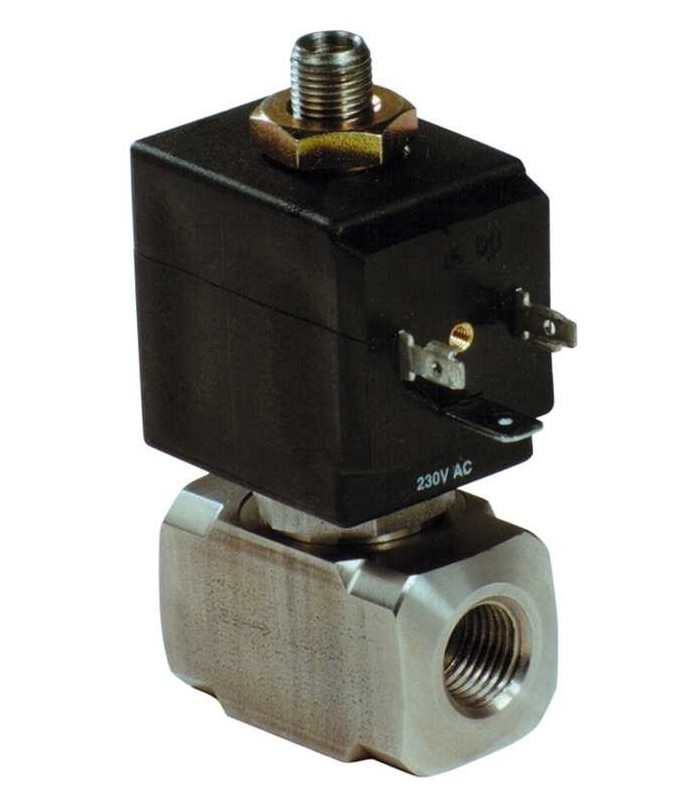

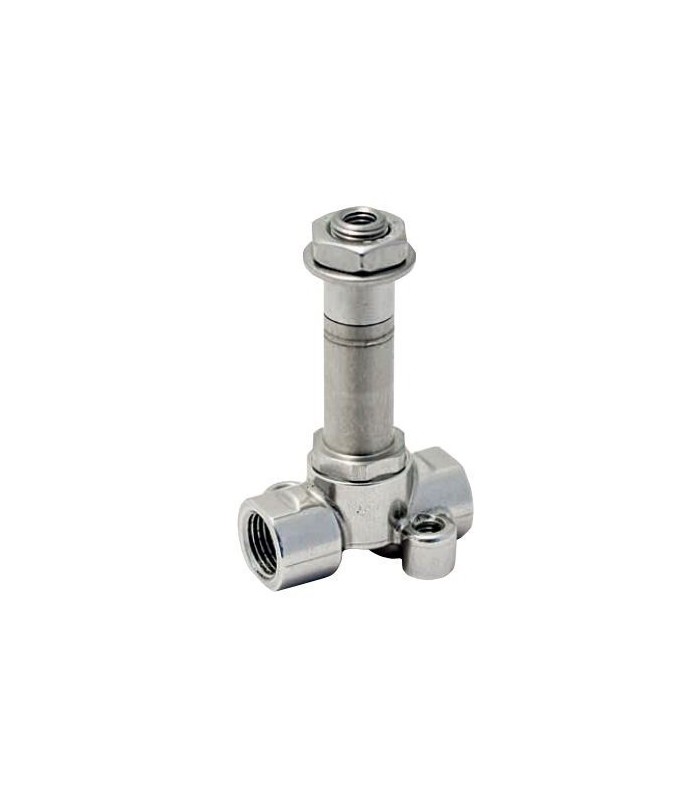

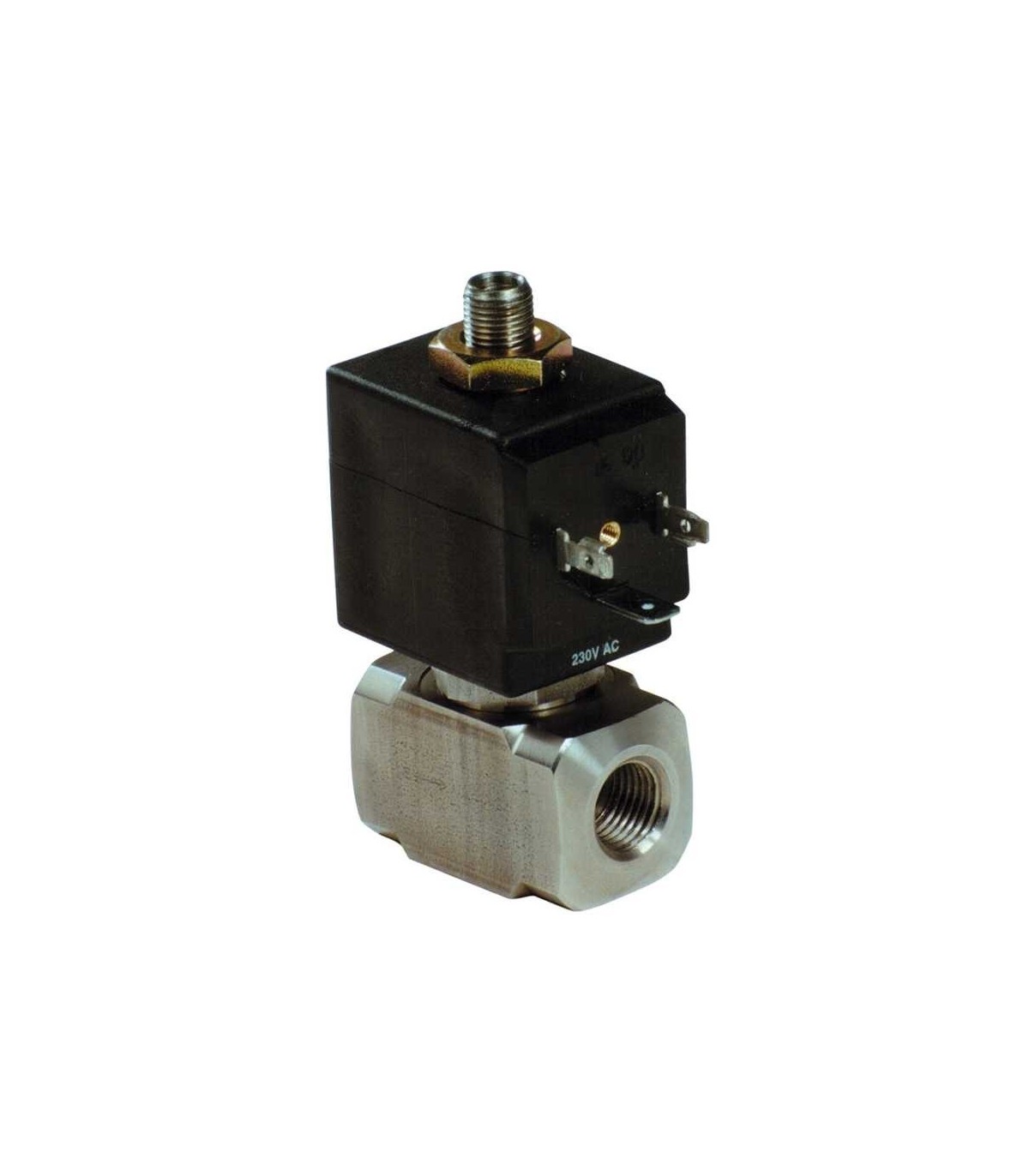

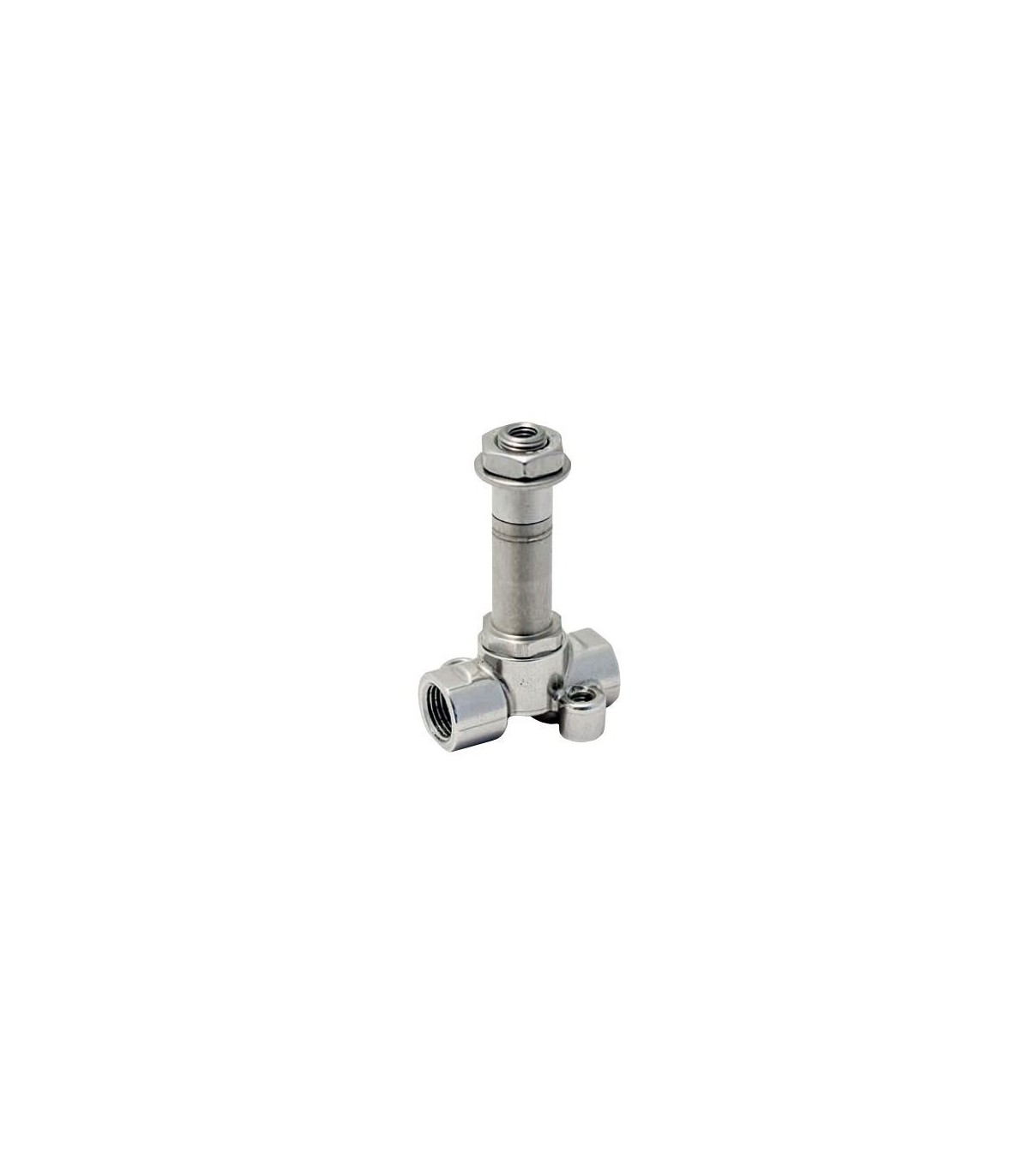

3/2 N. CLOSED SOLENOID VALVE 1/4" STAINLESS STEEL DIRECT ACTION

A 3/2 N. normally closed 1/4" stainless steel direct drive solenoid valve is an electromagnetic valve designed to control the flow of a fluid (typically compressed air) in low flow pneumatic or hydraulic systems.

Applications: Industrial pneumatic systems, Food and beverage industry, Pharmaceutical and biotechnology industry, Marine or humid environments, Dosing or filling systems

Technical specifications:

• Viton gasket.
• Hole Ø 2 mm.
• It does not require a minimum pressure for proper operation.
• Mounting position is irrelevant.
• Option to order several gaskets depending on the fluid used.
• Maximum permissible viscosity 5º Engler.
• KV factor (l/min water) 0.7
• Max. pressure 13 bar.
• Temperature -10ºC / 130ºC
• Coil type C3 (not included)
