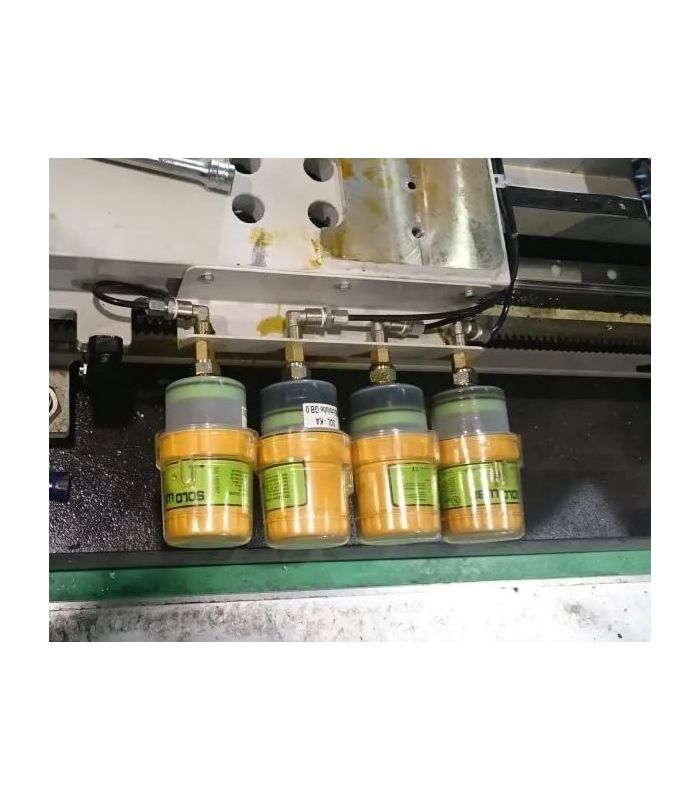

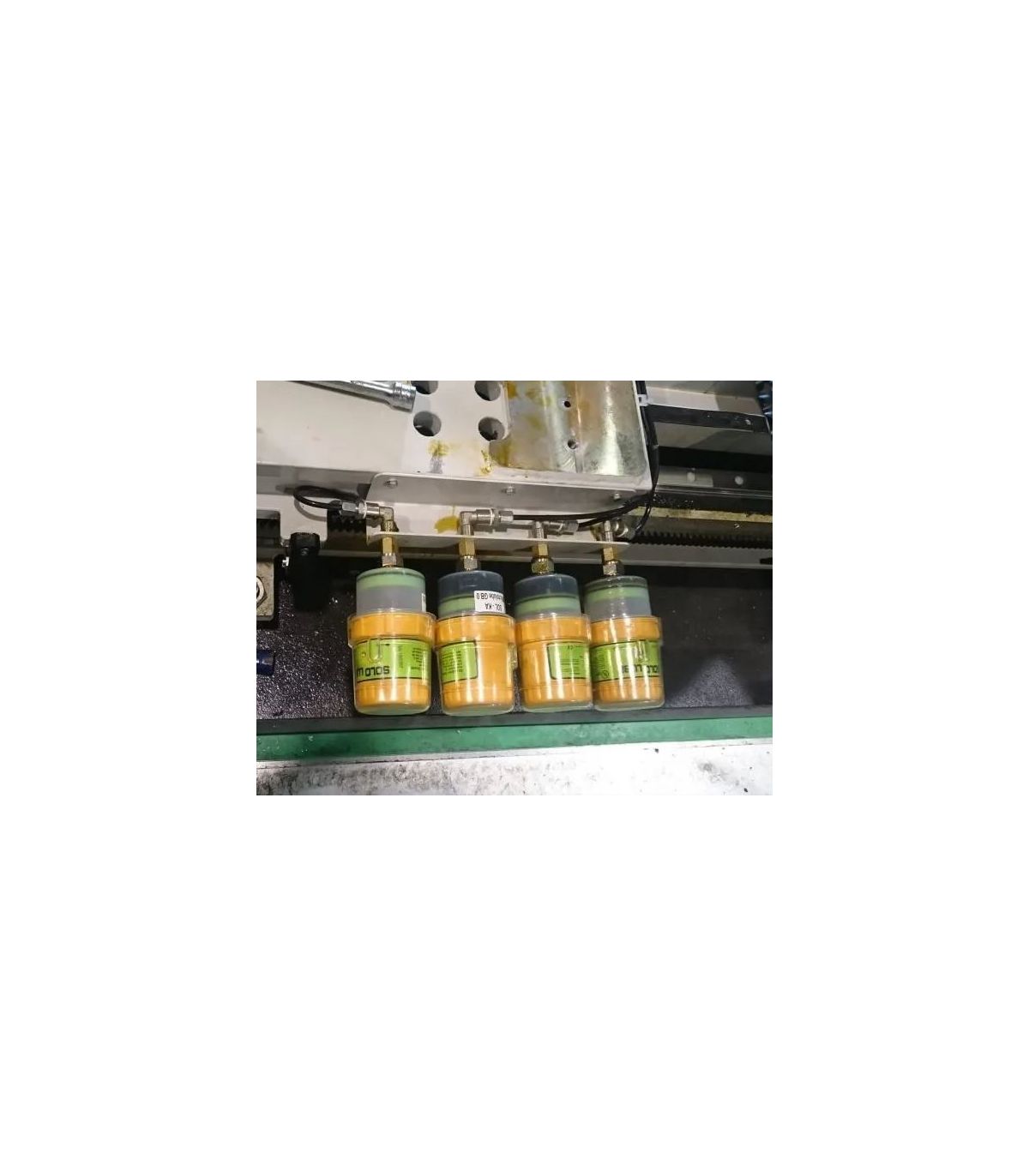

The SOLOLUBE automatic lubricator is a reliable and easy-to-use lubrication system with an electromechanical drive mechanism. It is ideal for the automatic lubrication of bearings, sliding bearings, racks, open gears, chains, etc.
It is used in industries such as food, pharmaceuticals, beverages, etc.

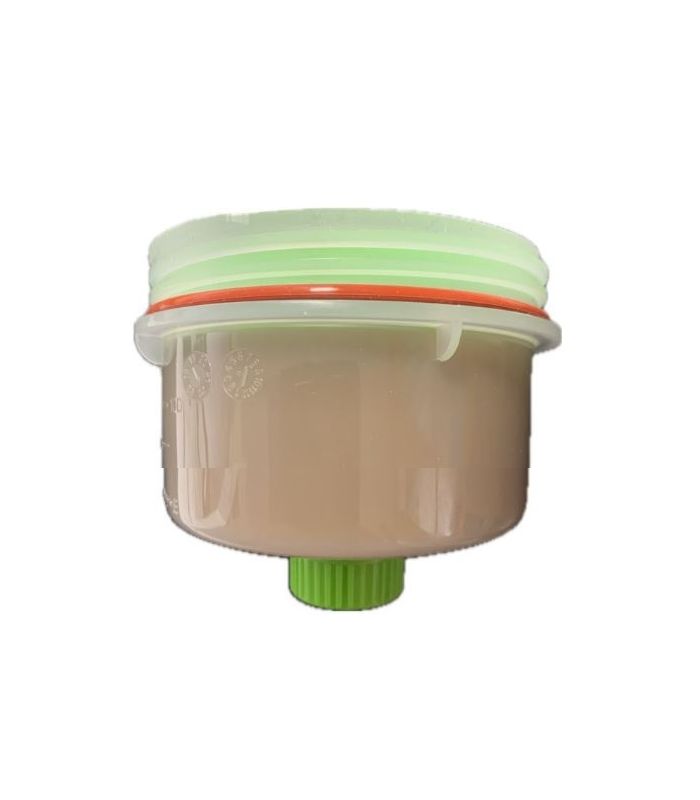

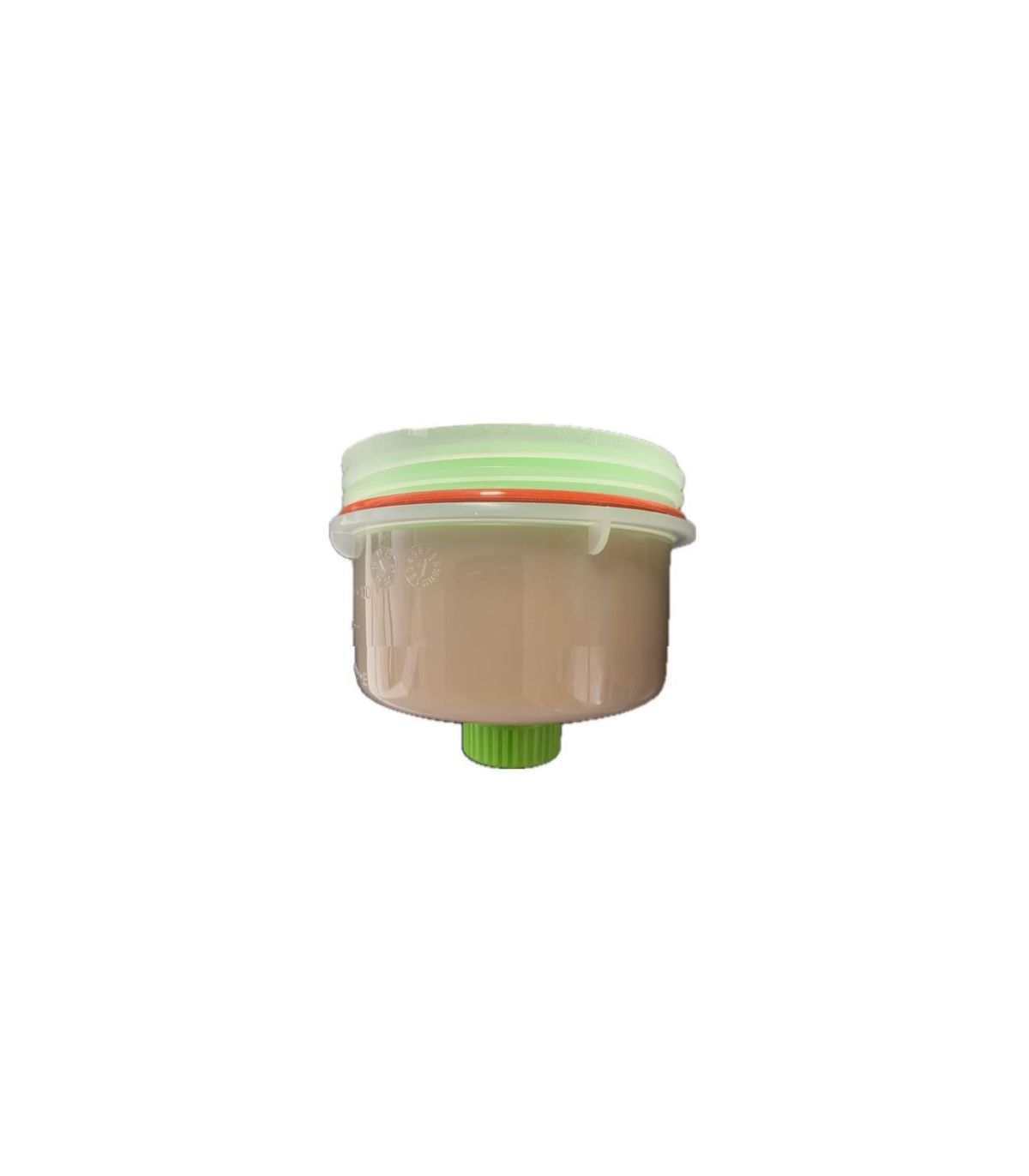

Grease according to DIN KP 1 P-20 NSF-H1: 138985
NLGI Class 1
Volume 150 ml.

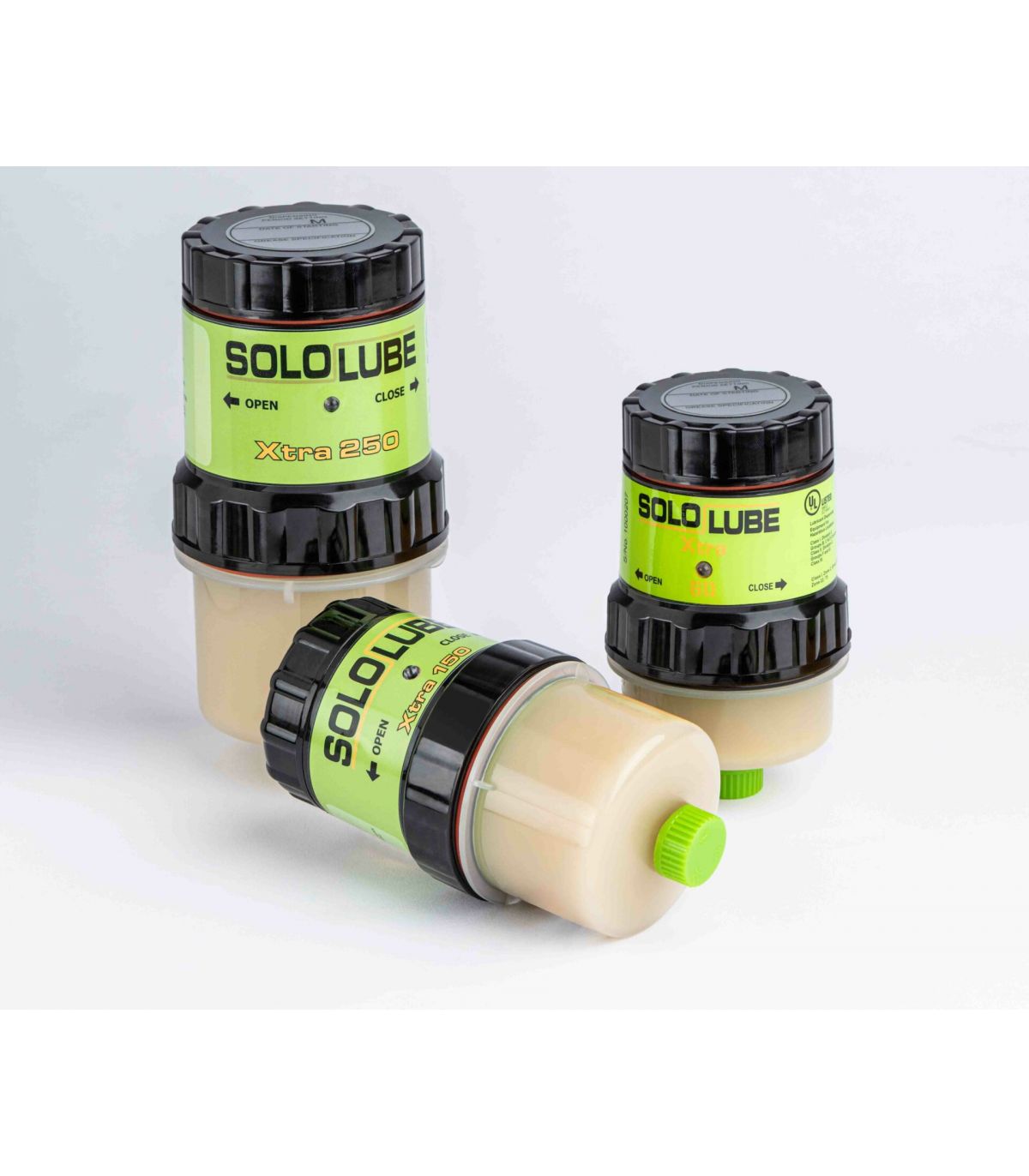

| Model | Lubricant volume (ml) | Pumping volume/stroke (ml) |
| Xtra60 | 60 | 0.167 |
| Xtra150 | 150 | 0.417 |
| Xtra250 | 250 | 0.694 |
| Distribution period (months) | DIP switch positions | Lubrication cycles (hours) | Lubricant/day (ml) | Lubricant/month (ml) | ||||
| Xtra60 | Xtra150 | Xtra250 | Xtra60 | Xtra150 | Xtra250 | |||
| 1 | 1 | 2 | 2.00 | 5.00 | 8.33 | 60.00 | 150.00 | 250.00 |
| 2 | 2 | 4 | 1.00 | 2.50 | 4.17 | 30.00 | 75.00 | 125.00 |
| 3 | 1+2 | 6 | 0.67 | 1.67 | 2.78 | 20.00 | 50.00 | 83.33 |
| 4 | 4 | 8 | 0.50 | 1.25 | 2.08 | 15.00 | 37.50 | 62.50 |
| 5 | 1+4 | 10 | 0.40 | 1.00 | 1.67 | 12.00 | 30.00 | 50.00 |
| 6 | 2+4 | 12 | 0.33 | 0.83 | 1.39 | 10.00 | 25.00 | 41.67 |
| 7 | 1+2+4 | 14 | 0.29 | 0.71 | 1.19 | 8.57 | 21.43 | 35.71 |
| 8 | 8 | 16 | 0.25 | 0.63 | 1.04 | 7.50 | 18.75 | 31.25 |
| 9 | 1+8 | 18 | 0.22 | 0.56 | 0.93 | 6.67 | 16.67 | 27.78 |
| 10 | 2+8 | 20 | 0.20 | 0.50 | 0.83 | 6.00 | 15.00 | 25.00 |
| 11 | 1+2+8 | 22 | 0.18 | 0.45 | 0.76 | 5.45 | 13.64 | 22.73 |
| 12 | 4+8 | 24 | 0.17 | 0.42 | 0.69 | 5.00 | 12.50 | 20.83 |
