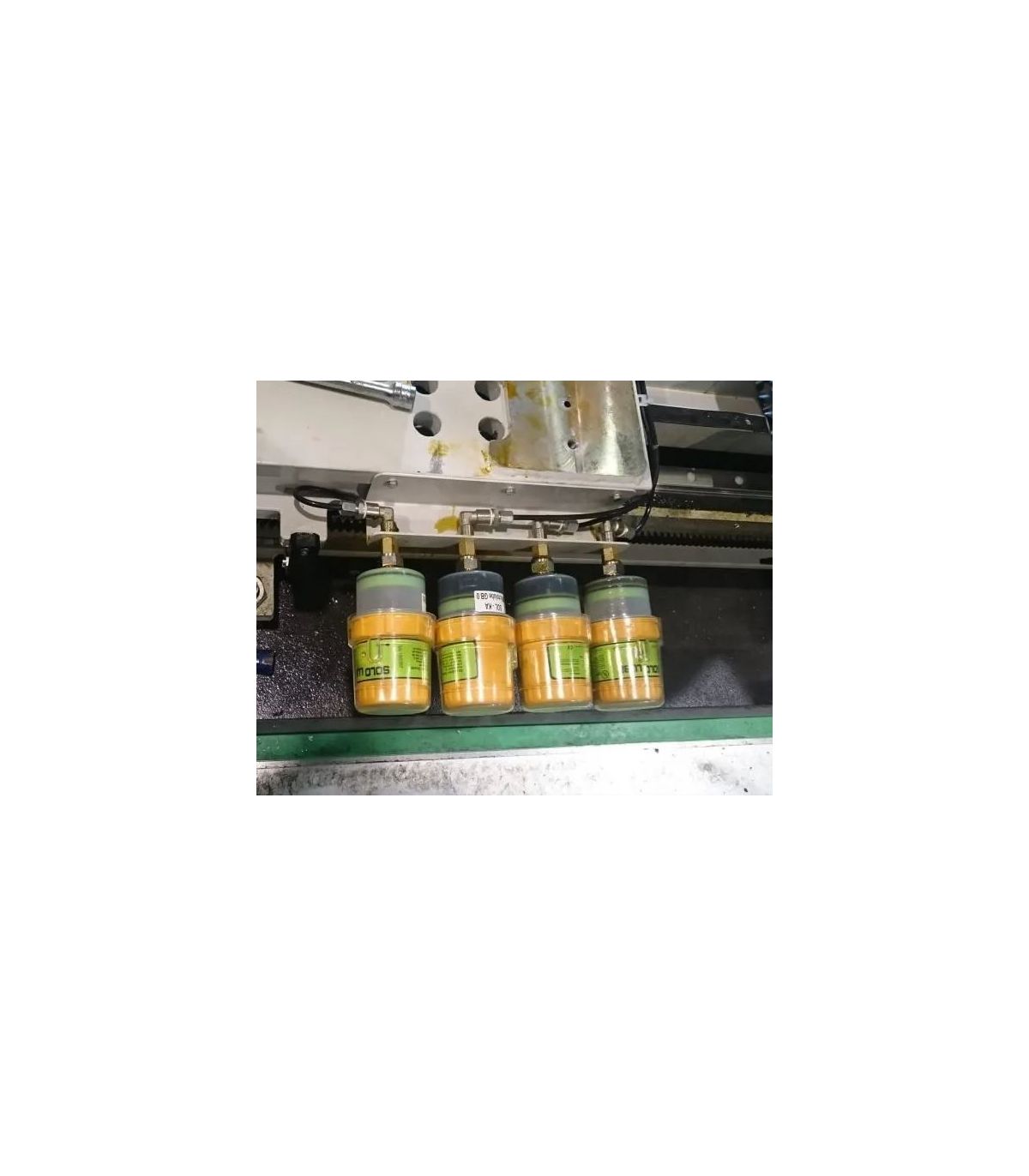

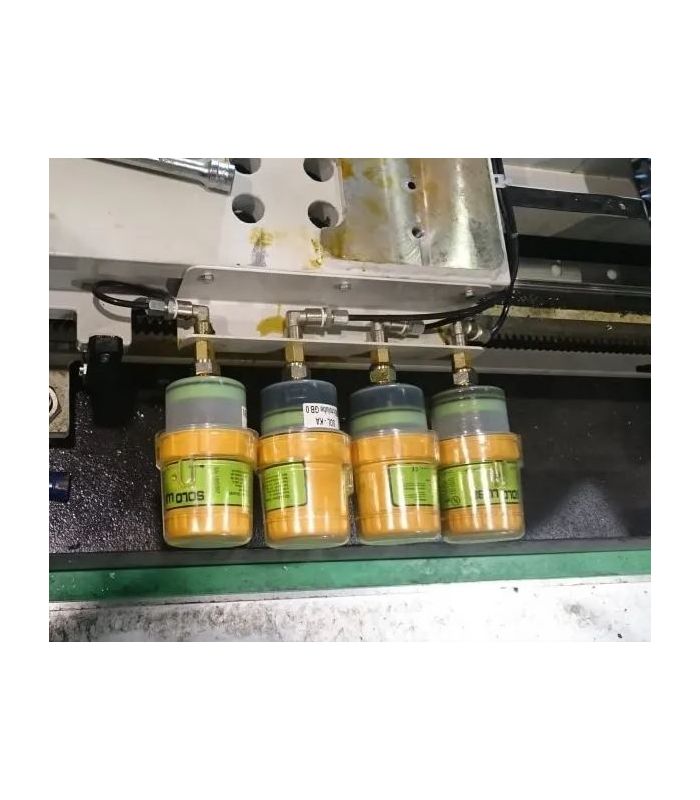

The Sololube SOL-KA01 universal grease cartridge is a reliable and easy-to-use lubrication system with an electromechanical drive mechanism. It is ideal for the automatic lubrication of bearings, plain bearings, racks, open gears, chains, etc.
Applications: manufacturing, food, mining, oil and gas industries.
Main features:

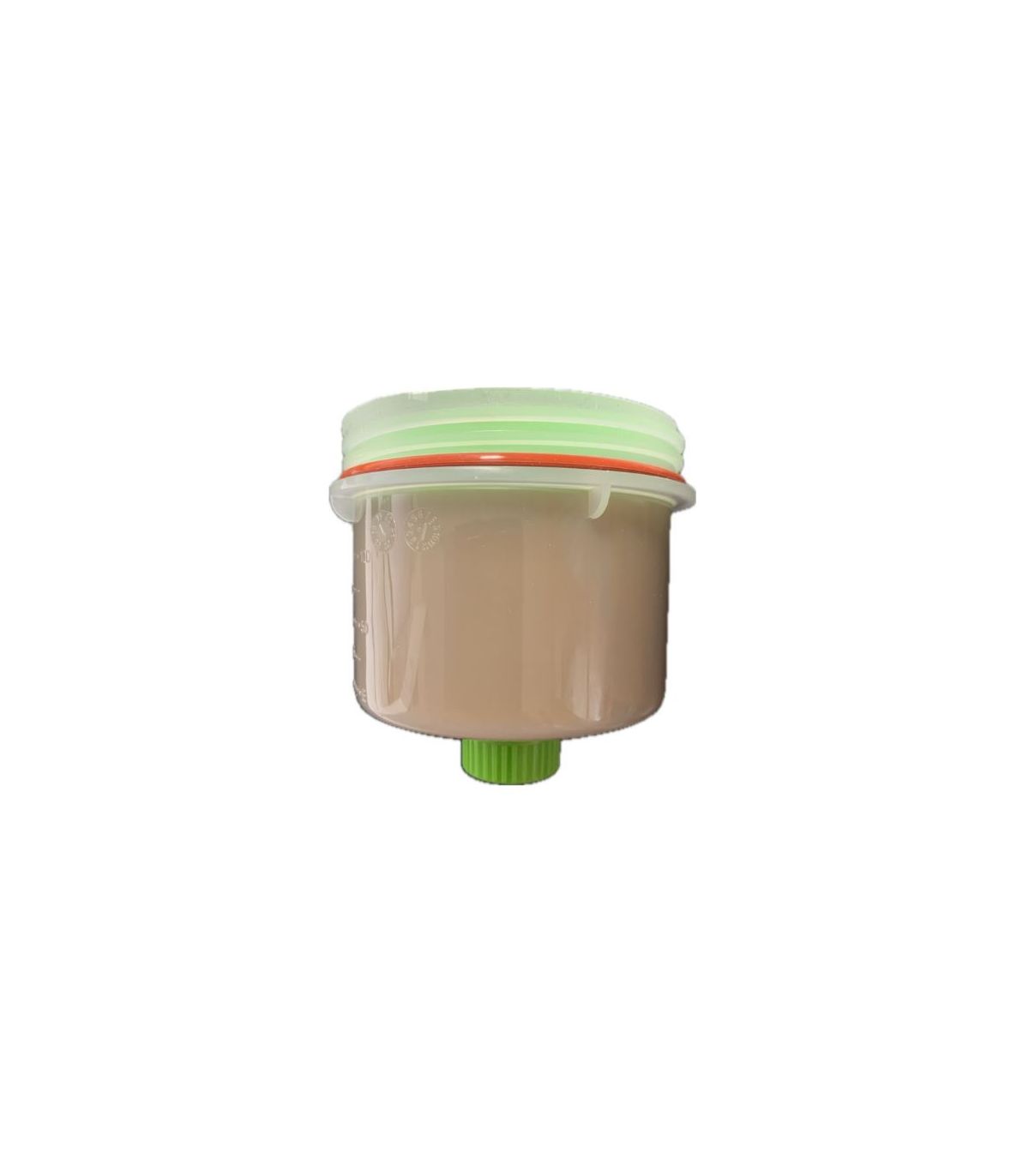

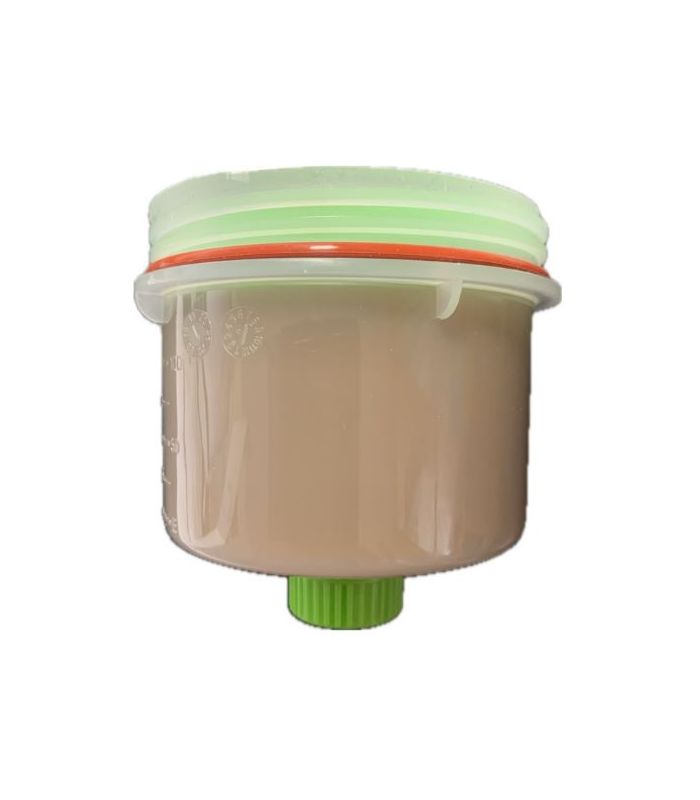

SOLOLUBE SOL-KA01 lubricant cartridge, filled with water-resistant universal grease, designed for use in SOLOLUBE automatic lubrication systems.
SOL-KA01 grease is a general purpose lubricant, suitable for the automatic lubrication of different industrial components and mechanisms, providing continuous and reliable lubrication.
Technical data sheet for a Sololube universal grease cartridge SOL-KA01:

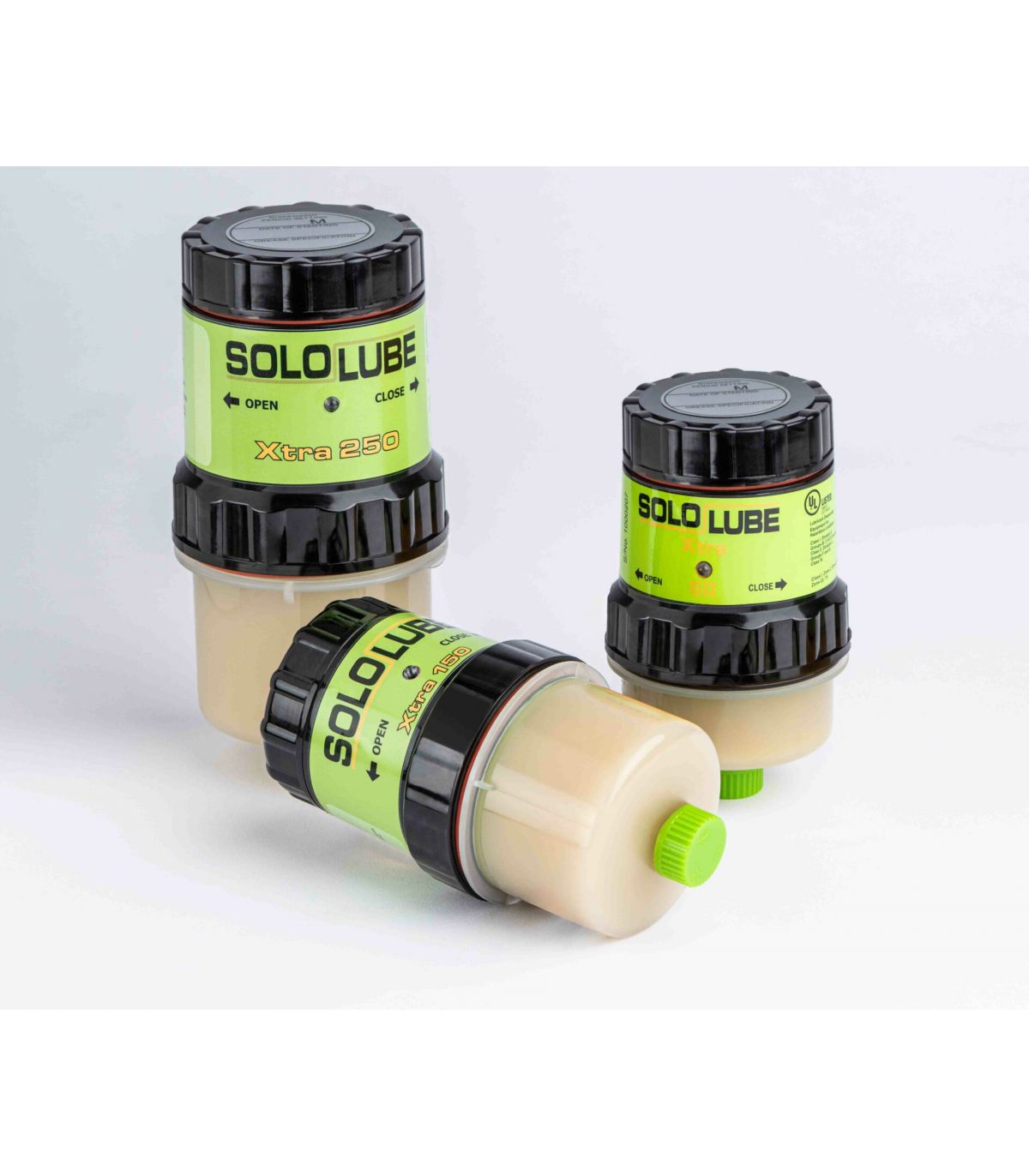

| Model | Lubricant volume (ml) | Pumping volume/stroke (ml) |
| Xtra60 | 60 | 0.167 |
| Xtra150 | 150 | 0.417 |
| Xtra250 | 250 | 0.694 |
| Distribution period (months) | DIP switch positions | Lubrication cycles (hours) | Lubricant/day (ml) | Lubricant/month (ml) | ||||
| Xtra60 | Xtra150 | Xtra250 | Xtra60 | Xtra150 | Xtra250 | |||
| 1 | 1 | 2 | 2.00 | 5.00 | 8.33 | 60.00 | 150.00 | 250.00 |
| 2 | 2 | 4 | 1.00 | 2.50 | 4.17 | 30.00 | 75.00 | 125.00 |
| 3 | 1+2 | 6 | 0.67 | 1.67 | 2.78 | 20.00 | 50.00 | 83.33 |
| 4 | 4 | 8 | 0.50 | 1.25 | 2.08 | 15.00 | 37.50 | 62.50 |
| 5 | 1+4 | 10 | 0.40 | 1.00 | 1.67 | 12.00 | 30.00 | 50.00 |
| 6 | 2+4 | 12 | 0.33 | 0.83 | 1.39 | 10.00 | 25.00 | 41.67 |
| 7 | 1+2+4 | 14 | 0.29 | 0.71 | 1.19 | 8.57 | 21.43 | 35.71 |
| 8 | 8 | 16 | 0.25 | 0.63 | 1.04 | 7.50 | 18.75 | 31.25 |
| 9 | 1+8 | 18 | 0.22 | 0.56 | 0.93 | 6.67 | 16.67 | 27.78 |
| 10 | 2+8 | 20 | 0.20 | 0.50 | 0.83 | 6.00 | 15.00 | 25.00 |
| 11 | 1+2+8 | 22 | 0.18 | 0.45 | 0.76 | 5.45 | 13.64 | 22.73 |
| 12 | 4+8 | 24 | 0.17 | 0.42 | 0.69 | 5.00 | 12.50 | 20.83 |
