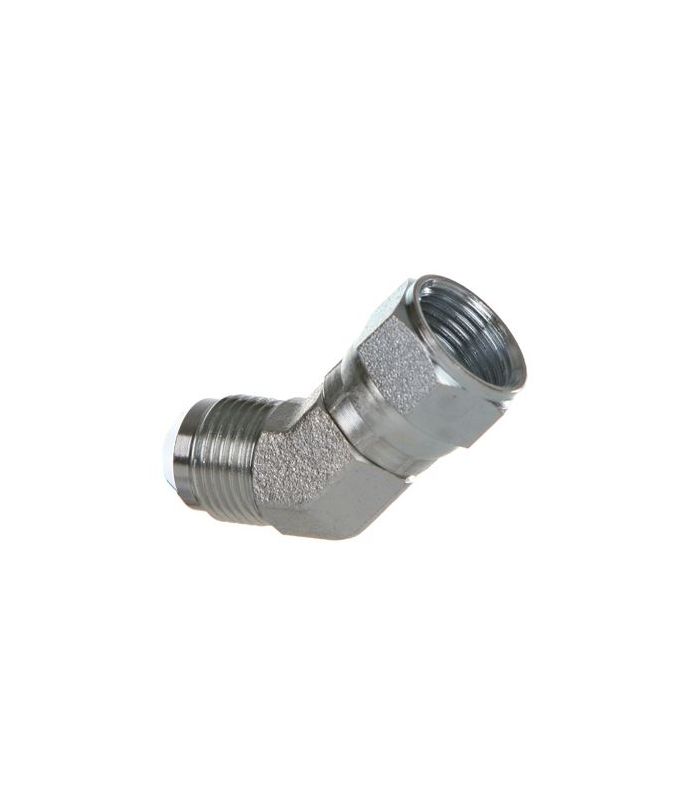

FIXED MALE ELBOW LOOSE NUT 45 JIC

FIXED MALE ELBOW LOOSE NUT 45 JIC

A 45 JIC fixed male elbow swivel nut is a type of hydraulic fitting used to connect pipes or hoses in high pressure systems, especially in applications where a secure, vibration-resistant assembly is required.

Common applications: Hydraulic systems in heavy machinery, Construction and mining equipment, High pressure systems in the marine industry, Fuel and lubrication systems.

Technical data sheet:

  • SAE J-514 (ISO 8434-2) standard fitting
  • Jointless coupling.
  • Made of carbon steel.
  • Fittings for 37° flared pipe
  • High security mechanical mounting.
  • Max pressure:
    • 6-8-10 450 bar.
    • 12-16-18-20-22 350 bar.
    • 25-30-38 250 bar.
€7.20 (tax included)
€5.95 (tax excl.)
THREAD TYPE
Reference:
45200001
Description

Fixed male elbow free nut 45 JIC

Product Details
45200001
Comments
