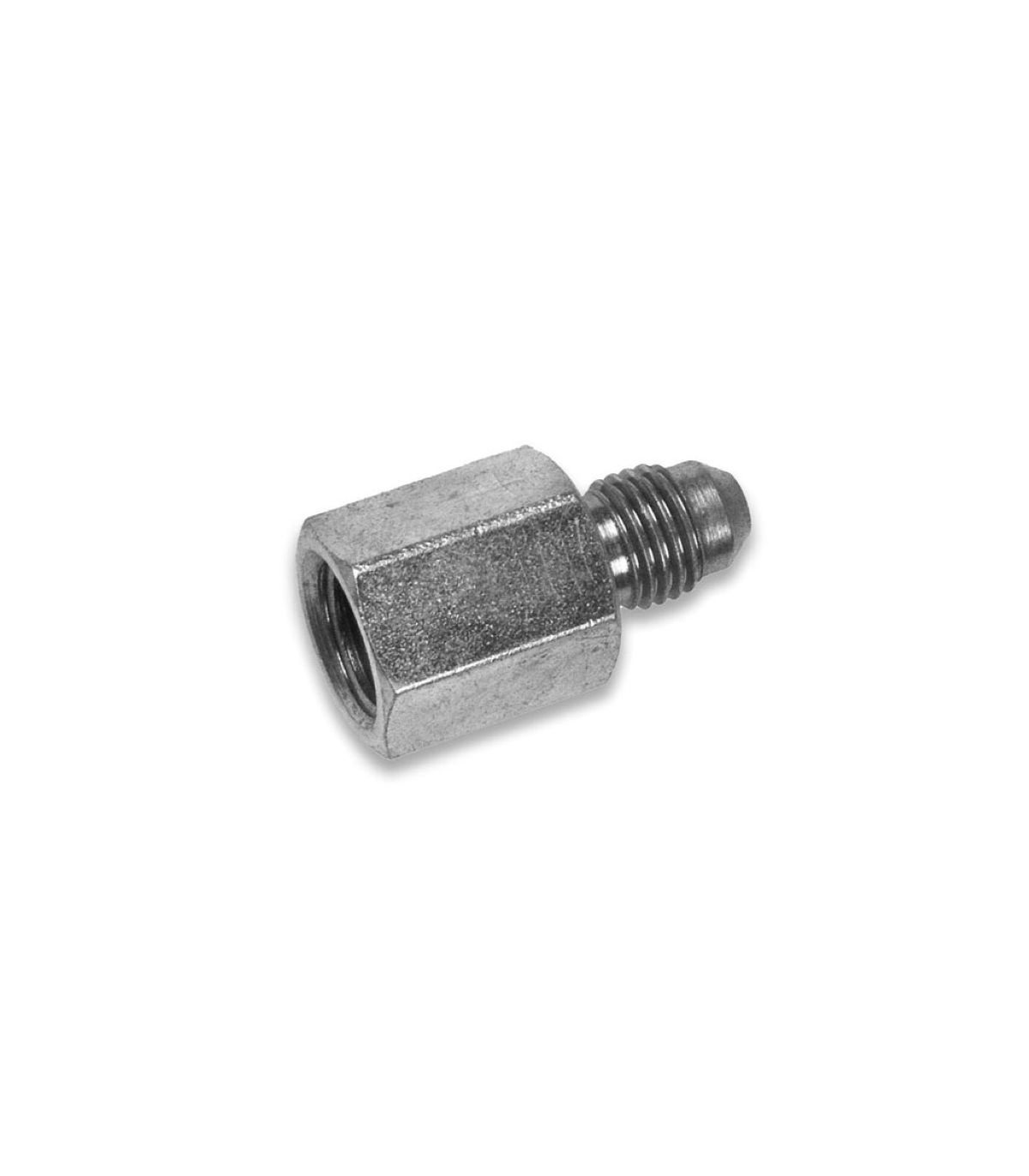

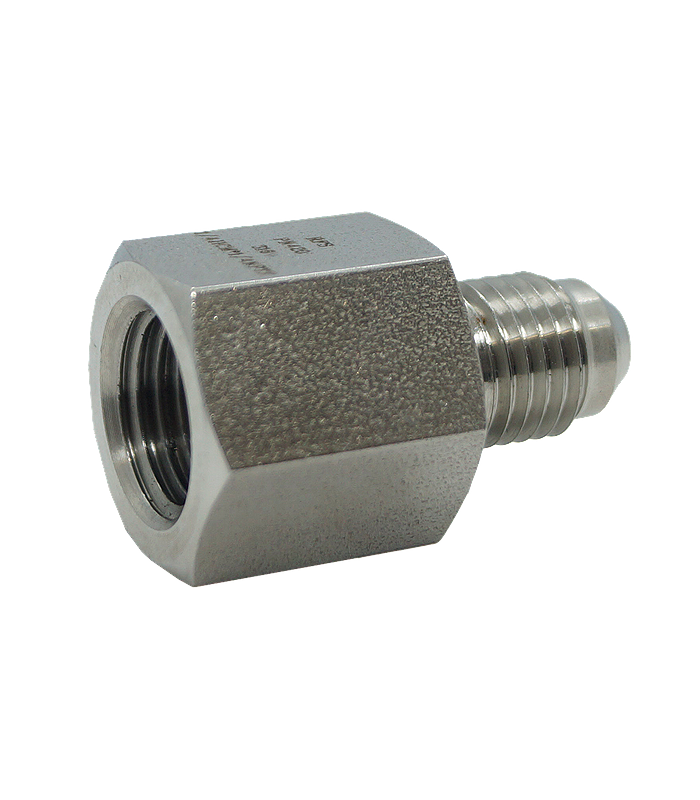

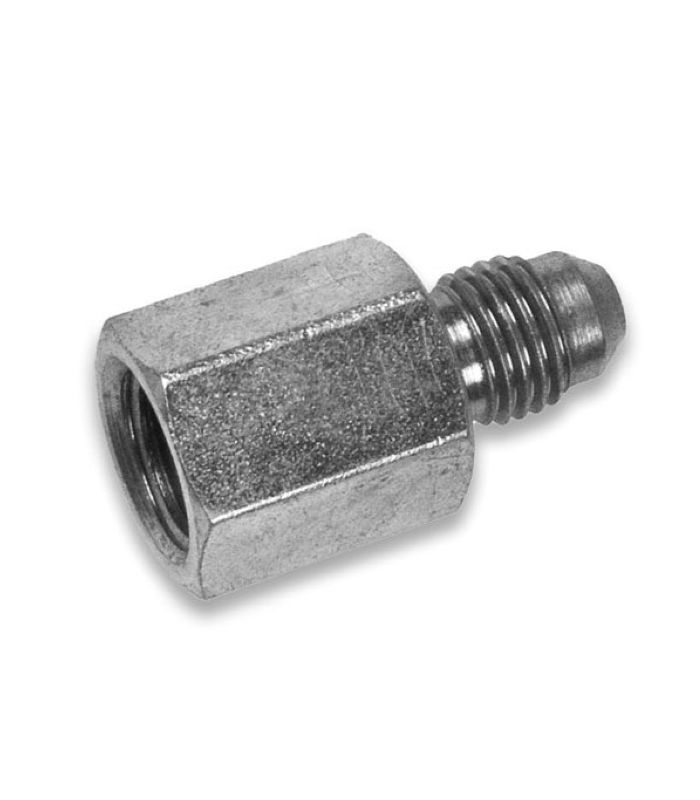

JIC MALE FEMALE BSP UNION
JIC MALE FEMALE BSP UNION
JIC MALE FEMALE BSP UNION
JIC MALE FEMALE BSP UNION

JIC MALE FEMALE BSP UNION

A JIC male to BSP female union is a fitting used in fluid systems to connect two components or pipe lines that use different thread standards.

Applications: Industrial machinery and heavy equipment, maintenance and repair, pneumatic systems, fluid systems

Technical sheet:

  • SAE J-514 (ISO 8434-2) standard fitting
  • Jointless coupling.
  • Made of carbon steel.
  • 37º flared tube fittings
  • High security of mechanical assembly.
  • Max pressure:
    • 6-8-10 450 bar.
    • 12-16-18-20-22 350 bar.
    • 25-30-38 250 bar.
€2.80 (tax included)
€2.31 (tax excl.)
SELECT THE THREAD
  • 1/8"
  • 1/4"
  • 3/8"
  • 1/2"
  • 3/4"
  • 1"
  • 1-1/4"
  • 1-1/2"
THREAD TYPE
Reference:
45270000
Description

JIC male female BSP union

Product Details
45270000
Comments
