JIC Male Straight Adapter Lock Nut
JIC Male Straight Adapter Lock Nut
JIC Male Straight Adapter Lock Nut
JIC Male Straight Adapter Lock Nut
JIC Male Straight Adapter Lock Nut
JIC Male Straight Adapter Lock Nut

JIC Male Straight Adapter Lock Nut

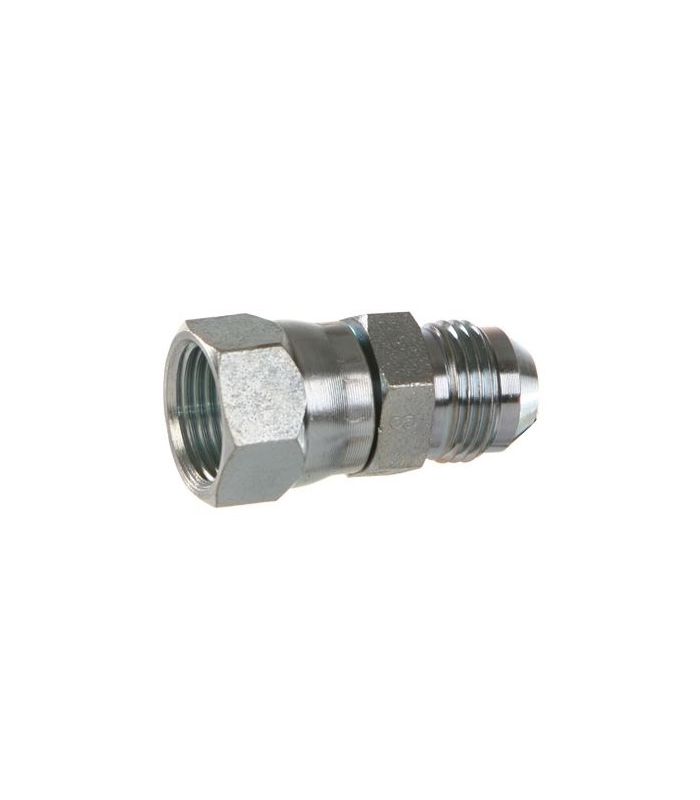

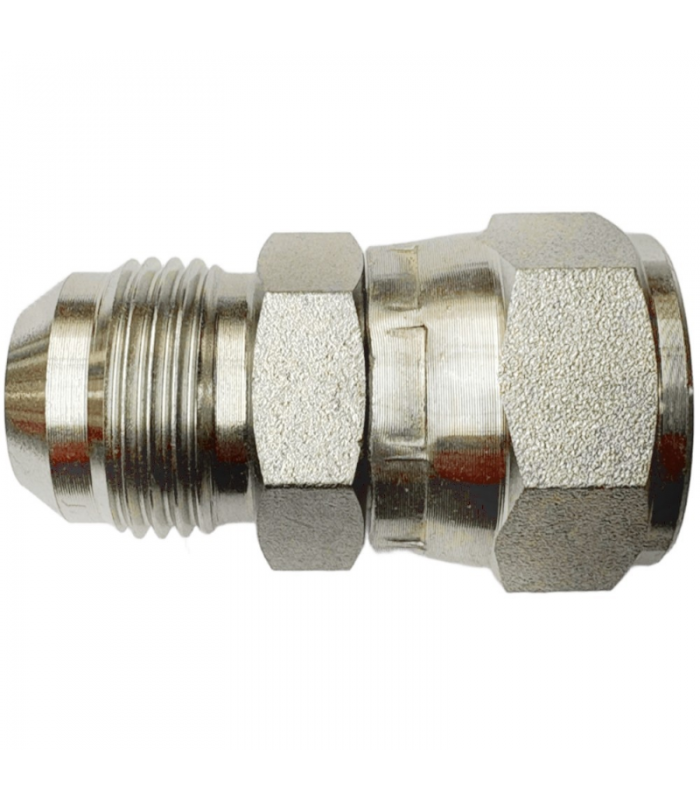

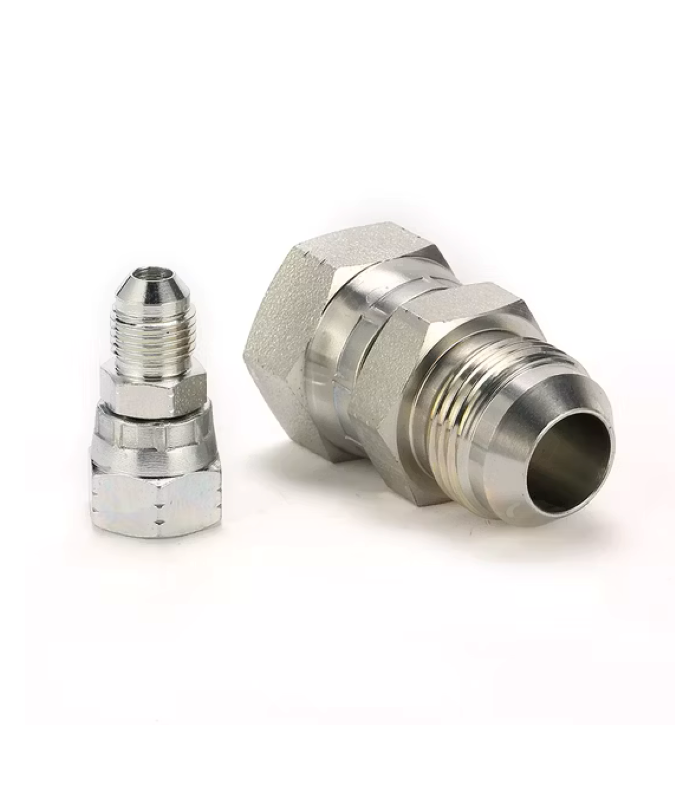

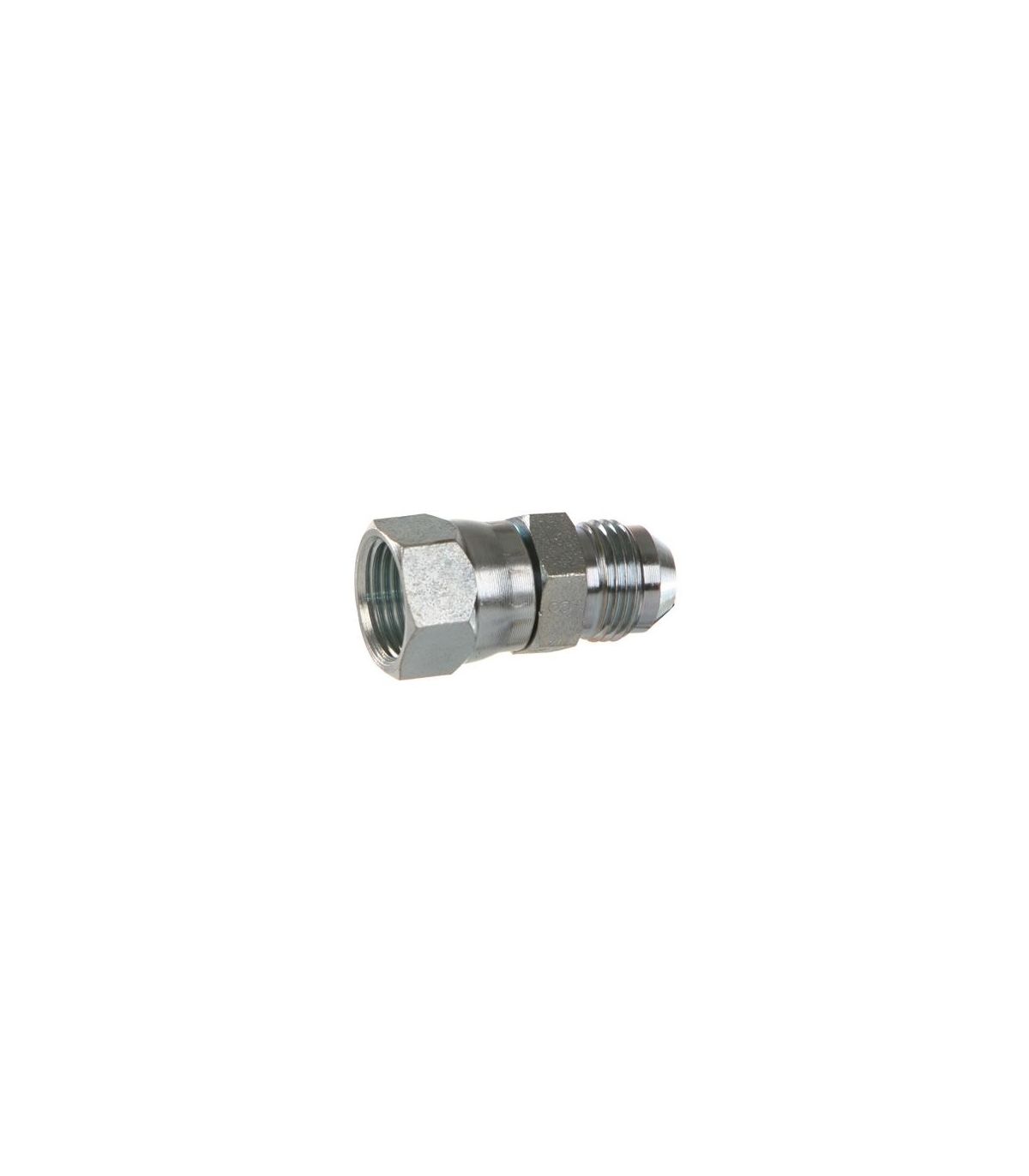

A JIC male straight adapter with a swivel nut is a hydraulic fitting designed to connect two components of a hydraulic or pneumatic line, maintaining a secure, leak-proof, and straight-aligned connection. It consists of a JIC male end and a swivel swivel nut end.

Applications: industrial hydraulic systems, machinery and high-pressure pneumatic installations.

Main features:

  • SAE J-514 standard fitting (ISO 8434-2)
  • Seamless coupling.
  • Made of carbon steel.
  • Fittings for 37° flared pipe
  • High mechanical assembly security.
  • Max. pressure:
    • 6-8-10 450 bar.
    • 12-16-18-20-22 350 bar.
    • 25-30-38 250 bar.
€9.16 (tax included)
€7.57 (tax excl.)
THREAD TYPE
Reference:
45100001
Description

JIC Male Straight Adapter Lock Nut

A JIC male straight adapter with a swivel nut is a hydraulic fitting used to connect hoses or pipes to other components (valves, pumps, cylinders, hoses, etc.) in a secure and leak-proof manner.

One end has a male thread , which screws into a component with a female thread. The swivel nut rotates freely relative to the adapter body, which simplifies assembly because it doesn't twist the hose, allows for easier tightening, and reduces stress during installation.

Common uses

  • Industrial hydraulic systems
  • Agricultural and public works machinery
  • High-pressure pneumatic installations
  • Hydraulic hose connection

Technical specifications of a JIC male straight adapter with swivel nut:

Product Details
45100001
Comments
12 other products in the same category:
STRAIGHT UNION MALE JIC MALE NPT

€1.47 (tax excl.)
€1.78 (tax included)
A male JIC male NPT straight union is a hydraulic fitting used to connect pipes or hoses that have different types of threads. Common applications: Hydraulic systems where JIC and NPT threads are combined, Adaptation...
STRAIGHT UNION MALE JIC - MALE SAE

€2.04 (tax excl.)
€2.47 (tax included)
A male JIC - male SAE straight union is a hydraulic fitting used to join two sections of pipe or hose that have a male end with a 37º flare angle. Assembly is carried out by screwing both male ends into the respective...
TEA MACHO JIC

€3.48 (tax excl.)
€4.21 (tax included)
A JIC male tee is used to connect three hydraulic pipes or hoses in high-pressure systems. It allows hydraulic fluid flow to branch in three directions, minimizing leaks. Applications: Hydraulic systems in heavy...
JIC SIDE IDLE NUT FIXED MALE TE

€4.42 (tax excl.)
€5.35 (tax included)
SAE J-514 standard fitting (ISO 8434-2) Jointless coupling. Made of carbon steel. Fittings for 37º flared tube High mechanical assembly security. Max. pressure: 6-8-10 450 bar. 12-16-18-20-22 350 bar. 25-30-38 250 bar.
FIXED MALE ELBOW LOOSE NUT JIC

€4.06 (tax excl.)
€4.91 (tax included)
JIC Fixed Male Elbow Swivel Nut A JIC fixed male elbow with a swivel nut is a hydraulic fitting designed to make a 90° change of direction in a hydraulic line, ensuring a secure, high-pressure connection under the...
JIC MALE-MALE ELBOW

€3.74 (tax excl.)
€4.53 (tax included)
A JIC male-to-male elbow is used in hydraulic systems to join two components or pipes that have JIC female connections, while simultaneously making a 90º change in direction. Applications: Connect two components or...
JIC NUT

€0.42 (tax excl.)
€0.51 (tax included)
A JIC nut is used in hydraulic systems that follow the JIC standard to hold and seal the JIC connection. Common applications: Hydraulic systems in heavy machinery, Construction and mining equipment, High-pressure...
JIC CENTRAL LOOSE NUT MALE TE

€4.39 (tax excl.)
€5.31 (tax included)
SAE J-514 standard fitting (ISO 8434-2) Jointless coupling. Made of carbon steel. Fittings for 37º flared tube High mechanical assembly security. Max. pressure: 6-8-10 450 bar. 12-16-18-20-22 350 bar. 25-30-38 250 bar.

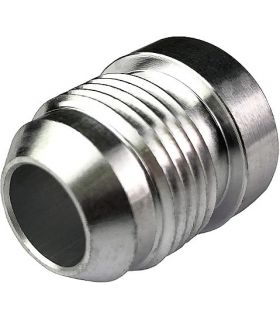

JIC WELDABLE MALE JOINT
