INSTANT FITTING TUBE CONNECTION 45º THREAD
INSTANT FITTING TUBE CONNECTION 45º THREAD
INSTANT FITTING TUBE CONNECTION 45º THREAD
INSTANT FITTING TUBE CONNECTION 45º THREAD

INSTANT FITTING TUBE CONNECTION 45º THREAD

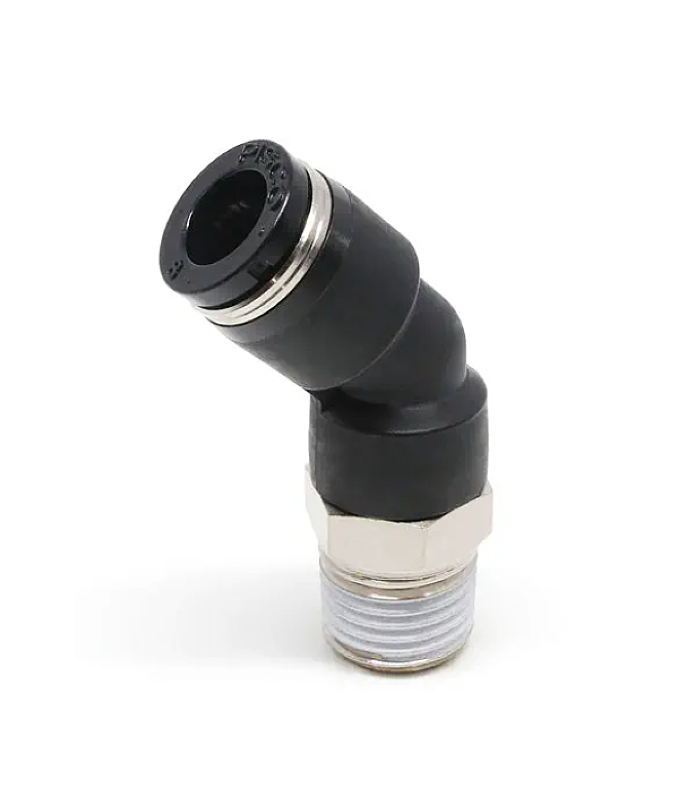

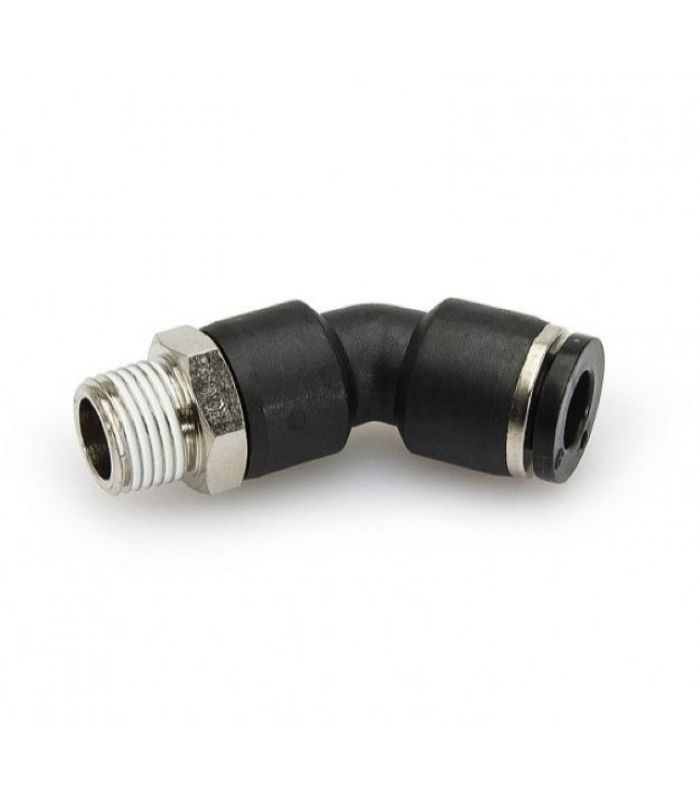

A 45° tube threaded quick-connect fitting is a connector for pneumatic or low-pressure fluid systems that allows a tube to be connected to a threaded component using a quick-connect system. The tube connection has a 45° angle relative to the thread direction.

Applications: Pneumatic systems, Low pressure fluid systems, Automation, Robotics

Technical sheet:

  • Working pressure -0.99 / 10 bar.
  • Temperature 0 /- 60ºC.
  • Wide range of Ø 4-16
  • Ease of connection
  • Cylindrical or conical thread
  • Body in nickel-plated brass and PBT.
  • Gripper made of 301 stainless steel
  • Push-button ring in POM resin
€2.42 (tax included)
€2.00 (tax excl.)
Tube diameter - Thread
  • Ø 4-M5
  • Ø 4-M6
  • Ø 4-1/8
  • Ø 4-1/4
  • Ø 6-M5
  • Ø 6-M6
  • Ø 6-1/8
  • Ø 6-1/4
  • Ø 6-3/8
  • Ø 6-1/2
  • Ø 8-1/8
  • Ø 8-1/4
  • Ø 8-3/8
  • Ø 8-1/2
  • Ø 10-1/8
  • Ø 10-1/4
  • Ø 10-3/8
  • Ø 10-1/2
  • Ø 12-1/4
  • Ø 12-3/8
  • Ø 12-1/2
Reference:
30380001
Description

instant fitting pipe connection thread 45º

EMPALME TUBO ROSCA 45

Product Details
30380001
