TRAPEZOIDAL BELT SPA

The SPA V-belt has a narrower profile, which offers advantages in terms of space and flexibility. It is commonly used in low- and medium-power applications where smooth and quiet transmission is required.

Applications: Light machinery, Conveyors, Agriculture, Domestic equipment.

Technical specifications:

Manufactured according to ISO-4183, ISO-4184, and DIN-2215
Temperature range -18ºC / 80ºC
Maximum linear speed 30 m/sec.
Oil resistance
Antistatic

View all V-belts

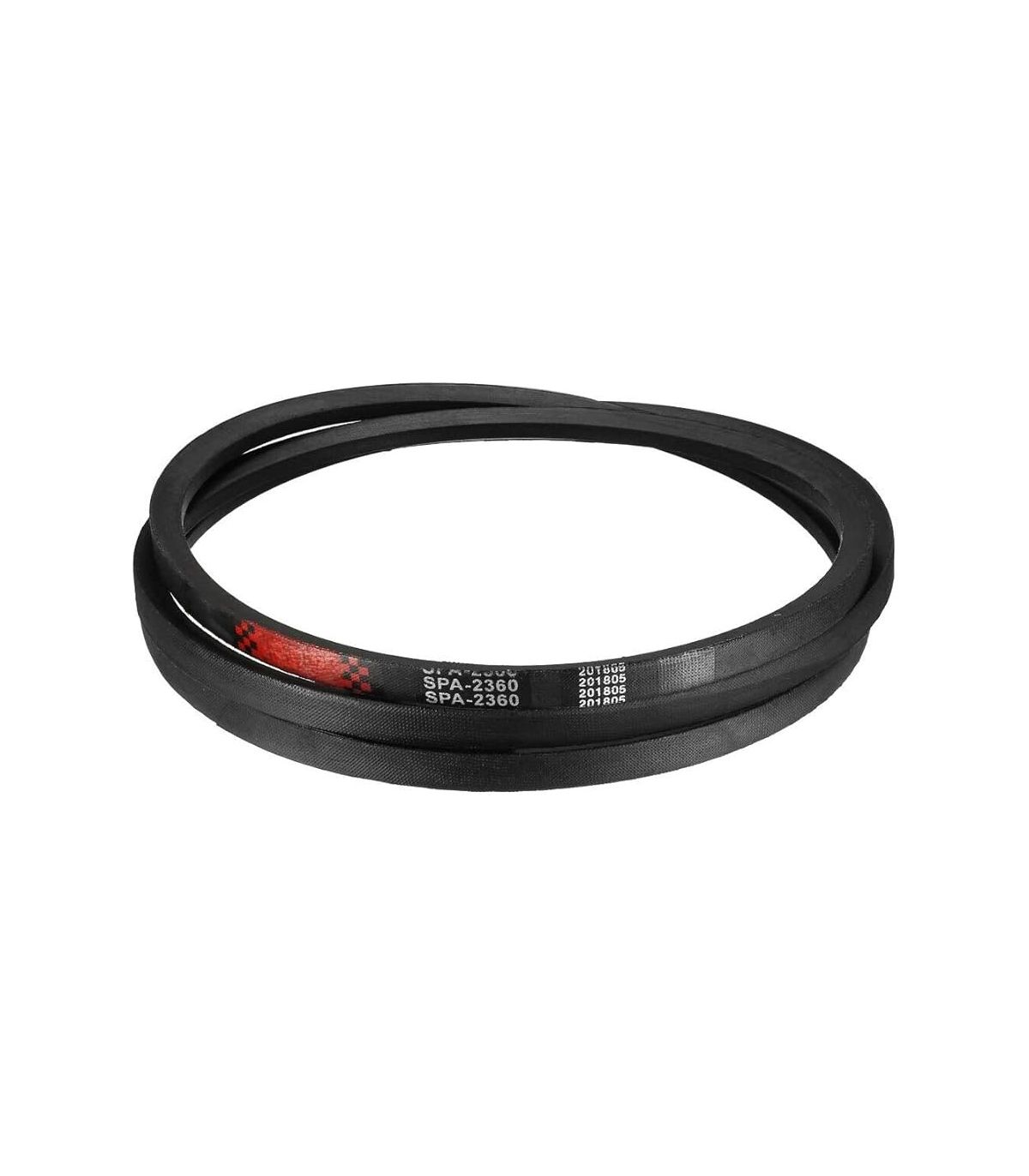

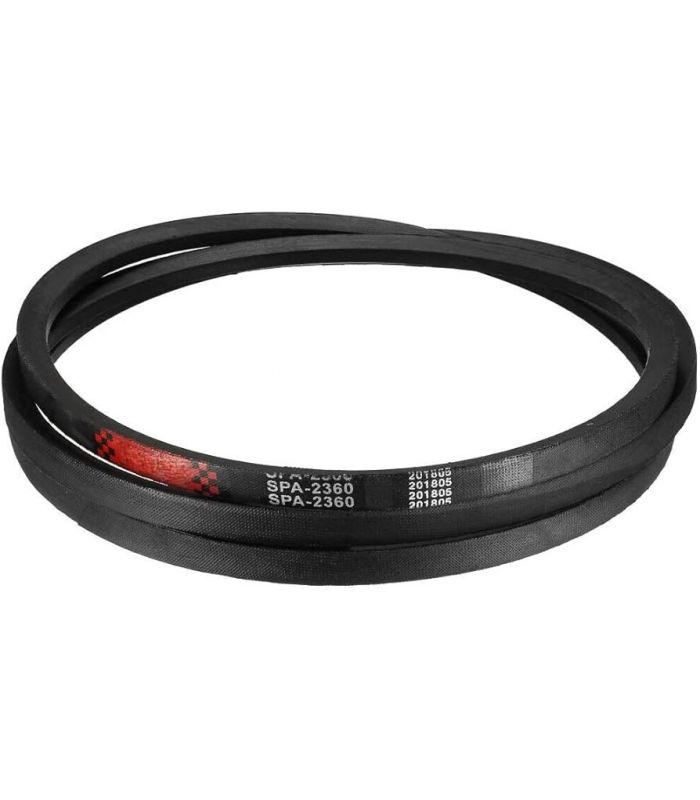

SPA V-belt

The SPA V-belt It is a transmission element designed to efficiently transmit power between pulleys in different types of machinery and industrial installations.

Its SPA profile, corresponding to the range of narrow trapezoidal belts, provides reliable transmission and allows working in applications where good power transmission capacity is required in a relatively small space.

It is designed for pulley-based transmission systems and is suitable for Industrial machinery, fans, pumps, compressors, motors and other equipment driven by belt transmission.

Technical specifications of a SPA V-belt:

Reference	Belt reference	Pitch length (mm)
5257000	SPA 732	732
5257001	SPA 757	757
5257003	SPA 807	807
5257004	SPA 832	832
5257006	SPA 857	857
5257008	SPA 882	882
5257010	SPA 907	907
5257012	SPA 932	932
5257014	SPA 957	957
5257015	SPA 982	982
5257016	SPA 1000	1000
5257017	SPA 1032	1032
5257018	SPA 1060	1060
5257019	SPA 1082	1082
5257020	SPA 1090	1090
5257021	SPA 1107	1107
5257022	SPA 1120	1120
5257023	SPA 1132	1132
5257024	SPA 1157	1157
5257025	SPA 1180	1180
5257026	SPA 1207	1207
5257027	SPA 1220	1220
5257028	SPA 1232	1232
5257029	SPA 1250	1250
5257030	SPA 1257	1257
5257031	SPA 1272	1272
5257032	SPA 1282	1282
5257033	SPA 1307	1307
5257034	SPA 1320	1320
5257035	SPA 1332	1332
5257036	SPA 1337	1337
5257037	SPA 1357	1357
5257038	SPA 1382	1382
5257039	SPA 1400	1400
5257040	SPA 1407	1407
5257041	SPA 1432	1432
5257042	SPA 1450	1450
5257043	SPA 1457	1457
5257044	SPA 1482	1482
5257045	SPA 1500	1500
5257046	SPA 1507	1507
5257047	SPA 1532	1532
5257048	SPA 1550	1550
5257049	SPA 1557	1557
5257050	SPA 1582	1582
5257051	SPA 1600	1600
5257052	SPA 1632	1632
5257053	SPA 1700	1700
5257054	SPA 1732	1732
5257055	SPA 1750	1750
5257056	SPA 1757	1757
5257057	SPA 1782	1782
5257058	SPA 1800	1800
5257059	SPA 1807	1807
5257060	SPA 1832	1832
5257061	SPA 1850	1850
5257062	SPA 1857	1857
5257063	SPA 1882	1882
5257064	SPA 1900	1900
5257065	SPA 1907	1907
5257066	SPA 1932	1932
5257067	SPA 1950	1950
5257068	SPA 1957	1957
5257069	SPA 1982	1982
5257070	SPA 2000	2000
5257071	SPA 2032	2032
5257072	SPA 2057	2057
5257073	SPA 2060	2060
5257074	SPA 2082	2082
5257075	SPA 2120	2120
5257076	SPA 2132	2132
5257077	SPA 2182	2182
5257078	SPA 2207	2207
5257079	SPA 2232	2232
5257080	SPA 2240	2240
5257081	SPA 2282	2282
5257082	SPA 2300	2300
5257083	SPA 2307	2307
5257084	SPA 2332	2332
5257085	SPA 2360	2360
5257086	SPA 2382	2382
5257087	SPA 2432	2432
5257088	SPA 2482	2482
5257089	SPA 2500	2500
5257090	SPA 2532	2532
5257091	SPA 2582	2582
5257092	SPA 2607	2607
5257093	SPA 2632	2632
5257094	SPA 2650	2650
5257095	SPA 2732	2732
5257096	SPA 2782	2782
5257097	SPA 2800	2800
5257098	SPA 2832	2832
5257099	SPA 2847	2847
5257100	SPA 2882	2882
5257101	SPA 2932	2932
5257102	SPA 2982	2982
5257103	SPA 3000	3000
5257104	SPA 3032	3032
5257105	SPA 3082	3082
5257106	SPA 3150	3150
5257107	SPA 3250	3250
5257108	SPA 3282	3282
5257109	SPA 3350	3350
5257110	SPA 3382	3382
5257111	SPA 3550	3550
5257112	SPA 3750	3750
5257113	SPA 4000	4000
5257114	SPA 4250	4250
5257115	SPA 4500	4500
5257116	SPA 4620	4620
5257117	SPA 5000	5000
